Asymmetric Carbine Hook - Length 80mm - 5/16"Features: Grade 316L stainless steel carbine hooks Asymmetrical shape to support higher loads With eye to attach a webbing Applications: For fastening applications Integrated on Wichard tethers Specifications: Materials 316L stainless steel grade Length (inch) 3-5/32" Working load (lb) 2110 WLL (lb) 660 Breaking load (lb) 3300 Weight (lb) 0.161 Dimensions (see 2nd image): A (inch) 19/32" B (inch) 7/16" D diameter (inch) 5/16"

Read more less

Automatic Mooring Hook - 170mm Length - 6-11/16"Features: Automatic mooring hook Perfect for mooring Can be installed on most boat hooks Applications:Mooring applicationSpecifications: Materials: 316L stainless steel grade  Weight: (lb) 0.838 / (g) 380  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 25/32" / (mm) 20   D diameter: (inch) 15/32" / (mm) 12  Length: (inch) 6 11/16" / (mm) 170 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 36 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.525 / (g) 238 Dimensions: Length: (inch) 4 21/64" / (mm) 110   A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 1/32" / (mm) 26  C: (inch) 2 9/16" / (mm) 65  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64" Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 36 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 7930 / (kg) 3600  Breaking load: (lb) 15430 / (kg) 7000  Weight: (lb) 0.483 / (g) 219  Dimensions: Length: (inch) 3 35/64" / (mm) 90  A: (inch) 1 37/64" / (mm) 40  B: (inch) 1 1/32" / (mm) 26  C: (inch) 1 49/64" / (mm) 45  D diameter: (inch) 25/64" / (mm) 10  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64" Features:  Fully dropforged product with high quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 60 Nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials; 316L stainless steel grade Color: Black Working load: (lb) 14100 / (kg) 6400  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.761 / (g) 345  Dimensions: Length: (inch) 4 21/64" / (mm) 110  A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 1/16" / (mm) 27  C: (inch) 1 31/32" / (mm) 50  D diameter: (inch) 15/32" / (mm) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

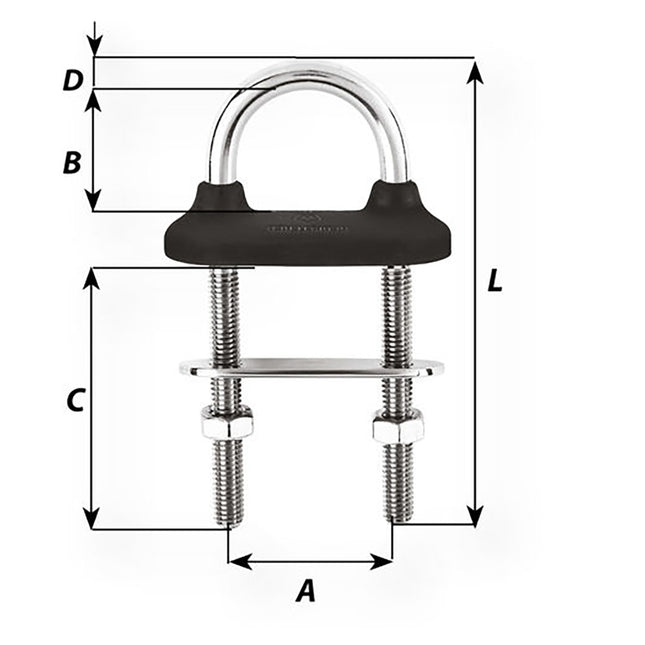

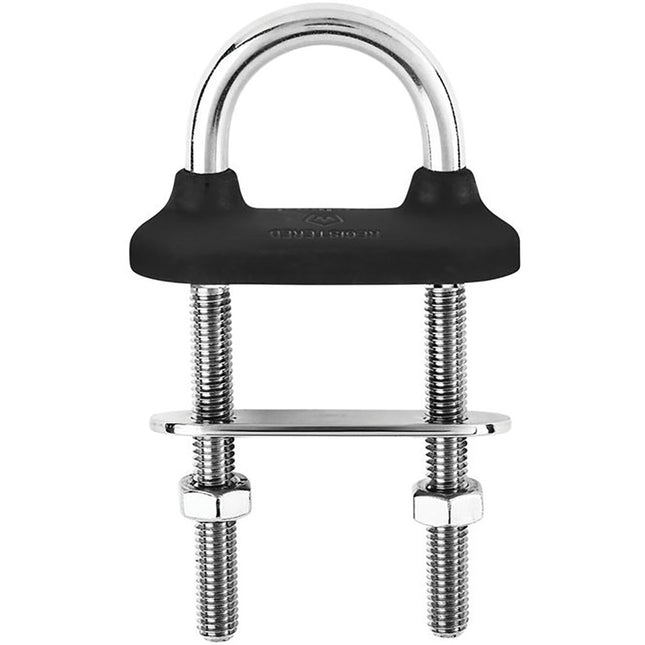

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 130mm Length - 5-1/8"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 60 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 14100 / (kg) 6400  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.827 / (g) 375  Dimensions: Length: (inch) 5 1/8" / (mm) 130  A: (inch) 1 47/64" / (mm) 44  B: (inch) 1 1/16" / (mm) 27  C: (inch) 2 3/4" / (mm) 70  D diameter: (inch) 15/32" / (mm) 12  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-bolt - 5mm Diameter - 13/64" - 60mm Length - 2-23/64"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 4.5 nm  Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 1410 / (kg) 640  Breaking load: (lb) 4400 / (kg) 2000  Weight: (lb) 0.077 / (g) 35 Dimensions: Length: (inch) 2 23/64" / (mm) 60   A: (inch) 1 7/64" / (mm) 28  B: (inch) 53/64" / (mm) 21  C: (inch) 1 3/16" / (mm) 30  D diameter: (inch) 13/64" / (mm) 5  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 7.5 nm  Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 2820 / (kg) 1280  Breaking load: (lb) 6610 / (kg) 3000  Weight: (lb) 0.132 / (g) 60  Dimensions: Length: (inch) 2 3/4" / (mm) 70  A: (inch) 1 17/64" / (mm) 32  B: (inch) 15/16" / (mm) 24  C: (inch) 1 3/8" / (mm) 35  D diameter: (inch) 15/64" / (mm) 6  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 100mm Length - 3-15/16"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 18 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 10580 / (kg) 4800  Weight: (lb) 0.3 / (g) 136  Dimensions: Length: (inch) 3 15/16" / (mm) 100  A: (inch) 1 27/64" / (mm) 36  B; (inch) 63/64" / (mm) 25  C: (inch) 2 23/64" / (mm) 60  D diameter: (inch) 5/16" / (mm) 8  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Black Watertight U-Bolt - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"Features:  Fully drop-forged product with high-quality stainless steel Outstanding working and breaking loads Complete water-tightness thanks to the resistant rubber collar (black color) Easy installation (no need to use a waterproof sealant) Delivered with bolts and counter-plate Max tightening torque: 18 nm Applications:Various fastening applications: shrouds, lifelines, blocks…Specifications:  Materials: 316L stainless steel grade Color: Black Working load: (lb) 5290 / (kg) 2400  Breaking load: (lb) 10580 / (kg) 4800  Weight: (lb) 0.271 / (g) 123  Dimensions: Length: (inch) 3 5/32" / (mm) 80  A: (inch) 1 27/64" / (mm) 36  B: (inch) 63/64" / (mm) 25  C: (inch) 1 37/64" / (mm) 40  D diameter: (inch) 5/16" / (mm) 8  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Captive Pin Bow Shackle - Diameter 10mm - 13/32"Riggers have turned to Wichard shackles for their legendary quality, beautiful polish and smooth contours.Drop-forged 316L stainless steel construction is a perfect blend of strength and corrosion resistance and ensures that shape remains intact at loads that meet or exceed the deformation point.  These bow shackles are ideal for applications that involve loads from multiple directions.  At the thumb screw end, the elasticity of the shackle’s body locks the pin’s position into one or other of its small indentations.  There is no need to worry about it accidentally coming loose due to vibrations.  The pin is captive to prevent accidental loss.  Features: Captive pin bow shackle  Outstanding working and breaking loads Single handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Technical Specifications: Material - 316 stainless steel grade Working load - 3430 (lbs)  WLL - 2290 (lbs) Breaking load - 11460 (lbs) Weight - 0.306 (lbs) *Sold as an Individual Brochure (pdf)

Read more less

Captive Pin Bow Shackle - Diameter 4mm - 5/32"Features: Captive pin bow shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Single-handed operation for more safety WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 440 Breaking load (lb) 2200 Weight (lb) 0.022 Dimensions (see 2nd image): A (inch) 45/64" B (inch) 5/16" C (inch) 13/64" D (inch) 23/64" D diameter (inch) 5/32" E (inch) 5/32" M (inch) 53/64"
