Self-Locking Bow Shackle - Diameter 6mm - 1/4"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 660 Breaking load (lb) 3300 Weight (lb) 0.066 Dimensions (see 2nd image): A (inch) 1-7/64" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" M (inch) 1-17/64"

Read more less

Self-Locking Bow Shackle - Diameter 8mm - 5/16"Features: Self-locking bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.15 Dimensions (see 2nd image): A (inch) 1-29/64" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" M (inch) 1-17/32"

Read more less

Self-Locking D Shackle - 12mm Diameter - 15/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Standard applications of the shackle Attachment applications: blocks, head Specifications: Materials: 316 stainless steel grade Working load: (lb) 4580 / (kg) 2080 WLL: (lb) 2640 / 1200 (kg) Breaking load: (lb) 13220 / (kg) 6000  Weight: (lb) 0.425 / (g) 193 Dimensions: A: (inch) 1-21/32" / (mm) 42  B: (inch) 1-1/16" / (mm) 27  C: (inch) 15/32" / (mm) 12  D: (inch) 15/16" / (mm) 24  D diameter: (inch) 15/32" / (mm) 12  E: (inch) 7/16" / (mm) 11  F: (inch) 2-7/8" / (mm) 73  G: (inch) 2-7/16" / (mm) 62   Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

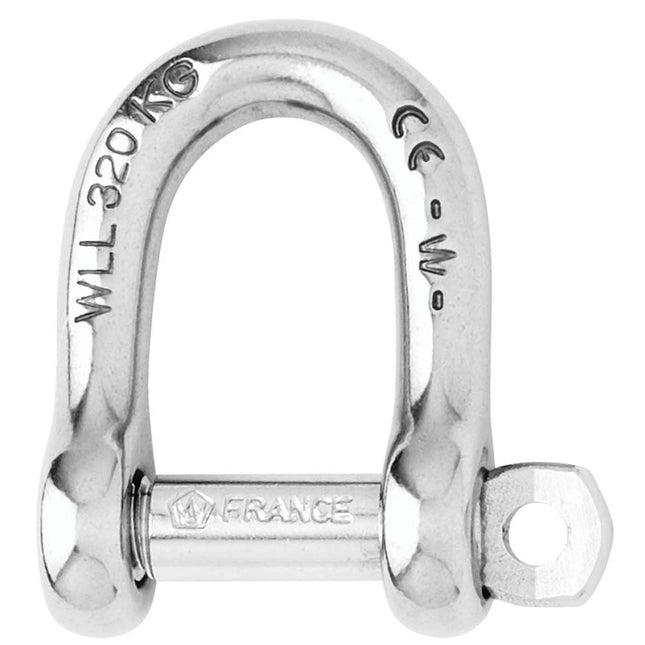

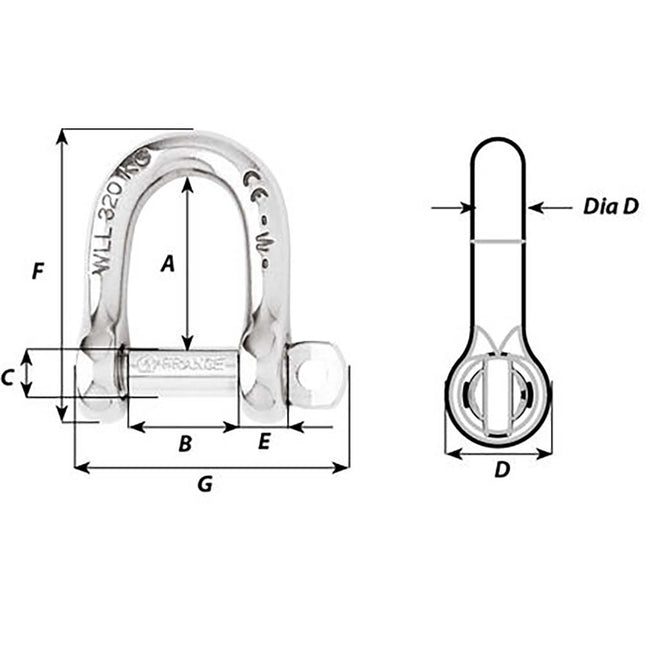

Self-Locking D Shackle - Diameter 10mm - 13/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 3350 WLL (lb) 1890 Breaking load (lb) 9470 Weight (lb) 0.216 Dimensions (see 2nd image): A (inch) 1-19/64" B (inch) 25/32" C (inch) 25/64" D (inch) 3/4" D diameter (inch) 25/64" E (inch) 23/64" F (inch) 2-1/4" G (inch) 2-3/64"

Read more less

Self-Locking D Shackle - Diameter 4mm - 5/32"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.015 Dimensions (see 2nd image) A (inch) 33/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" E (inch) 1/8" F (inch) 29/32" G (inch) 25/32"

Read more less

Self-Locking D Shackle - Diameter 5mm - 3/16"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 700 WLL (lb) 300 Breaking load (lb) 1540 Weight (lb) 0.015 Dimensions (see 2nd image): A (inch) 33/64" B (inch) 5/16" C (inch) 5/32" D (inch) 5/16" D diameter (inch) 5/32" E (inch) 1/8" F (inch) 29/32" G (inch) 25/32"

Read more less

Self-Locking D Shackle - Diameter 6mm - 1/4"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 1320 WLL (lb) 700 Breaking load (lb) 3520 Weight (lb) 0.049 Dimensions (see 2nd image): A (inch) 25/32" B (inch) 15/32" C (inch) 15/64" D (inch) 15/32" D diameter (inch) 15/64" E (inch) 13/64" F (inch) 1-11/32" G (inch) 1-7/32"

Read more less

Self-Locking D Shackle - Diameter 8mm - 5/16"Features: Self-locking D shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications: Standard applications of the shackle Attachment applications: blocks, head… Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1190 Breaking load (lb) 5950 Weight (lb) 0.121 Dimensions (see 2nd image): A (inch) 1-1/32" B (inch) 5/8" C (inch) 5/16" D (inch) 5/8" D diameter (inch) 5/16" E (inch) 9/32" F (inch) 1-49/64" G (inch) 1-39/64"

Read more less

Self-Locking Large Opening Shackle - 10mm Diameter - 13/32"Features: Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications:  For applications where a large opening shackle is requiredSpecifications: Materials: 316 stainless steel grade Working load: (lb) 2820 / (kg) 1280  WLL: (lb) 1760 / (kg) 800  Breaking load: (lb) 8810 / (kg) 4000  Weight: (lb) 0.28 / (kg) 4000  Dimensions: A: (inch) 2 53/64" / (mm) 72  B: (inch) 1 37/64" / (mm) 40   C; (inch) 25/64" / (mm) 10  D: (inch) 53/64" / (mm) 21  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 25/64" / (mm) 10  G: (inch) 2 51/64" / (mm) 71  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Self-Locking Large Opening Shackle - 6mm Diameter - 1/4"Features: Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications:  For applications where a large opening shackle is requiredSpecifications:   Materials 316 stainless steel grade Working load: (lb) 990 / (kg) 450  WLL: (lb) 660 / (kg) 300  Breaking load: (lb) 3300 / (kg) 1500  Weight: (lb) 0.06 / (g) 27  Dimensions: A: (inch) 1 21/32" / (mm) 42  B: (inch) 1 / (mm) 25.5  C: (inch) 15/64" / (mm) 6  D: (inch) 35/64" / (mm) 14  D diameter: (inch) 15/64" / (mm) 6  E: (inch) 15/64" / (mm) 6  F: (inch) 2 9/32" / (mm) 58  G: (inch) 1 47/64" / (mm) 44  Caption: Working Load (WL): For nautical applications  Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Self-Locking Large Opening Shackle - 8mm Diameter - 5/16"Features:   Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking  Applications:For applications where a large opening shackle is requiredSpecifications: Materials: 316 stainless steel grade Working load: (lb) 1780 / (kg) 810  WLL: (lb) 1190 / (kg) 540  Breaking load: (lb) 5950 / (kg) 2700  Weight: (lb) 0.148 / (g) 67 Dimensions:   A: (inch) 2 1/4" / (mm) 57  B: (inch) 1 17/64" / (mm) 32  C: (inch) 5/16" / (mm) 8  D: (inch) 43/64" / (mm) 17  D diameter: (inch) 5/16" / (mm) 8  E: (inch) 5/16" / (mm) 8  F: (inch) 3 1/32" / (mm) 77  G: (inch) 2 1/4" / (mm) 57 Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)

Read more less

Self-Locking Large Shackle - Diameter 5mm - 3/16"Features:  Self-locking large shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications:For applications where a large opening shackle is requiredSpecifications: Materials 316 stainless steel grade Working load (lb) 550 WLL (lb) 480 Breaking load (lb) 2420 Weight (lb) 0.035 Dimensions (see 2nd image): A (inch) 1-27/64" B (inch) 25/32" C (inch) 13/64" D (inch) 7/16" D diameter (inch) 13/64" E (inch) 13/64" F (inch) 1-57/64" G (inch) 1-3/8"
