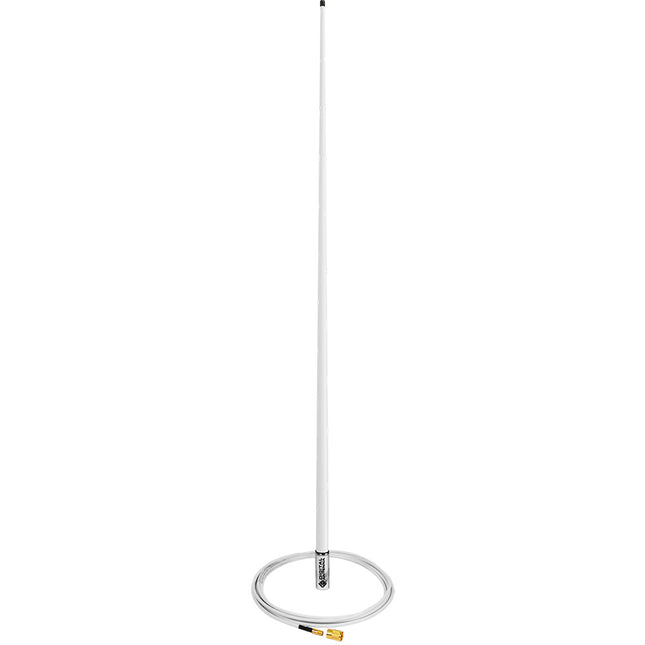

758-MW-S 8' 8' 6dBi Gain Advanced Multi-Band Marine AntennaDigital Antenna's Model 758-MW-S is the first marine antenna designed for seamless multi-band communication, ensuring powerful signals across various frequency bands. Whether you're offshore, navigating busy harbors, or relying on emergency communication, this high-performance antenna delivers unmatched reliability.Designed to withstand the rigors of offshore communication, the 758-MW-S sets a new standard in marine antenna technology, delivering unparalleled performance, longevity, and signal stability across critical frequency bands.Features: Seamless multi-band operation on VHF, UHF, and 800/900 MHz frequencies  20' premium low-loss DA195 cable for maximum signal strength Factory-installed mini-UHF connector with PL259 adapter for quick and secure connection to the radio Marine-grade durability, featuring a 316 stainless steel ferrule for corrosion resistance UV-stable polyurethane-coated rod protects against harsh marine conditions 5-year manufacturer warranty, ensuring long-term reliability Specifications: Radiation Pattern Omni-Directional: Gain 6dBi Frequencies: 134-176 MHz, 403-470 MHz, 450-512 MHz,851-870 MHz Cable: 20’ Digital Antenna, exclusive low-loss DA195 Impedance: 50 ohms Max Input Power: 50 watts Exterior Finish: White polyurethane high gloss UV stable Dimensions: 8’ length x 1” OD taper Weight: 2.3 lbs. RF Connector: Mini-UHF female with included PL259 adapter Installation: 1”x14tpi female threaded base Elements: Copper - Hand soldered Polarization: Vertical Wind Rating: >160KPH Operating Temp: 30º F to +175º F Attaches to 1" x 14 threaded base (not included) Factory-installed mini-UHF Connector & PL259 adapter Use with all DMR radios using VHF, UHF Band 1, UHF Band 2, 800/900 MHZ Warranty: 5 Years Applications: Commercial Recreational Government Vessels Quick Guide (pdf)

Read more less

8' Wide Band Antenna with 20' CableUtilizing technology designed for military and commercial applications, Digital Antenna delivers our new, highly advanced 8' Wide Band VHF Antennas to the marine industry. These antennas provide tactical maritime users with a high-performance solution for broadband VHF communications.Featuring a tremendous bandwidth of 134 to 176 MHz, a nominal 6dB gain, and the ability to withstand continuous RF power up to 150 watts, the new antennas facilitate high-quality communications across a normally hard-to-cover band. An exclusive patent-pending electrical design with an internal ground plane allows the antenna to maintain a low radiation pattern, resulting in exceptional communication capability over a wide bandwidth.Designed to meet the military’s rigorous MIL-STD-810 environmental engineering testing, as well as typical marine standards for high seas applications, the 992-MW and 992-MB antennas, are built to endure environmentally harsh conditions. They are designed for use with a multitude of services including auxiliary civil services, 2-meter amateur radio band, VHF business band, multi-use radio service (MURS), 2-way land mobile, VHF marine radio, narrowband FM, VHF SATCOM, Automatic Identification System (AIS) and NOAA weather stations.Digital Antenna’s quality components include a rugged hard-coated anodized finish over an aircraft-grade aluminum ferrule, soldered brass radiating elements, power directing ferrite choke bead, and high-gloss UV stable coating. Manufactured in the USA by skilled craftsmen, our antennas are hand tested and tuned to assure the highest possible performance, quality, and durability. Lifetime limited warranty.Features: Broadband 134-176 MHz Withstands continuous RF power up to 150 watts Aircraft-grade aluminum ferrule Completely sealed High performance 6dB gain Sleek mono-color design Lifetime limited warranty Mount: Standard 1”–14 threaded base Connector: Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter Cable: Includes 20’ exclusive low-loss, tinned braid, foil shielded, UV stable DA195 Ultra-Flex marine cable Specifications: Length (Inches): 94" Box Dimensions: 3"H x 3"W x 95"L WT: 2.5 lbs UPC: 839494004726 Brochure (pdf)

Read more less

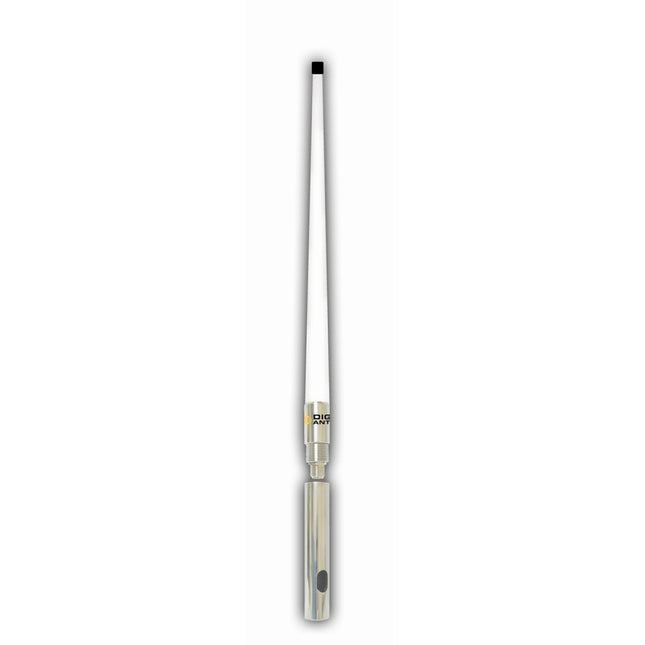

826-VW 4' VHF Antenna - WhiteVoted the best 4' VHF antenna by PowerBoat Reports, Digital Antennas 4' VHF antennas are ideal for use on T-tops, speedboats and sailboats. With 4.5dB gain and award-winning quality construction, these powerful and compact antennas deliver high performance that will last for years.All of Digital's antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.Features: Powerful brass radiators Soldered connections Power directing ferrite choke bead High gloss urethane finish 316 stainless steel ferrule 4.5dB gain 800 GOLD Series: Mount: Stainless steel double female ferrule for mounting 1"14 threaded base Connector: Quality female SO-239 (UHF) Cable: NOT Included Use Digital's VHF/AIS cables and 2-DA645 connectors This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Antenna Band: VHF Color: White Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 48" Box Dimensions: 2"H x 2"W x 52"L WT: 3.2 lbs UPC: 839494001312 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

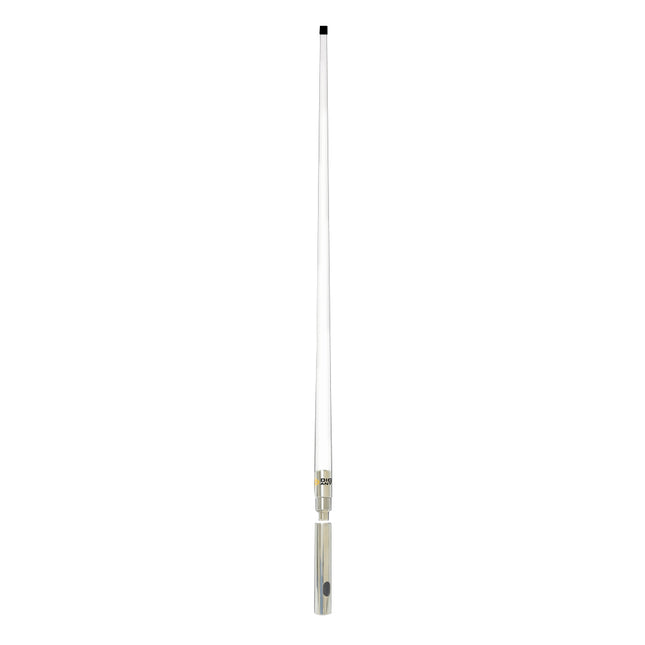

829-VW-S 8' VHF Antenna - White6dB GainDigital Antenna's ultimate, award-winning 8' VHF antennas combine 6 dB gain, ruggedness and a pristine finish to give you the most superior antenna available. Even in the harshest conditions, these antennas will maintain their beautiful glossy finish for years. Built to withstand high speeds, these antennas are ideal for radar arches and T-tops on speedboats, yachts and commercial vessels.All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.All 8' VHF Antennas Feature: Powerful brass radiators Soldered connections Power directing ferrite choke bead High gloss urethane finish 316 stainless steel ferrule 6dB gain 800 Series: Mount: Stainless steel double female ferrule for mounting 114 threaded base Connector: Highest quality female SO-239 (UHF) Cable: Not included use our VHF/AIS cables and two DA645 connectors This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Antenna Band: VHF Color: White Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 94" Box Dimensions: 3"H x 3"W x 95"L WT: 5.5 lbs UPC: 839494004665 Owner's Manual (pdf)Brochure (pdf)

Read more less

AIS Antennas4' Length, 4.5dB GainIn conjunction with the USCG Automatic Identification System (AIS) requirements for commercial vessels, Digital Antenna created a series of 4 AIS antennas that meet the exacting AIS frequency requirements. Designed with a low 1.5:1.0 SWR ratio from 159-162 MHz, Digital Antennas 4.5 dB gain AIS antennas offer unsurpassed durability and performance compatible with all AIS transponders.All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.All 4' AIS Antennas Feature: Powerful brass radiators Soldered connections Power directing ferrite choke bead High gloss urethane finish 316 stainless steel ferrule 4.5dB gain 800 GOLD Series Mount: Stainless steel double female ferrule for mounting 114 threaded base Connector: Quality female SO-239 (UHF female) Cable: Not included use our VHF/AIS cables and two DA645 connectors This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Antenna Band: AIS Color: White Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 48" Box Dimensions: 2"H x 2"W x 50"L WT: 3 lbs UPC: 839494001657 Quick Guide (pdf)Owner's Manual (pdf)

Read more less
