22-18 Gauge - #8 Heat Shrink Spade Terminals - 25-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Spade connectors Post Size: #8 Package Qty: 25 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887316315 Quick Guide (pdf)

Read more less

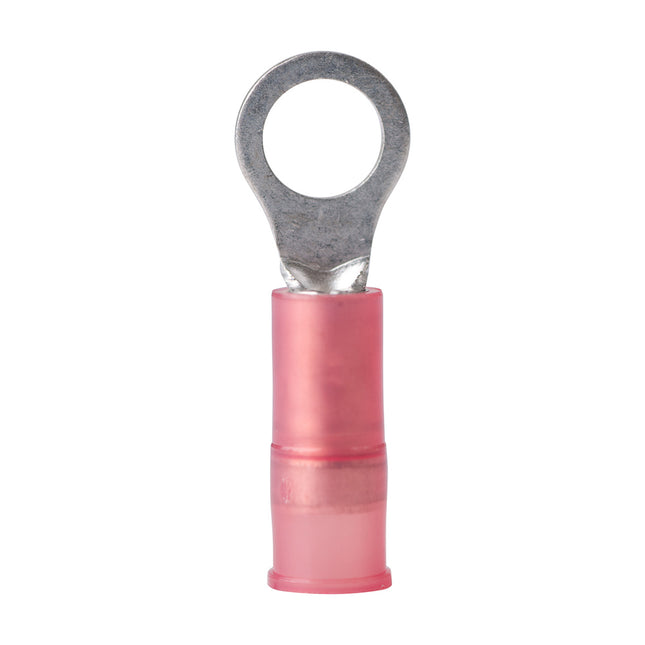

22-18 Gauge - 1/4" Heat Shrink Ring Terminal - 100-PackWire Range:22-18Screw Size: 1/4"Quantity: 100Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Post Size: 1/4" Type: Ring Terminals Package Qty: 100 Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs UPC: 091887311082 Quick Guide (pdf)

Read more less

22-18 Gauge - 1/4" Heat Shrink Ring Terminal - 25-PackWire Range:22-18Screw Size: 1/4"Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: 1/4" Package Qty: 25 Heat Shrink: Yes Type: Ring Terminals Gauge: 22-18 AWG Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887310757 Quick Guide (pdf)

Read more less

22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 100-PackWire Range:22-18Screw Size: 3/8"Quantity: 100Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Heat Shrink: Yes Type: Ring Terminals Post Size: 3/8" Package Qty: 100 Gauge: 22-18 AWG Box Dimensions: 2"H x 3"W x 8"L WT: 0.6 lbs UPC: 091887311167 Quick Guide (pdf)

Read more less

22-18 Gauge - 3/8" Heat Shrink Ring Terminal - 25-PackWire Range:22-18Screw Size: 3/8"Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Package Qty: 25 Heat Shrink: Yes Type: Ring Terminals Post Size: 3/8" Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887311150 Quick Guide (pdf)

Read more less

22-18 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 25-PackAncor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern.Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 25 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 091887983296 Quick Guide (pdf)

Read more less

22-18 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 3-PackAncor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern.Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 3 Heat Shrink: Yes Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887983289 Quick Guide (pdf)

Read more less

22-18 Heatshrink Butt Connetors - 100-PackGuage Size: 22-18Quantity: 100Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 100 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 8"L WT: 0.3 lbs UPC: 091887307900 Quick Guide (pdf)

Read more less

22-18 Heatshrink Butt Connetors - 25-PackGuage Size: 22-18Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Type: Butt Connectors Package Qty: 25 Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887303421 Quick Guide (pdf)

Read more less

22-18 Heatshrink Butt Connetors - 3-PackGuage Size: 22-18Quantity: 3Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 3 Heat Shrink: Yes Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887307863 Quick Guide (pdf)

Read more less

22-18 Heatshrink Butt Connetors - 500-PackGuage Size: 22-18Quantity: 500Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Package Qty: 500 Heat Shrink: Yes Type: Butt Connectors Box Dimensions: 2"H x 5"W x 8"L WT: 1.4 lbs UPC: 091887308235 Quick Guide (pdf)

Read more less
