Blackout LED Cube Light - Flush Mount - 3"SPECS
Input Voltage- 10-30V DC
Wattage- 12W
(4-3W CREE LED)
Raw Lumens- 960
LUX at 10M- 17
Color Temperature- 6000K
Beam Pattern- 90 degree Flood
CONSTRUCTION
Housing Material- Die-cast Aluminum Housing
Housing Color- Black
Lens Material- PC
Mounting Bracket- Flush Mount
Electronics- Integrated-Epoxy Encapsulated
Hardware- Stainless 316 and includes a gasket and cut out template
OPERATION
Operating Temperature- -40 degree C to +60 degree C
Current Consumption- .9 amps @ 13.8 volts
IP Rating- IP68
Protections- Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Voltage - Input Range (Volts): 10-30v
Length (Inches): 3"
Housing: Black
Beam Pattern: Flood
Bulb Type: LED
Box Dimensions: 5"H x 5"W x 6"L WT: 1.8 lbs
UPC: 086429312719
360-Series 4" LED SAE Fog Beam - Yellow/White - Set of 2RIGID's SAE/DOT Selective Yellow fog lights were developed specifically for dust, fog, and other low-visibility conditions. Selective Yellow offers superior performance in adverse lighting conditions thanks to the unique attributes of the human eye that make it easier to process light in longer wavelengths like yellow as opposed to shorter wavelengths like blue and violet. This reduces glare, enhances definition, and improves contrast, allowing you to see farther than traditional white or amber lighting. SAE/DOT compliance means these lights are legal for use on the street. These long-range high-intensity lights draw very little power and provide up to 50,000 useful hours. RIGID Selective Yellow SAE/DOT Compliant Lights represent the ultimate street-legal lighting solution in low-visibility conditions. Compliant with SAE J583.Features:
SAE J583 Compliant Street Legal LED Fog Light
Selective Yellow/White LED Light For Fog, Dust, Snow, Rain
Removable Bezel for Color Matching
Removable Bezel and Side Fairings for OEM Applications
9-36 VDC Operation
Flying Leads for Universal Installation
High-Grade Alloy Housing and Heatsink
Reverse Polarity Protection
Over/Under Voltage Protection
IP68 Rated - Dust/Water Ingress
Pressure Equalizing Vent
Integrated Thermal Management System
Impact Resistant Polycarbonate Lens
Wiring Harness Sold Separately
Operating Temp -40 degrees F To +145 degrees F
RoHS Compliant
Limited Lifetime Warranty
Legal For On-Road and Off-Road Use
Product Comes With:
Two 4 Inch 360-Series PRO SAE Yellow/White Fog Lights
Mounting Hardware
Specifications:
Size: 4"
Weight: 1.30lbs
Optics: SAE
Watts: 40W
Amp Draw: 2.86
Raw Lumens: 3445
Lux @ 10m: 95.59
Beam Distance @ 1 Lux: 97.8
Beam Distance @ .25 Lux: 195.5
Peak Beam Intensity (cd): 9,559
Horizontal Beam Angle: 68

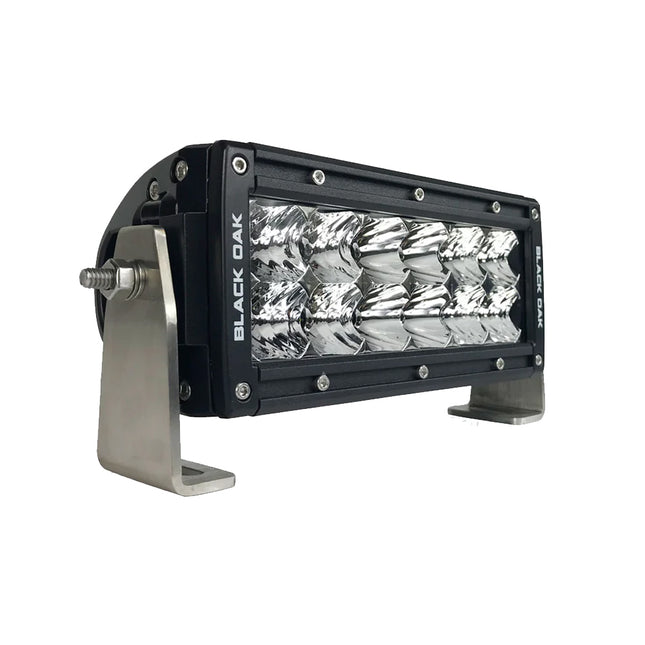

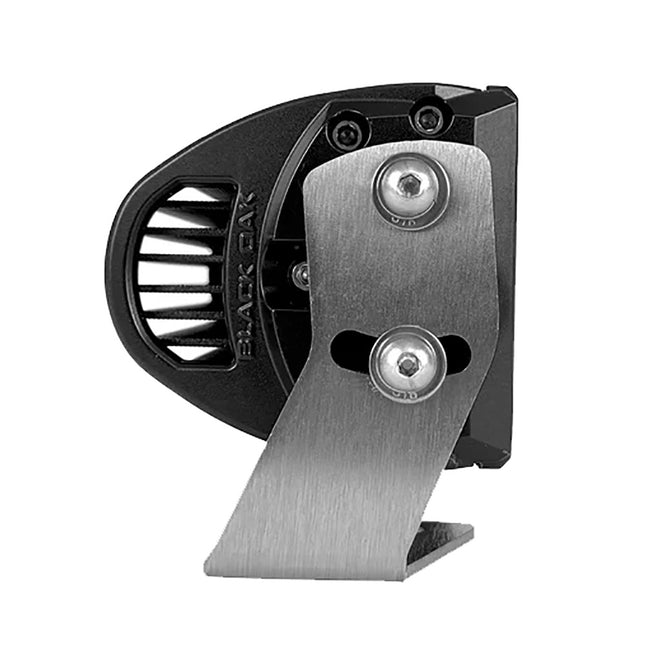

Pro Series 3.0 Double Row 6" LED Light Bar - Combo Optics - Black HousingThe 6-inch LED light bar is an extremely popular light that can fit in almost any space users need it. These work so well for many applications where users need a light that they know is going to work when that switch is flipped! This light showcases 5W Osram LEDs with combo optics.This LED light bar double row works extremely well for work lights, hunting lights, outside yard lights, backup lights, and as a waterproof LED light for an ATV, RZR, and boats. If users can mount it and power it, then there should be no problem using it. This 6-inch LED light bar comes with waterproof wiring, mounting, and stainless steel hardware, so users get a complete package ready to install. If, for any reason, users don't love this amazing light, return it risk-free with Black Oak's 30-day money-back guarantee. Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.Features:
360° Ceramic Protection against UV, Salt Water & Corrosion
2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
Heavy-duty Dynamax housing for a 4x stronger frame
Premium Dupont powder-coating for the highest quality and most resistant finish
Combination Flood/Spot light pattern offers a superior lighting pattern
Multi-mount brackets made of 9 gauge marine grade Stainless Steel
Lens cover made of Lexan with a UV protectant
Activities & Uses:
Perfect Jon boat bow light
Marine Flood light
ATV or UTV brush guard lights
Front bumper truck lights
Technical Specifications:
Total Wattage: 60W
Amp. Draw: 2.6
LED Quantity: 12
Weight: 4.4 lbs.
Raw Lumens: 7,920
Warranty: Lifetime
IP Rating: IP69K
Connection: Deutsch connector
Dimensions with Mounting Bracket (Width x Height): 7.4" x 4.125"
In the Box:
Light bar
Complete wiring harness with fuse, relay, and switch
12 gauge wire
Mounting brackets
All hardware is ready to install!
*Sold as an Individual Specifications:
Beam Pattern: Spot-Flood Combo
Housing: Black
Length (Inches): 6"
Voltage - Input Range (Volts): 12v
Box Dimensions: 4"H x 9"W x 15"L WT: 4.5 lbs

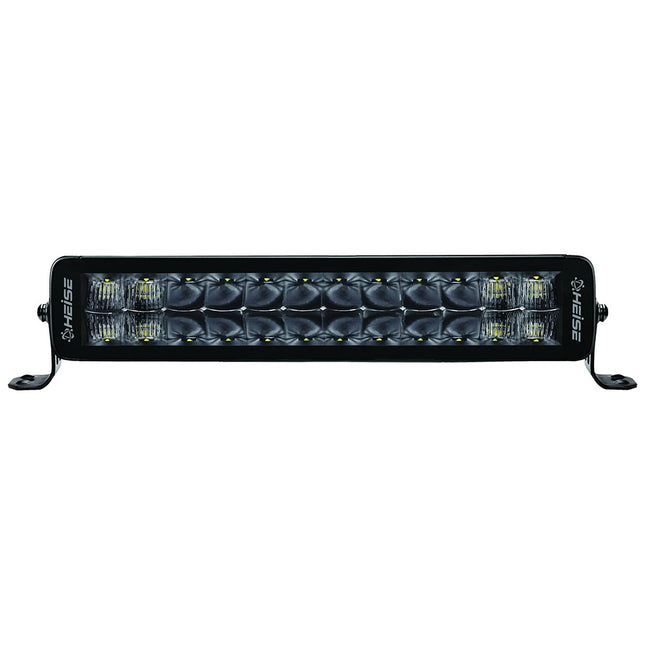

Dual Row Blackout LED Lightbar - 14"An improved design makes the latest generation of Heise Blackout Series LED lights a versatile lighting solution for different vehicles and uses. Function meets style with refined frames and cleaner lines for a sleek yet minimalistic look. The upgraded optics have changed from a direct to an indirect placement allowing more control of the location and pattern of the beam. This allows the lights to be tailored to the vehicle, its entire lighting system, and for the driver’s lighting coverage needs.The hybrid 90° flood and 8° spot beam pattern combination deliver the best of both worlds with intense spotlights in the center flanked by widebeam lights on each side. Heise’s protective vent port allows for internal moisture to escape and prevents any external moisture from entering the lightbar housing.Features:
Input Voltage: 10-30V Dc
Color Temperature: 5700K
Beam Pattern: Combo: 90° Flood / 8° Spot
Housing Material: Die-Cast Aluminum
Color: Black
Membrane: Protective Vent Port
Lens Material: Polycarbonate
Mounting Bolt Drill: 0.25”
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operating Temperature: -40°F To +140°F
Protection: Reverse Polarity
Mounting: Side & Rear
Limited Lifetime Warranty
Specifications:
Length: 14”
Wattage: 120W
Raw Lumens: 10,080lm
Lux at 10m: 3666
Current Consumption @ 13.8V: 3.8A
IP Rating: IP67
Vehicle Applications:Universal Specifications:
Beam Pattern: Spot-Flood Combo
Housing: Black
Length (Inches): 14"
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 5"H x 6"W x 24"L WT: 5.5 lbs
UPC: 086429414536
Brochure (pdf)
Dual Row Marine LED Light Light Bar - 14"SPECS
Input Voltage: 10-30V DC
Wattage: 72W (24-3W CREE LEDs)
Raw Lumens: 5400
Color Temperature: 6000K
Beam Pattern: Combo/Flood(90deg)/Spot(8deg)
CONSTRUCTION
Housing Material: Die-cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore™
Lens Material: PC
Mounting Bracket: Die-cast Aluminum
Hole Dimensions: Brackets turned inward – 13.50in
Brackets turned outward – 14.75in
Mounting Bolt Drill – .25in
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
OPERATION
Operating Temperature: -40degC to +60degC
Current Consumption: 3.7amps at 13.8 volts
IP Rating: IP68
Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Beam Pattern: Spot-Flood Combo
Length (Inches): 14"
Housing: White
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 6"H x 6"W x 19"L WT: 5.2 lbs
UPC: 086429312894
E-Series PRO 10" Spot/Flood Combo - BlackThe E-Series is one of RIGID's most versatile, all-around lighting solutions, and recent enhancements in LED technology deliver up to 111 percent more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, prominent RIGID branding and blacked-out circuit boards give the E-Series PRO a refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, Driving/Spot combo, Spot/Flood Combo, Spot/Hyperspot combo, and Midnight Edition. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born off-road, but its versatility makes it well suited for use with power sports, marine, general automotive, and even first responder applications. Own The Night with RIGID's E-Series double-row LED light bar. Features:
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off-Road Use Only
Specifications:
Optics: Spot/Flood Combo
Watts: 165
Amp Draw: 11.79
Voltage Max: 36
Raw Lumens: 15840
Lux @ 10m: 2003
Beam Distance @ 1Lux: 448
Beam Distance @ .25Lux: 895
Horizontal Beam Angle: 19.1
Product Comes With:
2 Black Powder Coated, L-shape brackets
Deutsch Connector (4”-10”)
Open Leads, No Connector (20”-50”)
Harness with Switch
Specifications:
Length (Inches): 10"
Box Dimensions: 6"H x 7"W x 13"L WT: 6.1 lbs
UPC: 849774028946

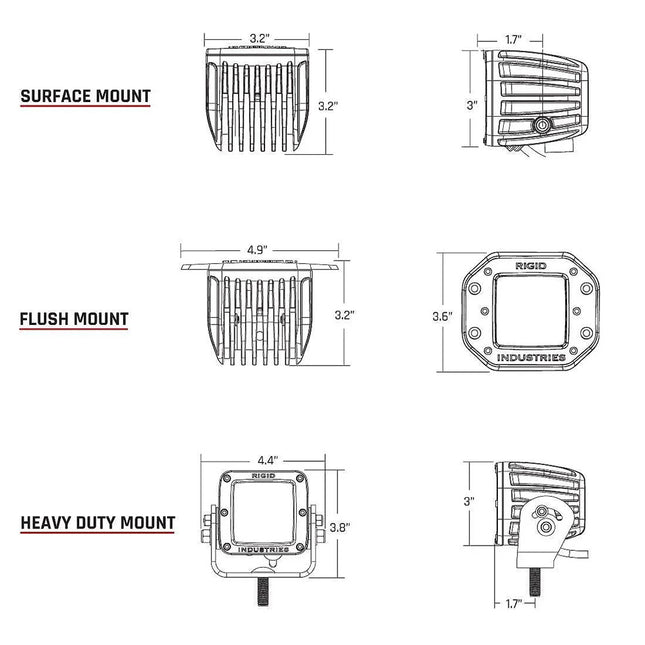

D-Series PRO Flood Flush Mount Black Light - PairThe RIGID D-Series LED light pod has always been the most versatile compact lighting package on the market. RIGID made it professional grade with the D-Series PRO, which offers more light output than ever before thanks to recent advancements in LED technology. Available with a variety of mounting options and beam patterns, the D-Series PRO can be utilized for virtually any lighting application. Measuring just 3 x 3 Inches, the D-Series PRO packs a powerful punch of up to 102 percent more raw lumens with PRO. RIGID's D-Series PRO lights are available with either black or white housing, updates to the D-Series include prominent branding and blacked-out circuit boards for a more refined look. They feature the same superior build quality as the rest of RIGID's lighting products, providing reliable and efficient lighting on demand. Own The Night with RIGID's original pod LED light. Features:
50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycarbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant
IP68 Compliant - Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant - Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Waterproof Connector (Exclusions Apply)
Limited Lifetime Warranty
Off-Road Use Only
Specifications:
Optics: Flood
Watts: 30
Amp Draw: 2.14
Voltage Max: 36
Raw Lumens: 3168
Lux @ 10m: 58.19
Beam Distance @ 1Lux: 76.3
Beam Distance @ .25Lux: 152.6
Horizontal Beam Angle: 39.9
Product Comes With:
Mounting Hardware
Stainless Steel, U-Shape Bracket (Excludes FM)
Vibration Isolators (Heavy Duty Surface Only)
Harness with Switch
Deutsch Connector
Dual Row Marine Curved LED Light Bar - 42"Specs
Input Voltage: 10-30V DC
Wattage: 240 W
(80-3W CREE LEDs)
Raw Lumens: 19200
LUX at 10M: 780
Color Temperature: 6000K
Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees
Construction
Housing Material: Die-Cast Aluminum Housing
Housing Color: White Coating with UV Inhibitors
Membrane: Gore®
Lens Material: PC
Mounting Bracket: Die-Cast Aluminum
Hole Dimensions:
Brackets Turned Inward – 41 inches
Brackets Turned Outward – 43.5 inches
Mounting Bolt Drill – 25 inches
Height of Light Bar Itself: 3 inches
Depth of Light Bar Itself: 3.5 inches
Electronics: Integrated-Epoxy Encapsulated
Hardware: Stainless 316
Operation
Operating Temperature: – 40 degrees C to +60 degrees C
Current Consumption: 12 Amps at 13.8 Volts
IP Rating: IP67
Protections: Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Beam Pattern: Spot-Flood Combo
Length (Inches): 42"
Housing: White
Voltage - Input Range (Volts): 12/24v
Box Dimensions: 5"H x 8"W x 45"L WT: 13 lbs
UPC: 086429348282
Quick Guide (pdf)
Pro Series 3.0 Curved Double Row 20" LED Light Bar - Combo Optics - Black HousingAfraid of hitting moose? Well, users should be. Weighing up to 1,000 pounds and standing 6+ feet tall, users probably won't take that fight and live to talk about it. It's no wonder why the Double Row Series 20-inch Curved LED Light Bar is so popular with Black Oak's Alaskan and Canadian customers. The curved pattern spreads light beyond where even the brightest high beams and headlights just won't reach. Carrying two full rows of Osram 5 watt LEDs, a military-grade breather, powder-coating, and a Lexan poly-carbonate face, this 20-inch curved LED light bar might be the only thing coming out of that fight. Black Oak knows users don't want to total the vehicle, which is why this double-row light bar is for sale.Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.Features:
360° Ceramic Protection against UV, Salt Water & Corrosion
2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
Heavy-duty Dynamax housing for a 4x stronger frame
Premium Dupont powder-coating for the highest quality and most resistant finish
Combination Flood/Spot light pattern offers a superior lighting pattern
Multi-mount brackets made of 9 gauge marine grade Stainless Steel
Lens cover made of Lexan with a UV protectant
Activities & Uses:
Off-Road Spot light
T-Top boat light
Jeep hood light
UTV dune riding
Ram Rebel grille light
Technical Specifications:
Total Wattage: 200W
Amp. Draw: 8.4
LED Quantity: 40
Weight: 7.8 lbs.
Raw Lumens: 26,400
Warranty: Lifetime
IP Rating: IP69K
Connection: Deutsch connector
Dimensions with Mounting Bracket (Width x Height): 21.4" x 4.125"
In the Box:
Light bar
Complete wiring harness with fuse, relay, and switch
12 gauge wire
Mounting brackets
All hardware is ready to install!
*Sold as an Individual Specifications:
Beam Pattern: Spot-Flood Combo
Housing: Black
Length (Inches): 20"
Voltage - Input Range (Volts): 12v
Box Dimensions: 5"H x 6"W x 25"L WT: 8 lbs
UPC: 850044517596

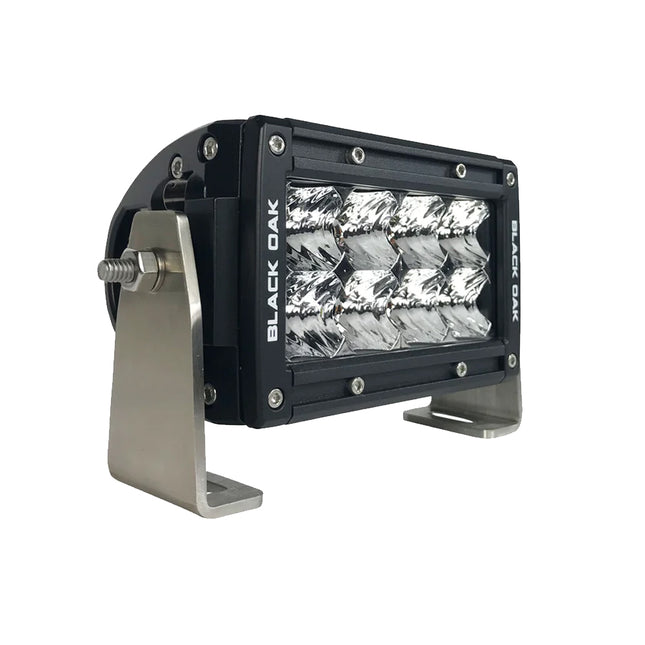

Pro Series 3.0 Double Row 4" LED Light Bar - Flood Optics - Black HousingSometimes, great things come in small packages. If users are looking for a compact, affordable light bar that will still light up the road with blinding clarity, then this Black Oak 4-inch dual-row LED light bar is the perfect choice. This light bar has a flood-optic pattern.Made from two rows of ultra-bright Osram LEDs (eight LEDs in total), this light is able to produce a total of 2,240 beaming lumens of light, making it one of the brightest 4-inch LED light bars on the market. Along with being bright, our 4-inch LED light bar is made to withstand all the punishment of a rough backroad as well. Constructed using only the finest materials and most proven manufacturing processes in the industry, this small LED light bar has achieved a security rating of IP69K (the highest possible), is E-Mark Certified, and has passed United States military standards, meaning it is able to take all the abuse an off-road outing can throw, including full water immersion and jarring bumps and jolts. Even through all of this, Black Oak's small LED light bar still maintains an average lifespan of 50,000 hours of continuous use and is backed by Black Oak's limited lifetime warranty and industry-leading money-back guarantee.Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.Features:
360° Ceramic Protection against UV, Salt Water & Corrosion
2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
Heavy-duty Dynamax housing for a 4x stronger frame
Premium Dupont powder-coating for the highest quality and most resistant finish
Flood light pattern
Multi-mount brackets made of 9 gauge marine grade Stainless Steel
Lens cover made of Lexan with a UV protectant
Activities & Uses:
Perfect Jon boat bow light
Motorcycle fork light
ATV rack or bumper lights
Front bumper flood lights
Technical Specifications:
Total Wattage: 40W
Amp. Draw: 1.5
LED Quantity: 8
Weight: 4 lbs.
Raw Lumens: 5,280
Warranty: Lifetime
IP Rating: IP69K
Connection: Deutsch connector
In the Box:
Light bar
Complete wiring harness with fuse, relay, and switch
12 gauge wire
Mounting brackets
All hardware is ready to install!
*Sold as an Individual Specifications:
Beam Pattern: Flood
Housing: Black
Length (Inches): 4"
Voltage - Input Range (Volts): 12v
Box Dimensions: 4"H x 9"W x 16"L WT: 4.15 lbs
UPC: 850079763043
Value Fit Mini 6 LED Flood Light Bar - WhiteFeatures:
6 High Intensity LEDs
Die-Cast Aluminum Housing
Adjustable Stainless Steel Bracket
Calculated/Raw Lumens: 1080lm
Measured Lumens: 800, 18W
10-30 VDC
Dimensions: 6.3"W x 1.8"H x 2.5"D/160 x 45 x 88mm
Specifications:
Voltage - Input Range (Volts): 12/24v
Length (Inches): 6"
Housing: White
Beam Pattern: Flood
Box Dimensions: 4"H x 4"W x 8"L WT: 1.15 lbs
UPC: 760687161561
Pro Series 3.0 Single Row 20" LED Light Bar - Combo Optics - White HousingBlack Oak's Marine Series lights have always been in high demand due to their ability to throw massive amounts of light and withstand the harshest elements. Plus, the lights in this series look amazing anywhere they're mounted. That's why Black Oak has decided to bring users the 20'' Marine Single Row Series LED Light Bar! This slim, white, powder-coated 5-watt combo light bar throws a beam over 1100m and gives widespread flood lighting to help see traps or obstacles on the road and water. Black Oak has taken the LED game to the next level. The Pro Series 3.0 features top-of-the-line LED tech, boasting a 20% increase in lumens, making this series of lights one of the brightest on the market.Features:
360° Ceramic Protection against UV, Salt Water & Corrosion
2 Stage Hydrex Seal Lock for IP69 protection and a fully submersible light bar
Heavy-duty Dynamax housing for a 4x stronger frame
Combination Flood/Spot light pattern offers a superior lighting pattern

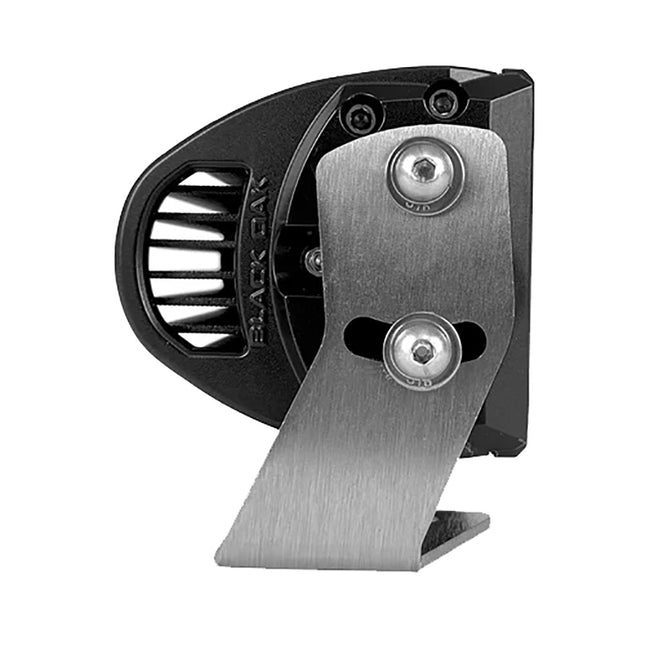

Multi-mount brackets made of 9 gauge marine grade stainless steel
Activities & Uses:
Mount to the top of a center console without blocking or interfering with a radar
Ideal trail or dunes light for UTV and ATV enthusiasts
Perfect as a bumper or grill mount on any white truck, SUV, or Jeep
Light up the water on a Jon boat, pontoon, or duck boat
Technical Specifications:
Total Wattage: 100W
Amp. Draw: 6.7
LED Quantity: 20
Weight: 6.4 lbs.
Raw Lumens: 13,200
Warranty: Lifetime
IP Rating: IP69K
Dimensions with Mounting Bracket (Width x Height): 22" x 2.6"
In the Box:
Light bar
Complete wiring harness with fuse, relay, and switch
Mounting brackets
All hardware is ready to install!
*Sold as an Individual Specifications:
Beam Pattern: Spot-Flood Combo
Housing: White
Length (Inches): 20"
Voltage - Input Range (Volts): 12v
Box Dimensions: 6"H x 6"W x 25"L WT: 6.35 lbs
UPC: 850044517961
