Boat Outfitting - Radar/TV Mounts

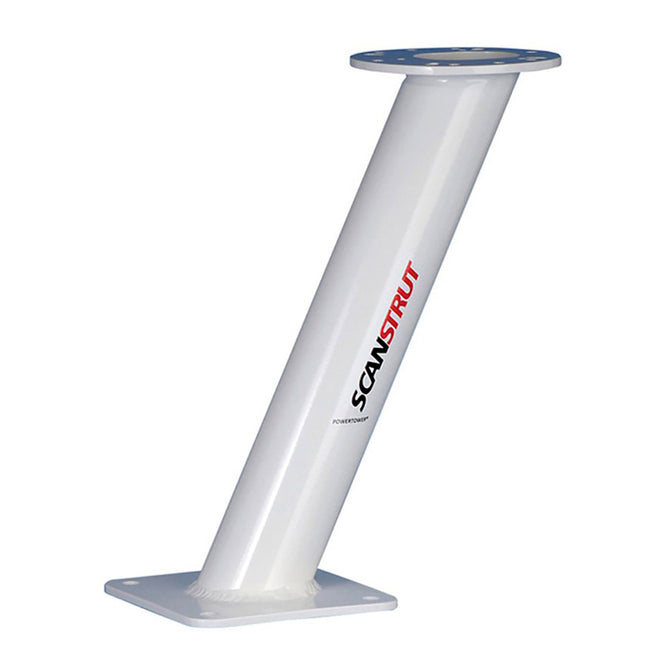

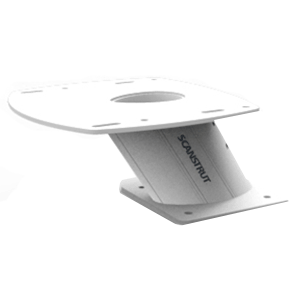

APT-150-02 - Aluminum PowerTower® Radar Mount - 6" Aft LeaningThe Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.Designed to install your radar on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions. By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.There is a PowerTower® to fit pretty much every modern radar.Compatible with: Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D/DRSD4D-NXT, DRS4W, NavNet (18" and 24") radars Humminbird - AS 21 RD4KW radar Intellian - i1 radars Interphase - Mini RE-1, RE-8 radars JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars Koden - 2kW 12" radar KVH - TracVision M1 and TV1 radars Lowrance - 3G/4G, LRA-1800, RB714A, DX42, LRA-2400 HD radars Majestic - SATMAR32 radar Navman - 8000 Series (8084 and 8120) 18" radars Nobletec - 2kW - 20" radars Northstar - M Series 18" and 24"  8000i radars Raymarine - 33STV radars Seiwa - SWR-1, 8, 9 radars Simrad - 3G/4G, GB40, NX40/45, NSE8/12, RB712A, DX42S, DX64S radars Sitex - MDS-1, 8, 12, NKE-1066 radars Techmarine - T-72.01, 72.02, 72.04 Radars Features: Designed to fit the most up to date radars Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower® No need to cut the radar’s connectors off for installation  Constructed from the best Marine grade Aluminium Range of accessories light bars can be bolted to the back of the PowerTower® Technical Specifications: Radar Type - Dome Material - Aluminium Height - 5.91" (150mm) Mounting Type - Aft leaning - 25° In the Box: Mount Mounting hardware (excluding screws/bolts)  Installation manual *Sold as an Individual  Specifications: Construction: Aluminum Height: 5.91 Type: Aft Leaning Mount Box Dimensions: 7"H x 10"W x 11"L WT: 3.9 lbs UPC: 5060114797710 Quick Guide (pdf)

Read more less

APT-GPS-01 PowerTower® Center Mounted Bar f/GPS/VHF/Navtex AntennaMounts GPS, VHF and Navtex antennas above the radar for maximum visibility and performance.  Works with standard 1” x 14 TPI thread.Compatible with:Scanstrut aft leaning PowerTower® radar mountsFeatures: Designed for the installation of GPS antenna and ‘Whip’ type VHF, HF/SSB, AM/FM, and cellular antenna of up to 1m in height All mounting holes predrilled for easy retrofit installation, attach using mounting bolts.  No extra fastenings required Cables run internally via a watertight seal Technical Specifications: Material - Aluminum  Height - 12.48" (404mm) Mount Position - Center In the Box: Antenna bar Instruction manual *Sold as an Individual Specifications: Construction: Aluminum Type: Mounting Brackets Height: 12.48 Box Dimensions: 4"H x 15"W x 19"L WT: 3.7 lbs UPC: 5060114795433 Quick Guide (pdf)

Read more less

APT-250-01 - Aluminum PowerTower® Radar Mount - 10" Aft LeaningThe Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish.  Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.Designed to install your radar on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions. By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.There is a PowerTower® to fit pretty much every modern radar.Compatible with: B & G - HALO20, HALO20+, HALO24 radars Garmin - Fantom 18, 24, GMR18HD / 18xHD / 18HD+, GMR24HD / 24xHD, GMR40 radars Humminbird - HB 2124 CHIRP radar KVH - TracPhone V3-HTS, TracVision M2, M3, TV3, V3 radars Lowrance - 3G/4G radars Raymarine - QUANTUM (Q24C), QUANTUM 2 (Q24D), RD218, RD418/RD418HD, RD424/RD424HD radars Simrad - 3G/4G, DX45, DX60 / DX64-S, GB40 / NX40/45 / NSE8/12 radars Sitex - RADARpc - 4D radar Features: Designed to fit the most up to date radars Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower® No need to cut the radar’s connectors off for installation  Constructed from the best Marine grade Aluminium Range of accessories light bars can be bolted to the back of the PowerTower® Technical Specifications: Radar Type - Dome Material - Aluminium Height - 9.84" (250mm) Mounting Type - Aft leaning - 25° In the Box: Mount Mounting hardware (excluding screws/bolts)  Installation manual *Sold as an Individual  Specifications: Construction: Aluminum Type: Aft Leaning Mount Height: 9.84 Box Dimensions: 11"H x 13"W x 13"L WT: 7.8 lbs UPC: 5060114795419 Quick Guide (pdf)Brochure (pdf)

Read more less

Dual PowerTower® Strut - RadomeThe Modular Dual PowerTower® has been designed to allow your radome radar, Satcom and camera to be mounted together in one single space-saving modular installation. Specifications: Material: 6082 Aluminum extrusion Coating: Polyester powder Finish: Gloss white Specifications: Construction: Aluminum Type: Dual Mount Box Dimensions: 12"H x 22"W x 28"L WT: 15.2 lbs UPC: 5060114796317

Read more less

CAM-PT-150-02 Aluminum PowerTower® for Cameras - 6"The ingenious Camera Power Mount solves the problem of finding a level mounting surface to install cameras onto your powerboat, commercial vessel, RIB or sailboat wheelhouse.Compatible with: FLIR - M100 / M200, M132, M232 cameras IRIS s118, s290, s295, s390, s395, s418 cameras Features: Designed to fit the most up to date cameras Pre-drilled mounting holes allow the camera to fasten straight to the PowerTower® No need to cut the cameras connectors off for installation  Constructed from Marine grade Aluminium Technical Specifications: Material - Aluminium Height - 5.91" (150mm) Mounting Type - Aft leaning - 25° In the Box: Mount Mounting hardware (excluding screws/bolts)  Installation manual *Sold as an Individual Specifications: Construction: Powder Coated Aluminum Type: Aft Leaning Mount Height: 6 Box Dimensions: 8"H x 8"W x 8"L WT: 5 lbs UPC: 5060114796171 Quick Guide (pdf)

Read more less

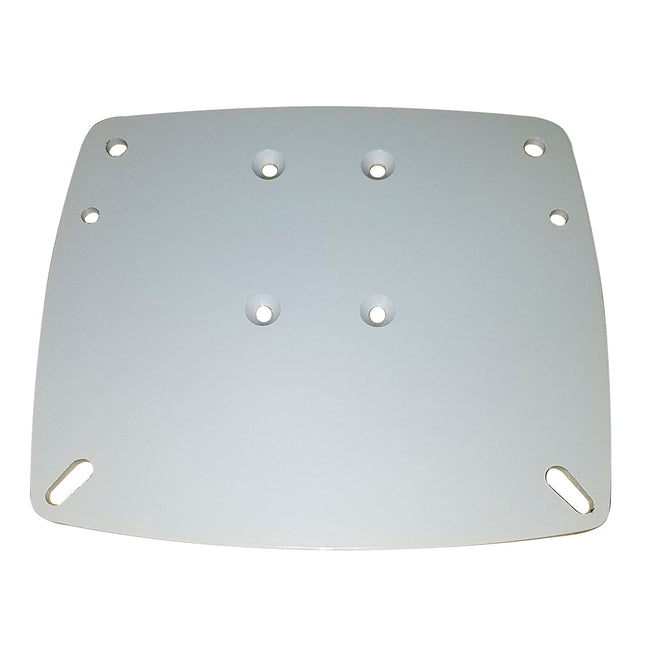

Open Array Plate 1 for all Open Array RadarsThe Modular Dual PowerTower has been designed to allow your open array, radar, Satcom and camera to be mounted together in one single space-saving modular installation.Open Array plate 1 (For all Open Array Radar models) Specifications: Type: Adapters Construction: Powder Coated Aluminum Box Dimensions: 3"H x 11"W x 12"L WT: 3.8 lbs UPC: 5060114796362

Read more less

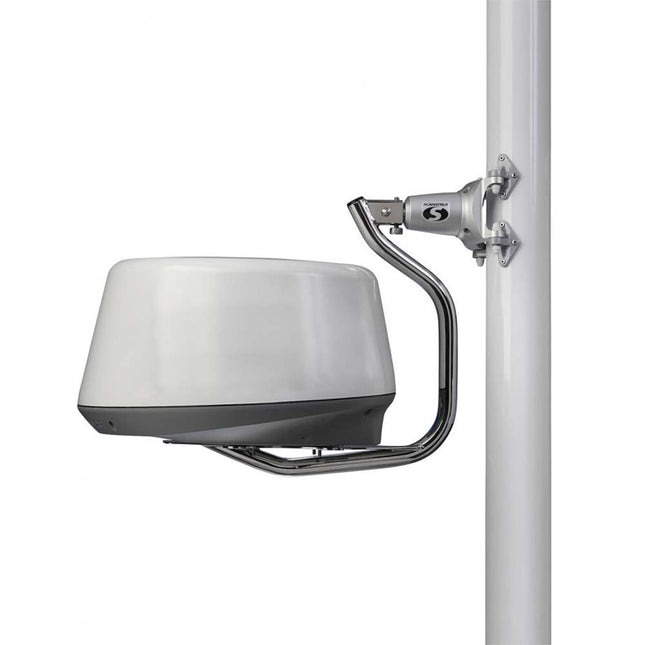

Self Levelling Radar Mount - MastCompatible Units: Garmin GMR18/GMR18HD/GMR24HD Raymarine RD218/RD424 Lowrance 3G Broadband Simrad 3G Broadband Simrad DX45/DX60 The Self-Levelling Mast Mount ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in the heel angle of the boat whilst eliminating all small oscillations.Features: Hydraulic damping to eliminate minor oscillations Sealed system - entirely maintenance-free Passive system - no power required Reduced weight aloft - complete system weighs only 3.4 kg Easy upgrade from fixed mast mount - same mounting footprint as SC20 & M92722 Attached to the mast by four swivel feet - matches the profile of any mast 12 point fixing - highest quality Monel rivets Compact mount - radar extends only minimum distance from front of mast Materials: Finest quality machined and anodised aluminium mast adapter Marine grade 316 stainless steel cradle and base plate Kit Includes: 1 x Levelling mount 1 x Mast Adapter 1 x Complete fastening pack Specifications: Construction: Stainless Steel Type: Self Leveling Box Dimensions: 6"H x 16"W x 16"L WT: 10 lbs UPC: 5060114791152

Read more less

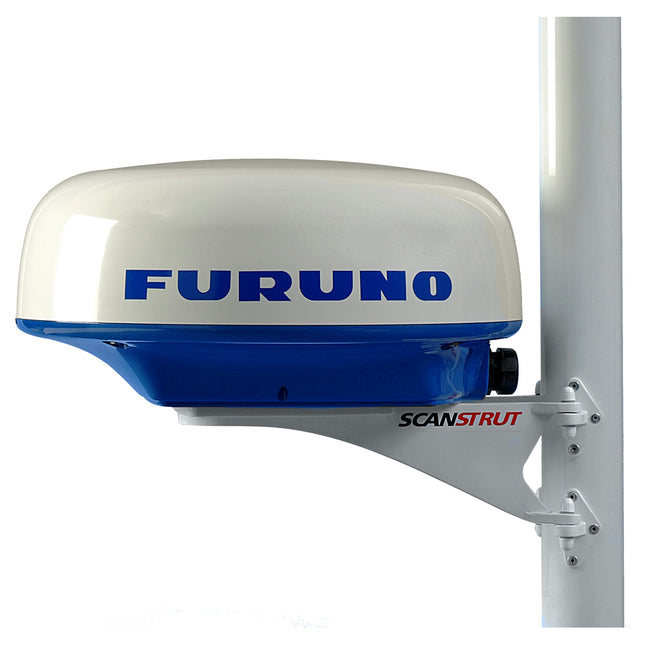

Mast MountsCompatible Units: Raymarine: 2kW Radome Fantom 24 GMR24HD / 24xHD Still the first choice for boat owners the world over, Scanstrut Mast Mounts are the ultimate solution for mounting radars on yachts masts.Raising the antenna clear of any obstructions or interference, the mast mount is a classic and reliable installation.Features Easy and quick to install with all fastenings supplied Attached to mast by four swivel feet matching the profile of any mast 12 point fixing using highest quality Monel rivets for a secure installation Nylon washers for all fastenings to protect paint finish Waterproof cable grommet included to seal cable entry into mast Materials Marine grade 6082 aluminium Polyester powder coated for a durable and gloss white finish Kit includes 1 x Mast Mount 4 x Swivel mounting feet 1 x Complete fastening pack Specifications: Construction: Powder Coated Aluminum Type: Mast Mount Box Dimensions: 5"H x 11"W x 21"L WT: 4.85 lbs UPC: 5060114790063 Quick Guide (pdf)

Read more less

Camera PowerTower - White - 6"Maximize your camera's performance with our expertly designed camera PowerTower.Perfect for installing on the cabin roof, flybridge, or radar arch of your powerboat. Designed to mount Sionyx Nightwave, FLIR, Raymarine, VEI & NVTI cameras.Get ready to set your sights on new horizons with the CAM-PT-150-01. Designed specifically for the FLIR, Raymarine, VEI & NVTI cameras. The CAM-PT-150-01 ensures ease of installation, allowing the camera to fasten straight to the Camera PowerTower. Experience long-lasting high performance due to the clever design that eliminates the need for marine sealant. By adhering to the Scanstrut 4-step marine paint system, your PowerTower will stay looking smart, no matter what the sea throws at it!Features: Compact mounting profile to ensure a neat installation Pre-drilled mounting holes allow the camera to fasten straight to the Camera PowerTower Marine sealant is not required Paint finishes comply with our unique 4-step marine paint system Designed specifically for FLIR, Raymarine, VEI & NVTI cameras Specifications: Material: Aluminum Height: 150mm (5.9") Color: White Mounting Gasket Included: Yes Design: Aft (25-degree rake) Specifications: Construction: Aluminum Box Dimensions: 5"H x 7"W x 8"L WT: 1.53 lbs UPC: 5060114799301

Read more less

Camera PowerTower - Black - 6"Maximize your camera's performance with our expertly designed camera PowerTower.Perfect for installing on the cabin roof, flybridge, or radar arch of your powerboat. Designed to mount Sionyx Nightwave, FLIR, Raymarine, VEI & NVTI cameras. Get ready to set your sights on new horizons with the CAM-PT-150-01. Designed specifically for the FLIR, Raymarine, VEI & NVTI cameras. The CAM-PT-150-01 ensures ease of installation, allowing the camera to fasten straight to the Camera PowerTower. Experience long-lasting high performance due to the clever design that eliminates the need for marine sealant. By adhering to the Scanstrut 4-step marine paint system, your PowerTower will stay looking smart, no matter what the sea throws at it!Features: Compact mounting profile to ensure a neat installation Pre-drilled mounting holes allow the camera to fasten straight to the Camera PowerTower Marine sealant is not required Paint finishes comply with our unique 4-step marine paint system Designed specifically for FLIR, Raymarine, VEI & NVTI cameras Specifications: Material: Aluminum Height: 150mm (5.9") Color: White Mounting Gasket Included: Yes Design: Aft (25-degree rake) Specifications: Construction: Aluminum Box Dimensions: 5"H x 8"W x 11"L WT: 1.84 lbs UPC: 5060114799455

Read more less

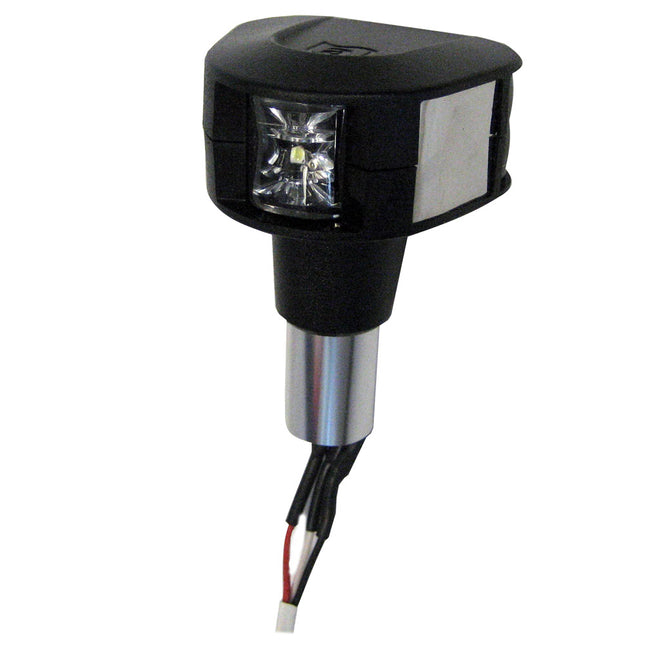

APT-LB-L1 PowerTower® Central Light Bar w/Integrated 360° White LED LightMaximize your Navlight performance.  Integrated light mount comes pre-fitted with a LED 360° all-round white light.Compatible With:Scanstrut aft leaning PowerTower® radar mountsFeatures: Perfect anchor / steaming light upgrade All mounting holes predrilled for easy retrofit installation No extra fastenings required Cables run internally via a watertight seal Technical Specifications: Range 2NM Input Voltage - 12V Material - Aluminum Height - 15.9" (404mm) Mount Position - Center In the Box: Light bar LED 360° all-round light - White Instruction manual *Sold as an Individual Specifications: Construction: Aluminum Height: 16 Type: Lights Box Dimensions: 5"H x 15"W x 22"L WT: 3 lbs UPC: 5060114798106 Brochure (pdf)

Read more less

8" Aluminum Wedge Mount for StarlinkIs your Boat Starlink Ready?Enhance the performance of your Starlink Flat High-Performance with our Aluminium 8° Wedge Mount which has been specifically designed for the marine environment. The mount works as a stand-alone wedge or is compatible with our Modular Dual PowerTower Range and SC103/4 Pole mounts.The Scanstrut Aluminium 8° Wedge Mount for Starlink High-Performance has been specifically designed for the marine environment. This versatile wedge can serve as a standalone option for mounting Starlink directly onto a boat's roof or deck. Additionally, it functions as an adapter plate, seamlessly integrating with our popular Modular Dual PowerTower range, making it ideal for multi-electronic installations on powerboats. It can also be used as a top plate in conjunction with our SC100 Pole Mount range, designed specifically for transom mounting on sailing boats, ensuring that your Starlink hardware is elevated to an optimal position while optimizing space onboard.Features: Designed to fit Starlink High-Performance. Pre-drilled mounting holes allow the hardware to fasten directly to the wedge. Built-in Scanstrut Cable Seal ensures a watertight installation. No need to cut the Starlink connectors for installation. Marine sealant is not required. Paint finishes comply with our unique 4-step marine paint system. Constructed from the best marine-grade aluminum.

Read more less
