Boat Outfitting - Trim Tab Accessories

Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator SystemsComplete your Lenco single actuator trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel. Features Include Simple, quick, Plug & Play installation Instant response Built-in retractor Low profile design Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length 30" (76.2 cm) from the back of the switch bezel 36" power pigtail 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.Replacement parts are available and are sold separately. Specifications 3 Year Warranty System Type: Single Actuator Compliance: CE Certified WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

LED Indicator Integrated Tactile Switch Kit with Pigtail for Single Actuator SystemsComplete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.Features Include Simple, quick, Plug & Play installation Instant response Built-in retractor Low profile design Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length 30" (76.2 cm) from the back of the switch bezel 36" power pigtail 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times Photo Eye for optimum viewing in all light conditions Backlit key pad for optimum viewing at night Self-Check feature Replacement parts are available and are sold separately. Specifications 3 Year Warranty System Type: Single Actuator Compliance: CE Certified WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Standard Upper Mounting Bracket w/Gland Seal  VANDAR - (3 screw, 1 wire) (2008-Present)Specifications Lenco Part #: 15085-001 (Original Part #116) System Type: Single or Dual Actuator Compatibility: Any Boat WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

7 Degree Mounting Shim For Upper # 50015-001D(118) & Lower # 50014-001D(119) Mounting Bracket.Specifications Lenco Part #: 50015-002D System Type: Single or Dual Actuator Compatibility: Any Boat WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke with Mounting HardwareThe 101 XDS Actuator is used with OEM specific kits and limited space applications. It is the shortest actuator manufactured. 2.25 stroke and overal length (tip to tip) is 10 7/8 inches.    Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.Specifications: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design Improved pressure-tight torx screws Integrated wiper seal at actuator base Molded-in brass thrust bearing design Thicker and stronger motor housing wall Improved O-Ring design for more consistent seal Over-molded cable providing a stronger tighter seal Upper mounting bracket with gland seal Features: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 12 Volt 5/16" mounting hardware 6 foot cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Edgemount 12" x 12" Single - 12 Gauge Replacement Blade Gauge:12 Anode: No Back Plate: No WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Standard 9" x 12" Single - 12 Gauge Replacement Blade Gauge:12 Anode: No Back Plate: No WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Fluid ReservoirThis reservoir is meant for holding hydraulic pump fluid.How to Use: Periodically, check the fluid level in HPU With the trim tabs completely retracted, the fluid level should be about 2" from the bottom of the reservoir (approximately 22 ounces) refill, remove the Lexan cover and filler plug located at the front left-hand corner of the reservoir Fill with any type of automatic transmission fluid (ATF) only Brands running HPU with excess or a lack of fluid will not cause damage to the trim tab system WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

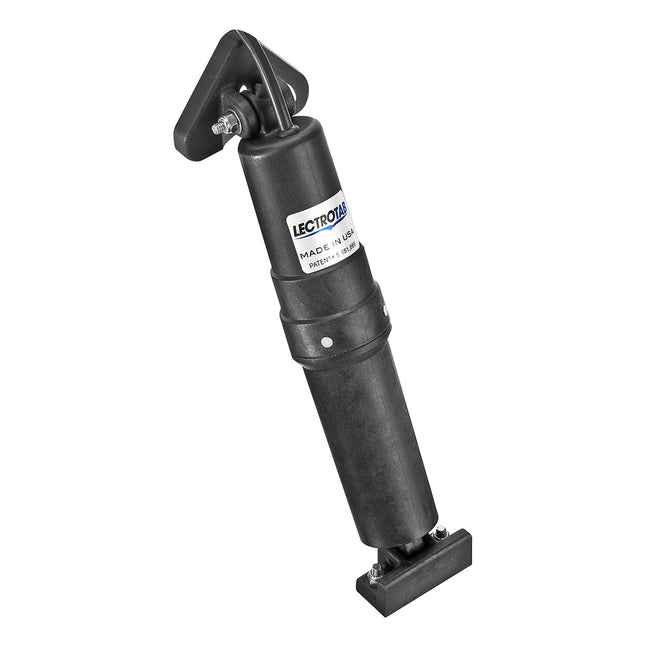

Standard Trim Tab Actuator - 12V - 28' CableLectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.Features: Actuator DC Voltage - 12V 28' Cable The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth Utilizes an internal pressure equalization system Upgrades to the most popular hydraulic and electromechanical systems Internal brake system prevents unwanted tab movement when underway or backing down Quiet operation All actuators are fully load tested to push 1000 lbs of force Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater Specifications: Model: A-BK-24 DC Voltage: 12VDC Stroke Length: 2.25"/57mm Stroke Speed: 8 sec Distance from Bolt to Pin: 11.5"/292mm Vertical Height (Typical Installation Fully Retracted):11.875"/302mm Cable Length (Feet/Meter): 28'/8.5m Upper Mounting Bracket: Standard Lower Mounting Bracket: Standard Use Actuator with Tabs: All Tabs *Sold as an Individual

Read more less

Trim Plate Retractor for SX TabsThe PR500 Bracket assembly enables Lectrotab SMART TABS to be set in two different positions without the need for any additional tools. When the bracket handle is in the “Down” position, the SMART TABS will function as trim tabs. When the bracket handle is in the “UP” position, SMART TABS will be fully retracted. The brackets are ideal for use when storing a boat, beaching a tender, or in very shallow water conditions, such as those found near the beach. Replaces the standard transom bracket.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

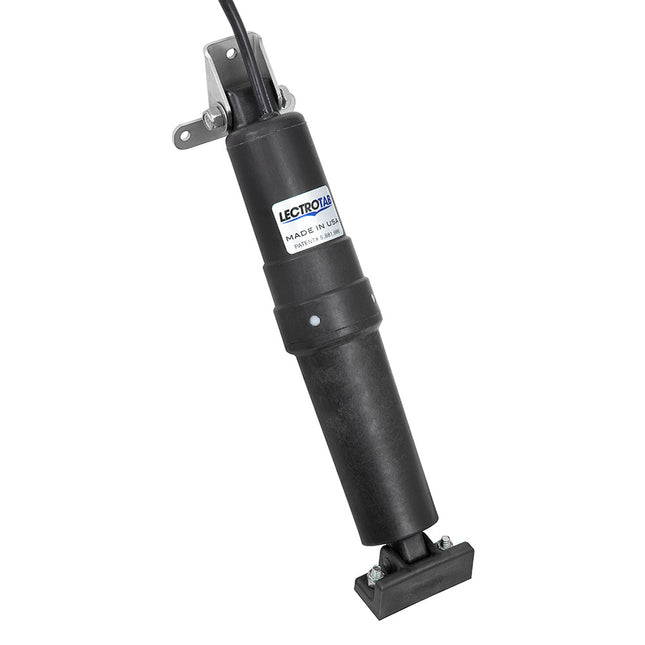

12V Heavy Duty Tab Actuator - 6' Cable for Everglades Boats Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures precise tab positioning, provides maximum lift force, and is completely self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket. Compatible With:Everglades Boats  Features: Reinforced actuator upper mounting boss The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth Utilizes an internal pressure equalization system Internal brake system prevents unwanted tab movement when underway or backing down Quiet operation All actuators are fully load-tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater Technical Specifications: Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 6' (1.8 M) Actuator Vertical Height - 11.875" (302 mm) Connectors - Deutsch style *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

Manual Leveling Control - Single Actuator The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight. The panel is a simple upgrade from existing rocker switches, and is suitable for 12V or 24V systems.  The control panel is completely sealed, waterproof and provides a user-friendly control for a more enjoyable boating experience. Features: Microprocessor based trim tab control with LED tab position indicators Single button press to move both tabs up or down simultaneously Rubber overlay with a sleek bezel design Automatic return to last tab position if ignition key is turned off and back on again Will not deteriorate in sunlight Automatic tab retraction and calibration with key or accessory switch off Easy upgrade from rocker switch style control or Oval control No external power module required for one actuator per tab system LED tab position indicators dim automatically in darkness and brighten in sunlight Technical Specifications: Display Color - Black Actuators per Tab Plate - One (1) Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Mounting Hole Cutout - 2" (50 mm) Operating Voltage - 12 or 24 V *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less
