Boat Outfitting - Trim Tab Accessories

Pro Control Auto KeypadThe Pro Control Auto keypad, with auto-leveling capabilities, provides intuitive, precision controls for your trim tab system. The CAN communication protocol comes as standard, making integration and installation simple.Features: 1 x Pro Control Auto Keypad 1 x Pro Control IMU 3 x Micro C Drop Cable 2 x 6' (1.82m), 1 x 15' (3.8m) 1 x Wake Signal Adapter for Non-Mercury Systems Connectivity - NMEA 2K, Lenco 2K, Mercury SmartCraft 3 x Micro C Tee Connectors Day and Night Modes Keypad dimensions 2.75" x 4.37" 2-1/16" hole cut-out size Please note: Pro Control keypads are compatible with SD Pro Actuators only

Read more less

Trim Plate Retrator for ST TabsThe PR500 Bracket assembly enables Lectrotab SMART TABS to be set in two different positions without the need for any additional tools. When the bracket handle is in the “Down” position, the SMART TABS will function as trim tabs. When the bracket handle is in the “UP” position, SMART TABS will be fully retracted. The brackets are ideal for use when storing a boat, beaching a tender, or in very shallow water conditions, such as those found near the beach. Replaces the standard transom bracket.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

One-Touch Leveling LED Control  Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.  Convenience, easy of use and reliability will make boating more enjoyable. Features: Microprocessor-based trim tab control with LED tab position indicators Single-button press to move both tabs up or down simultaneously Automatic return to last tab position if the ignition key is turned off and back on again Completely sealed, completely waterproof and will not deteriorate in sunlight No external power module required for single or dual actuator per tab systems LED tab position indicators dim automatically in darkness and brighten in the sunlight Adjustable programming features Technical Specifications: Display Color - Black Actuators per Tab Plate - One (1) or Two (2) Dimensions (W x H) - 3" x 3" (77 x 77 mm) Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm) Operating Voltage - 12 or 24 V *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

Double Paddle Trim SystemDouble paddle kit including two paddles and the brackets to attach it to a tilt or to a front mount helm.For complete control of engine trim and tilt, trim tabs, jackplates, PowerPole(R) and other on board systems, the innovative Paddle Trim system is the answer.Adaptable to existing front mount hydraulic and tilt helms, the Paddle Trim is ergonomically designed to allow the driver to make precise adjustments to the attitude of the boat or other systems without removing his hand from the steering wheel. Available both in single and dual versions (for either two equal or two different outputs) Both single or dual paddle can be positioned at various angles for the most confortable choice Equipped with one water proof “MOM.ON-OFF-MOM.ON switch ( 2 switches on dual version) Max load 5 Amp @ 12VDC For loads exceeding 5 Amp we recommend the use of the KTR - 42860S kit relay Uflex® trim tabs require the use of the KTR - 42860S kit relay Suitable for any kind of steering wheel dish. Max wheel dia. 400 mm (15.7”) Easy to install on the following Ultraflex® steering systems: - front and tilt mount hydraulic helms- tilt mount mechanical helmsWiring harness, labels and mounting hardware kit are included. The mounting plate, which differs between front and tilt mount. Installation, is ordered separately

Read more less

Standard Integrated Tactile Switch Kit with Pigtail for Single Actuator SystemsComplete your Lenco single actuator trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel. Features Include Simple, quick, Plug & Play installation Instant response Built-in retractor Low profile design Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length 30" (76.2 cm) from the back of the switch bezel 36" power pigtail 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location ATTENTION: REPLACEMENT KEY PADS & CONTROL BOXES FOR 2016 & PRIOR SWITCHES ARE NOT COMPATIBLE WITH THIS SWITCH KIT.Replacement parts are available and are sold separately. Specifications 3 Year Warranty System Type: Single Actuator Compliance: CE Certified WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

18 x 12 Standard Trim Plane AssemblyBennett trim planes are made of high-quality 304 stainless steel and remain strong and rigid, even in the most challenging situations. Each trim plane assembly includes a trim plane, backing plate and hinge for one side of the boat.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

AutoTrim Pro for Electric Trim TabsAn all-in-one trim tab control system combining a myriad of essential features… Automatic Trim Tab Control, Manual Trim Tab Control, and Trim Tab Position Indication… all combined into an easy-use, space-saving keypad. It’s like cruise control for your tabsAutoTrim Pro automatically levels the pitch and roll of your boat, adjusting your trim tabs to changes in vessel speed, sea conditions and shifting weight. …And you can take full manual control anytime with the touch of a button. It’s like cruise control for your boat.This affordable solution can be added to most existing Electric trim tab systems. It’s fully compatible with all Bennett systems, and most others. Installation is simple and straightforward.Features & BenefitsAuto Trim Tab Control: Easily store 2 favorite automatic running attitudes in memory. See real-time AutoTrim Pro adjustments with LED indicationManual Tab Control with Automatic Override: Just push anywhere on the bow up or down buttons and you’re in full manual command of the trim tabsOEM Customizable Response Time: Configure response time to engine power, hull type, actuator type or trim tab sizeTrim Tab Position Indication: L.E.D. indicators equipped with adjustable light intensityOne-touch Manual Full Up and Full Down Buttons: Down for hole-shot, up for running in a following sea, or coming into the beachAutomatic Tab Retraction: Retract trim tabs to full up position when the boat’s ignition is switched off, protecting tabs during storage and traileringWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Actuator Assembly - 13.75" Closed LengthActuator assembly is complete hydraulic cylinder. Piston-like strong arm that pushes tab into position. Sophisticated plastic resin body. Nylon upper hinge. Bends 5° in actual use. Fluid flows through concealed hole in upper hinge thus eliminating external hoses subject to damage. Hearty and flexible enough to demands of offshore use. For use with Bennett standard trim tabs only.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)

Read more less

12 V Trim Tab Actuator - 23' Cable Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates a transom mounting bracket. Features: Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Upgrades to most popular hydraulic and electromechanical systems Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation All actuators fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Upper Mounting Bracket - Standard Lower Mounting Bracket - Standard *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

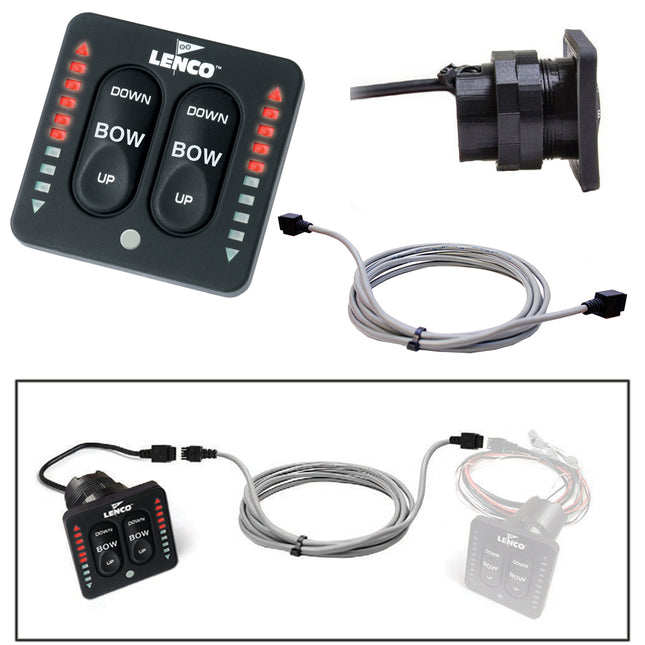

LED Indicator Integrated Tactile Switch Kit with Pigtail for Dual Actuator SystemsComplete your Lenco trim tab system with the latest, maintenance-free (ALL-IN-ONE) integrated tactile switch kit design. This NEW switch technology improves accuracy and integrates the control box functionality into the key pad bezel.LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.Features Include Simple, quick, Plug & Play installation Instant response Built-in retractor Low profile design Self-contained key pad with waterproof Plug & Play Deutsch connectors Wiring harness length 30" (76.2 cm) from the back of the switch bezel 36" power pigtail 2 1/16" hole cut-out size, overall key pad size of 2.75" x 2.75" 4.08" clearance required from the back of the key pad's mounting location 2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times Photo Eye for optimum viewing in all light conditions Backlit key pad for optimum viewing at night Replacement parts are available and are sold separately. Specifications 3 Year Warranty System Type:Dual Actuator Compliance:CE Certified WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Actuator Extension Harness - 26' - 12 AWGFeatures: 26' Deutsch-Connected Extension 12 AWG Extension Harness Abyc Compliant WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke with Mounting HardwareThe 101 XDS Actuator is used with OEM specific kits and limited space applications. It is the shortest actuator manufactured. 2.25 stroke and overal length (tip to tip) is 10 7/8 inches.    Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.Specifications: Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design Improved pressure-tight torx screws Integrated wiper seal at actuator base Molded-in brass thrust bearing design Thicker and stronger motor housing wall Improved O-Ring design for more consistent seal Over-molded cable providing a stronger tighter seal Upper mounting bracket with gland seal Features: Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 12 Volt 5/16" mounting hardware 6 foot cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less
