Boat Outfitting - Trim Tabs

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 18The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Automatic Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 4"W x 6"L WT: 20.25 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

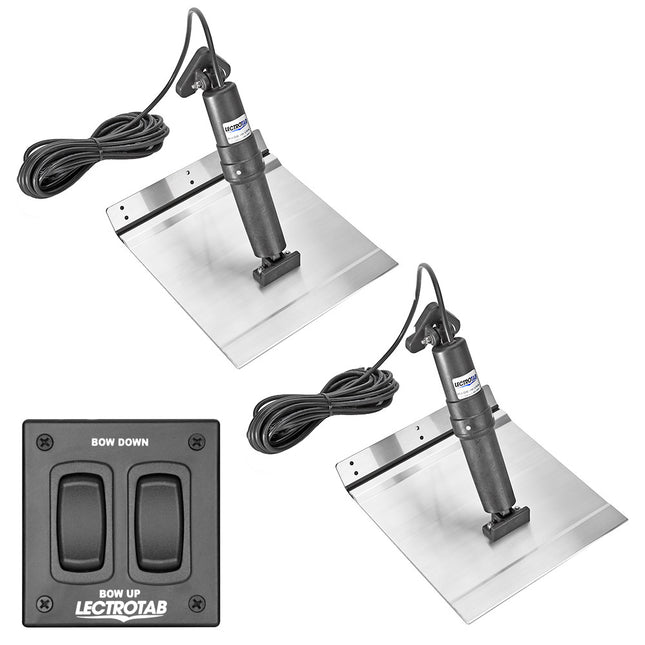

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch  - 12 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 3"H x 4"W x 6"L WT: 20.45 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

129ATP Hydraulic Trim Tab Complete Kit with Auto Trim ProHydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster. Kits Include: (2) Trim plane assemblies (2) Hydraulic actuators (1) Hydraulic Power Unit Hydraulic tubing and hardware Helm Control Features: Get on plane fast and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/M120) provides 30% more lift Bottom and piano hinge mounts are available for custom order WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 5"H x 15"W x 26"L WT: 23 lbs UPC: 666285600405

Read more less

BOLT 12x9 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 7"H x 14"W x 15"L WT: 20.1 lbs UPC: 666285600016 Owner's Manual (pdf)

Read more less

Edge Mount Trim Tab Kit w/LED Indicator Switch KitLenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Suggested Boat Length:16'-25'L" x W": 9" x 12"Hinge Height: 2"Minimum Transom Height: 13.5"Kit Contents 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner's / installation manual All necessary stainless steel mounting hardware Specifications: Blades: 12 Gauge Stainless Steel Finish:Smooth Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat LED Indicator Switch KitWith Built-In Retractor & Self-Check Features For Single Actuator Systems / 12 & 24-VoltLenco Waterproof Trim Tab Tactile Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.The Lenco indicator switch is the most advanced trim tab switch available. The switch itself is completely waterproof, and has an over-molded connector to eliminate water intrusion. L.E.D. indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.The standard tactile switch is built to all the same exacting standards as the indicator switches.Kit Contents Self-contained sealed Key Pad Control box 36" Power Pigtail. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 3"H x 5"W x 10"L WT: 18.85 lbs

Read more less

9" x 12" Edge Mount Trim Tab Kit without Switch Kit -12V Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads & Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Hinge Height: 2" Minimum Transom Height: 13.5" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Box Dimensions: 5"H x 13"W x 14"L WT: 17.65 lbs UPC: 874847004367

Read more less

12" x 12" Edge Mount Trim Tab Kit w/LED Indicator Switch Kit  - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: LED Indicator Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

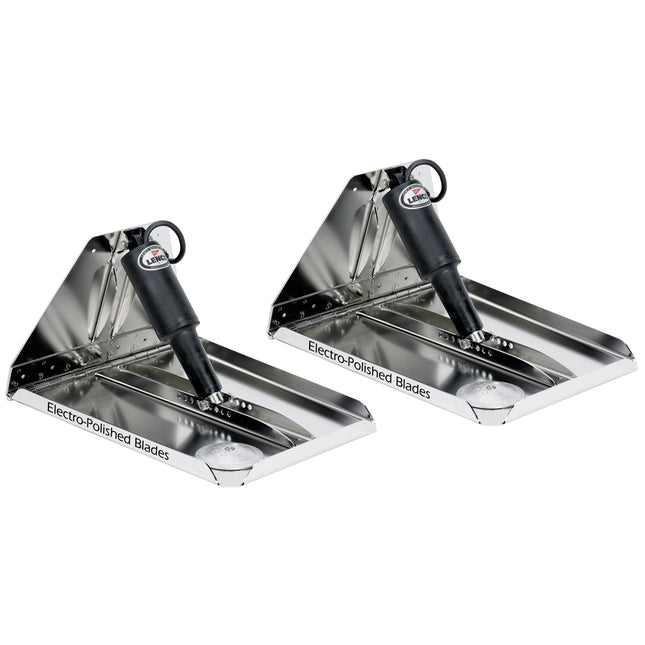

Standard Performance Series TabsStandard actuator with 5/16" stainless steel through bolts. 1" turned up edges with 2" taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished BladesWe make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each kit contains: Tactile LED Indicator Switch Kit 2 actuators with 6' Lead & Deutsch Plugs 2 12 Gauge SS Electro Polished trim tab planes 2 20' Actuator Extension Wiring Harness 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All Necessary stainless steel mounting Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes: Tactile LED Indicator Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

9" x 12" Standard Trim Tab Kit w/LED Integrated Switch Kit- 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 16' to 25' Length of Tab: 9" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: LED Indicator Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each Kit Includes: Tactile LED Indicator Switch Kit 2 12-volt Actuators with 6-foot leads and Deutsch connectors 2 20' actuator extension harnesseswith Deutsch connectors 2 Stainless steel trim tab blades 2 upper mounting bracket with gland seal 2 lower mounting bracket All Necessary stainless steel Mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Standard Performance Series TabsStandard actuator with 5/16" stainless steel through bolts. 1" turned up edges with 2" taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished BladesWe make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab SystemsFeatures: Self-contained, sealed keypad Self-contained, sealed control box module Fade/smudge-proof, laser engraved graphics Plug & play switch wiring harness connector Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75" Built-in retract feature returns tabs to a fully retracted position when power is removed 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight 12 & 24-volt compatibility Includes Self-Check Feature Each kit contains: Tactile LED Indicator Switch 2 actuators with 6' Lead & Deutsch Plugs 2 12 Gauge SS Electro Polished trim tab planes 2 20' Actuator Extension Wiring Harness 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All Necessary stainless steel mounting Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less
