Boat Outfitting - Trim Tabs

BOLT 12x16 Heavy Duty Trim Tab SystemDesigned for rougher conditions and higher speeds, the BOLT1216HD (12” span x 16 chord”) heavy-duty electric trim tab system features an adjustable upper hinge actuator and requires less than 10.25” of vertical transom height. The high-performance laser-cut, tapered trim tabs are manufactured with extremely durable 12-gauge, electro-polished stainless steel, featuring a full-profile backing plate, and up-fins for added strength.Control sold separately This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 6"H x 20"W x 32"L WT: 35.1 lbs UPC: 666285600344

Read more less

12x9 BOLT System with Adjustable Upper HingeProperly sized trim tabs improve the performance of your boat by adjusting the running angle of your vessel. Bennett Marine trim tabs help you get on plane faster, correct listing (roll), improve visibility, and increase overall efficiency and control.Features: Get on plane quickly to see over the bow Increase vessel performance and efficiency Correct listing (roll) Adjust the boat’s attitude for changes in speed, sea conditions, and shifting weight Correct porpoising (rhythmic bouncing) Controls sold separately  General guidelines for choosing a trim tab size:In general, the widest span tabs that will fit on the transom will be the most effective. The greater the surface area, the greater the lift. We‘ll typically recommend a 9” chord tab, but depending on available transom space a shorter or longer chord tab, or specially shaped tabs with upfins or dropfins may be advised.As a general rule for boats with max speeds of 40MPH, choose at least one inch of trim tab span (per side) for every foot of boat length. For example, a 22′ boat would use a 24”x9”.For speeds 40MPH and over, we’ll generally point you to one of our Performance, or Premier Line high-performance systems.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 6"H x 14"W x 14"L WT: 19.85 lbs

Read more less

BOLT 18x12 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 5"H x 15"W x 25"L WT: 25 lbs UPC: 666285600054 Owner's Manual (pdf)

Read more less

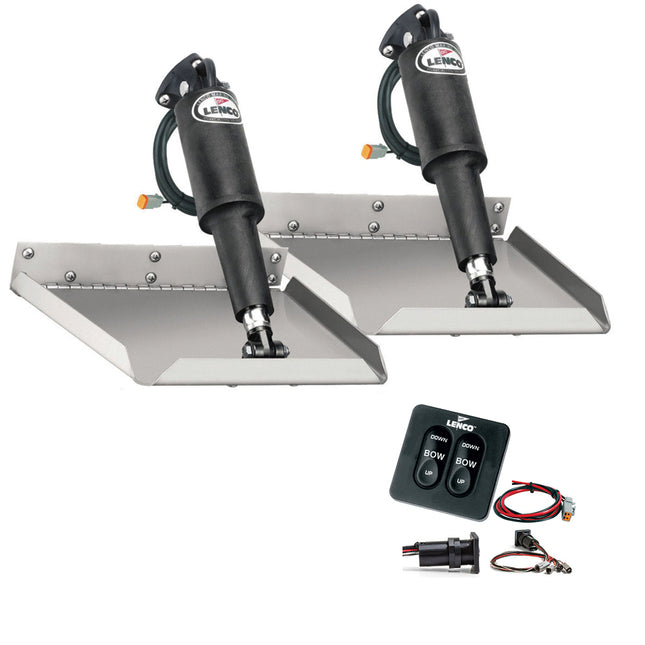

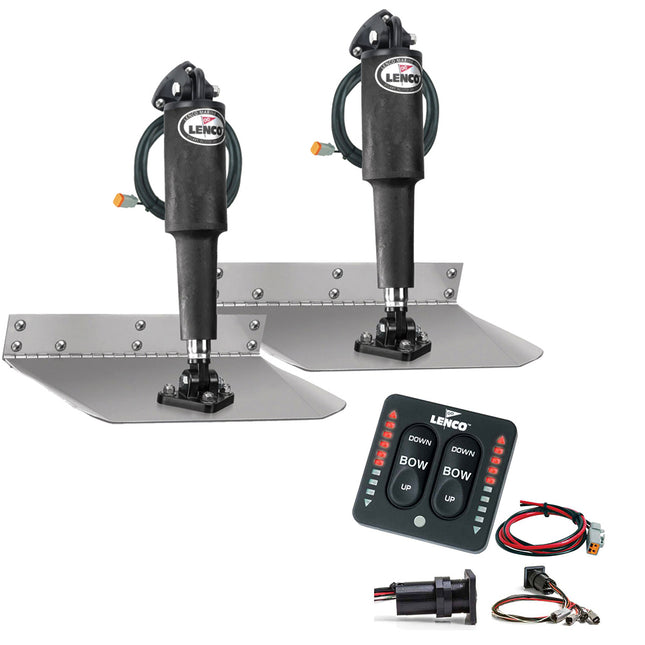

12" x 12" Standard Trim Tab Kit w/Standard Integrated Switch Kit - 12V Lenco Electric Complete Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections.Standard Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Lenco Trim Tab Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.Kit includes:  Self-contained sealed keypad Control box 36" Pigtail Specifications: Suggested Boat Length: 17' to 30' Length of Tab: 12" Width of Tab: 12" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Standard Tactile Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

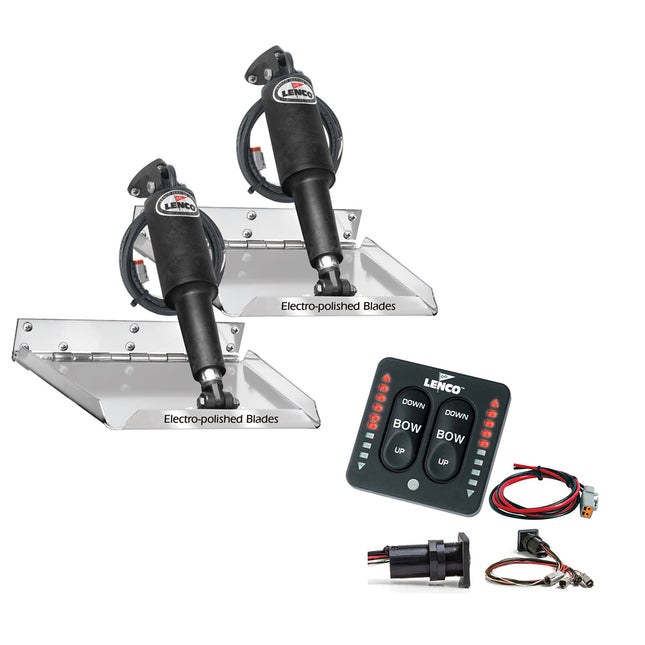

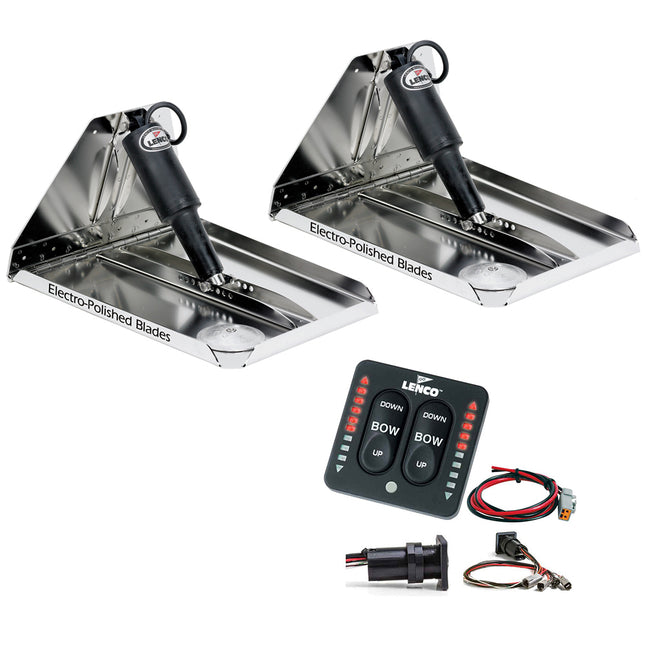

Standard Performance Series TabsStandard actuator with 5/16" stainless steel through bolts. 1" turned up edges with 2" taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished BladesWe make the best boats better!™Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different? All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks Actuator speed is precise and controllable so there are no surprises at top speeds Actuators Instant response Fully submersible, maintenance-free and sealed for life High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains:Standard Tactile Switch Kit2 actuators with 6' Lead & Deutsch Plugs2 12 Gauge SS Electro Polished trim tab planes 2 20' Actuator Extension Wiring Harness 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All Necessary stainless steel mounting Hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Edge MountMounts the actuator at the trailing edge of the plane, requiring 4" less transom height than standard mountTrim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious. Instant response electric actuators for precise control Everything is fully submersible, maintenance-free and sealed for life Self-locking ballscrew will not drift, even while backing down 12-gauge laser cut stainless steel trim tab planes High-impact corrosion-proof mounts look great through years of abuse Clean, time and space-saving installation Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case 316 super buff stainless steel rams Standard Solid State Tactile Switch Kits with Retractor Feature#15069-001 (124SSR)For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.Features Built-In Retractor Feature Solid State Electronics Plug & Play Low Profile Design Self-Contained, sealed keypad & solid state control box with waterproof connectors Simple, Quick Installation Includes 36" power pigtail for control box 2" hole cut-out size, overall size 2.75" x 2.75' Each kit contains: Standard Tactile Switch Kit 2 Actuators with 6' lead & Deutsch Plugs 2 20' Actuator Extension Wiring Harness 2 12 gauge Stainless steel trim tab planes 2 Upper Mounting Bracket with Gland Seal 2 Lower Mounting Bracket All stainless steel mounting hardware WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 24 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 23.95 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 12The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm) Boat Length - 16' to 25' (5 to 7.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 4"H x 5"W x 6"L WT: 17.25 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

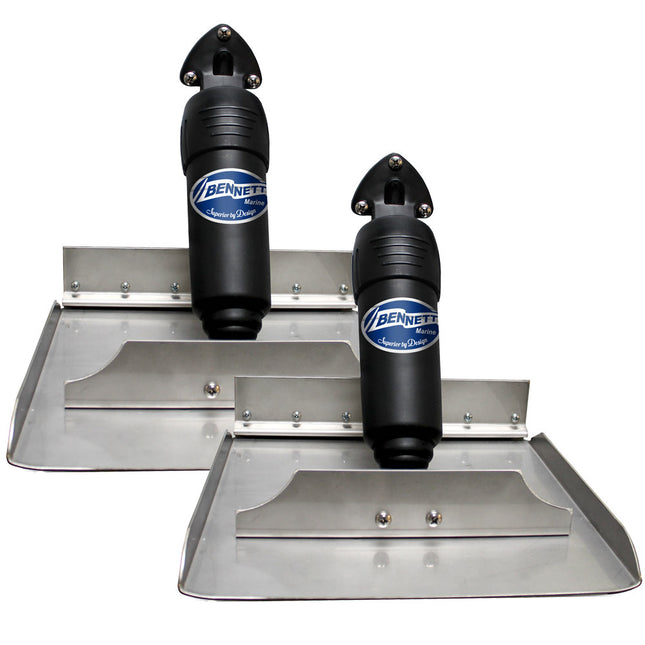

BOLT 24x12 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 5"H x 15"W x 32"L WT: 29.9 lbs UPC: 666285600061 Owner's Manual (pdf)

Read more less

Smart Tab Trim Tabs 9" X 8" for 12'-16' Boats with 40-80 HPIf these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money?The breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling, and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway. The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).SPEED REGULATEDNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance. It will reduce the minimum planning speed by 33%Provide a level, more comfortable ride at lower speedsImprove economy, handling and safety.As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.*All mounting hardware, instructions, and templates are included.*SMART TABS require NO THROUGH HULL DRILLINGThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 5"H x 9"W x 12"L WT: 4 lbs UPC: 698690980407

Read more less

Smart Tabs II Series Trim Tabs 16" X 10" for 23'-30' Boats - 8500lbs MaxIf these trim tabs don't provide you with an outstanding performance increase, contact us within 30 days of your purchase.Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money?Designed for boats 23' - 30' weighing up to 6500 lbs. The ST 1610 Series is ideal for low-profile fiberglass, Aluminum, and RIB design boats with transom widths less than 10 feet (trailerable boats). This heavy-duty system provides an active suspension system for the boat that increases stability and smooths the ride even in rough seas. Easier planning at slower speeds, increased payload performance, improved tracking and handling are available automatically without the need for pilot interface. No switches, no electric or hydraulic connections, and no maintenance. Just get in and go!Specially designed for boats between 23' and 30', under 10' in width, and up to 8,500 Lbs gross weight. The ST1610 series features two nitrogen gas actuators per plate, providing increased stern lift and twice the reactive dampening, eliminating any instant changes from water pressure variances. This fully automatic and active system provides a smooth and undetectable reaction to boat speed and water conditions, creating a more comfortable ride.Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. Reduce the minimum planning speed by up to 33% Faster Acceleration Increase top speed Provide a level, more comfortable ride at lower speeds Improve fuel economy, handling, and safety NO HYDRAULICS - NO ELECTRIC SWITCHESNauticus trim tabs are completely automatic requiring no operator adjustment while underway.The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).SPEED REGULATIONNauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.BOAT STABILIZERSEven when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.ONE OF A KINDThe unique system is the only one of its kind in the industry. The internal valve system is truly "smart" in its design of controlling you boats performance.It will reduce the minimum planning speed by 33%Provide a level, more comfortable ride at lower speedsImprove economy, handling and safetyAs the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.INSTALLATION IS SIMPLEWith an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.*All mounting hardware, instructions, and templates are included.*SMART TABS require NO THROUGH HULL DRILLINGThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Hydraulic Construction: Stainless Steel Box Dimensions: 3"H x 11"W x 17"L WT: 9.6 lbs UPC: 698690161080

Read more less

18" x 14" Standard Performance Trim Tab Kit w/o Switch Kit- 12VUpgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the bladesKit Contents: 2 each of 12-gauge stainless steel Electro-Polished trim tab blades 2 each of #15054-001 actuators with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (#116) upper mounting bracket with gland seal    2 each of #50014-001 (#119) lower mounting bracket  1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 22' to 40' Length of Tab: 18" Width of Tab: 14" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less
