Boat Outfitting - Trim Tabs

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 12The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 4"H x 5"W x 6"L WT: 19.25 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 24 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 4"H x 5"W x 6"L WT: 31.55 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 9The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm) Boat Length - 18' to 29' (5.5 to 8.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 4"H x 5"W x 6"L WT: 17.05 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 18The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Automatic Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 2"H x 4"W x 6"L WT: 20.25 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 4"H x 5"W x 6"L WT: 27.05 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 24 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm) Boat Length - 24' to 37' (7 to 11 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 20.85 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 12The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm) Boat Length - 16' to 25' (5 to 7.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 14.15 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 18The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm) Boat Length - 21' to 30' (6.5 to 9 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Stainless Steel Box Dimensions: 4"H x 5"W x 6"L WT: 22.15 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

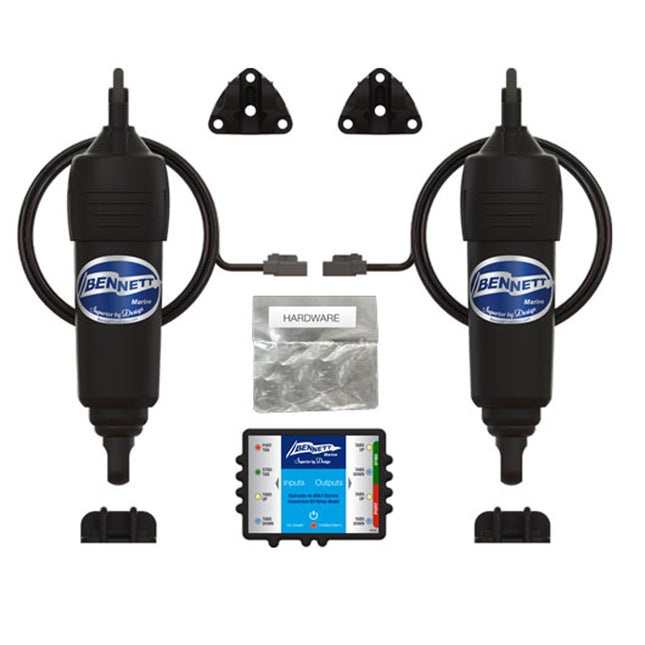

BOLT 12x4 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 4"H x 14"W x 14"L WT: 14.3 lbs UPC: 666285600009 Owner's Manual (pdf)

Read more less

BOLT 12x12 Electric Trim Tab System - Control Switch Required Electric Trim Tab Systems For Trailered BoatsBoaters can enjoy a durable and reliable electric trim tab system designed for 17-28 foot boats. Bennett Marine invented the electric trim tab in 1960, and now Bennett leads the way with an electric trim tab system designed to outperform and outlast any electric system on the market.Compared to other electric systems using old technologies designed over twenty years ago, the BOLT Electric combines cutting-edge technology with a robust and water-tight actuator. This new "Superior by Design" technology resolves the issues that older systems have with breaking apart and water intrusion caused by design flaws and marine growth.While we strongly recommend hydraulic trim tabs for most applications, electric trim tab systems are suitable for: Trailered boats from 17-28 feet Single actuator use, due to the inability to synchronize two electric actuators on the same tab Features: Wires are concealed and protected through the upper hinge - there are no exposed wires to the marine environment Robust, water-tight black nylon actuator provides trouble-free operation Main seal located high to protect against marine growth and water intrusion failures Quieter than any other system on the market - No more scaring the fish away! Installation is fast - no need to disassemble parts of the actuator Controls sold separately  WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Electro-Mechanical Box Dimensions: 7"H x 14"W x 15"L WT: 21 lbs Owner's Manual (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 24 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Manual Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a KitThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 24 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

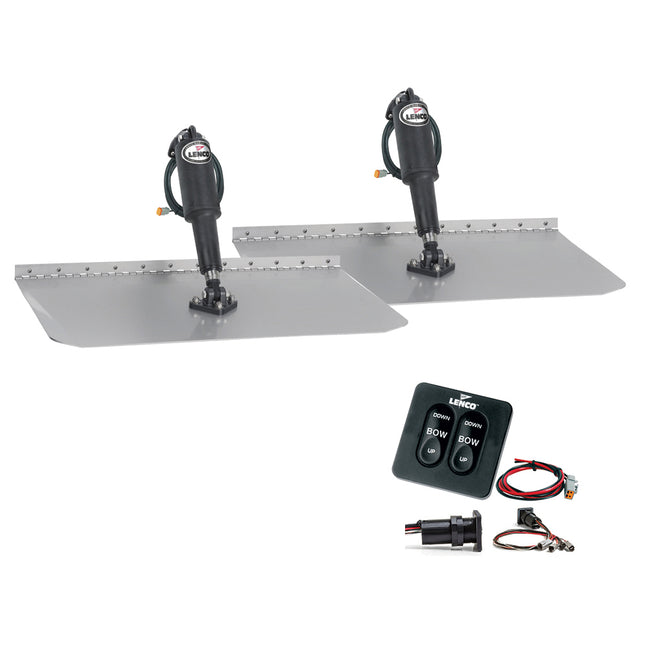

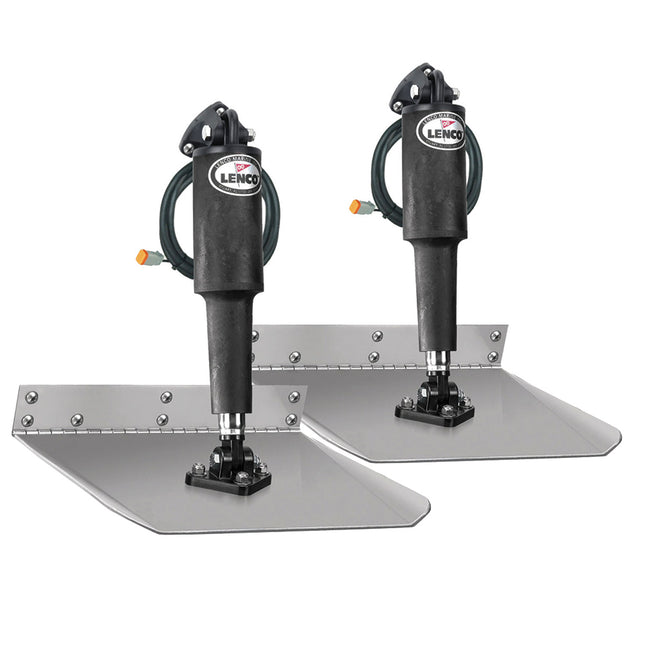

9" x 9" Standard Mount Trim Tab Kit without Switch Kit- 12VLenco Electric Standard Mount Trim Tab Kits make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics.Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Trim Tab blades are 12 Gauge - 304 SS with a 5/8" flared trailing edge and 1/8" diameter hinge pin. Kits include standard actuators with 5/16" SS bolts.Kit Contents: 2 each of 12-gauge stainless steel trim tab blades 2 each of #15054-001 actuator with 6' leads and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (116) upper mounting brackets with gland seal 2 each of #50014-001 (119) lower mounting brackets 1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 14' to 18' Length of Tab: 9" Width of Tab: 9" Hinge Height: 2" Minimum Transom Height: 14" Blades: 12 Gauge Stainless Steel Finish: Smooth Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less
