Boat Outfitting - Trim Tabs

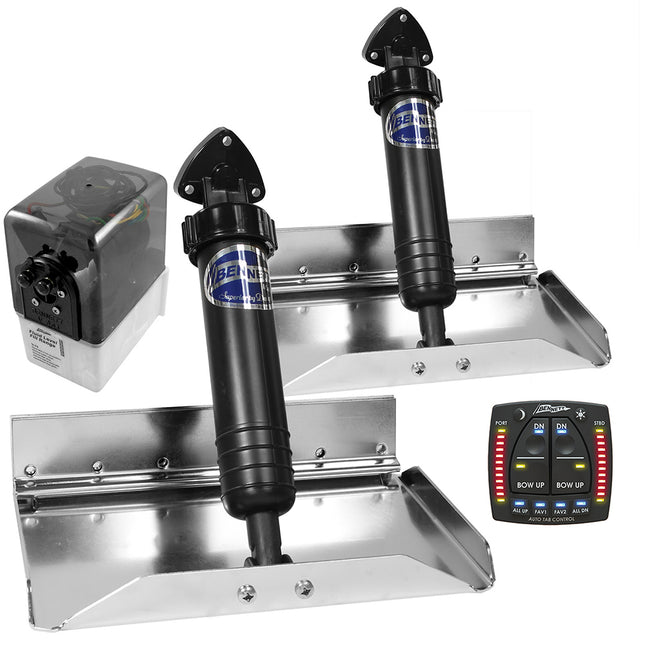

ST16ATP Performance Sport Tab System w/Auto Trim Pro12" x 16"Manufactured with heavy-gauge reinforced stainless steel and powerful hydraulic actuators. Performance Tabs combine strength, durability, and good looks to achieve your boat’s maximum potential.Features Include: Get on plane fast and stay on plane at intermediate speeds Correct listing and uneven loads Reduce pounding and eliminate porpoising Improve visibility and safety Low maintenance with long-term value Kits Include: (1) Control unit (ATP) (2) Trim plane assemblies (2-4) Hydraulic actuators (1) Hydraulic power unit Hydraulic tubing and hardware WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Construction: Stainless Steel Actuator Type: Hydraulic Box Dimensions: 6"H x 15"W x 32"L WT: 35 lbs

Read more less

Doel-Fin Stabilizer Fin - Black Doel-Fin is the original hydrofoil developed by an aeronautical engineer to improve overall performance on all boats with outboard motors or outdrive units. Molded in two pieces of guaranteed unbreakable, high-strength plastic, each foil is designed to flex independently to absorb shock. The positive effects include greater stability, consistent planing at lower RPM, faster out-of-the hole performance, better gas mileage, steadier turns, higher top-end speeds and lower bow rise at all speeds. Doel-Fin is designed for use with small motors, big motors and inflatable dingies. Quick Guide (pdf)

Read more less

12x9 Performance Sport Tab SystemManufactured with heavy-gauge reinforced stainless steel and powerful hydraulic actuators. Performance Tabs combine strength, durability, and good looks to achieve your boat’smaximum potential.Features: Get on plane fast and stay on plane at intermediate speeds Correct listing and uneven loads Reduce pounding and eliminate porpoising Improve visibility and safety Low maintenance with long-term value What's Included? (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101ARC) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware Optional helm control (See the Control Options tab) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

12" x 9" Standard Performance Trim Tab Kit w/o Switch Kit- 12VUpgraded electro-polished trim blades with stouter 1/4" diameter hinge pin make these Performance Trim Tab Kits a cut above the base level Lenco Standard Mount Kits. Equipped with the same fast response electric actuators for precise control. Fully submersible with all Plug & Play Deutsch connections. Blades are Electro-Polished 12 gauge - 304 SS with 1" turned up edges (the 16" x 12" and the 18" x 14" have an 85 degree inside taper) and 1/4" diameter hinge pin. Kit includes Standard Actuators with 5/16" SS bolts. The actuators mount at the trailing edge of the bladesKit Contents: 2 each of 12-gauge stainless steel Electro-Polished trim tab blades 2 each of #15054-001 actuators with 6' lead and Deutsch plugs 2 each of #30133-103 20' actuator extension wiring harnesses 2 each of #15085-001 (#116) upper mounting bracket with gland seal    2 each of #50014-001 (#119) lower mounting bracket  1 each of the Lenco owner’s / installation manual All necessary stainless steel mounting hardware Specifications: Suggested Boat Length: 16' to 26' Length of Tab: 12" Width of Tab: 9" Minimum Transom Height: 11" Blades: 12 Gauge Stainless Steel Finish: Electro-Polished Switch Kit: Sold Separately Class: Fuel Efficient Compliance: CE Certified Compatibility: Any Boat Actuators: 12-volt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

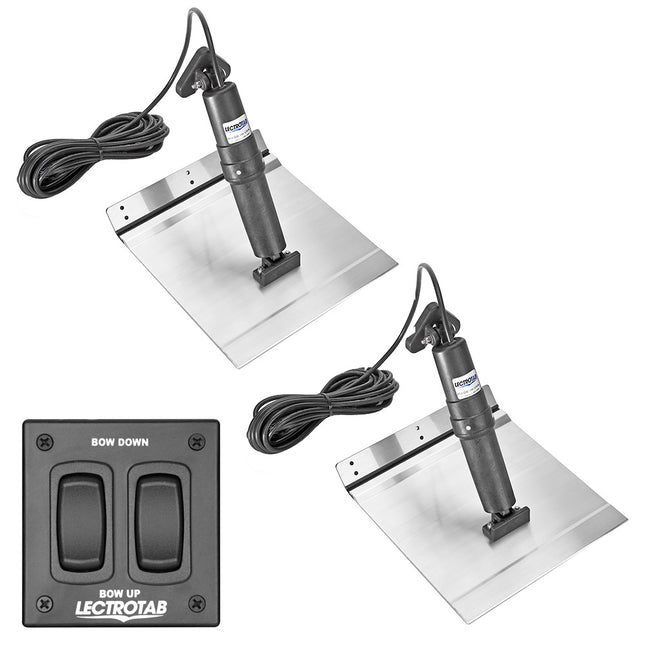

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 15.35 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

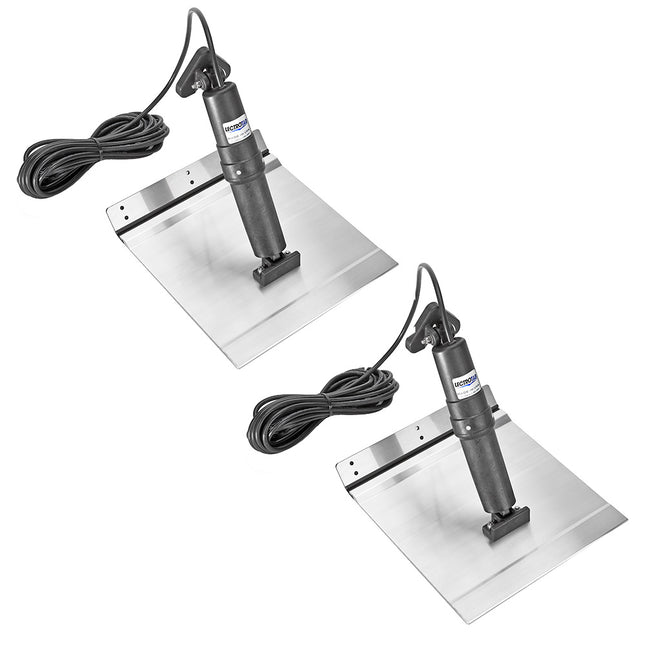

XKA Aluminum Alloy Trim Tab - 12 x 12The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. *Control switch not included Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) In the Box: Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as an Individual  Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 6"H x 15"W x 15"L WT: 15.1 lbs UPC: 850046155567 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 24 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm) Boat Length - 28' to 48' (8.5 to 14.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Manual Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 24 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 9 x 9 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm) Boat Length - 14' to 19' (4 to 6 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 13.05 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 9 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm) Boat Length - 18' to 29' (5.5 to 8.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Manual Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 4"H x 5"W x 6"L WT: 14.4 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

XKA Aluminum Alloy Trim Tab - 9 x 9The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. *Control switch not included Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm) Boat Length - 14' to 19' (4 to 6 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) In the Box: Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as an Individual Specifications: Actuator Type: Electro-Mechanical Construction: Aluminum Alloy Box Dimensions: 6"H x 15"W x 15"L WT: 12.8 lbs UPC: 850046155444 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Dealer Service KitExclusively offered to stocking dealers and repair yards, Bennett’s Dealer Service Kit is an affordable way to acquire the most common Bennett trim tab system replacement parts.What's Included? (QTY / 1) BOLTBLTADJ – BOLT Electric System (Not Including Tabs) (QTY / 1) BRC4000 – Rocker Switch for Electric Systems (QTY / 1) ES2000 – Rocker Switch for Hydraulic Systems (QTY / 2) A1101CPEIC – Hydraulic Actuator with Sensor (QTY / 2) A1200SCPEIC – Short Hydraulic Actuator with Sensor (QTY / 1) V351HPU1D – Hydraulic Power Unit 12V w/Deutsch Connector (QTY / 1) H1170A Hardware Kit A (QTY / 1) H1170B Hardware Kit B (QTY / 2) T112520 20′ Hydraulic Tubing (QTY / 2) H1179 Mounting Bracket for HPU (QTY / 2) A1114 Lower Hinge with Hinge Pin (QTY / 1) VP1135G Solenoid Valve (G) (QTY / 1) VP1135R Solenoid Valve (R) (QTY / 2) T1127 Nut with Ferrule This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

12x12 Sport Tab System with One Box IndicationHydraulic trim tabs are known for power, precision, and durability. Get the most from your boat, no matter what the load, speed, or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride, and get on plane faster.Features: Get on plane fast, and stay on plane at intermediate speeds Correct listing and uneven loads Improve visibility and safety Reduce pounding and eliminate porpoising Low maintenance, long-term value, and ease of service Exclusive transom mount interlocking tab design Sport batwing option (M80/ M120) provides 30% more lift for limited-space installations Bottom and piano hinge mounts are available for custom order Kit Includes: (2) Trim plane assemblies (2-4) Hydraulic actuators (A1101A) (1) Hydraulic power unit (V351HPU1) Hydraulic tubing and hardware one box indicator helm control This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less
