Traxxis 80 Freshwater Trolling Motor - Transom Mount - 24V - 80lb - 42" - Variable SpeedTraxxis® is loaded with features that put your boat right where you need it, day in and day out. Versatile steering tension control. Easy One-Hand Stow. Quick depth adjustments. Traxxis never runs out of ways to keep you on the fish.One-Hand StowJust pull up and forward to stow the motor with no buttons or release levers. Then, when it’s time to go, use the easy-access thumb release to deploy Traxxis into any of ten different positions.Tilt/Extend TillerTake command of your hand-controlled trolling motor with this versatile tiller, which both tilts (up to 45°) and extends (up to 6"), and features a digital battery indicator on the head.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Quick-Cam Depth AdjusterChange trim depths quickly, simply, and securely. When you find your depth, this easy-to-use adjuster locks in tight to keep your trolling motor right where you want it.Steering Tension ControlLock in the exact steering tension you want with the innovative collar above Traxxis' mount. Keep it loose for effortless steering or tighten it down to keep Traxxis in place, allowing for true vertical stowing.Push-to-Test Battery MeterPress a button on the trolling motor head to get an instant status of battery life you have left.Power PropFor 3-5/8" motor diameters, this prop delivers extra power to push through heavy vegetation. includes a prop pin, nut, and washerIndestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.Specifications: For Use In: Freshwater Shaft Length: 42" Max Thrust: 80 lbs. Voltage: 24v Mounting Location: Transom-Mount Motor Style: Hand-steer Control: Hand / Tiller Power Trim: No Speeds: Variable Digital Maximizer: Yes Battery Meter: Yes Max Amp Draw: 56 *Note: 80-lb thrust, 24-volt Traxxis motors feature larger metal transom bracket with fold away clamp knob Specifications: Autopilot: No Built-In Transducer: No Control Type: Tilt/Extend Tiller Mounting Style: Transom Salt Water/Fresh Water: Fresh Series: Traxxis Shaft Length (Inches): 42" Thrust (Pounds): 80 lbs Voltage - Input Range (Volts): 24v Box Dimensions: 9"H x 21"W x 60"L WT: 30 lbs UPC: 029402033058

Read more less

4' Black Stern Flex Hose with Transom FlangeThis Trident Stern Flex Hose is black (Trident Marine 129 series) and contains wire, control cables, and hoses between the transom and outboard engine(s). Connects to Trident flange part #142-2000.Features: Highly resistant to crushing, abrasion, and UV and has excellent resistance to chemicals  Extraordinary flexibility Construction: Hose: Lightweight polyethylene copolymer Reinforcement: Integral Polyethylene Helix Temperature Range: -40°F to 140°F (-40ºC to 60ºC) Specifications: Color: Black Inner Diameter: (inch) 2” / (mm) 50.8 Outer Diameter: (inch) 2.35” / (mm) 60 Bend Radius: (inch) 3.5” / (mm) 88.9 Weight: (lb/100 ft.) 26 / (kg/m) 11.8 Quick Guide (pdf)

Read more less

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - 5/8"–15/16" Clamping Range - 10-Pack - SAE Size 8Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.Features: The screw head is 7mm Long service life and safety for most general-purpose hose applications and connections Recommendations: Measure hose O.D. before selecting clamp size for proper fit Double clamp on each hose end for critical applications Construction: Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick Screw Drive: 316 Stainless Steel 7.0 mm screw head Specifications: SAE Size: 8 Hose Inner Diameter: (inch) 3/8" – 1/2" Clamping Range: (inch) 5/8" – 15/16"  / (mm) 15-24 Recommended Torque Inch lbs: 25-35 Quick Guide (pdf)

Read more less

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (3/4" – 1-1/8") Clamping Range - 10-Pack - SAE Size 10Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46”) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63”) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.  Features: The screw head is 7mm Long service life and safety for most general-purpose hose applications and connections Recommendations: Measure hose O.D. before selecting clamp size for proper fit Double clamp on each hose end for critical applications Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.) Construction: Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9mm thick Screw Drive: 316 Stainless Steel 7.0 mm screw head Specifications: SAE Size: 10 Hose Inner Diameter: (inch) 1/2" – 5/8" Clamping Range: (inch) 3/4" – 1-1/8" / (mm) 19-28 Recommended Torque Inch lbs: 35-45 Quick Guide (pdf)

Read more less

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" – 2-1/4") Clamping Range - 10-Pack - SAE Size 28Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46”) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63”) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.  Features: The screw head is 7mm Long service life and safety for most general-purpose hose applications and connections Recommendations: Measure hose O.D. before selecting clamp size for proper fit Double clamp on each hose end for critical applications Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.) Construction: Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9mm thick Screw Drive: 316 Stainless Steel 7.0 mm screw head Specifications: SAE Size: 28 Hose Inner Diameter: (inch) 1-1/2" - 1-5/8"  Clamping Range: (inch) 1-3/4"– 2-1/4" / (mm) 44-56 Recommended Torque Inch lbs: 45-60 Quick Guide (pdf)

Read more less

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (5/8" – 15/16") Clamping Range - 10-Pack - SAE Size 8Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel “HD NON-PERF” Worm Gear Hose Clamp. The 11.7 mm (0.46”) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63”) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp.  Features: The screw head is 7mm Long service life and safety for most general-purpose hose applications and connections Recommendations: Measure hose O.D. before selecting clamp size for proper fit Double clamp on each hose end for critical applications Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.) Construction: Band & Housing: 316 Stainless Steel 11.7 mm wide band – 0.9mm thick Screw Drive: 316 Stainless Steel 7.0 mm screw head Specifications: SAE Size: 8 Hose Inner Diameter: (inch) 3/8" – 1/2" Clamping Range: (inch) 5/8" – 15-16" / (mm) 15-24 Recommended Torque Inch lbs: 35-45 Quick Guide (pdf)

Read more less

UC95OBF-1 Hydraulic Cylinder 175HP or LessIntended for single engine applications of 175 HP and under, the UC95 OBF-1 cylinder is compatible with competing helms, hoses, and oil, and is built to last with heavy-duty stainless steel cylinder rods, seals, and link assemblies.Features: Balanced the number of turns lock-to-lock is the equal port to starboard or vice-versa Adjustable boss style fittings for easy installation High resistance stainless steel connection bolt (ULTRABOLT)  Constructed of top-grade materials this cylinder is simple to install and fits almost every two and four-stroke outboard engine on the market our engine Split and pinned mounting rod for easy installation and bushings to prevent friction with engine Brochure (pdf)

Read more less

Complete Boss Fitting Typical Application:Bleed fitting for all outboard cylindersSpecifications: ORB, Size #6 to 3/8 COMP FITTING Cylinder Side = 9/16 - 18 UNF 2A Hose Side = 9/16 - 24 UNEF 2A

Read more less

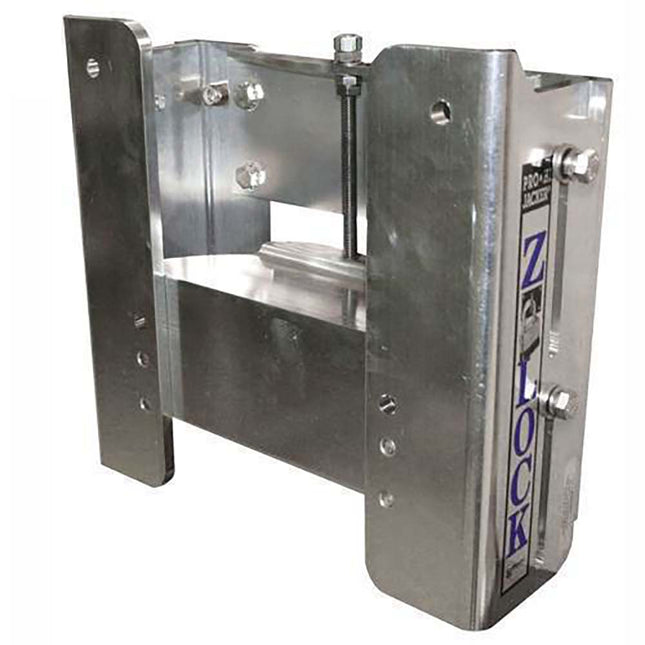

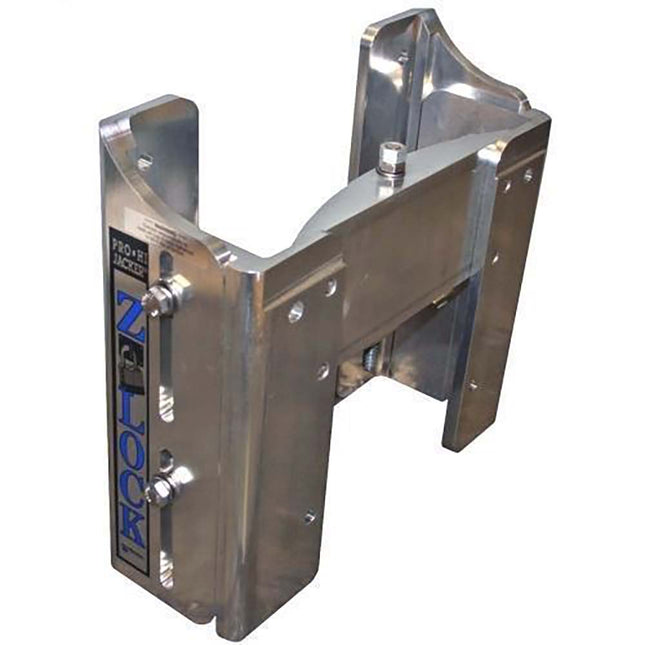

Z-Lock™ 6" Set Back Manual Single Adjust Jack PlateZ-Lock Jack Plate Revolutionary Design Adds Strength and Stability. The excellence of T-H Marine's HI-JACKER™ jack plate series continues with the Z-Lock Manual Jack Plate design upgrade.Features: Z-Lock™ Jack Plate Design Eliminates Side Slippage Matching slotted extrusions LOCK side plates in place Strong Aircraft Grade Aluminum Full ½” Material For Strength Handles All V6 and V8 Outboards up to 300 hp Easy to Adjust From Top of Jack Available in 4", 6", 8", 10" and 12" setbacks 5" of Vertical Adjustment WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

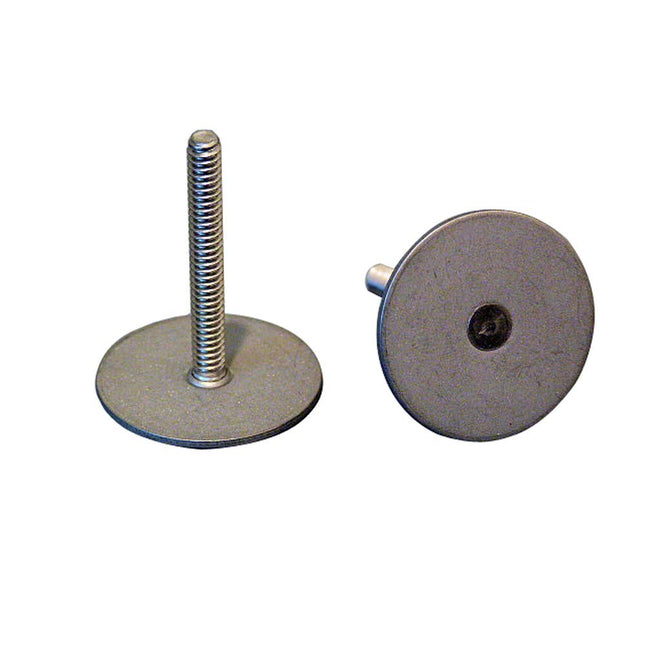

Stainless Steel Stud 1.25" Base 10 x 24 Threads .50" Tall - 15 QuantityStuds with smaller threaded stud inserted into the base. These studs are ideal for mounting wire clamps and securing items that require a smaller stud diameter. These studs can be bonded from either surface of the base plate.

Read more less

Cockpit Marine 52mm (2-1/16") LCD Hourmeter - Black Dial/Chrome Bezel VDO Cockpit Marine offers a comprehensive modular, modern series of instruments for engine monitoring. More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, VDO Cockpit Marine gauges offer an innovative, comprehensive standard instrumentation platform. VDO Cockpit Marine gauges provides maximum freedom to customize the cockpit and is the natural choice for an attractive price and performance ratio.Features: Digital LCD Hourmeter Voltage - 12-32V Input Type - Analog Mounting Hardware Included Records up to 100,000 operating hours Standard .250” (6.3mm) spade connectors *Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Box Set: No Gauge Size: 2-1/16" Series: Cockpit Marine Gauge Type: Hourmeter Voltage - Input Range (Volts): 8 to 16 VDC Box Dimensions: 4"H x 4"W x 5"L WT: 0.15 lbs UPC: 754059082455 Owner's Manual (pdf)

Read more less

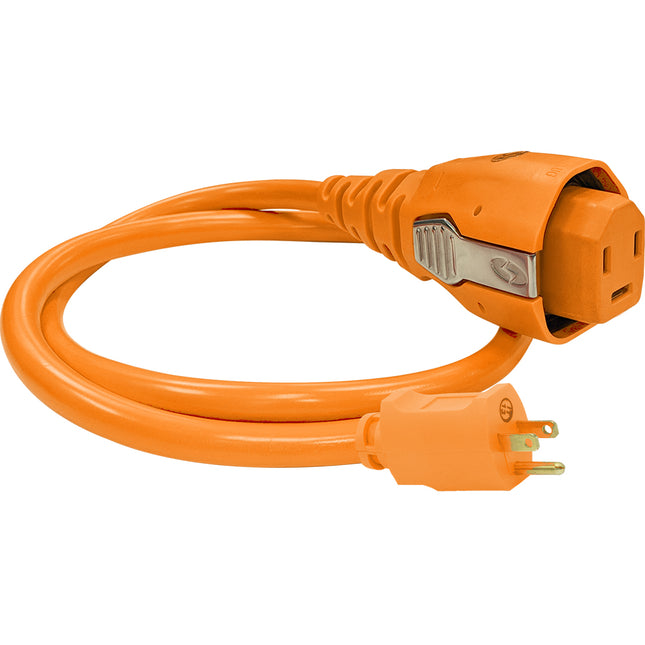

SmartPlug/15 AMP Cordset - 4'This 30 AMP Female SmartPlug to 15 AMP Male Standard Wall Plug (3-pin connector) cordset comes with a Cool Blue LED Power indicator light that glows when power is on.  This cord set provides a super flexible cord that can be tightly coiled even in cold weather. Features: Multi-Point Locking System – Side clips lock the plug body securely into the inlet which eliminates any stress on the electrical connection from the movement of the power cord. Weatherproof Seals - Silicone gaskets installed in the interior of the plug body eliminate any water penetration when plug is connected to inlet. Technical Specifications: Length - 4' Color - Orange Boatside Connection - 30 AMP/115 V Female SmartPlug Dockside Connection - 15 AMP/115 V Male Standard Wall Plug *Sold as an Individual WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage: 115 Type: Cordset Length: 4' Amperage: 30/15 Box Dimensions: 4"H x 10"W x 13"L WT: 2.55 lbs UPC: 682500440458 Brochure (pdf)
