Cannon Rod HolderThe Cannon Rodholder features a three-position rod-holding configuration to deliver the fastest baitcast or spinning rod pickup. A rear-position cradle holds baitcasting reels or spinning reels. The middle baitcasting cradle conforms to longer rod butts and shrtens the amount of rod extending through the back of the holder.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Optimum™ 10 Tournament Series (TS) BT Electric DownriggerThe Smart, Connected, Electric DownriggerIf you want to put bait on target, you’ve got to fish smarter. The Optimum™ downrigger is positively ingenious. This smart, connected system gives you access to critical trolling data and lets you raise, lower and cycle weights using the full-color LCD display, your Humminbird® fish finder, or even your mobile device. No matter where you are on the boat, you’re in charge. And the fish won’t know what hit them. See It All, Everywhere.Every Optimum has a full-color 3.5" LCD display. Choose from multiple screen view options to get the trolling data you’re after, and two modes (light/dark) for readability in any light.Experience Full Wireless ConnectivityRunning multiple lines is easier than ever, because complicated wiring is a thing of the past. You can network up to four Optimum downriggers wirelessly. Download the AppWith the Cannon® app on your mobile device, you’ll have trolling data at your fingertips and total control of your Optimum downriggers from anywhere on your boat. It even keeps your Optimum software up to date. Experience In-Depth KnowledgeIntegrate with the Fish Hawk™ X4D System (sold separately) to get the true running depth and speed of your weight, the temperature at the weight, plus surface temperature and speed. Enjoy Total ControlThrough the One-Boat Network™, you can view critical trolling information and control your downriggers from anywhere on the boat using the Optimum downrigger display, Humminbird fish finder or the Cannon app on your mobile device. Key Features:
Depth Cycling - Seeing fish at a certain depth? Cycle your weights up and down at preset intervals in the strike zone and get ready for action.
Preset Depths - Too busy to notice your depth after a catch? Your Optimum remembers, so you can put bait in that same spot, fast. It stores up to five preset depths, too.
Bottom Tracking - Automatically keep your bait at a preset distance from the bottom.
Positive Ion Control - Create a fish-attracting field of energy by emitting positive ions from your cable. Fully adjustable, so you can dial into a setting that drives fish wild.
Auto Up - With one push of a button, instantly retrieve all your weights at once or one at a time.
Waterline Zero - On retrieval, it automatically stops your weights a set distance below the waterline, so swinging weights won’t damage your boom or your boat.
Additional Features:
250 feet-per-minute retrieval speed is the industry's fastest
Five adjustable retrieve and deploy speeds
Heavy-duty telescopic boom extends from 24" to 53"
Includes two dual axis adjustable rod holders
Includes one dual axis adjustable rod holder (TS model only)
Easy spool access
Includes mounting base and low-profile 360Ëš swivel base
Includes composite spool with 400 ft of 150-lb stainless steel cable
Includes stainless steel spool with 400 ft of 150-lb stainless steel cable (TS model only)
Includes Line Terminator with two Uni-Line Releases
Waterproof connections
Integrated ball storage hook
Includes manual crank handle
20-lb weight capacity
Corrosion-resistant construction
Limited lifetime warranty
Specifications:
Boom Length (Inches): 24"-53"
Cable Length (Feet): 400'
Manual/Electric: Electric
Rod Holder Included: Yes
Spool Construction: Stainless Steel
Swivel Base Included: Yes
Box Dimensions: 11"H x 16"W x 24"L WT: 31.45 lbs
UPC: 029402046898
Quick Guide (pdf)Owner's Manual (pdf)
Low-Profile Swivel BaseHeavy-duty Lexan® and stainless steel swivel base. 1 1/8" tall. Six-point locking including two 45-degree positions. Measures 5" x 5" x 1 1/8". For all Cannon downriggers. Includes four 1/4" - 20 x 1 truss head screwsWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
NEW - Innovative Trolling System Puts You In ControlAluminum Swivel Base Downrigger PedestalFor surface or track mounting, this smooth action swivel base provides for 360° rotation, with 16 locking points spaced every 22.5°. The top plate is pre-drilled and tapped for mounting Cannon downriggers, as well as other downrigger brands. Quick Guide (pdf)Owner's Manual (pdf)
Uni-Troll 5 ST Manual Downrigger Trolling KitAll-in-one trolling kitDesigned for smaller boatsIncludes:
Uni-Troll 5 ST Manual Downrigger
6lb Cannon Flash Weight
Universal Line Release
Swivel Base
Take command of controlled depth fishing when you equip your boat with a Uni-Troll downrigger - features an innovative design that lets you pull your lines back in with less cranking effort. Built with a 2:1 retrieval speed and a 24" heavy-duty boom.Features:
Fast, efficient 2:1 retrieval speed
One-Hand Clutch Deploy for controlled, precise bait positioning
Heavy-duty 24" boom
Enclosed boom end pulley prevents line jumping
Easy-Access Universal Mounting Base (interchangeable with our electric models)
Dual axis rod holder - fully adjustable, both front to back and side to side
Ergonomic crank handle
Integrated ball storage hook
Three-digit depth counter
Pre-spooled with 200' of 150lb test stainless steel cable and includes a line release
Specifications:
Boom Length (Inches): 24"
Cable Length (Feet): 200'
Manual/Electric: Manual
Rod Holder Included: Yes
Spool Construction: Plastic
Swivel Base Included: Yes
Box Dimensions: 8"H x 15"W x 27"L WT: 22 lbs
UPC: 029402041107
Uni-Troll 10Take command of controlled depth fishing when you equip your boat with a Uni-Troll downrigger. features an innovative design that lets you pull your lines back in with less cranking effort and One-Hand Clutch Deploy for simple precise bait positioning. Built with a 2:1 retrieval speed, a low-profile swivel base and a heavy-duty telescopic boom that extends from 24" to 53".More control at every turn.Take command of controlled depth fishing when you equip your boat with our Uni-Troll™ manual downriggers. Perfect for smaller boats, each model allows for quick line retrieval and controlled, one-handed weight descent.FAST RETRIEVAL RATEOur Uni-Troll and Easi-Troll models feature an innovative design that lets you pull your lines back in with less cranking effort. The quicker you can retrieve your lines, the quicker you can get back to catching fish.CONTROLLED WEIGHT DESCENTGet controlled, accurate bait positioning thanks to the One-Hand Clutch Deploy on all Cannon manual downriggers. It's designed to gradually, precisely lower your weight and lure into the strike zone.Features:
Fast, effortless 2:1 retrieval speed
One-Hand Clutch Deploy for simple, precise bait positioning
Enclosed boom end pulley prevents line jumping
Easy-Access Universal Mounting Base - same as our electric models
Dual axis rod holder - fully adjustable, both front to back and side to side
Ergonomic crank handle
Integrated ball storage hook
Three-digit depth counter
Pre-spooled with 200' of 150-lb test stainless steel cable and includes a line release
Includes - Universal Mounting Base, Low-Profile Swivel Base, line terminator, one (1) Uni-line releases, and ergonomic crank handle.
Limited lifetime warranty
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Boom Length (Inches): 24"-53"
Cable Length (Feet): 200'
Manual/Electric: Manual
Rod Holder Included: Yes
Spool Construction: Plastic
Swivel Base Included: Yes
Box Dimensions: 7"H x 15"W x 26"L WT: 17.8 lbs
UPC: 029402037797
Owner's Manual (pdf)

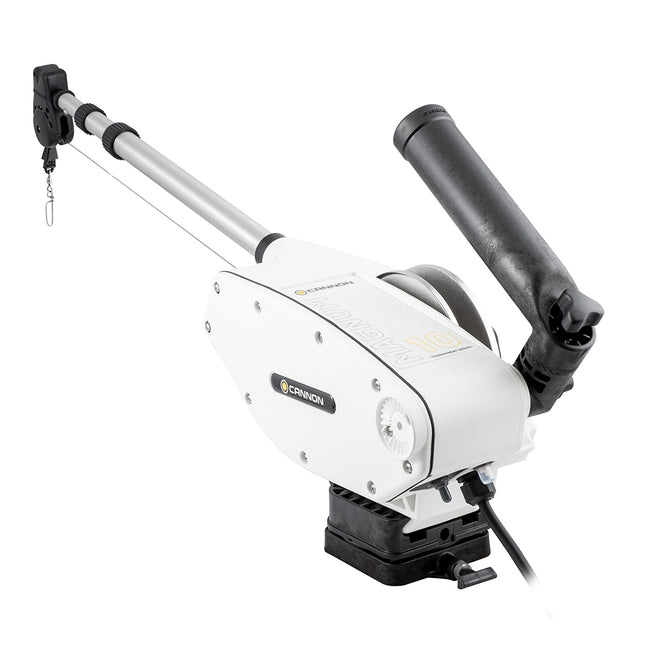

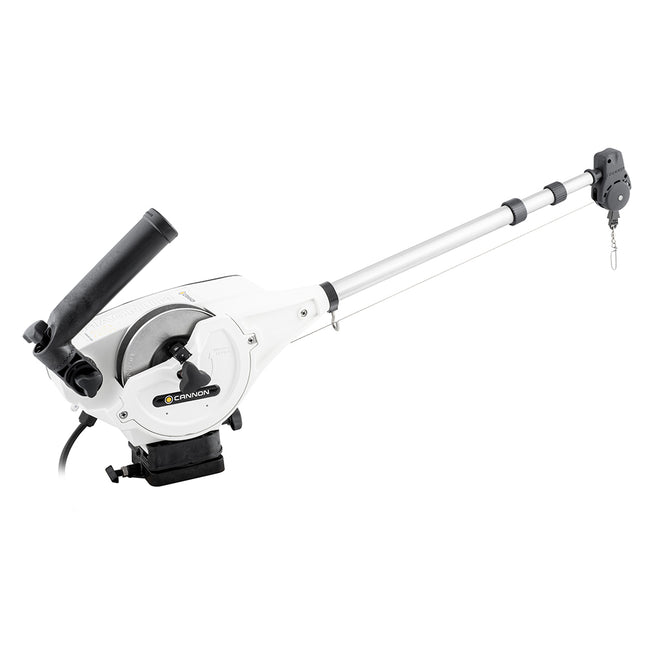

Magnum 10 TS Electric DownriggerThe Magnum 10 Tournament Series (TS) features a stainless steel spool, all-white construction that is seriously tough and seriously powerful. Magnum 10 TS is the go-to downrigger for serious anglers for exactly these reasons. Its ruggedness and reliability have been proven on the water, year after year. But smart anglers know Magnum 10 TS has a sophisticated side too. Features:
Auto Up - Flip the up/down switch and your Magnum automatically retrieves your weight, stopping at the water line.
Three-Digit Depth Counter - Always know exactly where your weights are with the easy to read three-digit depth counter.
Short-Stop - When retrieving a weight, your downrigger will automatically stop it at the waterline. This eliminates cable strain caused by bouncing, stops the weight from hitting the boom end, and prevents weights from hitting the hull.
Positive Ion Control (PIC) - Your boat’s electronics create a fish-repelling negative energy field in the water. Positive Ion Control neutralizes the negative energy field so fish will stick closer to your line.
Fast Retrieval Rate - 250 feet-per-minute weight retrieval rate.
Stainless Steel Telescopic Boom - 316 marine-grade, extends from 24" to 53".
Stainless Steel Spool - Comes pre-spooled with 250' of 150 lb of stainless steel cable. Built to handle monofilament or "super lines" without snapping or breaking.
Dual Axis Rod Holder - Includes one (1) rear mount rod holder.
Removable Side Plate - Easily access the spool to switch lines, fix snags and make adjustments.
Includes - Universal Mounting Base, Low-Profile Swivel Base, line terminator, one (1) saltwater line releases, and manual crank handle.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Boom Length (Inches): 24"-53"
Cable Length (Feet): 250'
Manual/Electric: Electric
Rod Holder Included: Yes
Spool Construction: Stainless Steel
Swivel Base Included: Yes
Box Dimensions: 10"H x 16"W x 24"L WT: 30.2 lbs
UPC: 029402033560
Owner's Manual (pdf)
NEW - Innovative Trolling System Puts You In ControlAluminum Fixed Base Downrigger PedestalThis sturdy fixed base works with either surface or track mounting. The top plate is pre-drilled and tapped to allow mounting of a Cannon swivel base and downrigger, as well as other swivel base and downrigger brands. Quick Guide (pdf)Owner's Manual (pdf)
NEW - Innovative Trolling System Puts You In ControlAluminum Fixed Base Downrigger PedestalThis sturdy fixed base works with either surface or track mounting. The top plate is pre-drilled and tapped to allow mounting of a Cannon swivel base and downrigger, as well as other swivel base and downrigger brands. Quick Guide (pdf)Owner's Manual (pdf)
Gimbal MountsSimply slide the mount's gimbal tube into your boat's recessed holder. Once in place, you have a base ready to accept your downrigger. No holes to drill or changes to make on your boat. Removes easily by pulling up and out of rod holder.12" Gimbal MountWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
