Electrical - Accessories

Single Flex L VSR/Relay with Knob - Tinned WiresDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850053879418 Brochure (pdf)

Read more less

Contactor 500A 12/24V with Aux ContactsFeatures: Sealed Enclosure - Hermetically sealed against dust and moisture penetration. High-temperature rated for all installation locations. 18-8 stainless Self-Locking Hardware - Resists corrosion and ensures long-term connection reliability with premium hardware. Easy Mounting - Reinforced mounting holes provide secure installation and easy attachment for the installer.  Remote Status Support - Optional auxiliary contacts that support remote status indication. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 1.08 lbs UPC: 850035199770

Read more less

Cover for Dual Bus 10 CircuitsFeatures: Integrated protective transparent cover that snaps on & off. Breakaway tabs that allow terminal entry. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 0.1 lbs UPC: 850074331292

Read more less

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 10AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 10a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331018 Brochure (pdf)

Read more less

Transparent BusBar CoverTransparent BusBar Cover for 6100-205 and 6100-400. Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.18 lbs UPC: 850067590293

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Dual Pole 20AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 20a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.35 lbs UPC: 850067590903 Brochure (pdf)

Read more less

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 8AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 8a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331001 Brochure (pdf)

Read more less

XD Single - Flex Relay/ACR No Knobs - Tinned WiresFeatures: 500 Amp Continuous Capability / Extremely Compact Footprint Available with or without Intuitive Front Facing Manual Override Knob, with the ability to lock the device on or OFF for Servicing Flexible Functionality via Dip Switches, utilize as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs Remote ON/OFF/Auto Input Allows Forced Close or open, or allows automatic operation based on Voltage Local and Remote LED Indicators Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850035199244

Read more less

Cable Cap Stud Insulator - 2/0 - 2 AWG - RedFeatures: Protects Wiring Terminations against accidental shorts or incidental contact. Commonly Used On starters, solenoids, alternators, generators, windlasses, or battery terminals. Specifications: Type: Electric Box Dimensions: 4"H x 5"W x 7"L WT: 0.2 lbs UPC: 850074331445

Read more less

XD Single Flex L (ACR) with Knobs - 6-Pin  DTM ConnectorDesigned for Lithium-ion, Lithium Polymer, and Lithium Iron Phosphate Battery Systems, Where Required Charge / Discharge Voltage Settings Require Higher Available Settings500 Amp Continuous Capability Per Relay / Extremely Compact FootprintAvailable with or without Intuitive Front Facing Manual Override Knobs with the ability to Lock Relays ON or OFF for ServicingFlexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Voltage Sensing Relay, or Low Voltage DisconnectRemote ON/OFF/Auto Inputs to Force Each Relay Closed, Open, or Allow Automatic Operation Based on Voltage SensingLocal and Remote LED Indicators Per RelayMechanical-Only Battery Switch Option for One or Multiple Relay PositionsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each individual relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relay options available with DTM/ATM connectors, pin-for-pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality 4 Year Industry-Leading Warranty Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.12 lbs UPC: 850053879449 Brochure (pdf)

Read more less

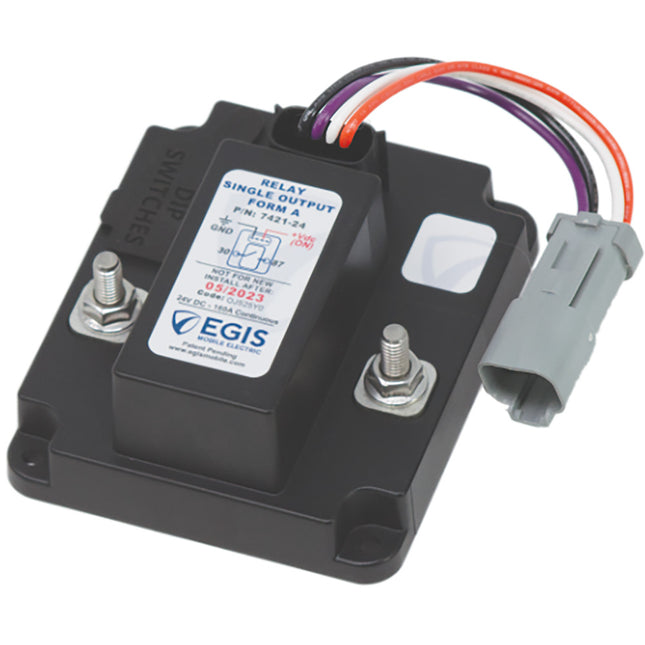

TH3 Relay 160A - 24VFeatures: Replaces Manual Battery Switches: Reduces battery cable run lengths and resulting voltage drop Connect to the Ignition Signal for simple battery charge management between two batteries or for simple auxiliary load disconnection. Connect to TH Series Automatic Charging Relays or Time Delay Relays to provide an additional isolated/switched output or to extend current-carrying capability Simple & Robust Installation: Sealed MX-150 plug/harness with 2ft control wires included. Reduces install time/costs. The optional output bus bar provides a simple, compact connection to the RT or CT fuse block product families. Bullet-proof Construction: Sealed unit, high-temperature materials allow mounting anywhere on the vehicle. Stainless steel self-locking hardware Single or Dual Split Output Options provide flexibility for different electrical system requirements Integral Diode Suppression reduces voltage spikes on control lines during switching Specifications: Type: Electric Box Dimensions: 3"H x 6"W x 7"L WT: 0.79 lbs UPC: 850035199930 Brochure (pdf)

Read more less

C Series White Toggle Panel Mount Circuit Breaker - Single Pole 20AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 20a Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 0.32 lbs UPC: 850067590828 Brochure (pdf)

Read more less
