Electrical - Accessories

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 5a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331087 Brochure (pdf)

Read more less

TDR Series Dual Output Time Delay Relay 12V (2 x 80A)This 12V dual-time relay can prevent dead batteries due to added equipment loads on after-engine stops or from multiple systems connected to a battery with an independent keep-alive power draw, maximizing operational readiness.Applications: Supports on-board video systems when vehicles are not in use, allowing lengthy downloading while shutting down less time-sensitive equipment. sooner. Protects sensitive onboard electronics via optional under/over voltage shutdown and start event isolation. Features: Eliminates vehicle downtime due to dead batteries; the lowest off-state current draw (1.3 mA) is available Simple and robust Installation - Sealed plug with optional long wire leads; Single device replaces multiple control units and high-amp replays reduce installation time, costs, and points of potential failure Additional low-amp output can be used to maintain 24-hour memory circuits or to direct other equipment to shut down Bullet-proof construction - Sealed unit and high-temperature materials allow mounting anywhere on the vehicle; Integrated thermal overload protection as well Meets stringent OEM standards for electrical transient self-protection Adjustable OFF Time Delay - 0 seconds to 4 hours Kill Switch control input option for ensuring loads are not inadvertently on, maintenance/servicing of vehicles, and emergency OFF Flexible control options via ignition key, alternator voltage sense, or both 4 Year Industry Leading Warranty Specifications: Maximum Current: Continuous: 80 Amps DC per Output (160 A Total); Intermittent: 120 Amps DC (5 Minutes) per Output Off-State Current Draw: 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by) Operating Specifications: Voltage: 12 Vdc Nominal (8 - 18 Vdc); Temperature: -40 to 85 degrees C Time Delay Options: 5 Sec through 4 hours via Dip Switches Environment Protection Standards: Waterproof to IP66. IP6K9K; Ignition Protected to ISO 8846 Optional Features: Input stud voltage sense trigger for relay OFF; Under-voltage and over-voltage load protection Focal Features:Top Side Dip SwitchesAccessible after installation, for programming time delay and determining active features. Protected by self-retained cover.Stainless Steel Self-Locking Hardware 100% Non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.Integral I/O Connector Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.Standard and Optional Harnesses The mating plugs with 2 feet of the ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths are availableEasy Integration with CT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with CT series Fuse Blocks.Easy Integration with RT Fuse Blocks Optional EasyLink bus bars reduce the space and cost of connecting TDRs with RT series Fuse Blocks.LED DiagnosticsIndicates a pending relay OFF event due to under/over voltage or external off trigger. Output on/off status is also provided.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less

MT Series 3+9 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 3+9 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

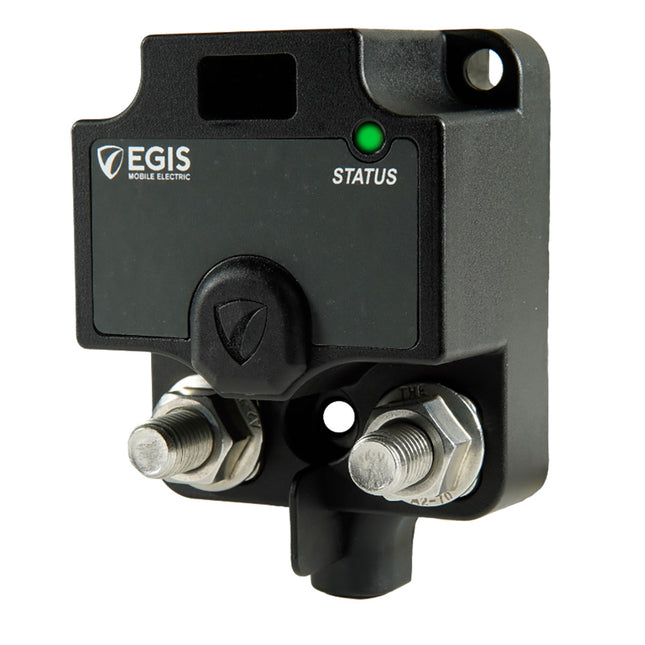

XD Single Low Voltage Disconnect without Knob - Tinned WiresFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay ON or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.09 lbs UPC: 850067590149

Read more less

MT Series 6+6 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 6+6 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

MT Series 9+3 Sealed Fuse Block with Ground BusbarFeatures: Integrated Deutsch/Amphenol Output Connectors Protects add-On Circuits From Accidental Shorts To Frame Ground Or Battery Negative, Or From Overload Events Expandable with Flex System Compatible Interconnect Busbars For Plug-and-Play Install Split Input 9+3 Circuits *Fuses and Circuit Breakers Sold Separately Brochure (pdf)

Read more less

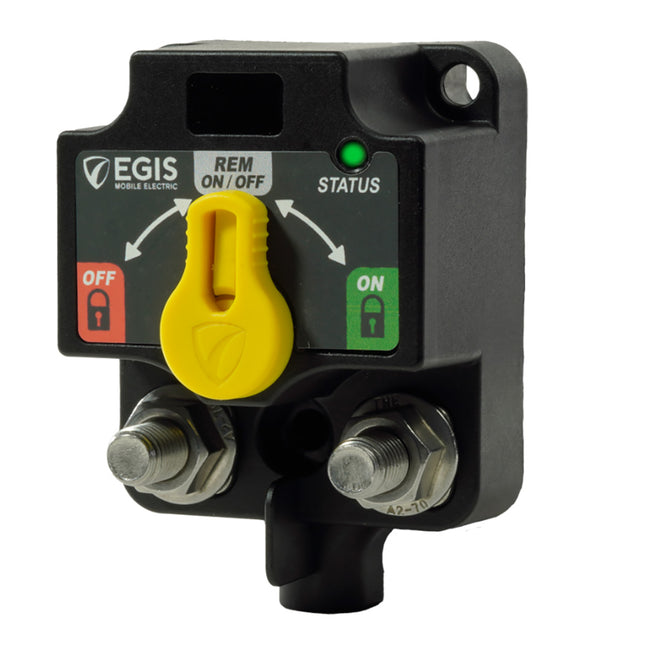

XD Single Low Voltage Disconnect with Knob - Tinned WiresFeatures: Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint Available With or Without Intuitive Front-Facing Manual Override Knobs with the ability to Lock Relay On or OFF for Servicing Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal Remote ON/OFF/Auto Inputs Allow Forced Close or Open or Allow Automatic Operation Based on Voltage Sensing LED Indicator Provides Helpful Diagnostics Remote External Warning Alarm Control Signal Provides Warning of Impending Voltage-Based Shutdown Specifications: Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 1.1 lbs UPC: 850067590132

Read more less

36" SAE Power Cable Polarized Electrical ConnectorThis SAE-type polarized electrical connector is a two-prong plug and socket connector set. Features:14-gauge duplex wireSpecifications: Length: 36 in. Volts: 12-24 Max Amps: 20A @ 12V Wire Gauge: 14 AWM Weight: 0.17 lb. Specifications: Type: Cables Box Dimensions: 1"H x 5"W x 9"L WT: 0.15 lbs UPC: 035514432757 Brochure (pdf)

Read more less

Round Red LED Temperature MeterThe temperature meter includes a prewired temperature sensor with a 6-foot cable and it monitors temperature on a bright LED screen. Features: Reverse polarity protected The same compact round size as a standard 12VDC receptacle, this temperature meter supports many installation options Constructed of injection-molded nylon Installation is as easy as drilling a 1-1/8-in. hole, inserting the socket body, tightening the locking nut, and connecting the wires IP67 waterproof rating 12-24VDC Specifications: Diameter: 1-7/16 in. Length: 1-1/16 in. Height: 1-1/8 in. Volts: 12-24 Temperature Range (Fahrenheit): -67 degrees to 248 degrees  Weight: .02 lb. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Rainbow Display Digital Voltmeter - Injection Molded Nylon - 5V-15VDCThe Rainbow Display Digital Voltmeter gives the user quick, visual, color-coded voltage information. Red/orange means the voltage is too low. Green means the voltage is normal. The same compact round size as a standard 12VDC receptacle, this voltmeter supports many installation options. Constructed of injection-molded nylon. Rainbow LED display. For use with 12VDC systems. IP65 rating.Specifications:Volts: 5-15

Read more less

Dual Volt Meter Rock Switch 10V-48VDCThis digital dual-voltage meter monitors and displays the voltage for the main and auxiliary batteries simultaneously. Rocker switch styling means this voltmeter fits any standard 13/16 in. x 1-7/16 in. rocker switch panel slot. Constructed of injection-molded nylon. Red LED display. Input 10-48VDC. IP65 rating.Features: Rocker switch styling means this voltmeter fits any standard 13/16 in. x 1-7/16 in. rocker switch panel slot Constructed of injection-molded nylon Red LED display Input 10-48VDC IP65 rating Specifications: Width: 13/16 in. Height: 1-7/16 in. Volts: 10-48 Weight: 0.04 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

USB A / USB C Square Surface Mount Power SocketThis square surface-mount USB 3.0 & USB-C power socket charges two devices simultaneously. When split, the total 6A output is 3A per side. Features: USB 3.0 features Quick Charging (QC) for supported devices gives enough power to charge phones, pads, and tablets quickly and efficiently USB-C features Power Delivery (PD) for faster and more flexible charging A protective dust cap covers ports when not in use Constructed of injection-molded nylon Easy installation requires drilling a 3/16-in. hole for the wire connection, securing it to the surface with two #6 screws (not included), and snapping the concealed fastener cover in place Blue LED illumination IP65 rating CE & RoHS compliant Specifications: Output DC: 5V/6A Input: 8-32VDC USB-C Watts: 60W@24V USB 3.0 Watts: 36W@12V Dimensions (inch): 1-15/16” – 1-15/16” Depth: 3/4 in. Volts: 8-32 Weight: 0.07 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
