Electrical - Alternators

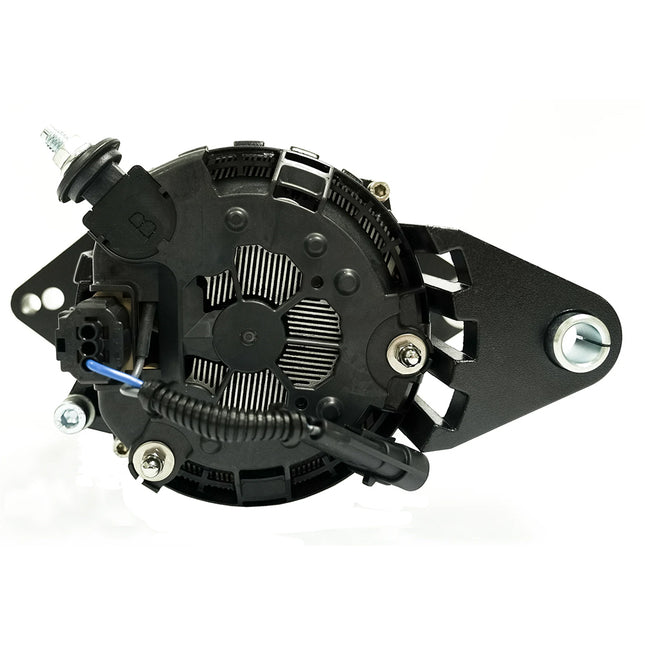

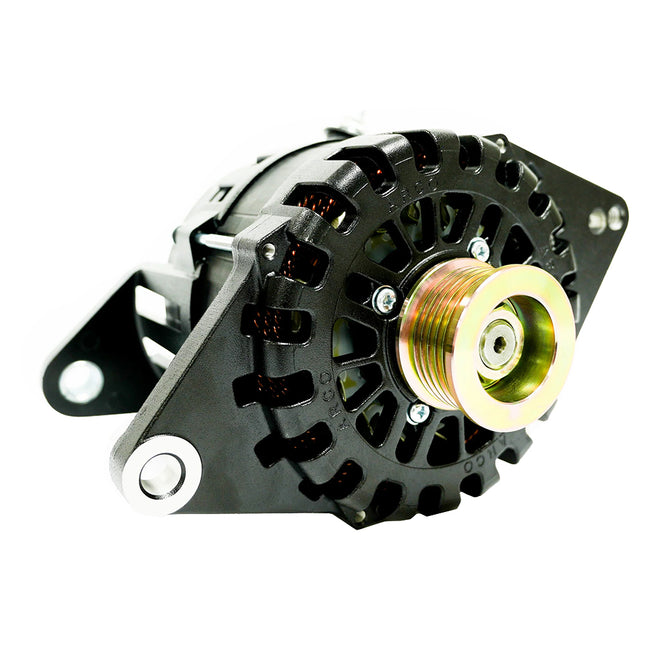

Premium Replacement Alternator with 65mm Multi-Groove Pulley - 12V 70AReplacement alternator that will fit Mercruiser 4.3L - 8.2L, 1998-Up, 12 Volt, 70 AMP, Internal Fan, 65-mm multi-groove serpentine pulley included.Features: All alternators are engineered for performance and reliability All alternators are engineered and manufactured with precision and quality All alternators must meet or exceed OEM performance before being boxed Warranty Information:When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications. Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration Replaces:DELCO Alternator 19020601DELCO Alternator 19020609MERCURY Alternator 862031TMERCURY Alternator 862031T1Sierra Alternator 18-6293Protorque Alternator PH300-0034Protorque Alternator PH300-0035MPPARTS Alternator ADR0299MPPARTS Alternator ADR0316This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 70A Voltage: 12v Box Dimensions: 7"H x 8"W x 8"L WT: 7.6 lbs UPC: 693006008172 Quick Guide (pdf)

Read more less

Zeus A275L J180 4" Alternator with Isolated Ground & Terminal BlockThe highest power output alternator in its size/class. Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance. Heat shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Models available with internal/external voltage regulator. Proudly made in the U.S.A. Technical Specifications: Voltage - 12v Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 14.9 lbs/6.7 kg Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.) Output Voltage - 14.1v (Default) Finish - (Black) Cerakote or E-coating Cut-In RPM - 1,061 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 50A Rated, Avalanche Max Output (Cold, 9,000 RPM) - 311 Amps Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps Max Continuous Operating Temperature - 110°C / 230°F Mounting Applications:Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount Quick Guide (pdf)Brochure (pdf)

Read more less

Alternator 170 AMP Kit 12V 3.15" Dual Foot Saddle J10 Pulley Regulator & Temp SensorKit Includes: XT-DF-170-J10 Alternator, MC-618 Regulator, Temperature Sensors & Mounting HardwareXT Series Alternator: 170A, 12V, Saddle Mount (Dual Foot), 3.15in, J10 AltMount Serpentine Pulley, Case GroundHitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre EnginesReplaces: AT-DF-MC-165-KIT, AT-DF-165-J10-KITThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Alternator 250 AMP 12V 3.15" Dual Foot Saddle K6 PulleyAlternator, XT Series, 250A, 12V, Saddle Mount (Dual Foot), 3.15in, K6 Serpentine Pulley, Case GroundHitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre EnginesReplaces: AT-DF-200-12-IG, AT-DF-200-K6This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

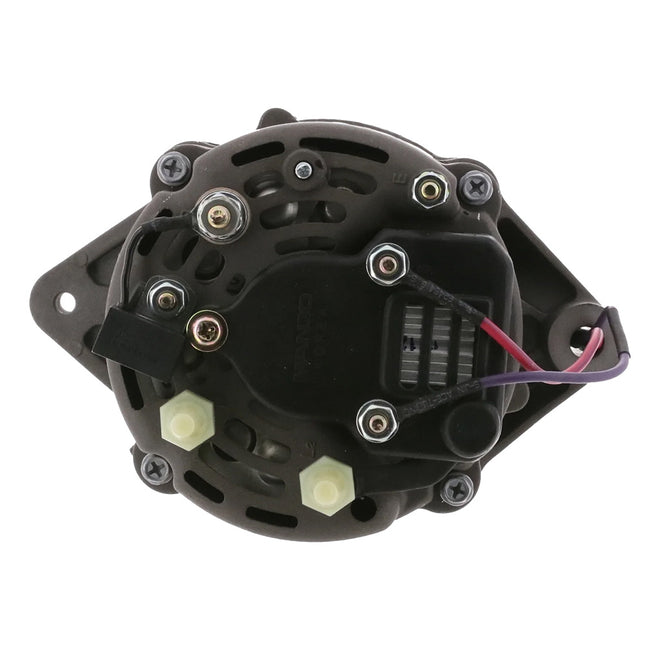

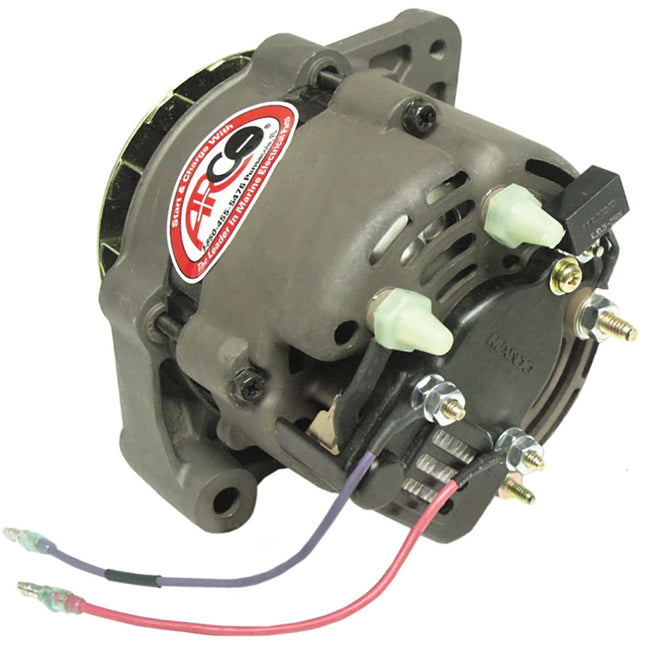

Premium Replacement Alternator with Single Groove Pulley - 12V, 55APremium replacement alternator that will fit late model Mercruiser, 12 Volt, 55 Amp, Internal regulator. 2-inch mounting foot. Single groove pulley included.Features: All alternators are engineered for performance and reliability All alternators are engineered and manufactured with precision and quality All alternators must meet or exceed OEM performance before being boxed Warranty Information:When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications. Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration Replaces:MARINE POWER Alternator 1210-000MERCURY Alternator 12449MERCURY Alternator 78403A1MERCURY Alternator 78403A2MERCURY Alternator 817119A1MERCURY Alternator 817119A4MERCURY Alternator 92497A3MERCURY Alternator 98555MERCURY Alternator 98555A1SIERRA Alternator 18-5957SIERRA Alternator 18-5966This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 55A Voltage: 12v Box Dimensions: 7"H x 8"W x 8"L WT: 9.75 lbs UPC: 693006001258 Quick Guide (pdf)

Read more less

Regulator Kit for Valeo with MC-618Balmar's MC-618 Regulator communicates with the SG200 Battery Monitor to provide information to the SG200 Color Display and Smartphone App.  Now you can see how the MC-618 Regulator is directing your onboard charging activity from either the SG200 2" Color Display and/or the optional Bluetooth Smartphone App.  Basic setup functions can be accomplished from the SG200 Color Display, Smartphone App, or the traditional on-regulator programming tool.  Advanced Programming functions are available from the Bluetooth Smartphone App.  Balmar customers have been asking for years to view regulator information from outside the engine compartment.  Balmar has accomplished this goal without the need for a separate dedicated display device!Kit Includes:   30-SR12-02 Internal Smart Ready® Regulator Conversion Kit MC-618 External Regulator Wire Harness MC-TS-A & MC-TS-B Temp Sensors This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

621 Series 120A Kit with MC-618 Regulator, T-Sensor, K6 Pulley, Single Foot & Mounting HardwareKit Includes:  621-120-K6 Alternator MC-618 Regulator Temperature Sensors Mounting Hardware 621-120-K6 Alternator: 120A, 12V, Spindle Mount (Single Foot), 1-2in, K6 Serpentine Pulley, Isolated Ground1" Motorola-Style Mounting;  Typical for Westerbeke, Lehman, Hino & Pathfinder Engines2" Delco-Style Mounting;  Typical for Volvo Penta (Gas & Diesel), John Deere, Perkins, Mercruiser, Pleasurecraft, Crusader, Indmar, Marine Power & other GM-based EnginesThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Alternator 120 AMP 12V 4" Dual Foot Saddle K6 Pulley with Isolated GroundAlternator, 604 Series, 120A, 12V, Saddle Mount (Dual Foot), 4in, K6 Serpentine Pulley, Isolated Ground 4" J-180-Style Mounting;  Typical for Caterpillar, Cummins, Detroit Diesel & John Deere EnginesReplaces: 604-120-SR-IGThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 120A Voltage: 12v Box Dimensions: 9"H x 10"W x 11"L WT: 13.35 lbs UPC: 676205750615 Brochure (pdf)

Read more less

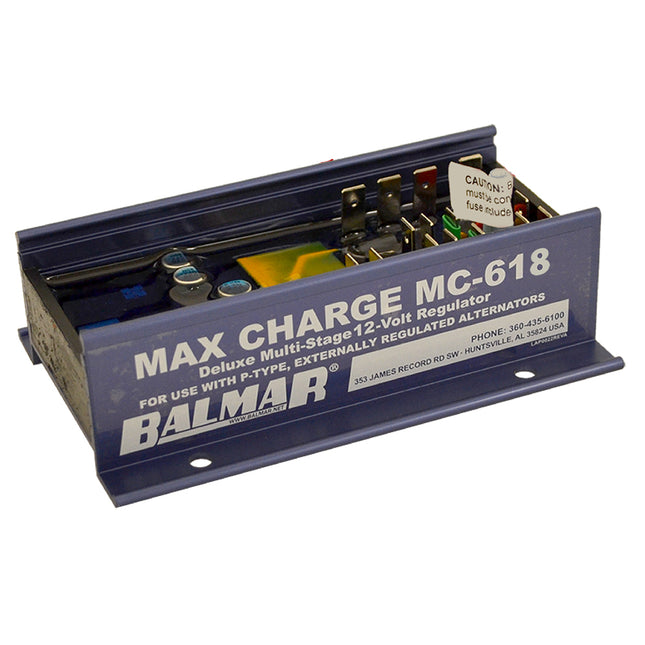

Max Charge MC618 Multi-Stage Regulator without Harness - 12VBalmar's MC-618 Regulator communicates with the SG200 Battery Monitor to provide information to the SG200 Color Display and Smartphone App.  Now you can see how the MC-618 Regulator is directing your onboard charging activity from either the SG200 2" Color Display and/or the optional Bluetooth Smartphone App.  Basic setup functions can be accomplished from the SG200 Color Display, Smartphone App, or the traditional on-regulator programming tool.  Advanced Programming functions are available from the Bluetooth Smartphone App.  Balmar customers have been asking for years to view regulator information from outside the engine compartment.  Balmar has accomplished this goal without the need for a separate dedicated display device!This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Offshore Repair Kit 60 Series 12V with Bearings, Brushes, Regulator/RectifierOffshore Repair Kit, 60 Series Alternators, 12VKit Includes: Regulator Brush Holder Assembly Rear Bearing  Regulator Washer  Rectifier Assembly  Rectifier Gasket  Front Bearing  Instruction Sheet This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Alternator 250 AMP Kit 12V 3.15" Dual Foot Saddle J10 Pulley Regulator & Temp SensorKit Includes: XT-DF-250-J10 Alternator, MC-618 Regulator, Temperature Sensors & Mounting HardwareXT Series Alternator: 250A, 12V, Saddle Mount (Dual Foot), 3.15in, J10 AltMount Serpentine Pulley, Case GroundHitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre EnginesReplaces: AT-DF-MC-200-KIT, AT-DF-200-J10-KITThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Alternator Vortec K6 Serpentine Pulley Regulator & Temp Sensor - 170A - 12VBalmar offers a wide range of alternator power upgrades designed specifically for marine industry applications. Balmar installs high reliability bearings, robust rectifier diodes and improved heat-sinking capabilities on all our alternators to ensure improved system reliability combined with increased charging power.Features: Vortec K6 Serpentine Pulley Regulator & Temp Sensor 170A Kit 12V This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage: 12v Amperage: 170A Box Dimensions: 11"H x 11"W x 14"L WT: 17.25 lbs UPC: 676205500883 Brochure (pdf)

Read more less
