Electrical - Battery Chargers

SmartSolar MPPT 150/70-TR VE.CAN - TR VE.CAN Solar Charge Control 150/70-TR VE.CAN ControllerSolar Charge ControllerThe MPPT VE.Can SmartSolar charger use the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks?The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingThe MPPT VE.Can SmartSolar charger connects to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.Control Your Charger RemotelyThe MPPT VE.Can SmartSolar charger can be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.Daisy Chain Additional UnitsThe VE.Can SmartSolar charger is equipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy chained" to each other with a single RJ45 cable between the individual units.When connected to each other, all individual VE.Can SmartSolar chargers, will synchronise their charge stages. They can also send their data, via a single cable, to a GX monitoring device.Remote Monitoring and ControlIf the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s).SmartSolar Control DisplayThe VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live-data, set-up and management, straight from the face of the device. Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

ChargeMaster Plus 24V, 60A, 3-Bank, NMEA2000 - CZoneChargeMaster Plus 24/60-3 CZoneAll-in-one solution for faster and safer chargingChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of two or three batteries in a fast and safe way and works anywhere in the world.With the new Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are: Revival mode: automatically revives even fully depleted batteries. Multi voltage: charge 12 V starter battery in a 24 V system, without additional components. Priority Charge: redirect available power to the lowest battery, for faster charging. Smart Input: charge all three batteries from one single alternator for continuous charging on the go. Global ChargingThe ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE and RCM/C-Tick compliant.System SimplicityNowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.Powerful Communications thanks to CZone integrationIn modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts and power systems including communication standards like CZone®, NMEA 2000 and CANopen (through additional interfaces).Models with the addition CZone do not only support MasterBus, but also support CZone and NMEA 2000 communication, without the need of additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.This wide range of communication interfaces makes the ChargeMaster Plus ideally suited for system integration. In addition, the ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.Features: Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR. Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger. Charges multiple batteries while being underway. Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C. Safe Charge: quickly recognize the State of Charge for extended battery life. Very wide operating range of 80-275 V AC, 35-70 Hz. Compact, easy to connect and quick to install WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Portable: No Charging Banks: 3 Charger Output Voltage: 24v Charger Output - Amps: 60a Charger Input - Voltage: 120/240v Box Dimensions: 7"H x 13"W x 18"L WT: 16.75 lbs UPC: 816882022524 Owner's Manual (pdf)

Read more less

Blue Smart IP65 Charger - 6V/12V - 1.1A - 120V - 1-15PThe Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in the workshop and motor vehicles, such as (classic) cars; motorbikes; boats, and camper vans. The battery is charged, smartly... to the perfect conditionThe seven-step charging algorithm gets the best out of a battery. The charger gives the battery the power it needs, maintains its health, and ensures better performance... and longer life.Recovery of deeply-discharged 'dead' batteriesUnlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Regular charging will then be resumed as soon as sufficient voltage is across the battery terminals.Connect the battery with easeThe charger comes with both crocodile clips and M8 eyelets - making it easy to connect to the battery. If users wish, it can be left permanently connected.Check the status of your battery remotelyThe Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet, or laptop. All settings of the charger can be configured with the VictronConnect app.Specifications: Input Voltage & Frequency Range: 100 - 250VAC | 45 - 65Hz  Efficiency: 82% Standby Power Consumption: <0,5 W  Minimum Battery Voltage: Starts charging from down to 0 V Charge voltage 'absorption': Normal: 7,2 V | 14,4 V / High: 7,35 V | 14,7 V / Li-ion: 7,1 V | 14,2 V Charge Voltage 'float': Normal: 6,9 V | 13,8 V / High: 6,9 V | 13,8 V / Li-ion: Disabled Charge Voltage 'storage': Normal: 6,6 V | 13,2 V / High: 6,6 V | 13,2 V / Li-ion: 6,75 V | 13,5 V Charge Current: 1.1 A  Low-Current Mode: 0,5A  Temperature Compensation (lead-acid batteries only): 8 mV/°C | 16 mV/°C  Power Supply Mode: Yes Back Current Drain: 0,1 Ah/month (140uA)  Protection: Reverse polarity, Output short circuit, Over-temperature Operating Temp. Range: -30 to +50°C (full rated output up to 30°C) Humidity (non-condensing): Max 95% Charge Algorithm: 7-stage adaptive Bluetooth: 4dBm, 2402–2480 MHz Enclosure Specifications: Battery-Connection: Black and red cable of 1,5 meter 230V AC connection: 1.5m cable with CEE 7/16 or AS/NZS 3112 plug Protection Category: IP65 (splash and dust proof) Weight: 0,4 kg Dimensions: 38 x 64 x 153 mm Standards: Safety: EN 60335-1, EN 60335-2-29 Emission; EN 55014-1, EN 61000-6-3, EN 61000-3-2 Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

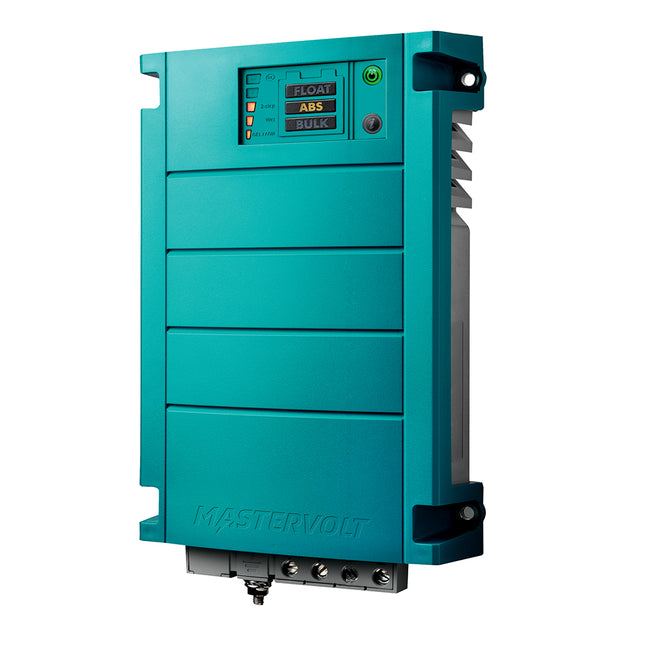

ChargeMaster Battery Charger - 12 Amp - 3 Bank - 24VPower You Can Rely OnMake the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 24/6). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.Charging Your Batteries With Every VoltageThe Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.&nbsp;Sturdy Connections&nbsp;Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.Charging Multiple Battery Banks&nbsp;The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two meters of cable for a plug &amp; play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.Features: 3-Step+ charging technology for fast and complete charging. Safe and complete charging due to standard safety features. Memory function prevents overcharging in case of an unstable power supply. Clear control panel. Easy to install. Built-in system functionality (MasterBus) in combination with other Mastervolt products (not available on ChargeMaster 24/6). General Specifications Nominal output voltage: 24 V&nbsp; Total charge current:12 A&nbsp; Number of battery outlets: 3&nbsp; Charge current second output: 12 A&nbsp; Charge current third output:12 A&nbsp; Battery capacity range: 24-120 Ah&nbsp; Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz AC connection: 2M AC cable Power supply mode: yes Display/read-out: LED display Fastening: 4x screw Dimensions, H x W x D: 234 x 132 x 60 mm / 9.2 x 5.2 x 2.4 inch Weight: 1.8 kg / 4.0 lb Approvals:CE, ABYC A-31, SAE J1171/ISO8846 ignition protected Technical Specifications Charge characteristic: IUoUo, automatic / 3-step+ for gel/AGM/wet/Lithium Ion Charge voltage Bulk: 28.8 V Charge voltage Absorption: 28.5 V Absorption time: 4 hours Charge voltage Float (wet batteries): 26.5 V Charge voltage Float (gel/AGM batteries): 27.6 V Temperature compensation: -60 mV/ °C -33 mV/ °F Voltage compensation: automatic Power consumption (DC side): &lt; 2 mA Full load consumption (230 V AC): 435 W Current Control function: no Power factor control: ≥ 0.98 Temperature range (ambient temp.): -25 °C to 60 °C, derating &gt; 25 °C -13 °F to 140 °F Sound level: &lt; 52 dBA at 1M Protection degree: IP23 Protections: over temperature, over load, short circuit, high/low battery voltage Cooling: vario fan MasterBus compatible: yes WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Output Voltage: 24v Charger Output - Amps: 12a Charging Banks: 3 Portable: No Charger Input - Voltage: 120/230v Box Dimensions: 5"H x 7"W x 11"L WT: 4.65 lbs UPC: 816882020100 Owner's Manual (pdf)Brochure (pdf)

Read more less

ProTournament 500 Elite Series3 5-Bank On-Board Marine Battery ChargerThe ProTournamentelite series3 has been taken to the next level of design and performance, providing a competitive edge that will put you on the water first with power to last. With true rated output amperage and models up to 50 amps with Distributed-On-Demand™ charging Technology, ProTournament delivers the fastest charge times in its class. Designed to innovate and boasting 3 distinct industry 1st patent pending features.Features: 50 Amp/Five Bank IP 67 Sealed Waterproof Design Line of Sight, Charge Status AC Glow Plug Selectable Turbo Charge Mode Forced Power Flow Cooling 4 Digitally Selectable Charge Profiles Dual Mode Battery Status Monitor Distributed-On-Demand Technology™ Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 50a Charger Output Voltage: 12/24/36/48v+1 Charging Banks: 5 Portable: No Box Dimensions: 9"H x 11"W x 18"L WT: 19.15 lbs UPC: 031669535053 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

ProMar1 DS Digital - 5 Amp - 1 Bank ChargerProMar1 DS Generation 3 reflects a new outward design taken to the next level in performance with its all Digital Charging Technology. Fully Automatic with a 4-Stage Digital Charging algorithm proven to extend battery life. Sequential modes of Analyzing, Charging, Conditioning and a built-in Auto Maintain mode, safe for short and long term storage periods ensures your batteries are fully charged and maintained.Features: Fully Automatic 4-Stage Chargin Dual Mode Charge Status Indicator Battery & Wiring Fault Detection Rugged Shockproof Construction Auto Maintain/Energy Save Mode Extends Battery Life Safe for Long and Short Term Storage Pre-Wired with Waterproof Inline DC Fuses and Nickel Plated Copper Ring Terminals Built-in Safety Quiet EMI Design meets US FCC Emissions Requirements WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Portable: No Charging Banks: 1 Charger Output Voltage: 12v Charger Output - Amps: 5a Charger Input - Voltage: 120v Box Dimensions: 5"H x 7"W x 9"L WT: 4.45 lbs UPC: 031669315051

Read more less

50A Battery Charger - 12V - 2-Bank - 3-Stage w/Dip Switch & Lugs - Includes Temp SensorThis advanced fully automatic three-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks.Features: Switch mode technology for high efficiency, lightweight and quiet operation Automatic operation for ALL Lead Acid Batteries Flooded, AGM or Gel Cell Can charge 2 banks of batteries simultaneously, no isolator necessary Can be used as a power supply or DC UPS when used in conjunction with a battery User Configurable AC Input voltage 120 or 230 VAC, 50 / 60 Hz User Selectable ( by DIP Switch) for 2 or 3 stage, rapid and safe charging of stand-alone and loaded Lead Acid Batteries “Half Power Mode” reduces maximum charging current to half the rated capacity, allows for safe charging of lower capacity batteries Voltmeter and Ammeter for monitoring Fan cooled based on output current Protections: Short circuit, overload, reverse battery connection and over temperature Includes temperature sensor to prevent under/overcharging of battery if temperature varies extensively Specifications: Input: 120 VAC 60 Hz or 230 VAC 50 Hz Output: 12 VDC Amps: 50 Remote Control: 900-RC Weight: 9.0 (lbs) Weight: 4.1 (kg) Dimensions: 13.03 x 9.60 x 3.82 (in) Dimensions: 331 x 244 x 97 (mm) Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B Warranty: 2 Year Limited Applications: Automotive Recreational vehicles Marine Communications sites Battery back-up systems WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Output Voltage: 12v Charger Output - Amps: 50a Charging Banks: 2 Portable: No Charger Input - Voltage: 120/240v Box Dimensions: 6"H x 11"W x 17"L WT: 11 lbs UPC: 622988083037 Owner's Manual (pdf)Brochure (pdf)

Read more less

TRUEcharge™3 20A 3 Bank Battery Charger - 24VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 20 A  Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 40 Ah  General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”) Weight 2.2 kg (4.8 lb) Regulatory Approvals Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 20a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 11"W x 13"L WT: 6.15 lbs UPC: 715535920937 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

SmartSolar MPPT 150/35 - 150V - 35AA solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.MPPT: Ultra Fast Maximum Power Point TrackingBy constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Remote Monitoring and ControlRemotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Brochure (pdf)

Read more less

ProSportHD 20 Global Gen 4 - 20 Amp - 2 Bank Battery Charger*C13 Adapter Plug Required*ProSportHD Generation 4 boasts a tri-surface heatsink design. This heavy-duty lightweight design delivers significantly faster charging through optimal cooling, while delivering true rated amp output during charge mode. ProSportHD's enhanced microprocessor and software provides digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and GEL batteries. HP AGM profile on ProSportHD 20 Dual only. Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status. Designed for use in harsh environments with our industrial grade jacketed DC and AC power cables which include molded strain reliefs and wire splitters. Features: ProMar Digital Technology Microprocessor and software controlled charging technology for fast, precise charging Distributed-On-Demand™ Technology 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed Heavy Duty Tri-Surface Extruded Heat Sink Design Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode Expanded LED Display with Completion Status Gauge LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status and Battery Type indication Lightweight Design Up to 40% lighter compared to an epoxy filled charger Auto-Maintain Energy Saver Mode Monitor and auto maintain batteries only when needed to maintain full state of charge. This significantly reduces AC power consumption Fully Automatic 5-Stage Digital Performance Charging 5 Stages: Analyzes, charges, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life Built-in Quality and Safety Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B Easy Installation and Operation Pre-wired with 6’ AC and DC cables Battery Type: Group 24–31 Flooded, AGM, HP AGM and GEL batteries 3 Year Warranty Specifications: DC Voltage Systems: 12/24v Amps: 20 No. of Batteries: 2 AC & DC Cable Length: 6'/6' Size: 7.9" x 13.6" x 2.9" Weight: 8.2 lbs AC In: 100-240v AC 50/60Hz AC Plug: IEC C14 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 20a Charger Output Voltage: 12/24v Charging Banks: 2 Portable: No Box Dimensions: 6"H x 9"W x 16"L WT: 9.6 lbs UPC: 031669440289

Read more less

100A Buck-Boost DC-DC ConverterDC-DC Converter for charging a 12/24V service battery in vehicles with an intelligent dynamo. The Buck-Boost DC-DC Converter is a DC-DC converter that charges a 12/24V service battery in vehicles with an intelligent dynamo. Since these dynamos (powered by the onboard electronics of Euro 5 and 6 engines) do not always emit the correct charging current when the engine is running, a DC-DC converter is essential for charging the service battery properly.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Mac Plus 12/24-30 + CZoneBoost the Service BatteryToo often, service batteries don’t get the charge they need. This is a problem made worse by smart alternators and start/stop systems, which result in slow and insufficient charges. The Mac Plus DC-DC charger solves this problem, providing a quick, safe, and consistent charge to the service battery. And, by knowing when the engine is running and providing charge, users can be sure that the Mac Plus will never drain a starter battery.Proven Mastervolt QualityUsers get peace of mind knowing that they have the best on board. Using the proven Mastervolt 3-step+ charge algorithm, the Mac Plus delivers a quick and easy charge, even for completely flat batteries.A robust design holds up in even the harshest conditions, with battery temperature-optimized charging and a high-quality aluminum housing to ensure superior protection against dust and water ingress. The power-efficient design also allows the Mac Plus to operate silently and without a fan.Total Power FlexibilityWith a wide DC input range, the Mac Plus allows for all DC sources and can charge two batteries from a single alternator or charger. It supports a full range of chemistries and battery types, including lithium. It also functions seamlessly with modern alternators such as Euro 5 and 6, ensuring proper charging by providing constant power, even when the alternator is inactive.Parallel configuration of up to ten units will provide over 100 amperes. Advanced high-frequency technology with modern microprocessors ensures minimal power loss when switching from 12V to 24V and vice versa.Analog voltage sense ports are also available to compensate for voltage drops and maintain proper charging.Superior Monitoring & ControlCompatibility with CZone®, NMEA 2000®, and MasterBus delivers truly superior monitoring and control and ensures Mac Plus integrates easily into complete systems. Achieve the best performance possible via various controllers and high-quality MOSFETs. And configure the Mac Plus with ease via MasterAdjust, the CZone configuration tool, or even via the on-board DIP switches.Features: Fast and safe charging, even during short trips Fanless design for silent operation Suitable for flooded, Gel, AGM, and Li-Ion batteries (incl. LiFePO4) Even charges fully depleted batteries Engine run detection protects the starter battery Adjustable current limits to meet Euro 5/6 requirements Voltage stabilization protects sensitive equipment, lights, and loads Parallel operation to obtain charging capacities well over 100 Amps MasterBus, CZone, and NMEA 2000 are compatible for intelligent system monitoring and automation Temperature compensation and voltage sense for an optimal charging result E-Mark/R10 certification for mobile applications Power supply mode offers stable power for sensitive loads Heavy-duty connections for easy installation and quick setup via DIP switches Specifications: Battery Temperature Sensor: Yes, included Battery Voltage Sense: Yes  General Specifications: Status Indicator: Yes, 3-color LED Communication Protocol: MasterBus, CZone & NMEA 2000 Output Voltage: 20-30 V Nominal Output Voltage: 24 V Output Voltage Stabilization: 2 % at extremes of temperatures, load, and input Output Voltage Ripple (peak-peak): Max. 1 % Max. Output Power: 725 W Nominal Output Power: 675 W Max. Output Current: 30 A Output Charge Current (3-step mode): 30 A Nominal Input Voltage: 12 V Input Voltage Range: 10-16 V Max. Input Current: 50 A Galvanic Isolation: No Voltage Limited: Yes Efficiency: > 95 % (at nom. input voltage, full load); peak 97 Parallel Configuration: Yes Alarm Contact: Yes, through MasterBus MasterBus Powering: No Engine Run Signal Input: Yes (active high/active low) DIP Switches: Yes, for basic setup Dimensions, H x W x D: 255 x 165 x 66 mm (10.0 x 6.5 x 2.6 inch) Weight: 2 kg (4.4 lb) Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected  Technical Specifications: No-load Consumption: < 2 mA Charge Characteristic: 3-traps+ Battery Types: Flooded, Gel, AGM, spiral, Lithium Ion, traction, user-defined 3-Step Charge Option: Yes (DIP switch settings) DC Consumption: < 5 mA Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 8-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement Temperature Range (ambient temp.): -25 degrees C to 60 degrees C; derating > 40 Cooling: Natural cooling Protections: Overload, over temperature, DC short circuit, reversed polarity (fuse) MasterBus Compatible: Yes Specifications: Charger Input - Voltage: 12v Charger Output - Amps: 30a Charger Output Voltage: 20-30v Box Dimensions: 4"H x 9"W x 15"L WT: 5.55 lbs UPC: 816882023507 Owner's Manual (pdf)

Read more less
