Electrical - Battery Chargers

PT-14W Battery ChargerNewmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless-steel case with a durable white powder coat finish, and the internal circuitry is polyurethane-coated for maximum corrosion resistance.Features: “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current. (Except PT-7) The optional sensor adjusts output voltage based on battery temperature. (Except PT-7) Current limiting prevents damage from overloading Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line Built to last – rugged stainless-steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 85-264     Input Amps @ Full Load: @ 115 VAC: 2.8, @ 230 VAC: 1.4  P.F. Rating: .93@230V and .98@115V Max Output Amps: 14 Output Banks: 3 Battery Capacity (Amp-Hours): 28-140     Operating Temp. Rating Reference: T-2 Case Size Reference: A-2 Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (31.8A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth Weight Lbs./Kg: 8/4 Optional Temp. Sensor Model: TCS-12/24     Remote Panel Model: RP Equalize Option: Yes Output Indicator Reference: M-3 Compliance Reference: CG, CE     Temperature Rating References: Temperature: -10 degrees C to +60 degrees C     Derate Linearly From 100% @ 40 degrees C to 60% @ 60 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load Compliance References: CG: USCG CFR 183.410 (Ignition protected) CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. Options:Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate the charger output stage. Manual re-initialization of a three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 115/230v Charger Output - Amps: 14a Charger Output Voltage: 12v Charging Banks: 3 Inverter Input Voltage: 115/230v Inverter Output Voltage: 115/230v Outlet Qty: Hardwire Portable: No Box Dimensions: 11"H x 11"W x 16"L WT: 9.5 lbs Quick Guide (pdf)Owner's Manual (pdf)

Read more less

PS3 Auto 15A - 3-Bank Lithium/AGM Battery ChargerLatest Technology: Detects if your battery is Lithium or AGM Automatically charges both Lithium and AGM batteries for optimal performance Fully automatic. Completely and safely charges both Lithium and AGM batteries Algorithms designed and validated with battery manufacturers for a 100% charge Startup feature will wake up batteries that have turned off due to low voltage protection Auto return to charge feature Quickest charge times in its class Unbeatable performance, reliability, safety, and quality delivered by DUAL PRO® Features: Waterproof - Use on land and in fresh and saltwater TROUBLE-FREE—Just Plug It In and Forget It! Independent outputs Fully automatic/multi-stage charging On-board diagnostic codes FCC 15 Parts A & B interference compliant Approved and meets ISO 8846 Marine standards Ignition protected (US Coast Guard 33 CFR 183.410) 3-Year Warranty AutoProfile Intuitive Charging Technology Lithium/AGMProfessional and Sportsman Series chargers have set the standard in the marine industry for more than two decades, known as the safest, most reliable, and best performing chargers in the industry.AutoProfile Intuitive Charging Technology provides flexibility for your charging system, ready for the ever-changing lithium battery technologies. No matter if you choose Lithium or AGM batteries for your boat, Dual Pro is ready to keep your boat on the water longer, enhancing battery performance and extending battery life.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 120v Charger Output - Amps: 45a Charger Output Voltage: 12/24/36v Charging Banks: 3 Portable: No Box Dimensions: 11"H x 11"W x 18"L WT: 24 lbs UPC: 738562002889 Brochure (pdf)

Read more less

RealPRO Series Battery Charger - 18A - 3-6A-Banks - 12V-36VRealPro Series battery chargers (formerly Recreation Series) are an affordable, reliable and safe battery charging system designed for everyday use. The system is engineered for users who need a charging system on an occasional basis and may not want or need the capabilities of a heavier duty and higher amperage product.It is designed for use in many types of applications including bass boats, runabouts, pontoon boats, other watercraft, automobiles, ATVs, golf carts and other similar uses. The system delivers sophisticated capabilities and superior value to customers.Battery Charging Systems Designed for Everyday Applications Affordable, Reliable and Safe Unmatched Performance, Reliability, Safety and Quality TROUBLE FREE – Just Plug It In and Forget It! Join Over 750,000 of Our Satisfied Customers! Wide Variety of Applications Universal Input (100-240 VAC 50/60HZ) Features: Approved for Wet Cell and Absorbed Glass Mat (AGM) batteries Designed for use in fresh and salt water Dependable, rugged construction and waterproof Independent outputs and fully automatic Battery maintenance mode Two year warranty DC charge cables = 5ft and AC power cord = 3ft Approved and meets ISO 8846 Marine standards Models available to charge 12-24V systems LED lights indicate “Each Battery’s” state of charge Reverse polarity protected and no installation restrictions Ignition protected (US Coast Guard 33 CFR 183.410) FCC 15 Parts A and B Interference Compliant May be used in many types of sporting applications including: Bass Boats Runabouts Pontoons Automobiles ATVs Golf Carts… This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output Voltage: 12/24/36v Charger Output - Amps: 18a Charging Banks: 3 Portable: No Charger Input - Voltage: 120/240v Box Dimensions: 5"H x 8"W x 11"L WT: 12.2 lbs UPC: 738562000557 Quick Guide (pdf)

Read more less

PT-25W Battery ChargerNewmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 12-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, and float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current. (Except PT-7) The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7) Current limitations prevent damage from overloading Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 90-132 or 180-264 Input Amps @ Full Load: @ 115 VAC: 6.5, @ 230 VAC: 4 Power Factor: .7 Max Output Amps: 25 Output Banks: 3 Battery Capacity (Amp-Hours): 50-250 Operating Temp. Rating Reference: T-4 Case Size Reference: A-2 Case Size (H x W x D): 11.2A x 7.7 x 4.75A inches (31.8A x 19.6 x 12.1A centimeters) *Note with Dripshield installed A add 1.1” (2.8 cm) to height and .92” (2.3 cm) to depth Weight Lbs./Kg: 8.2/4 Optional Temp. Sensor Model: TCS-12/24                 Remote Panel Model: RP Equalize Option: Yes Output Indicator Reference: M-3 Compliance Reference: CG Temperature Rating References: Temperature: -20 degrees C to +60 degrees C Derate Linearly From 100% @ 50 degrees C to 60% @ 60 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load Compliance References: CG: USCG CFR 183.410 (Ignition protected) CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. Options: Remote Panel, model RP, for use with all models except PT-7 and PT-40U (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W) Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 115/230v Charger Output - Amps: 25a Charger Output Voltage: 12v Charging Banks: 3 Inverter Input Voltage: 115/230v Inverter Output Voltage: 12v Outlet Qty: Hardwire Portable: No Box Dimensions: 10"H x 10"W x 16"L WT: 9.5 lbs Owner's Manual (pdf)

Read more less

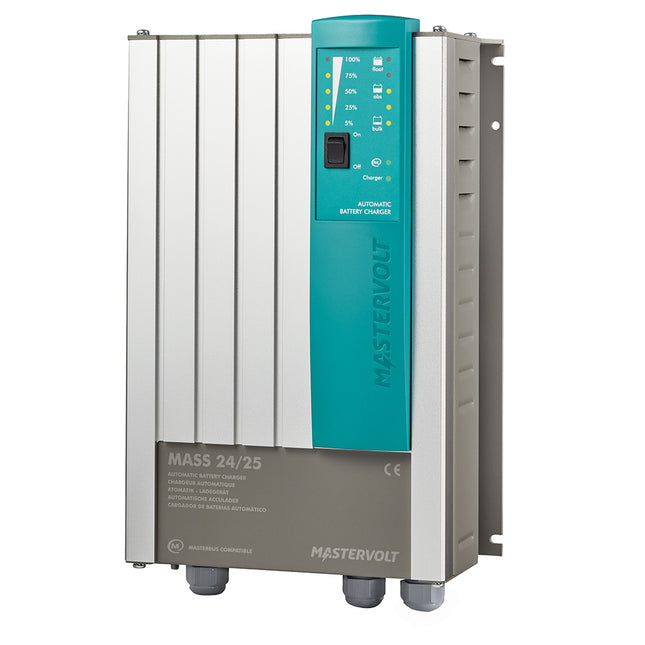

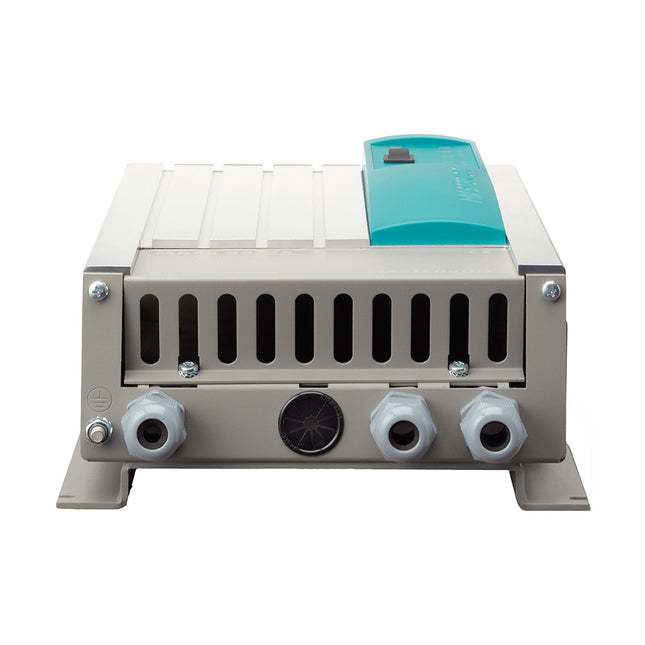

Mass 24/25-2 25 AMP 24V Battery ChargerThe right choice for demanding conditionsMass battery chargers are designed for the toughest conditions for professional, semi-professional, and recreational purposes. Even under the most extreme conditions, the products from the Mass series operate faultlessly, giving you round-the-clock output when necessary. The sustainability and technologies underpinning the Mass concept have long been proven. With an MTBF of 180,000 hours at full capacity and 24/7 use, the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply. Powerful selling points: Designed for the most difficult conditions. Lightweight, stainless steel, anodized aluminum casing. Coating of internal components prevents damage from dampness or condensation to ensure a longer lifespan. Insensitive to electromagnetic effects from other devices. Suitable for every type of battery, it also charges flat batteries. It is delivered as standard with a temperature sensor. Full power at temperatures of up to 45 degrees. Load capacities from 80 to 1000 Ah or more. Stable and ripple-free power supply, even without batteries.  The Current Control function prevents the breakdown of fuses when the voltage drops. Parallel switching is possible using multiple battery chargers. Connections in accordance with CE, ABYC A-31 and IEC60945. GMDSS models and panels available. Certified by RRR, RMRS (does not apply to 24/75 120 V).   Certified by DNV GL (only 24/25, 24/50, 24/75, 24/75 (120 V), 24/100 models). GMDSS CompatibleThe Mass series are designed for the most demanding situations. To help you comply with SOLAS regulations, all Mass battery chargers are GMDSS compatible. GMDSS stands for Global Maritime Distress and Safety System and allows users to monitor various alarm functions. GMDSS versions of the Mass 24/25 DNV, Mass 24/50, Mass 24/75, Mass 24/100, and Mass 24/100-3ph are available.A separate remote panel is available, which is compatible with all Mass battery chargers.A single front display with GMDSS remote panel is available for:      Mass 24/25-2 DNV Mass 24/50-2 Mass 24/75, Mass 24/100, Mass 24/100-3ph Charging Lithium Ion batteriesAlthough Lithium Ion batteries are increasingly popular, there can be a lack of clarity when it comes to the charging process. This is not a problem with Mastervolt as the Mastervolt battery chargers communicate directly with the Lithium Ion battery via the integrated MasterBus (or have been adapted to the required charging voltages).MasterBus compatibleMass battery chargers can be easily connected to a MasterBus network with only one cable and one connection. You can also choose central, local, or remote monitoring, configuration, and control of your system.Made tough by smart design The certified Mass battery chargers are very strong and designed to withstand heavy vibrations and shocks. Their premium quality components meet the highest possible specifications, while the smart and extra robust mounting adds to the professional end result.Specifications: Nominal output voltage: 24v Total charge current: 25a at 28.5v Number of battery outlets: 2 Charge current second output: 2a Battery bank size: 50-250 ah Nominal input voltage: 230v (180-265v), 50/60 Hz Power supply mode: Yes Galvanic isolation: Yes Display/read-out: LED display Specifications: Charger Input - Voltage: 230v Charger Output - Amps: 25a Charger Output Voltage: 24v Charging Banks: 2 Portable: No Box Dimensions: 8"H x 14"W x 17"L WT: 11.65 lbs UPC: 816882020520 Owner's Manual (pdf)

Read more less

SCM25 MPPT Solar ChargeMasterThe SCM25 MPPT is Mastervolt's smallest MPPT charge regulator and just as powerful as its big brother. With 200 to 700 Wp in solar panels, switchable output and buzzer, this Solar ChargeMaster is very well suited to small and medium systems.The innovative technology in the Mastervolt MPPT charge regulators increases the efficiency of the solar panels. The SCM25 MPPT charges your batteries up to 30% faster than PWM regulators - with the same number of panels.MPPT Charge Regulator For All Solar PanelsBesides the traditional 36 and 72-cell panels, the SCM25 MPPT is also ideal for the inexpensive 60-cell panels. The high PV voltage makes it possible to connect several panels in series, significantly reducing the required cable length, installation time and power loss in solar cables. Easy To Use, Safe & FlexibleThe SCM25 MPPT is suitable for all battery types, including Mastervolt Lithium Ion. The charging profiles for all types of batteries are pre-programmed and can be selected at the push of a button. The SCM25 MPPT is quiet and equipped with a very user-friendly, clear display. Built-in protection against overload, high/low battery voltage, overheating, short circuits and reverse polarity ensures that safety comes first. Moreover, the SCM25 MPPT has a robust casing and is protected against condensation in conformity with IP23.Features: Very high efficiency for faster charging Stable, accurate Mastervolt Maximum Power Point Tracker Up to 30% faster charging compared with PWM technology Suitable for inexpensive 60-cell panels Capacity for solar panel configurations from 200 to 700 Wp Suitable for all battery types, including Mastervolt Lithium Ion Automatic 12/24 V detection Flexible charging characteristics Battery temperature sensor for long lifespan Large and bright display Secure switchable output Safe operation, audio signal in case of malfunctions Very quiet operation Robust casing, suitable for humid environments (IP23) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Output - Amps: 18a Charger Output Voltage: 12/24v Box Dimensions: 5"H x 7"W x 9"L WT: 3.8 lbs UPC: 816882020452 Owner's Manual (pdf)

Read more less

ChargeMaster Plus 12/35-3 Battery ChargerMake the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer.All ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2, and ChargeMaster 24/6). What’s more, you have the option for central, local, or remote monitoring, configuration, and control of your system.Clear DisplayA clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase, and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity. The display also provides an indication of MasterBus communication. Three buttons adjacent to the read-out panel allow for easy operating of the entire system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.Features: For recreational and semi-professional use. Suitable for any type of battery, including Lithium-Ion batteries. 3-Step+ charging technology for fast and complete charging also charges depleted batteries. Memory function prevents overcharging in case of unreliable mains. Safe and complete charging due to standard safety features. Charging capacity up to 1000 Ah battery banks. Easy to connect and quick to install. Can charge multiple battery banks simultaneously. Built-in system functionality (MasterBus) in combination with other Mastervolt products. Clear control panel (with the exception of the ChargeMaster 12/10, ChargeMaster 12/15-2, and ChargeMaster 24/6). Supplies your system without a battery. Charging your batteries with every voltageThe Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1-regulation gets the most out of limited generator capacity.Robust Connections Solid metal-to-metal connectors equipped with strain relief prevent corrosion and overheating.Charging multiple battery banksThe ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two meters of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.DC Power SupplyEven if the batteries are not connected, Mastervolt ChargeMaster battery chargers can provide a constant DC output allowing you to turn on lights or keep the fridge cold.Specifications: Nominal output voltage: 12V Total charge current: 35 A at 14.4 V Number of battery outlets: 3 Charge current second output: 35 A Charge current third output: 35 A Battery bank size: 70-350 Ah Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz AC connection: Connector strips Power supply mode: Yes Galvanic isolation: Yes Display/read-out: LED display Specifications: Charger Input - Voltage: 120/230v Charger Output - Amps: 35a Charger Output Voltage: 12v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 12"W x 15"L WT: 9.2 lbs UPC: 816882022876 Owner's Manual (pdf)

Read more less

Centaur Charger - 24 VDC - 60AMP - 3-Bank - 120-240 VACFeatures: Quality without compromise -  Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions. Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation) All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.  The chargers also accept a 90-400 V DC supply.  Three outputs that each can supply the full output current Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.  Three-stage charging, with temperature compensation The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charger Output Voltage: 24v Charger Output - Amps: 60a Charger Input - Voltage: 120/240v Charging Banks: 3 Box Dimensions: 9"H x 14"W x 25"L WT: 22.05 lbs UPC: 8719076021575 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

ChargeMaster Plus 12/100-3 CZone/MBusChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges a maximum of three batteries in a fast and safe way and works anywhere in the world.Battery’s Best FriendWith the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are: Revival mode: automatically revives even fully depleted batteries. Priority Charge: redirect available power to the lowest battery, for faster charging. Smart Input: charge all three batteries from one single alternator for continuous charging on the go. Global ChargingThe ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC and RCM/C-Tick compliant.System SimplicityNowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all three outputs in an understandable way. Robust and ergonomic connections save installation time. An integrated VSR eliminates the need for additional components and ensures that the alternators energy is funnelled through to the batteries.Powerful ConnectionsIn modern applications, all components work together, the ChargeMaster Plus supports not only MasterBus but also CZone and NMEA. This enables the charger to communicate with displays, shunts and power systems including communication standards like, FireCan, CANopen and many more. The ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.Features: MasterBus, CZone and NMEA communication. Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR. Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger. Charges multiple batteries while being underway. Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C. Safe Charge: quickly recognize the State of Charge for extended battery life. Very wide operating range of 80-275 V AC, 35-70 Hz. Compact, easy to connect and quick to install. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charging Banks: 3 Charger Output Voltage: 12v Charger Output - Amps: 100a Charger Input - Voltage: 120/230v Portable: No Box Dimensions: 7"H x 13"W x 18"L WT: 16.6 lbs UPC: 816882022548 Owner's Manual (pdf)

Read more less

Orion-TR Smart 12/12-30 30A (360W) Non-Isolated DC-DC or Power SupplyThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.For use in dual battery systems in vehicles or on boats where the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Portable: No Charging Banks: 1 Charger Output Voltage: 10-15v Charger Output - Amps: 30a Charger Input - Voltage: 10-17v Box Dimensions: 4"H x 6"W x 8"L WT: 4.25 lbs UPC: 8719076048954 Quick Guide (pdf)

Read more less

ChargeMaster Plus - 24V - 110 Amp - 2 BankAll-in-one solution for faster and safer chargingChargeMaster Plus is the next generation of battery chargers that integrates multiple functions into one single device. Replacing auxiliary chargers, battery isolators, and VSR, ChargeMaster Plus reduces system complexity and cost. Designed for versatility, it charges virtually any combination of two batteries in a fast and safe way and works anywhere in the world.With the Battery’s Best Friend architecture, ChargeMaster Plus is capable of charging a multitude of battery chemistries, sizes, and voltages. All batteries are charged with the fast and safe 3-step+ charge method. Other unique features are: Revival mode: automatically revives even fully depleted batteries. Multi-voltage: charge 12 V starter battery in a 24 V system, without additional components. Priority Charge: redirect available power to the lowest battery, for faster charging Global ChargingThe ChargeMaster Plus handles worldwide AC voltages and frequencies. Resisting large voltage fluctuations and high temperatures, it keeps working in harsh environments. For marine and mobile markets, the ChargeMaster Plus is CE, ABYC, UL, SAE, CEC/DOE, and RCM/C-Tick compliant.System SimplicityNowadays, equipment must be self-explaining. The ChargeMaster Plus displays the charge phase of all outputs in an understandable way. Robust and ergonomic connections save installation time. Powerful Communications thanks to CZone integrationIn modern applications, all electrical components work together. The CAN-based MasterBus enables the ChargeMaster Plus to communicate with displays, shunts, and power systems including communication standards like CZone®, NMEA 2000, and CANopen (through additional interfaces).Models with the addition CZone do not only support MasterBus but also support CZone and NMEA 2000 communication, without the need for additional interfaces. This ChargeMasters Plus series can be configured via MasterBus or will accept a CZone configuration file just like any other CZone device. Other communication standards like Modbus, CANopen, LinBus, etc. are supported via additional interfaces.This wide range of communication interfaces makes the ChargeMaster Plus ideally suited for system integration. In addition, the ChargeMaster Plus can operate as a power supply for delicate communication equipment, or during the construction phase of a boat.Features Multicharger with two outputs, DC-DC converter, current limiter, and VSR Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger Extended specifications: offers 20 % more output at 14.4 V and 80 % charging power at 60 °C Safe Charge: quickly recognize the State of Charge for extended battery life Very wide operating range of 80-275 V AC, 35-70 Hz Compact, easy to connect, and quick to install WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Output - Amps: 110a Charger Output Voltage: 12/24v Charging Banks: 2 Charger Input - Voltage: 120/240v Box Dimensions: 7"H x 13"W x 18"L WT: 12.25 lbs UPC: 816882022432 Owner's Manual (pdf)

Read more less

PT-24-45U Battery Charger“Smart” marine battery charging technology for 24-volt systems aboard workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. All models are housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.Features: 24-volt model “Smart” circuitry provides three-stage charging – bulk, absorption, float Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages Multiple isolated output banks; ammeter indicates total output current The optional sensor adjusts output voltage based on battery temperature Current limiting prevents damage from overloading Use as a power supply; can power loads without a battery in line Built to last – rugged stainless steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield Install in conjunction with PT-MCU for additional control and monitoring ABS-type approval for battery charging and power supplies Specifications: Input VAC (50-60 Hz.): 90 – 264 Input Amps @ Full Load: @ 115 VAC: 12, @ 230 VAC: 7  Power Factor: .98@115V and .95@230V Max Output Amps: 45 Output Banks: 3 Battery Capacity (Amp-Hours): 90 – 450 Operating Temp. Rating Reference: T-5 Case Size Reference: A-4 Case Size (H x W x D): 14.8B x 9.6 x 5.6D inches (37.6D x 24.4 x 14.2D centimeters) *Note with Dripshield installed D add 1” (2.54 cm) to height and .5” (1.2 cm) to depth Weight Lbs./Kg: 12/6 Optional Temp. Sensor Model: TCS-12/24     Remote Panel Model: RP Compliance Reference: EN, CE, ABS Temperature Rating References: Temperature: -20 degrees C to +70 degrees C     Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation): Gel-Cell: 28.0 VDC Charge @ 50% load and 27.2 VDC Float @ .5 amp load Flooded/AGM: 28.4 VDC Charge @ 50% load and 26.8 VDC Float @ .5 amp load Compliance References: UL: UL 1950 (per DNB report) CG: USCG CFR 183.410 (Ignition protected) EN: EN 60335-1 CE: Carries the CE mark ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13. Options:Remote Panel, model RP, for use with all models except PT-24-20U, PT-24-60, and PT-32-25 (LEDs indicate charger output stage. Manual re-initialization of three-stage charge cycle. With 25′ of cable. Panel dimensions: 3″ H x 4.75″ W)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 115/230v Charger Output - Amps: 45a Charger Output Voltage: 24v Charging Banks: 3 Inverter Input Voltage: 115/230v Inverter Output Voltage: 24v Outlet Qty: Hardwire Portable: No Box Dimensions: 10"H x 14"W x 20"L WT: 18 lbs Quick Guide (pdf)Owner's Manual (pdf)

Read more less
