Electrical - Battery Management

9004e e-Series Battery Switch Single Circuit ON/OFF with Alternator Field DisconnectFeatures: CE Marked Ignition protected - Safe for installation aboard gasoline powered boats Case design allows surface or rear panel mounting Meets American Boat and Yacht Council (ABYC) requirements for battery switches 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals 7/8" (22.22mm) stud length to accept multiple cable terminals Tactile textures indicate knob position by feel only Includes AFD (Alternator Field Disconnect) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: 1 AFD: Yes Lockable: No Box Dimensions: 5"H x 7"W x 10"L WT: 0.92 lbs UPC: 632085900458 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Heavy Duty On & Off Battery Switch - 600AThe heavy-duty 422768 selector switch has 350A continuous and 1500 cranking amps to start a dual diesel engine. The battery selector switch isolates and/or combines two battery banks (422768). Installs with four #10 RH fasteners (not included). Features: Can be surface or rear panel mounted  Ignition protected  Safe for installation on gasoline-powered boats  Constructed of injection molded nylon with machined brass contacts  CE certified Specifications: Length (inch): 4" Width (inch): 4" Depth (inch):  3-5/8"  Amps: 350 WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

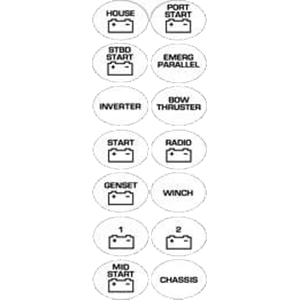

Mini Contour Battery Disconnect Switch - 275A ContinuousThis switch offers a number of unique features, the highlight being the Contour Locking System, allowing it to be a stand alone unit, or locked together with other switches. The control knob can be removed by switching to an counterclockwise 45 degree position. This control knob also features an interchangeable labeling system allowing a full range of applications (Item # 713 or 715). Three removable side plates provide access of up to 1/0 cables. The rear cover insulating the rear terminals against any short circuits. This ensures that the switch meets ABYC requirements. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100°C (212°F) above the ambient temperature. The continuous and intermittent ratings are tested at 110% of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.Features: Can be either surface or recess mounted by cutting a 2.1" (52 mm) hole Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH) Tin-plated copper studs and nuts Ignition-protected WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

54" Battery Strap with Stainless Steel BuckleReplacement straps for T-H Marine battery trays.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Positions: N/A Lockable: No Continuous Amperage: N/A AFD: No Box Dimensions: 1"H x 1"W x 4"L WT: 0.15 lbs UPC: 733572100006

Read more less

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery ChargingFeatures: 120 Amp continuous rating 12/24V DC auto ranging voltage input Senses charging on two battery banks Side and bottom knockouts for cable connections Clip-on cover insulates terminal connections 7/8" (22 mm) stud length to accept multiple cable terminals Integrated LED indicates ACR status 1/4" x .032" male quick connect terminals for ground and optional features Specifications: Intermittent Rating: 5 min.: 210 Amps Continuous Rating: 120 Amps Nominal Voltage: 12/24 Volts DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Continuous Amperage: 120a Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs UPC: 632085076115 Owner's Manual (pdf)

Read more less

Spare key for m-series (mini) Switch (6005)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

7765 L-Series Solenoid Switch - 150A - 12/24V DCIdeal for switching DC subpanels, thrusters, windlass, inverters, and other medium-amp DC loads.Features: Continuous duty, SPST - Normally Open Hermetically sealed contacts Activated by a remote ON-OFF switch 8230 (sold separately) Coil control circuit minimizes heating and amperage draw

Read more less

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 12V Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/ 8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desiredSpecificationsControl Circuit Connection:Tinned WireNominal Voltage:12V DCCoil Function: Auto releasing Mounting: #10Amperage Operating Current:8mA when OFF/13mA when ONAmperage Operating Current when changing state: <7A (40 ms)Control Circuit Voltage: 10.1 to 16.5V DCContinuous Rating: 500AIntermittent Rating: 700A (5 min)Cranking Rating: 10 sec 2500ACranking Rating: 1 min 1100AMinimum Operating Temperature: -10° CMaximum Operating Temperature: 50° CCable Size to Meet Ratings: 2x (4/0)Live Current Switching: 300A @ 12V DC 10,000 CyclesMaster Control Switch Capability: YesMechanical Endurance: 100,000 CyclesSwitching Cycles: 100,000Terminal Ring Diameter Clearance: 1.18" (29.97mm)Terminal Stud Length: 0.875" (22.23mm)Terminal Stud Size: 3/8-16 (M10)Terminal Stud Torque: 140 in-lb (15.82 Nm)Weight: 1.75lb (0.79 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Lockable: Yes Continuous Amperage: 500a Box Dimensions: 3"H x 7"W x 12"L WT: 2.1 lbs UPC: 632085077129 Owner's Manual (pdf)Brochure (pdf)

Read more less

Cruiser Series Battery Selector Switch with AFDPart No. 2100DescriptionContinuous Amps: 230Momentary Amps: 345Cable Lug Size: 3/8"Color: OrangeDimensions: 5-1/2"W x 2-5/8" Product FeaturesAlternator field disconnect (AFD) allows selection of any position, including "off" without damage to alternator or electrical systemPolycarbonate caseFor 6, 12, 24 or 36 volt systemsOne year WarrantyWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

7717100 ML-RBS Remote Battery Switch with Manual Control Auto Release & Deutsch Connector - 24VFeatures: Includes Manual Control Auto Release Includes Deutsch Connector 24V Wire Harness Connections: Red: Control +VDC, To Close Black: Ground Yellow: -VDC LED Output

Read more less

Heavy-Duty Battery Selector SwitchThe 721 Battery Selector Switch is our heavy duty selector switch. Housed in the same module as the 720, it includes the same removable plates and back cover. While BEP Marine recommends isolated battery systems as outlined with our distribution clusters, the 721 offers a simple economical way of separating two batteries. Please note selector switches will not separate electronics from harmful engine starting spikes.Specifications: DC Voltage: 48 Stud Size (Imperial): 3 x 3/8" Stud Size (Metric): 2 x 10mm Continuous Rating: 350 Intermittent Rating: 500 Cranking Rating: 1500 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

CYRIX-LI-CHARGE 12/24-120A Intelligent Charge Relay Cyrix LI ChargeThe Cyrix Battery Combiner is a microprocessor-controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged) and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less
