Electrical - Circuit Breakers

C-Series TogglePN: 7256Poles: 2Color: WhiteAmperage: 80AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 4"H x 5"W x 5"L WT: 0.65 lbs UPC: 632085072568

Read more less

C-Series Toggle Single PolePN: 7355Poles: 1Color: WhiteAmperage: 30AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 2"W x 4"L WT: 0.9 lbs UPC: 632085073558

Read more less

7233 A-Series Double Pole Toggle - 10AMP - WhitePoles: 2Color: WhiteAmperage: 10AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085072339

Read more less

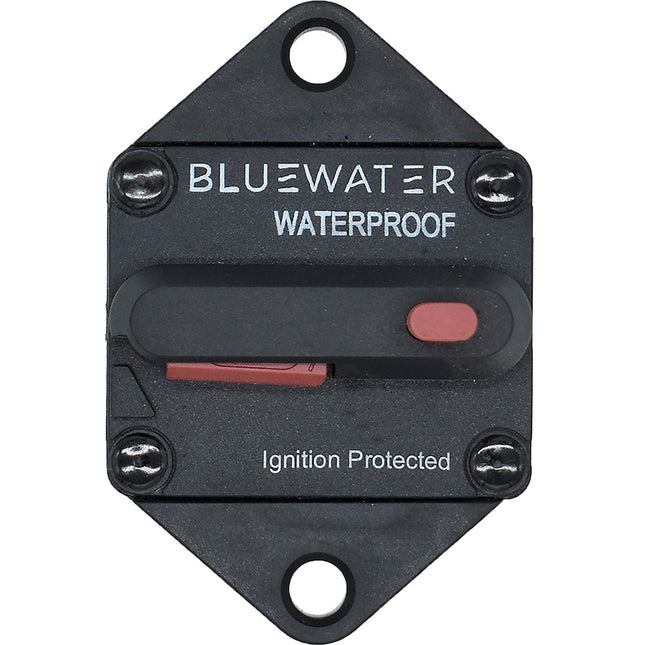

130 Amp Panel Mount Circuit BreakerOur high-amp circuit breakers deliver reliable protection for heavy-duty marine, RV, truck, and bus electrical systems. Available in multiple reset styles, these breakers safeguard auxiliary and accessory circuits with confidence.Features: Configuration: Switchable/Manual reset Voltage Compatibility: Works with 12V, 24V, 32V, and 48V DC systems Durability: Rugged thermoplastic housing with nickel-plated copper components Marine-Grade: Designed to resist corrosion, vibration, and harsh environments Performance: Interrupting Capacity: Up to 3,000A at 14V, 30V, and 48V DC Reliable Protection: Scales performance across the 30A–300A range Trusted in Demanding Applications: From trolling motors to inverters and winches Installation Made Simple: Accepts standard 1/4″ lugs for quick, secure connections Compact design makes integration easy in tight spaces Specifications: Amperage: 130 Box Dimensions: 2"H x 2"W x 3"L WT: 0.2 lbs UPC: 810196334274

Read more less

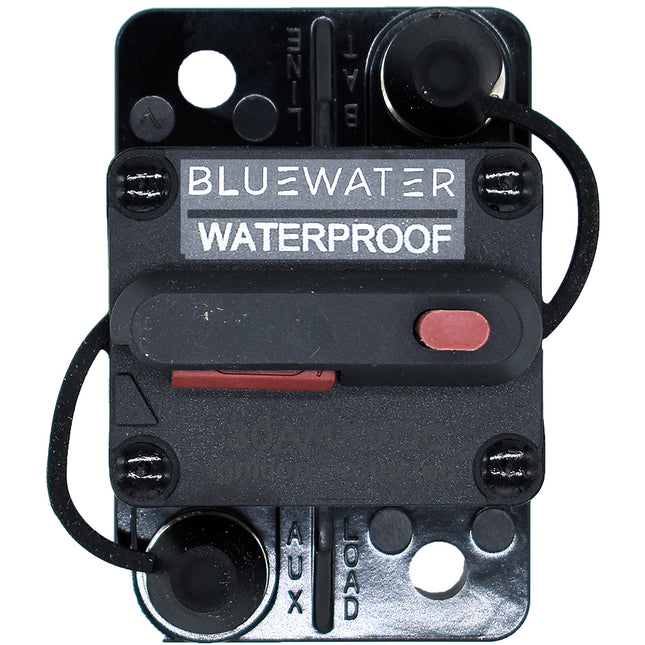

100 Amp Surface Mount Circuit BreakerOur high-amp circuit breakers deliver reliable protection for heavy-duty marine, RV, truck, and bus electrical systems. Available in multiple reset styles, these breakers safeguard auxiliary and accessory circuits with confidence.Features: Configuration: Switchable/Manual reset Voltage Compatibility: Works with 12V, 24V, 32V, and 48V DC systems Durability: Rugged thermoplastic housing with nickel-plated copper components Marine-Grade: Designed to resist corrosion, vibration, and harsh environments Performance: Interrupting Capacity: Up to 3,000A at 14V, 30V, and 48V DC Reliable Protection: Scales performance across the 30A–300A range Trusted in Demanding Applications: From trolling motors to inverters and winches Installation Made Simple: Accepts standard 1/4″ lugs for quick, secure connections Flexible mounting for both panel mount and surface mount setups Compact design makes integration easy in tight spaces Specifications: Amperage: 100a Box Dimensions: 2"H x 2"W x 3"L WT: 0.25 lbs UPC: 810196330207 Brochure (pdf)

Read more less

24-Hour Essential Circuits Module2 x 10AThe 706-2W 24 hour essential circuit module is suitable for essential circuits such as bilge pump auto float switch supplies and stereo memory circuits. The push to reset function ensures essential 24hr circuits cannot be switched off inadvertently. This is contained in the contour lock single module. Designed for smaller systems where only 2 circuit breakers are required Supplied with 2 x 10 amp Carling CLB Series circuit breakers - push to reset WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

24-Hour Essential Circuits Module1 x 5AThe 706-4W 24hr service module consists of 1 x 5amp and 3 x 15amp push to reset Carling CLB Series thermal circuit breakers. Suitable for essential circuits such as bilge pump auto float switch supplies and stereo memory circuits. The push to reset function ensures essential 24hr circuits cannot be switched off inadvertently. This is contained in the contour lock double module. Consists of one 5A and three 15A push to reset Carling CLB Series thermal CBs The push to reset function ensures essential 24hr circuits cannot be switched off inadvertently WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

A-Series Flat Rocker Circuit Breaker - Double Pole - 10AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperaget: 10A AC / 10A DC Actuator Style: Flat Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: t6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 2"H x 3"W x 4"L WT: 0.4 lbs UPC: 632085074104

Read more less

C-Series Toggle Single PolePN: 7248Poles: 1Color: WhiteAmperage: 80AFeatures: Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 632085072483

Read more less

Single Pole Small Case 2" Flat Rocker Circuit BreakerPN:   7402Amperage:   10 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 1"H x 3"W x 5"L WT: 1 lbs UPC: 632085074029

Read more less

C-Series TogglePN: 7365Poles: 2Color: WhiteAmperage: 30AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips Trip Free design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 4"H x 5"W x 5"L WT: 0.7 lbs UPC: 632085073657

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 15AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 15A AC / 15A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: t6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 15a Box Dimensions: 2"H x 3"W x 4"L WT: 0.4 lbs UPC: 632085075422

Read more less
