Electrical - Circuit Breakers

40A Panel Mount Mini Circuit BreakerThis 40A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 40 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 4,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Box Dimensions: 3"H x 3"W x 5"L WT: 0.3 lbs UPC: 850053879364 Quick Guide (pdf)

Read more less

7444 UL-489 Circuit Breaker - 30A Flat RockerSuitable for use when UL-489 specifications are required (Navy, Army, or Coast Guard vessels, and other vessels covered under CFR 46).Specifications: Amperage: 30A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 80V DC Circuit Breaker Type: Magnetic Hydraulic - Trip Free Terminal Type:  #10-32 Screw Tin-Plated Brass  Interrupt Capacity: 10000A Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 4"L WT: 0.26 lbs UPC: 632085074449

Read more less

A-Series Raised Rocker Circuit Breaker - Double Pole - 30AFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition International ON/OFF symbols support vertical or horizontal mounting Specifications: Amperage: 30A AC / 30A DC Actuator Style: Raised Rocker Poles: 2 Maximum Voltage: 120V AC / 240V AC / 32V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: 6 in-lb (0.68 Nm) Screw Terminal Torque: 14 in-lb (1.58 Nm) Switching Cycles: 10000 Terminal Screw: #10-32 Stainless Steel Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 5"L WT: 0.36 lbs UPC: 632085075743

Read more less

285-Series Circuit Breaker Panel Mount - 80A Drop in replacement for 185-Series Circuit Breakers Visible reset lever shows open condition "Trip Free" - cannot be held closed after tripWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 80a Box Dimensions: 2"H x 5"W x 9"L WT: 0.3 lbs UPC: 632085070861 Brochure (pdf)

Read more less

7050Push Button Thermal with Quick Connect Terminals3A Ideal for 24-hour circuit protection Incorporated into Blue Sea Systems' Waterproof Circuit Breaker panels and main Battery Main Distribution Panels Push to reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasonline powered boats With male quick connect terminals WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 3a Box Dimensions: 1"H x 2"W x 3"L WT: 0.2 lbs UPC: 632085070502

Read more less

Single Pole Small Case 2" Slot Reset Rocker Circuit BreakerPN:   7433Amperage:   50 AmpFeatures: Color actuator indicates "OFF" position "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 250 Volts AC / 80 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 632085074333

Read more less

C-Series TogglePN: 7365Poles: 2Color: WhiteAmperage: 30AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips Trip Free design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 4"H x 5"W x 5"L WT: 0.7 lbs UPC: 632085073657

Read more less

7233 A-Series Double Pole Toggle - 10AMP - WhitePoles: 2Color: WhiteAmperage: 10AFeatures: Meets American Boat and Yacht Council (ABYC) standards UL 1077 recognized, TUV certified, CE marked for Europe and CSA certified for Canada The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Used as AC Main circuit protection "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 10a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085072339

Read more less

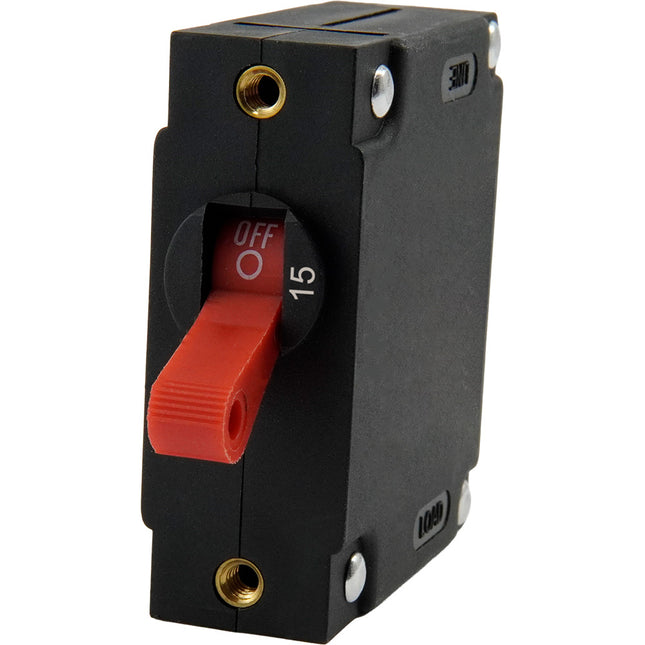

A Series Red Toggle Panel Mount Circuit Breaker - Single Pole 15AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 15a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850074331025 Brochure (pdf)

Read more less

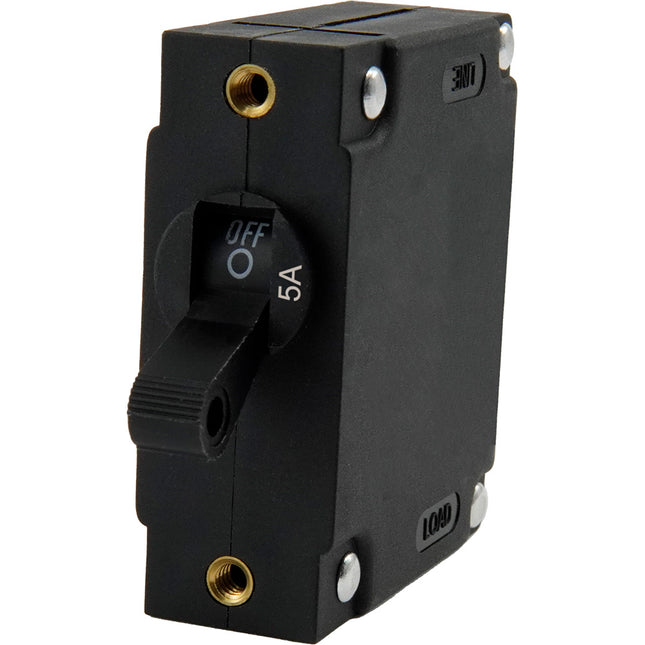

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 5a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.1 lbs UPC: 850067590996 Brochure (pdf)

Read more less

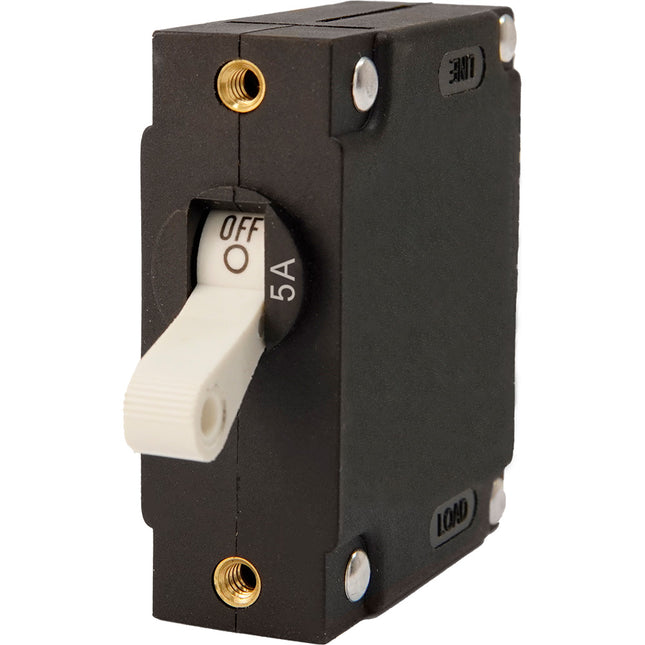

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 5a Box Dimensions: 2"H x 4"W x 4"L WT: 0.15 lbs UPC: 850074331179 Brochure (pdf)

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 15AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 15a Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331100 Brochure (pdf)

Read more less
