Electrical - Circuit Breakers

5025 ST Blade Fuse Block with Cover - 6 Circuit with Negative Bus Features: Clear insulating cover with label recesses accept Small Format Labels Cover Satisfies ABYC/USCG requirements for insulation Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit Accepts ATO and ATC fast acting blade fuses 20 write-on circuit labels included WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

7062 ATO/ATC-Style Low Profile Circuit Breaker - 2-Pack - 5 AmpUse a manually resettable circuit breaker instead of an ATO or ATC fuse.Features: Drop in replacement for ATO and ATC blade style fuses Manual push button reset complies with ABYC circuit protection requirements Compatible with Water-Resistant ST-Blade Fuse Block with cover secured Compatible with all other ST-Blade Fuse blocks without cover Amperage: 5 Amps Color: Light Brown Maximum Voltage: 28V DC Circuit Breaker Type: Thermal Trip, Manual Reset Interrupt Capacity: 2000A@28V DC Minimum Operating Temperature: -30° C Maximum Operating Temperature: 77° C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Box Dimensions: 2"H x 2"W x 4"L WT: 0.5 lbs UPC: 632085070625

Read more less

3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit PositionThe 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inletFeatures: Includes one 120/240V AC / 50A ELCI Main and one blank position Blank apertures for custom breaker loading Glass-filled polycarbonate mounting box Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers Stainless steel mounting hardware included Includes waterproof glands LED lights for back lighting and ON indication Technical Specifications: Minimum Operating Temperature: -35° C Maximum Operating Temperature: 66° C Cover Screws and Hardware: 10-32 Stainless Steel Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm) Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm) Mounting Hardware: 1/4" Diameter, #12 (6 mm) Weight: 7.00lb (3.18 kg) In the Box: 3119 Enclosure Glands x 5 Labels Mounting hardware Instruction manual *Sold as an IndividualWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Brochure (pdf)

Read more less

50A Panel Mount Mini Circuit BreakerThis 50A Panel Mount Mini Circuit Breaker is a 2-in-1 circuit breaker/disconnect switch that incorporates traditional battery disconnect switching (non-engine) and circuit protection. Trolling motor circuit switching applications are what this switch is best used for.Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  42 Vdc rating - easily supports 12, 24, and 36V DC applications. Ideal for trolling motor switching applications High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 50 Max Voltage: 42 CE Marked: Yes Interrupt Current @14 VDC (Amps): 3,000 Cycle Switching Endurance: 3,000 Ingress Protection Rating: IP66 Focal FeaturesEasy ON/OFF Rotary SwitchEasy to operate and visually recognize switch position.Stainless Steel Self- Locking Hardware Corrosion and vibration resistance for harsh environment applications.Weatherproof ConstructionSealed against dust and moisture penetration. High temp rated for all installation locations.Compact SizeFit more circuit switching/protection on a smaller panel!Proudly Made in the USAMade in the USA of high-quality components.Ignition ProtectedProtects against inadvertent shorts from positive terminals to adjacent grounded surfacesWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 3"H x 3"W x 6"L WT: 0.3 lbs UPC: 850053879371 Quick Guide (pdf)

Read more less

C-Series TogglePN: 7365Poles: 2Color: WhiteAmperage: 30AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips Trip Free design cannot be held ON during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 4"H x 5"W x 5"L WT: 0.7 lbs UPC: 632085073657

Read more less

"A" Frame Magnetic Circuit Breakers 5 AmpDouble Pole Standard branch AC or DC circuit breaker for Paneltronics electrical distribution panels Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breaker UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada (ABYC E-11.12.2.8. Trip free (ABYC E-11.12.1.7.2.2. and E-11.12.2.8.1.) Manual reset (ABYC E-11.12.1.7.2.4. and E-11.12.2.8.1.) Specifications: Amperage: 5a Box Dimensions: 1"H x 1"W x 2"L WT: 1 lbs UPC: 602290200209

Read more less

AC / DC Single Pole Magnetic World Circuit BreakerThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.PN:   7201Color:   RedAmperage:   5 AmpDelay:   StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 277 Volts AC / 65 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Box Dimensions: 1"H x 2"W x 4"L WT: 0.1 lbs UPC: 632085072018

Read more less

C-Series TogglePN: 7287Poles: 3Color: WhiteAmperage: 50AFeatures: 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection Double pole used as 120 volt AC main circuit breaker to switch hot to neutral Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral Double and triple pole circuit breakers will trip all poles will trip if any one pole trips "Trip Free" design cannot be held "ON" during fault current condition WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 4"W x 5"L WT: 0.3 lbs UPC: 632085072872

Read more less

C-Series Flat Rocker Circuit Breaker - Single Pole - 100AFeatures: Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching Color actuator indicates "OFF" position Provides overcurrent protection for inverters, bow thrusters, and windlasses Combines switching and circuit protection into a single device "Trip Free" - cannot be held closed after trip Ignition protectedsafe for installation aboard gasoline powered boats Specifications: Amperage: 100A AC / 100A DC Actuator Style: Flat Rocker Poles: 1 Maximum Voltage: 240V AC / 48V DC Circuit Breaker Type: Magnetic Hydraulic - trip free Terminal Stud Torque: 35 in-lb (3.95 Nm) Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC Minimum Operating Temperature: -40° C Maximum Operating Temperature: 85° C Mounting Screw: #6-32 Stainless Steel Mounting Screw Torque: t6 in-lb (0.68 Nm) Switching Cycles: 10000 Terminal Stud: 1/4-20 Tin-Plated Brass Weight: 0.38lb (0.17 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Box Dimensions: 2"H x 3"W x 5"L WT: 0.4 lbs UPC: 632085075491

Read more less

Push Button Reset Only Screw Terminal Circuit Breaker - 5 AmpsFeatures: Branch circuit breakers (can also be used for 24-hour circuit protection) Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels Compact design enables high density circuit protection configurations Push-to-reset operation "Trip Free" design cannot be held "ON" during fault current condition Ignition protected - Safe for installation aboard gasoline powered boats Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking Specifications: Amperage: 5A Maximum Voltage: 32V DC Mounting: Panel Mount 3/8-27 UNS Circuit Breaker Type: Thermal trip, manual push-button reset only Terminal Type: #8 Screw Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V Minimum Operating Temperature: -10° C Maximum Operating Temperature: t60° C Screw Terminal Torque: 6 in-lb (0.68 Nm) Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 5a Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085021306

Read more less

AC / DC Single Pole Magnetic World Circuit BreakerThe World Circuit Breaker meets all American Boat and Yacht Council (ABYC) Standards, is UL 1077 Recognized, TUV Certified, CE marked for Europe, and CSA Certified for Canada.PN:   7212Color:   BlackAmperage:   20 AmpDelay:   StandardFeatures: The industry standard circuit breaker for Blue Sea Systems electrical panels Combines switching and circuit protection into a single device Single pole Quick Trip models are designed specifically for electronics protection "Trip Free" design cannot be held "ON" during fault current condition Specifications    Circuit Breaker Type Magnetic Hydraulic - Trip Free Maximum Voltage 277 Volts AC / 65 Volts DC Rated Switch Cycles 10,000@rated amperage and voltage WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 20a Box Dimensions: 1"H x 3"W x 5"L WT: 0.15 lbs UPC: 632085072124

Read more less

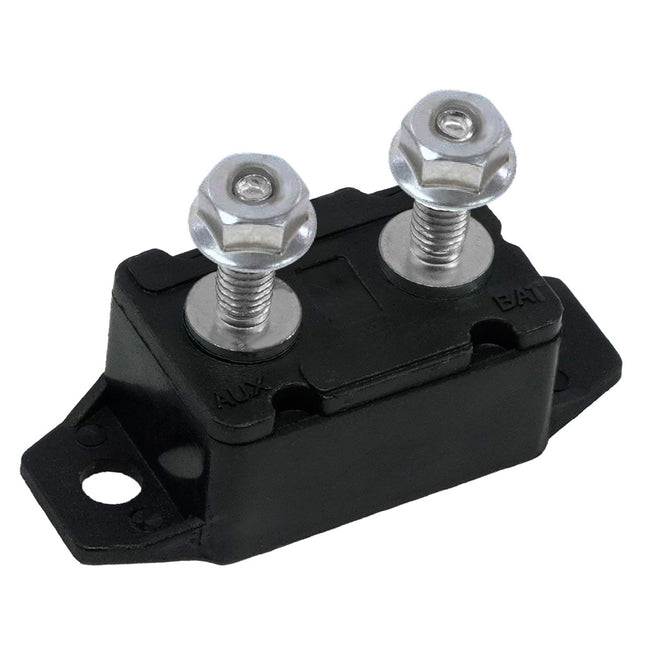

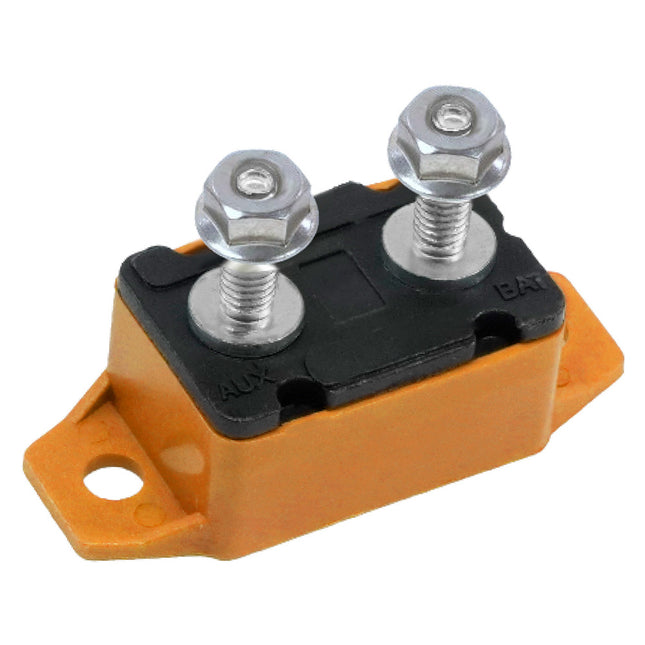

7155 Short Stop Circuit Breaker - 30A Corrosion Resistant Material IP 64 Water Resistant Boot Push to Reset Only Interrupt Capacity: 2,500A @ 28VDC Red insulating boot included in retail package Specifications Amperage: 30A DC Maximum Voltage: 28V DC Interrupt Capacity: 2500A @ 28V DC Minimum Operating Temperature: -10º C Maximum Operating Temperature: 60º C Screw Terminal Torque: 24 in-lb (2.71 Nm) Terminal Stud: #10-32" WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Box Dimensions: 2"H x 3"W x 7"L WT: 0.1 lbs UPC: 632085071554

Read more less
