Electrical - Circuit Breakers

200A Circuit Breaker - 85 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.  Up to 30 Volt-rated easily supports 12 Vdc (200 & 250 A) and 24 Vdc (200 A) applications.  High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 250a Box Dimensions: 3"H x 5"W x 6"L WT: 0.45 lbs UPC: 850035199701 Brochure (pdf)

Read more less

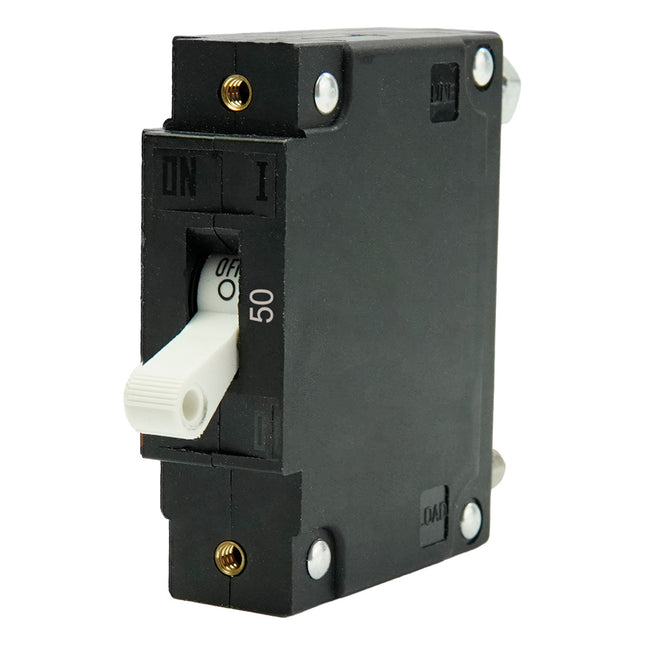

C Series White Toggle Panel Mount Circuit Breaker - Single Pole 50AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 50a Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 0.33 lbs UPC: 850067590842 Brochure (pdf)

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 40AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 40a Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331155 Brochure (pdf)

Read more less

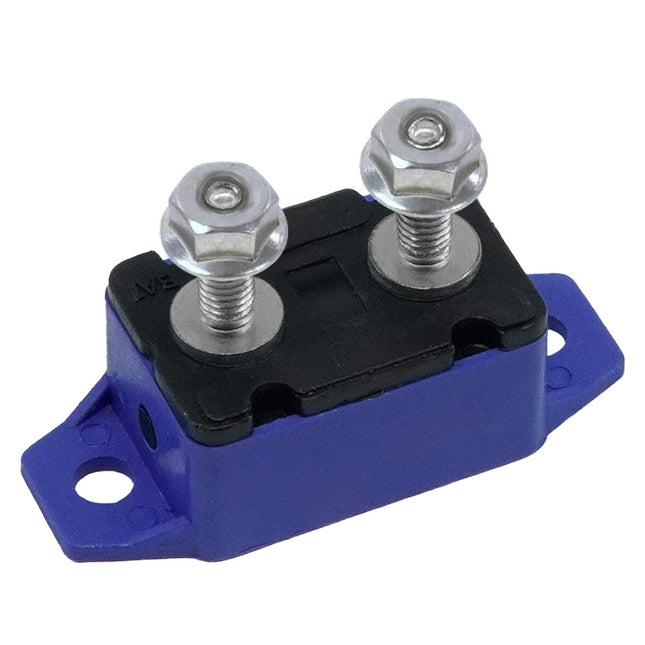

15A Blue Short Stop Circuit BreakerFeatures: Compact Surface Mount Circuit Breaker supports low and medium-amperage circuits with resettable circuit protection. 28 Max Vdc Rating easily supports 12V and 24V systems. Weather Resistant Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  Ignition-protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance is ideal for marine and vehicle electrical systems. The optional Protective Cover provides protection from inadvertent shorts from circuit breaker studs to other positive studs or ground points. Specifications: Amperage: 15a Box Dimensions: 2"H x 4"W x 4"L WT: 0.11 lbs UPC: 850053879883 Brochure (pdf)

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 10AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 10a Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331094 Brochure (pdf)

Read more less

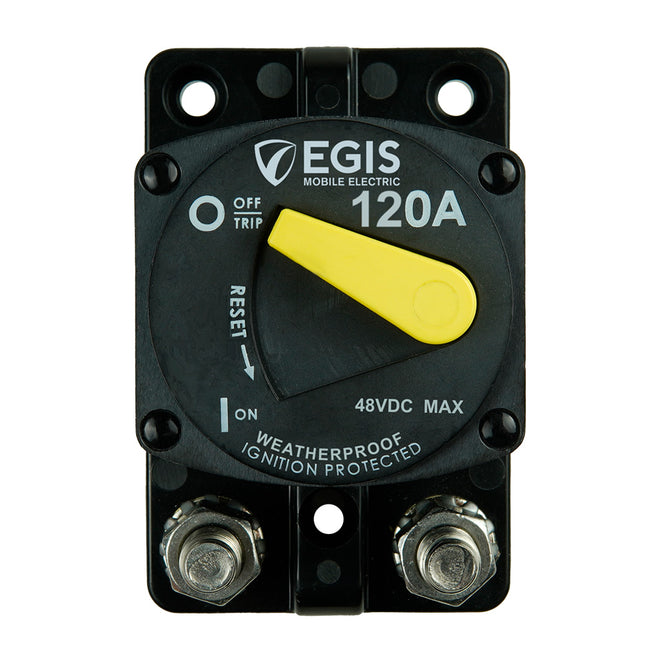

120A Circuit Breaker - 87 Series - Surface MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. Meets New ABYC E-11 Interrupt Requirements High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware and self-locking terminal nuts. Specifications: Amperage: 120a Box Dimensions: 3"H x 5"W x 6"L WT: 0.6 lbs UPC: 850035199367 Brochure (pdf)

Read more less

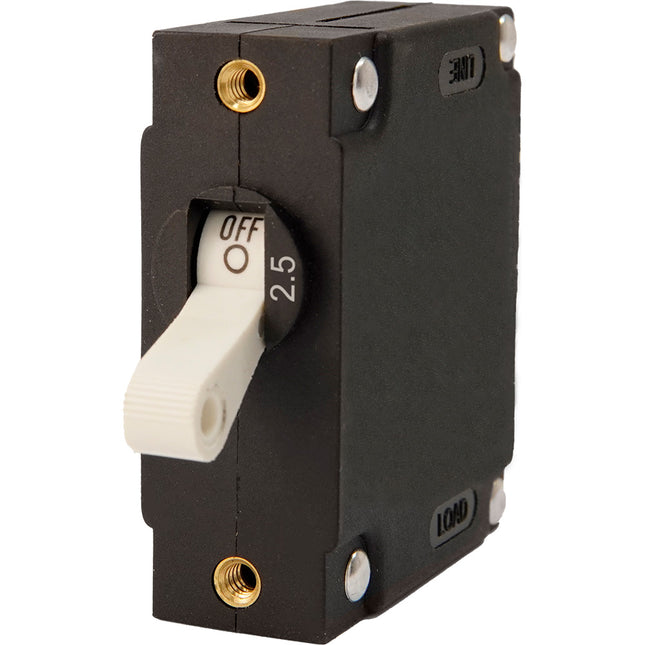

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 2.5AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 2.5a Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850074331117 Brochure (pdf)

Read more less

A Series White Toggle Panel Mount Circuit Breaker - Single Pole 50AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 50a Box Dimensions: 2"H x 4"W x 4"L WT: 0.2 lbs UPC: 850074331162 Brochure (pdf)

Read more less

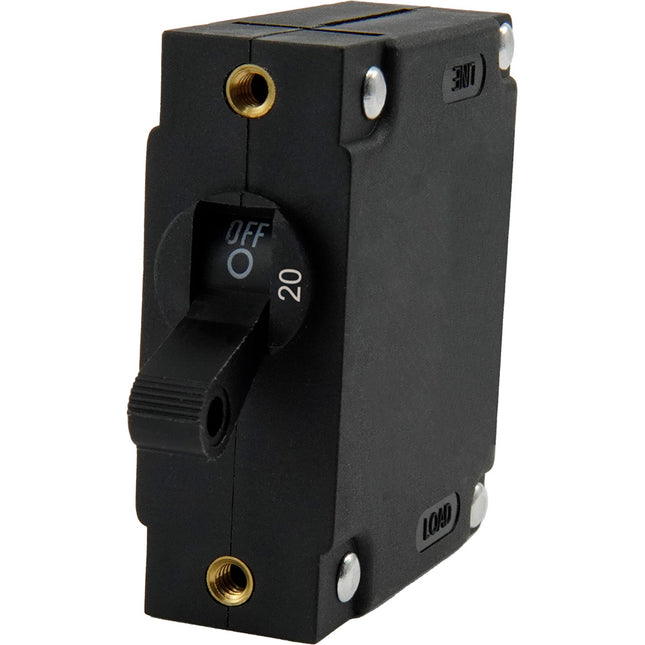

A Series Black Toggle Panel Mount Circuit Breaker - Single Pole 20AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 20a Type: Electric Box Dimensions: 2"H x 4"W x 4"L WT: 0.21 lbs UPC: 850067590958 Brochure (pdf)

Read more less

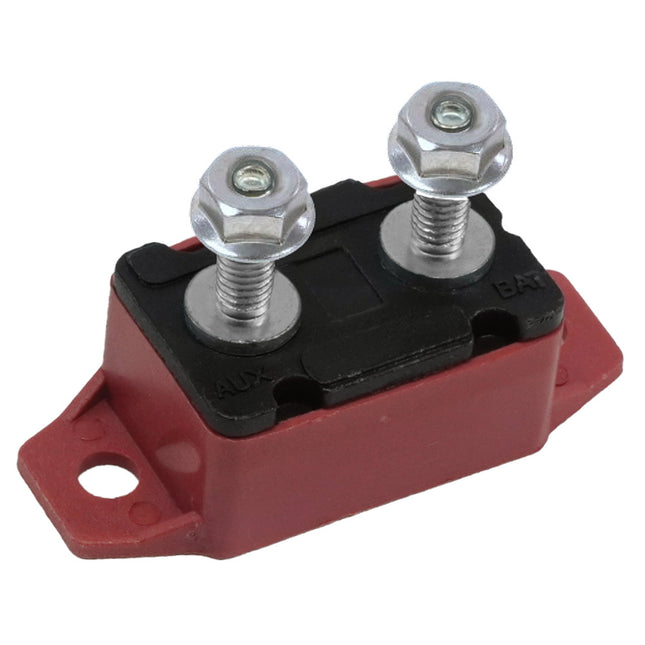

10A Red Short Stop Circuit BreakerFeatures: Compact Surface Mount Circuit Breaker supports low and medium-amperage circuits with resettable circuit protection. 28 Max Vdc Rating easily supports 12V and 24V systems. Weather Resistant Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation  Ignition-protected safe for installation in closed compartments with potential explosive gases Harsh Environment design with shock and vibration resistance is ideal for marine and vehicle electrical systems. The optional Protective Cover protects from inadvertent shorts from circuit breaker studs to other positive studs or ground points. Specifications: Amperage: 10a Box Dimensions: 2"H x 4"W x 4"L WT: 0.11 lbs UPC: 850053879876 Brochure (pdf)

Read more less

C Series White Toggle Panel Mount Circuit Breaker - Single Pole 25AFeatures: Easily Mounts In Standard Panels, accepting A-Series and C-Series magnetic-hydraulic circuit breakers. Includes mounting screws. AC & DC Rated to cover a wide range of system application needs. Toggle-Style Actuator for easy on/off switching control, combined with circuit protection. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Toggle Guard and Panel Plug accessories pair with A-Series breakers to protect against accidental switching and fill unused panel slots. Specifications: Amperage: 25a Type: Electric Box Dimensions: 3"H x 5"W x 6"L WT: 0.32 lbs UPC: 850067590835 Brochure (pdf)

Read more less

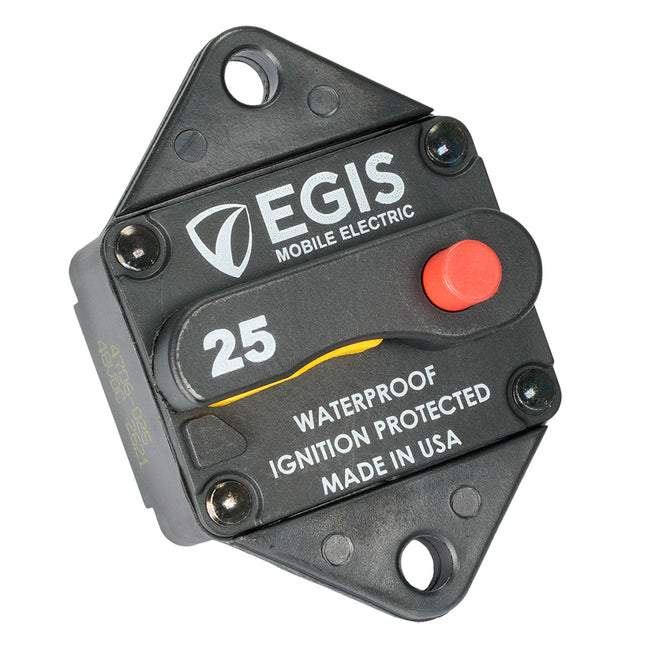

25A Circuit Breaker - 85 Series - Panel MountFeatures: Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation. High Voltage Rating easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc applications. High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power. Ignition-protected safe for installation in closed compartments with potential explosive gases. Harsh Environment design with stainless-steel hardware, serrated flange nuts, and silicone terminal covers. Specifications: Amperage: 25a Box Dimensions: 3"H x 5"W x 6"L WT: 0.35 lbs UPC: 850035199008 Brochure (pdf)

Read more less
