Electrical - Fuse Blocks & Fuses

MRBF Terminal Fuse - 50 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 50 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 50a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879562

Read more less

Lynx Power-In Class-T M10 TerminalsThe Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.The Lynx Distribution SystemThe Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management. The Lynx Distribution System Consists of the Following PartsLynx Power InA positive and negative busbar with four batteries or DC equipment connections.Lynx DistributorA positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.Lynx Shunt VE.CanA positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.Lynx Smart BMSFor use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.SpecificationsPower: Voltage Range: 9 - 60Vdc Current Rating: 1000Adc continuous  Connections: M10 Busbar: 3/8” Physical: Enclosure Material: ABS Enclosure Dimensions (H x W x D): 279 x 169 x 97mm Unit Weight: 2.1 kg Busbar Material: Tinned copper Busbar Dimensions (H x W): 8 x 30mm Environmental: Operating Temperature Range: -40°C to +60° Storage Temperature Range: -40°C to +60° Humidity: Max. 95% (non-condensing) Protection Class: IP20 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Fuse Type: Class T Box Dimensions: 5"H x 7"W x 16"L WT: 6.6 lbs UPC: 8719076062967 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

MEGA Fuse - 400AMP - 32V (Package of 5 Pieces)Victron MEGA fuses provide circuit protection for high amperage applications.Features: Quantity: Includes 5 Pieces 400AMP 32V Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 400a Fuse Type: MEGA/AMG Type: Fuses Box Dimensions: 1"H x 4"W x 4"L WT: 0.15 lbs UPC: 8719076016663 Quick Guide (pdf)Brochure (pdf)

Read more less

MIDI-Fuse 50A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses, which are known for their low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 50 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 65 mV Cold Resistance: 2 mΩ Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

MEGA Fuse 100A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 100 AMP Max Voltage Rating: 80V

Read more less

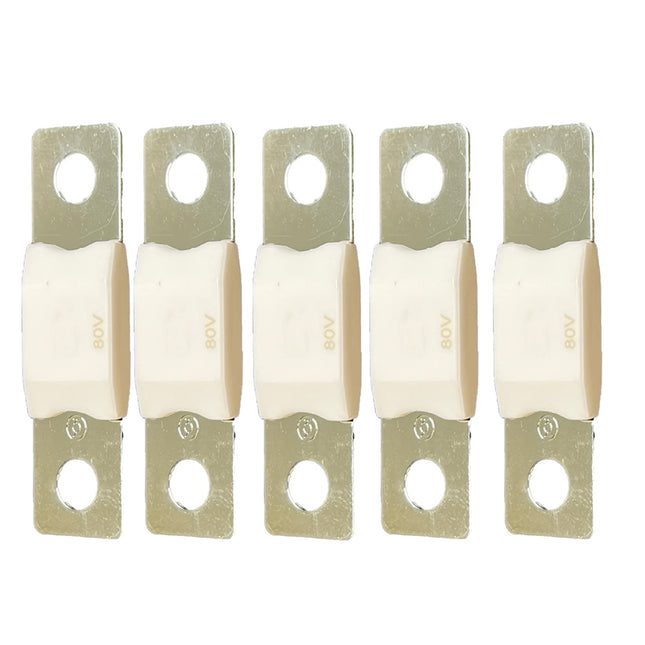

MEGA Fuse 400A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 80 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 175 AMP Max Voltage Rating: 80V Specifications: Amperage: 400A Fuse Type: MEGA/AMG Type: Inlets Box Dimensions: 1"H x 6"W x 7"L WT: 0.3 lbs UPC: 8719076061748

Read more less

MEGA Fuse 60A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 60 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 60 AMP Max Voltage Rating: 80V Specifications: Amperage: 60a Type: Fuses Box Dimensions: 1"H x 5"W x 7"L WT: 0.2 lbs UPC: 8719076061649

Read more less

200A Replacement Terminal Fuse Individual Fuse 200A WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 200a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 622988079719 Brochure (pdf)

Read more less

MEGA-Fuse 150A/80V Ceramic (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 150-amp fuses.Features:For 48V productsSpecifications: Max Current Rating: 150 amps Max Voltage Rating: 80 volts Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 150a Fuse Type: MEGA/AMG Type: Fuses Box Dimensions: 1"H x 3"W x 4"L WT: 0.2 lbs UPC: 8719076061687 Quick Guide (pdf)

Read more less

MEGA Fuse 40A/80V (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 40 AMP fuses.Features:For 80V productsSpecifications: Max Current Rating: 40 AMP Max Voltage Rating: 80V Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

Fuse Holder for ANL-FuseThis Victron fuse holder is for ANL fuses. Please note that this fuse holder doesn’t have a cover.Features:2 terminal studsPlease contact your dealer for any returns, repairs or support issues related to this product. Specifications: Type: Fuse Holders Box Dimensions: 0"H x 6"W x 8"L WT: 0.3 lbs Quick Guide (pdf)Brochure (pdf)

Read more less

Lynx Power-In with M10 TerminalsThe Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads, or chargers and a ground connection. It is part of the Lynx Distribution System. This version is a M10 busbar.Note that M10 refers to the busbar connection joints where the modules are connected. The fuse and cable connections are always M8.The Lynx Distribution SystemThe Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management. The Lynx Distribution System Consists of the Following PartsLynx Power InA positive and negative busbar with four batteries or DC equipment connections.Lynx DistributorA positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, is available in two versions.Lynx Shunt VE.CanA positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.Lynx Smart BMSFor use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less
