Electrical - Fuse Blocks & Fuses

Fuse MIDI/AMI 30A - PairFeatures: Compact fuse with 30A amperage Tin-plated copped for corrosion resistance Clear cover offers visible indication of blown fuses Color-coded for easy amperage identification Ignition protected to SAE J1171 when used with Blue Sea Systems SafetyHub family of products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Fuse Type: MIDI/AMI Type: Fuses Box Dimensions: 1"H x 2"W x 4"L WT: 0.02 lbs UPC: 632085052508 Brochure (pdf)

Read more less

MIDI 5 Circuit Fuse Block with Sealed Cover - M8 Inputs - M6 OutputsFeatures: Sealed marine-grade construction fuse block compatible with 5 MIDI/AMI BF type fused outputs Protects add-on circuits from accidental short circuits to the frame ground or battery negative, or from overload events Expandable with dual, triple, and quad link busbars for plug and play install and complete switching/protection solutions Specifications: Type: Fuse Blocks Box Dimensions: 4"H x 5"W x 7"L WT: 1.2 lbs UPC: 850067590095 Brochure (pdf)

Read more less

ATO/ATC Fuse HolderWatertight, extra heavy duty and weatherproof. For use with fuses up to 30 Amps. 12 gauge wire leads for easy hook-ups. Fuse not included.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Holders Box Dimensions: 2"H x 3"W x 7"L WT: 0.1 lbs UPC: 022697143488

Read more less

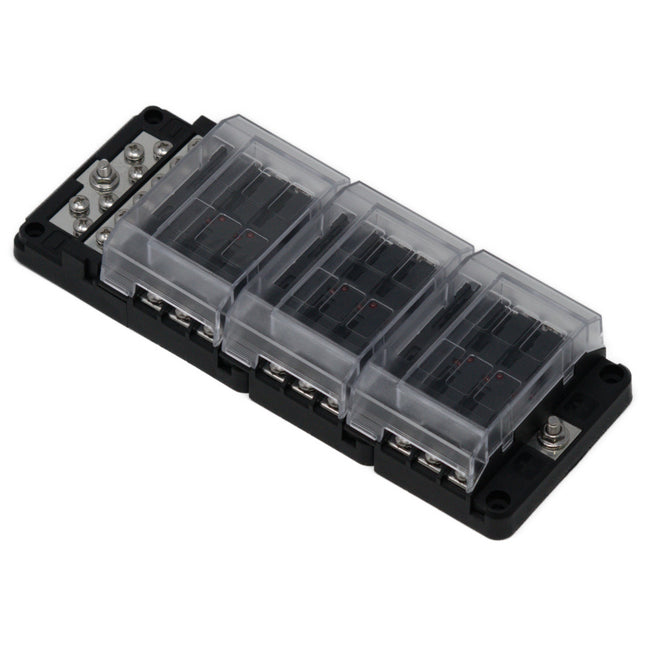

RT Fuse Block 18 Position with Ground & LED IndicationThe Egis 8031is an 18-position ATO/ATC fuse block with an integrated negative ground bus, widely used in marine and mobile automotive electrical systems. It is built for rigorous environments, featuring high-temperature materials and blown-fuse LED indicators.Specifications: Max Amperage: 30A per individual circuit, 100A total per block Voltage Range: 0 - 36V DC Circuits: 18 individual fuse positions with built-in LED blown-fuse diagnostics Grounding: Includes an integrated negative ground block that can optionally be separated for flexible installations Hardware: Stainless-steel, self-locking hardware designed to handle vibrations

Read more less

MRBF Terminal Fuse - 200 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 200 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 200a Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.09 lbs UPC: 850053879654

Read more less

MRBF Terminal Fuse - 80 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 80 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 80a Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879593

Read more less

MIDI-Fuse 30A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses, which are known for their low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 30 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 65 mV Cold Resistance: 2 mΩ

Read more less

Replacement Shunt for BMV Monitors - *PCB is NOT Included*Replacement 500A/50MV shunt for BMV Monitors*BMV PCB is NOT included and must be purchased separately*Warranty InfoPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

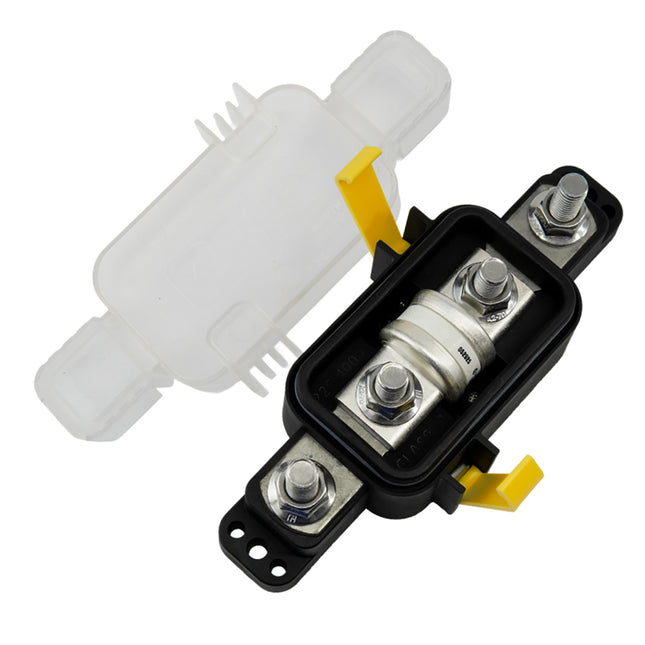

Class T Fuse Block 225-400 A - SealedApplications/Problems This Solves: Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Features: Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop. Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability. Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.  4 Year Warranty Specifications: Maximum Amperage: 225-400A Max Voltage: 80 VDC Ingress Protection Ratings: IP66, IP67, IP6K9K Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6) Mounting Screw Max Torque: 50 in-lbs (5.5 N-m) Busbar Material: Tin-Plated Copper

Read more less

RT Fuse Block - 8 Circuit with CoverThe Egis RT Fuse Block is designed for optimal organization and protection of your electrical circuits. This 8-circuit fuse block comes with a durable cover, ensuring safety and reliability for your electrical systems. Ideal for automotive, marine, and various other applications, it simplifies the management of your fuses, making maintenance easier than ever.Each circuit is marked, allowing for quick identification and troubleshooting. The robust construction of the EGIS MOBILE RT Fuse Block ensures it can withstand the rigors of daily use while providing secure connections. Whether you're an enthusiast or a professional, this fuse block is an essential addition to your toolkit, offering peace of mind and superior performance.Features: 8 Circuits: Provides ample space for managing multiple electrical connections. Durable Cover: Offers protection against dust and accidental contact. Clear Markings: Facilitates easy identification and maintenance of circuits. Robust Construction: Built to withstand rigorous use in various environments. Specifications: Amps: 40 Circuit Positions: 8 Cover Included

Read more less

MRBF Terminal Fuse - 60 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 60 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 60a Fuse Type: Terminal Type: Fuses Box Dimensions: 2"H x 2"W x 5"L WT: 0.09 lbs UPC: 850053879579

Read more less

RT Fuse Block 6 Position with LED IndicationThis 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.Applications: Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues. Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options. Features: Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps Supports SAE circuit protection standards for thermal/short circuit events Specifications: Maximum Current (Entire Block) Amps: 100 Maximum Current (Per Circuit) Amps: 30 Max Output Wire Size: #10 AWG Voltage Range VDC: 0-36 Number of Fuse Positions: 6 Compatible Fuse Types: ATO / ATC / ATF Focal Features:Spare Fuse LocationsTwo locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.Stainless Steel Self-Locking Hardware100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.LED Fuse DiagnosticsBlown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.Cover/ Label RecessesProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 100a Fuse Type: ATO/ATC/ATF Type: Fuse Blocks Box Dimensions: 3"H x 3"W x 5"L WT: 0.5 lbs UPC: 850035199732 Quick Guide (pdf)

Read more less
