Electrical - Fuse Blocks & Fuses

MEGA-Fuse 125A/80V Ceramic (Package of 5 Pieces)Victron Energy supplies a range of fuse holders and fuses to suit a wide range of installations, and the MEGA fuses are frequently used in Victron Energy DC distribution systems. This particular pack of ceramic Victron MEGA fuses contains FIVE 125-amp fuses.Specifications: Max Current Rating: 125 amps Max Voltage Rating: 80 volts Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 125a Fuse Type: MEGA/AMG Type: Fuses Box Dimensions: 1"H x 2"W x 3"L WT: 0.2 lbs UPC: 8719076061670 Quick Guide (pdf)

Read more less

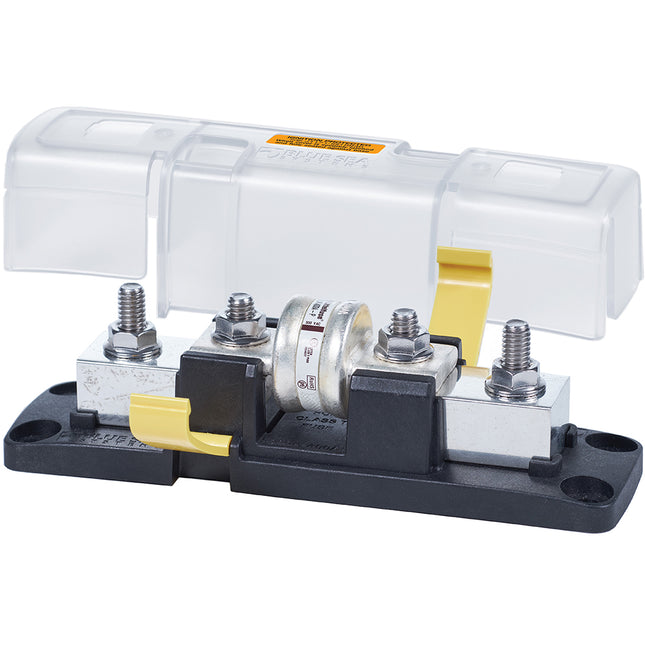

Class T Fuse Block with Insulating Cover - 225 to 400AAllows the use of Class T fuses for fast acting circuit protection of inverters and other electronics Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse Insulating cover satisfies ABYC/USCG insulation requirements Cover breakouts allow wire access in any direction Stud design ensures secure fuse mounting even with high heat Stainless steel studs provide resistance to corrosion and high torque One-piece stainless flange nuts ensure safe and secure connections UL 94-V0 base resists high heat Technical Specifications: Cable Size: Up to 4/0 AWG Ignition Protected: Yes Maximum Amperage: 320A Maximum Voltage: 160V DC Fuse Mounting Blocks: Tin-Plated Copper Terminal Stud Size: 5/16"-18 (M8) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 3"H x 8"W x 8"L WT: 1.8 lbs UPC: 632085550219

Read more less

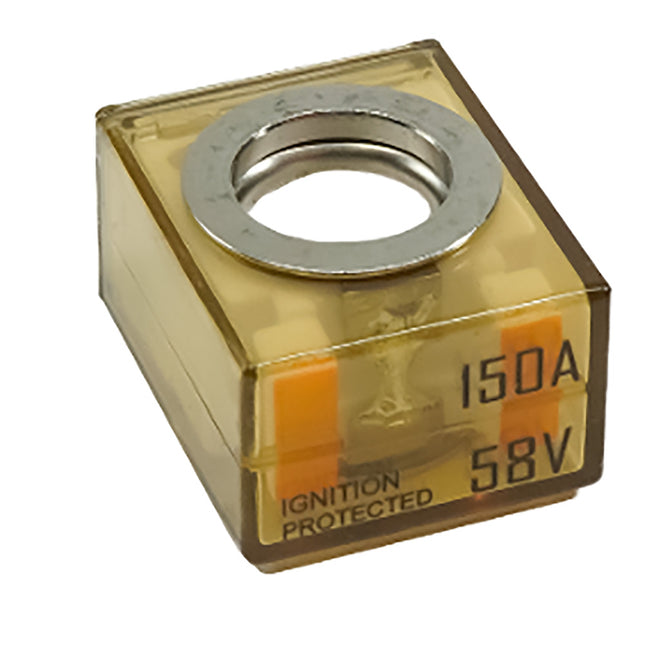

MRBF Terminal Fuse - 150 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 150 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 150 Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879630

Read more less

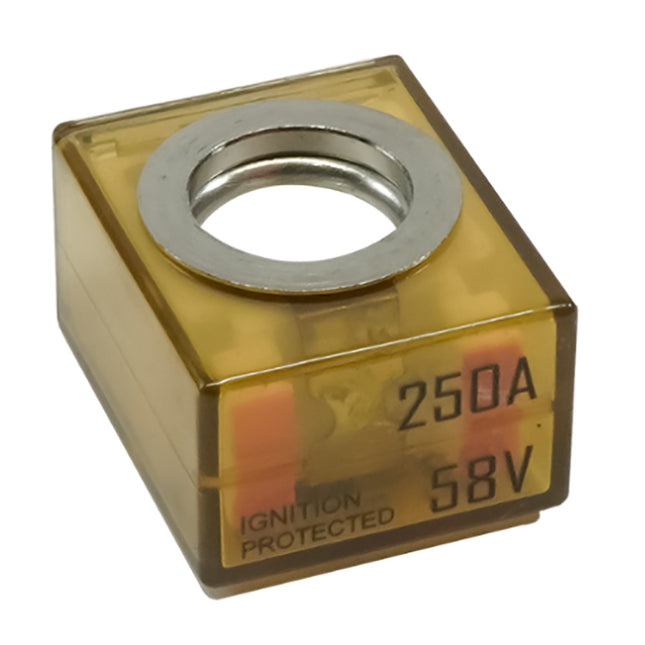

MRBF Terminal Fuse - 250 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 250 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 250 Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 1"W x 6"L WT: 0.05 lbs UPC: 850053879661

Read more less

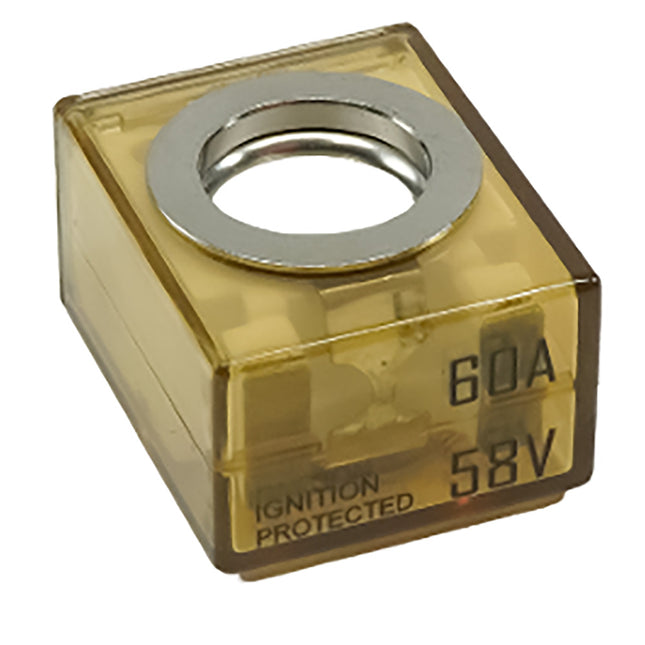

MRBF Terminal Fuse - 60 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 60 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 60 Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879579

Read more less

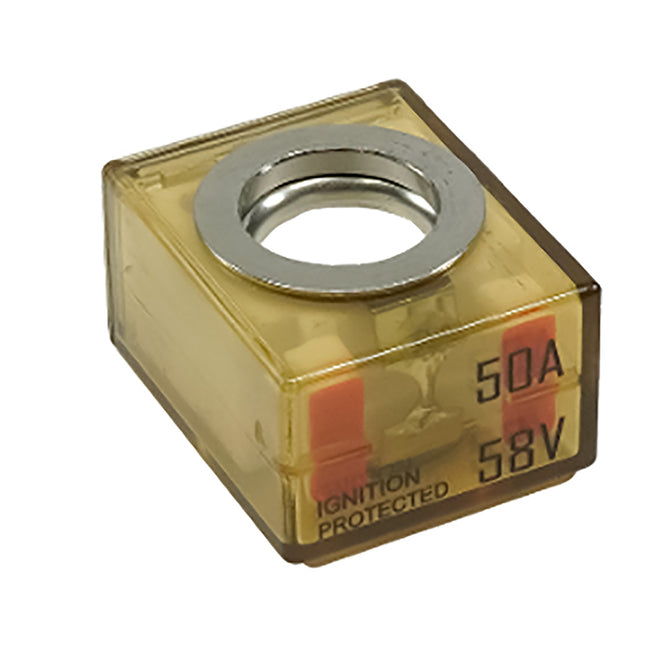

MRBF Terminal Fuse - 50 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 50 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 50 Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs UPC: 850053879562

Read more less

V8 Series 40 AMP Mini-ANL Fuse - 2 PackT-Spec high-current fuse protects your equipment and you in the event of an electrical short circuit.  Each of these heavy-duty fuses features a little window through which you can visually check the fuse's status.Features: Nickel plated Status window *Sold as a 2 PackWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 40a Fuse Type: ANL Mini Type: Fuses Box Dimensions: 1"H x 5"W x 8"L WT: 0.1 lbs UPC: 086429272228

Read more less

ANL-Fuse 500A/80V for 48V Products (Package of 1)Victron Energy's ANL fuses are bolt-down fast-acting fuses and have a higher short-circuit breaking capability than MEGA fuses. This particular package contains ONE Victron ANL 500 amp fuse that’s designed for 48V products.Specifications: Max Current Rating: 500 amps Max Voltage Rating: 80 volts Approximate Voltage Drop: 100 mV Cold Resistance: 0.25 mΩ Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Amperage: 500a Fuse Type: ANL Type: Fuses Box Dimensions: 1"H x 6"W x 7"L WT: 0.05 lbs Quick Guide (pdf)Brochure (pdf)

Read more less

ST-Blade Split Bus Fuse BlockFeatures: Provides two isolated groups of six ATO/ATC circuits For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits Screw terminals for securing wires accept ring terminals One-piece stainless flange nuts ensure safe and secure connections Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements Easy to open, push button latch for easy access to fuses Tin-plated copper buses and fuse clips Fuses sold separately Specifications: Circuits: 12 Maximum Amperage: 100A per block, 30A per circuit Maximum Voltage: 32V DC Mounting: #8 Screw (M4) Negative Bus: #10-32 Stud Screw Terminal Type: #8-32 Screws with captive star lock washer WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: ATO/ATC Type: Fuse Blocks Box Dimensions: 2"H x 7"W x 11"L WT: 0.9 lbs UPC: 632085050320

Read more less

5121 400AMP Class T FuseFeatures: Extremely fast short-circuit response 20,000 Ampere Interrupt Capacity (AIC) UL listed to standard 248-15 DC Tested to UL standard 198L WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 400a Fuse Type: Class T Type: Fuses Box Dimensions: 2"H x 4"W x 6"L WT: 0.3 lbs UPC: 632085051211

Read more less

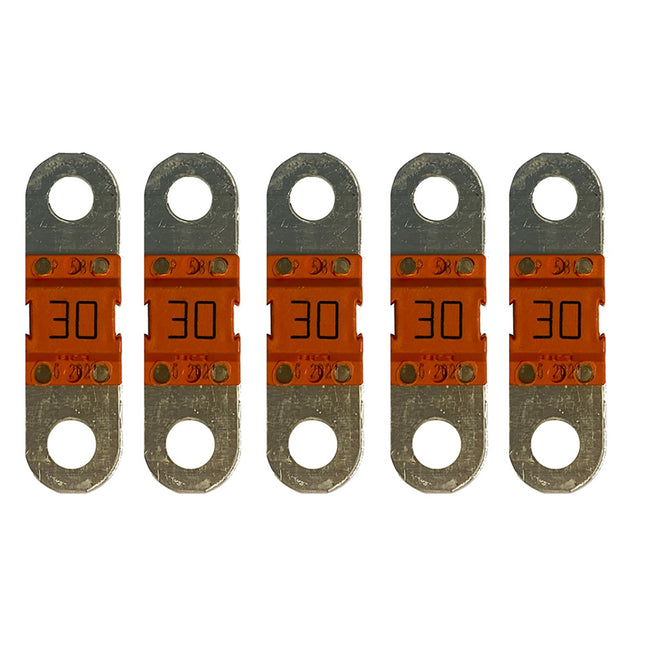

MIDI-Fuse 30A/58V-M6 (Package of 5)Victron Energy's MIDI fuses are essentially a smaller version of the MEGA fuses, which are known for their low voltage drop and cold resistance. This particular pack of Victron MIDI fuses contains five 100-amp fuses.Specifications: Max Current Rating: 30 amps Max Voltage Rating: 58 volts Approximate Voltage Drop: 65 mV Cold Resistance: 2 mΩ

Read more less

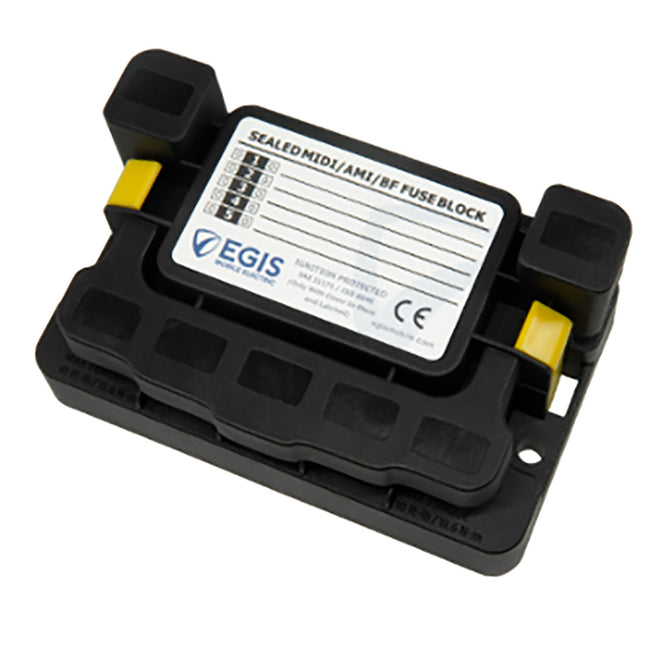

MIDI 5x Fuse Block with Sealed Cover Sealed marine grade construction fuse block compatible with 5 MIDI/AMI/BF type fused outputs Protects add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events Expandable with dual, triple, and quad link busbars for plug-and-play install and complete switching/protection solutions Features: Reduce Installation Space when combined with other Egis Mobile Electric power management devices and other sealed circuit breaker/fuse blocks. Expandable with Dual, Triple, and Quad Link Busbars for Plug and Play installation and Complete Switching/Protection Solutions.  Bullet-proof Construction: Sealed to IP66/IP6K9K, high-temperature materials, Gore-Tex vent allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Protective Cover Stored 2 (Two) spare fuses and 4 (Four) screws. Easy to operate latching mechanism holds cover on securely. Specifications: Total Continuous Current Amps: 500 Max MIDI?AMI Fuse Value (Amps): 200 Ingress Protection Rating: IP67 Ignition Protected (SEA J1171)? Yes Output Stud Size: M6 Input Stud Size: M8 Specifications: Fuse Type: MIDI/AMI Type: Fuse Blocks Box Dimensions: 3"H x 4"W x 8"L WT: 1.25 lbs UPC: 850067590064 Brochure (pdf)
