Electrical - Inverters

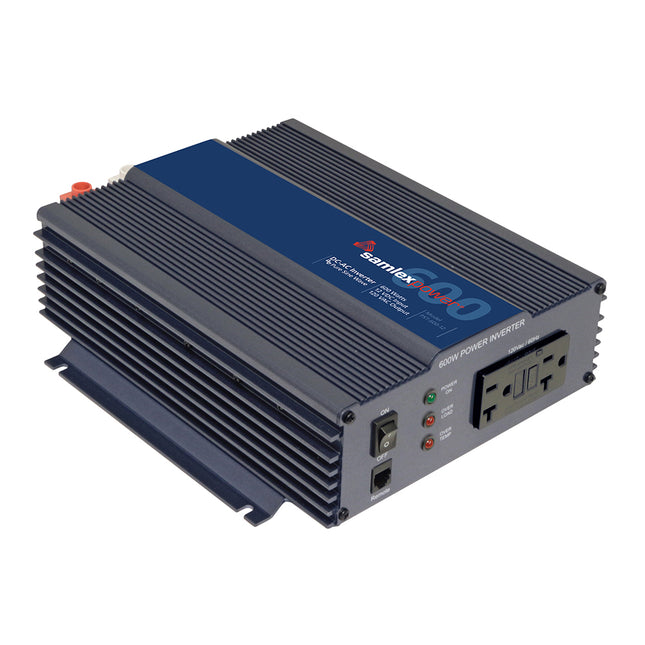

600W Pure Sine Wave Inverter - 24VPST Series (120 VAC)This high efficiency DC-AC inverter converts 24 Volts DC to 600 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include built-in electronic GFCI, overload protection, low battery alarm / shut down, low idle power draw of less than 0.5 Amps. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.Features: High efficiency Temperature controlled cooling fan – reduces energy consumption Low interference Wide operating DC input range: 21.4 - 33.0 VDC Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit Low idle power draw Dual GFCI protected AC outlets Optional remote control (sold separately): Model RC-15A Comes with pin-type battery cable lugs Safety certified to UL standards, FCC compliant Specifications: Input: 24 VDC Output: 120 VAC Watts: 600 Watts Surge: 1000 Watts Remote Control: RC-15A sold separately Weight: 5.9 (lbs) Weight: 2.7 (kg) Dimensions: 9.37 x 10.87 x 3.23 (in) Dimensions: 238 x 276.2 x 82 (mm) Safety: ETL to UL Standards Warranty: 2 Year Limited Applications: Service vehicles Mobile Offices Boats Recreation Vehicles, Camping Telecommunication Field work / Construction sites Solar power systems Emergency backup power Home electronics: TV, VCR, video games Computers, printers WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Inverter Cont. Output Wattage: 600w Outlet Qty: 2 Duplex GFCI Inverter Input Voltage: 24v Waveform: Pure Sine Wave Box Dimensions: 6"H x 11"W x 14"L WT: 7.2 lbs UPC: 622988072161 Owner's Manual (pdf)Brochure (pdf)

Read more less

115-24-10 Power SupplyThis super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.Features: Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions) Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing Thermally activated cooling fan on “CD” units Specifications: Nominal Input/VAC: 115/230     Maximum Input Current @115: 5.5 Maximum Input Current @230: 2.5 Output Amperage (Intermittent): 10 Output Amperage (Continuous): 4 Weight: 20 lbs. / 9.1 kg Case Size:H x W x D (inch): 5.7” x 4.8” x 16.3”Input Range105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VACOperating TemperatureStandard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperatureDuty Cycle: Intermittent: 20 minutes max on time, 20% duty Continuous: 24 hours/day 100% Duty Options: Modify for use as a battery charger The output voltage is adjusted (see Output Voltage for range) Transfer relay for back-up battery in event of power failure (ERC option) Output Voltage: 24.5 VDC (Internally adjustable 21-27.5 VDC) Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input) 1% Line and Load (@ 110-125 / 220-250 VAC input) Mechanical: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal-coated PC board This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Freedom XC 1000 True Sine Wave Inverter/Charger - 12VDC - 120VAC - 1000W/50ATrue sine wave 120 Vac inverter/charger with built-in transfer switch. Designed for recreational and commercial applications.The Freedom XC inverter/charger offers premium performance in a lightweight compact package. It cranks out full output in invert or charge mode from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom XC makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.Inverter Features: Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode Built-In Charger Features: Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V Battery Equalization: Maximizes flooded battery life Dead Battery Charging Down to 0 Vdc Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: DC Connection Type: Hardwire AC Connection Type: Hardwire Inverter Input Voltage: 12v Inverter Surge Rating: 2000w Outlet Qty: Optional GFCI: Optional Waveform: True Sine Wave Inverter Output Voltage: 120v Inverter Cont. Output Wattage: 1000w Box Dimensions: 9"H x 15"W x 20"L WT: 16.5 lbs UPC: 715535901318 Owner's Manual (pdf)Brochure (pdf)

Read more less

3000W Pure Sine Wave Inverter - 12VPST Series (120 VAC)This high efficiency pure sine inverter converts 12 Volts DC to 3000 Watts of AC power at 120 Volts, 60 Hz. Features include temperature controlled cooling, low interference, wide temperature operating range, overload protection, low battery alarm / shut down & low idle power draw. AC power is available from dual NEMA-20R GFCI outlets on the front panel, the unit is also hard wire capable. Safety certified to UL and CSA standards, FCC Compliant.Optional LCD remote control, model RC-300.Features: High efficiency & low RF emissions Can be hard wired 2x Surge Wide DC input range Dual GFCI Protected Outlets Wide temperature operating range -20 to +40°C / -4 to +104°F Temperature controlled cooling fan Low idle power draw Remote Input – Use to turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch Optional LCD remote control, model RC-300 UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit Safety certified to UL & CSA standards, FCC compliant Specifications: Input: 12 VDC Output: 120 VAC Watts: 3000 Watts Remote Control: RC-300 Optional Weight: 21.6 (lbs) Weight: 9.8 (kg) Dimensions: 10.35 x 17.97 x 5.71 Dimensions: 263 x 456.5 x 145 (mm) Safety: UL, CSA Warranty: 2 Year Limited Applications: Service vehicles Mobile Offices Boats Recreation Vehicles, Camping Telecommunication Field work / Construction sites Solar power systems Emergency backup power Home electronics: TV, VCR, video games Computers, printers WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Inverter Cont. Output Wattage: 3000w Outlet Qty: 2 Duplex GFCI Inverter Input Voltage: 12v Waveform: Pure Sine Wave Box Dimensions: 9"H x 14"W x 21"L WT: 24.8 lbs UPC: 622988072420 Owner's Manual (pdf)Brochure (pdf)

Read more less

Freedom X 1200 Inverter Truesine 1000W 120AC 12VDC Hardwire, TransferThe Xantrex Freedom X 1200 is engineered specifically to meet the needs of heavy-duty trucks and is ideal for installation in all types of commercial and recreational vehicles. This inverter provides up to 1200 watts of continuous utility grade, sine wave power from a battery bank and is designed to handle loads such as microwave ovens, TVs, DVD/Blu-ray players, and power tools. In addition, the Freedom X 1200's high-surge capability lets you handle many hard-to-start loads, including full-size residential refrigerators.The Freedom X 1200 has a built-in 30 Amp transfer switch that automatically transfers between inverter power and shore power from recreational facilities such as boat docks or campsites to ensure power is always available. If incoming shore power is interrupted by external events like brownouts, the Freedom X 1200 automatically becomes an independent power source that supplies utility-grade AC power to your loads.The Freedom X 1200 offers comprehensive built-in protection features to safeguard your batteries from the unnecessary drain while protecting your equipment. Features include selectable low battery shutdown voltage, low voltage shutdown delay timer, power save mode, low battery voltage alarm, and shutdown. The Freedom X 1200 also features configurable AC transfer speed, output frequency, and voltage, making it extremely versatile and the perfect blend of performance and cost.Features: Input: 12 VDC Output voltage: 120 VAC, 60 Hz Continuous Power: 1200W (10.0 A) Surge Power: 2400W (20.0 A) Output waveform: Pure sine wave Transfer relay: 30A Dimensions: 14.8 x 10.4 x 3.5 in (376 x 263 x 91 mm) Inverter weight: 10.4 lbs (4.7 kg) Shipping weight: 13.0 lbs (5.9 kg) Warranty: 2 years

Read more less

PRO Series InvertersPerformance inverters designed for RVs and boatsDesigned for RV and marine electrical systems that already have a battery charger or generator installed, Xantrex PRO Inverters deliver modified sine wave power for small appliances, TVs, and other onboard electronics from a battery bank. DescriptionThe Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available. The 1800W is designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458 certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions. Performance Features Inverter easily powers TVs, small appliances, and other electronics Built-in 15A circuit breaker to protect GFCI connected loads Up to 25A pass through for hardwired loads Digital remote control displays power output, AC source and battery voltage Detachable remote control can be mounted wherever convenient Conformal coated electronics provide moisture resistance Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included) Protection Features Battery over-voltage and under-voltage protection Over temperature shutdown Automatic overload protection Short-circuit protection Ground fault protection WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: DC Connection Type: Hardwire GFCI: Yes Inverter Input Voltage: 12v Outlet Qty: 1 Duplex GFCI Inverter Surge Rating: 3600w Waveform: Modified Sine Wave Inverter Output Voltage: 120v AC Connection Type: Hardwire Inverter Cont. Output Wattage: 1800w Box Dimensions: 6"H x 10"W x 18"L WT: 13 lbs UPC: 715535113537 Owner's Manual (pdf)Brochure (pdf)

Read more less

Freedom SW Xanbus System Control Panel (SCP)809-0921Specifically designed to operate with the NEW Generation Freedom SW Inverter/Chargers (part# 815-2012 & 815-3012). Product DescriptionUse the System Control Panel for quick and comprehensive control of the Freedom SW Inverter/Charger.The Xanbus System Control Panel (SCP) features a graphical, backlit LCD screen that displays system configuration and diagnostic information in one central location. Large keypad buttons, an intuitive onscreen menu system, and plain text status messages make it easy to configure and operate. By providing basic controls for other devices connected to the network, the SCP reduces the complexity of separate control panels for each device.The SCP is Xanbus Enabled and easily connects to Freedom SW Inverter/Charger and other devices with off-the-shelf network cables, making installation quick and easy. Built-in flash memory makes the SCP's software upgradeable to take advantage of new features and system enhancements.Product Features Graphical 128x64 pixel LCD display Large, tactile keys Meets UL458 regulatory standards Control and display of multiple networked devices Xanbus Enabled WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

115-24-18CD Power SupplyThis super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.Features: Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions) Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing Thermally activated cooling fan on “CD” units Specifications: Nominal Input/VAC: 115/230     Maximum Input Current @115: 5.5 Maximum Input Current @230: 2.5 Output Amperage (Intermittent): 10 Output Amperage (Continuous): 4 Weight: 20 lbs. / 9.1 kg Case Size:H x W x D (inch): 5.7” x 4.8” x 16.3”Input Range105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VACOperating TemperatureC.D. Units - 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperatureDuty Cycle: Intermittent: 20 minutes max on time, 20% duty Continuous: 24 hours/day 100% Duty Options: Modify for use as a battery charger The output voltage is adjusted (see Output Voltage for range) Transfer relay for back-up battery in event of power failure (ERC option) Output Voltage: 24.5 VDC (Internally adjustable 21-27.5 VDC) Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input) 1% Line and Load (@ 110-125 / 220-250 VAC input) Mechanical: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal-coated PC board This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

Freedom X 3000 Truesine Inverter - 120AC/12DC HardwireTrue sine wave 120 VAC inverter with built-in transfer switch. Designed for recreational and commercial applications.The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4°F - 104°F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze. The Freedom X has become a popular choice for boaters in a short span of time. Xantrex has now added another product to this series — Freedom X 3000, a 3000-watt pure sine wave inverter with built-in 30A transfer relay. The Freedom X 3000 delivers full output up to 40°C/104°F with a 2 second surge of 6000 watts. The Freedom X 3000 features a large wiring bay with quick connect AC terminals for fast, reliable & easy wiring.Features: Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads True Sine Wave AC Power: For operation of sensitive and motor loads Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring Specifications: Inverts: 12 Volt DC To 120 Volt AC Continuous Output Power (W): 3000 Watt With Volt/Watt Meter: No With Thermal Protection: No With Battery Cables: No With Fuse: No WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Inverter Cont. Output Wattage: 3000w AC Connection Type: Hardwire DC Connection Type: Hardwire GFCI: Optional Outlet Qty: Optional Inverter Surge Rating: 6000w Inverter Input Voltage: 12v Inverter Output Voltage: 120v Waveform: True Sine Wave Box Dimensions: 9"H x 16"W x 20"L WT: 19.9 lbs UPC: 715535901493

Read more less

115-12-20A Power SupplyThis super-rugged DC power supply is ideal for powering 12-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.Features: Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions) Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing Thermally activated cooling fan on “CD” units Specifications: Nominal Input/VAC: 115/230     Maximum Input Current @115: 5.5 Maximum Input Current @230: 2.5 Output Amperage (Intermittent): 20 Output Amperage (Continuous): 8 Weight: 20 lbs. / 9.1 kg Case Size:H x W x D (inch): 5.7” x 4.8” x 16.3”Input Range105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VACOperating TemperatureStandard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperatureDuty Cycle: Intermittent: 20 minutes max on time, 20% duty Continuous: 24 hours/day 100% Duty Options: Modify for use as a battery charger The output voltage is adjusted (see Output Voltage for range) Transfer relay for back-up battery in event of power failure (ERC option) Output Voltage: 13.6 VDC (internally adjustable 12.6-14.5 VDC) Ripple: 40mV P-P (@ 110-125 / 220-250 VAC input) 1% Line and Load (@ 110-125 / 220-250 VAC input) Mechanical: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal-coated PC board This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

800W Modified Sine Wave Inverter - 12VSAM Series low interference, high efficiency modified sine wave DC-AC inverters convert 12 VDC to 115 VAC at an output frequency of 60 Hz.Features: USB charging port +5 VDC, 2.1A 2 three prong outlets Compact design Load controlled cooling fan 2 X Surge Low battery input alarm Universal protection circuit: thermal, battery, overload, short circuit, earth fault Soft start technology Cool surface technology Low interference technology Specifications: Input: 12 VDC Output: 115 VAC Watts: 800 Watts Surge: 1600 Watts Outlets: 2 Weight: 4.5 (lbs) Weight: 2.05 (kg) Dimensions: 8 x 7 x 2.25 (in) Dimensions: 20.3 x 17.8 x 5.7 (cm) Safety: ETL Warranty: 2 Year Limited Applications: Television (up to 32") Portable Vaccum Blender Laptops Cell Phones Cameras MP3 Players Handheld Video Games Lights/Lamps Portable Stereos CD/DVD Players WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Inverter Cont. Output Wattage: 800w Inverter Input Voltage: 12v Waveform: Modified Sine Wave Box Dimensions: 3"H x 11"W x 12"L WT: 4.1 lbs UPC: 622988078095 Owner's Manual (pdf)Brochure (pdf)

Read more less

The Prowatt SW remote provides the convenience of a simple on/off remote function to the user. It also has an automatic ignition lockout feature to shut down the inverter's output when the vehicle's ignition or a 12 VDC enable is not engaged. A 25' remote cable is included with the remote panel.WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

Read more less
