Electrical - Shore Power

ConnectPro® 3-Wire ReceptacleFeatures: Universal design for 2 or 3-wire configuration 12, 24, 12/24, 24/36 or 36 volt systems Watertight sealing cap Corrosion resistant, plated brass electrical components Drain holes in receptacle keep water away from electrical components Perma-Lock screw terminals will not loosen under extreme hull vibrations Standard 1-1/8" diameter mounting hole Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation Accepts 10 and 8 gauge wire Easily replaces other trolling motor plugs and receptacles WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Receptacles Box Dimensions: 2"H x 5"W x 6"L WT: 0.2 lbs UPC: 093344304651 Quick Guide (pdf)Brochure (pdf)

Read more less

Combo Kit with ELCI Sensor & 30 Amp Breaker Non-Metallic Door - WhiteFeatures: White Sensor 30 Amp Breaker WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 30a Type: Misc Box Dimensions: 6"H x 6"W x 8"L WT: 2 lbs UPC: 682500440830 Brochure (pdf)

Read more less

30 AMP Inlet and Female Cord Connector Combo - Grey The SmartPlug Combo Kit includes both a 30 AMP 125V Male inlet connector and Female Cord End Connector. The Female Cord End Connector is designed to be used with your existing cord.  This package offers superior performance and ease of use. Features: Eliminates Overheating – Increased pin and clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time – even in the dark. Multi-Point Locking System – Side clips and inlet cover lock the plug body securely into the inlet which eliminates any stress on the electrical components by movement of the power cord. Weather Resistant Seals – Silicone gaskets installed in the inlet cover and the plug body eliminates moisture penetration. Quick and Easy Installation. *Sold as an IndividualWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Parts Box Dimensions: 4"H x 9"W x 11"L WT: 1.55 lbs UPC: 614458746139

Read more less

Isolation Transformer 4500W Auto 115/230VSafety and prevention of galvanic corrosion - The Isolation Transformer eliminates any electrical continuity between AC shore power and the boat. It is essential for safety and eliminates the need for galvanic isolators and polarity alarms.Safety is taken for granted in the case of a normal onshore installation. A circuit breaker or a GFCI (Ground-Fault Circuit Interrupter) will trip in the event of a short circuit or current leakage to ground. Connecting the ground wire of the shore-side supply to the metal parts of the boat will result in galvanic corrosion (see below). Bringing only the live and neutral wire on board results in an unsafe situation because GFCIs will not work, nor will a fuse blow in case of a short circuit to a metal part on the boat.Galvanic corrosion occurs when two dissimilar metals in electrical contact are simultaneously exposed to an electrically conducting fluid. Seawater and, to a lesser extent, fresh water are such fluids. In general, the more active alloy of the couple corrodes preferentially while the less active (more noble) material is cathodically protected. The rate of galvanic corrosion is a function of several variables including area ratios, conductivity of the fluid, temperature, nature of the materials, etc.It is a misunderstanding that galvanic corrosion occurs only in metal and aluminium hulls. In fact it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with water. Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller and other metal parts in contact with water as soon as the boat is connected to the shore -side supply.It might therefore be tempting not to connect the ground conductor: this is however e xtremely dangerous because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.The best solution to avoid galvanic corrosion and at the same time prevent any uns afe situation is to install an Isolation Transformer to connect to the shore-side supply.The Isolation Transformer eliminates any electrical continuity between shore power and the boat. The shore power is fed to the primary side of the transformer and the ship is connected to the secondary.The Isolation Transformer completely isolates the boat from the shore ground. By connecting all metal parts to the neutral output on the secondary side of the transformer, a GFCI will trip or a fuse will blow in case of a short circuit.Soft start is a standard feature of a Victron Energy isolation transformer. It will prevent the shore power fuse from blowing due to the inrush current of the transformer, which would otherwise occur.It is also recommended, for optimal safety, to connect the secondary neutral of the transformer to ground when the boat is out of the water.4500 Watt Auto 115/230 V - This model will automatically switch to 115 V or 230 V supply, depending on input voltage.Supply 88 V – 130 V: switches to 115 V supplySupply 185 – 250 V: switches to 230 V supply range.Note: The AC input voltage is raised by 1:1.05 ratio at the AC output.Please contact your dealer for any returns, repairs or support issues related to this product. Owner's Manual (pdf)Brochure (pdf)

Read more less

Data Port Case/Inlet Only - White Cover with One Blank Plug & One Open PortSmartPlug data ports are the perfect complement to SmartPlug's stainless shore power inlets. It offers the same look and quality as marine-grade stainless steel components. This particular data port case has one blank plug and one open port.*All single data port inlets are supplied with one connector and one blank insert.Features: Weatherproof Seal, which seals against a closed-cell foam gasket in the inlet lid Locks into the edge of the SmartPlug mounting flange Only requires 4 screws to mount Silicone gasket included/no messy caulk Specifications: Material: Non-metallic Color: White Quick Guide (pdf)

Read more less

Weather Door - Vertical SmartPlug receptacles can be installed in industry standard outdoor electrical boxes when used in conjunction with our spring loaded weather doors.  SmartPlug plugs self-align with these receptacles and have an automatic lock system when engaged.  The push in design provides self cleaning for the pins and clips which insures clean power transfer.Compatible With:SmartPlug 30 and 50  AMP Receptacles Features: Weatherproof cover design Vertical positioning  *Sold as an Individual WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Parts Box Dimensions: 3"H x 3"W x 6"L WT: 0.3 lbs UPC: 682500440953 Brochure (pdf)

Read more less

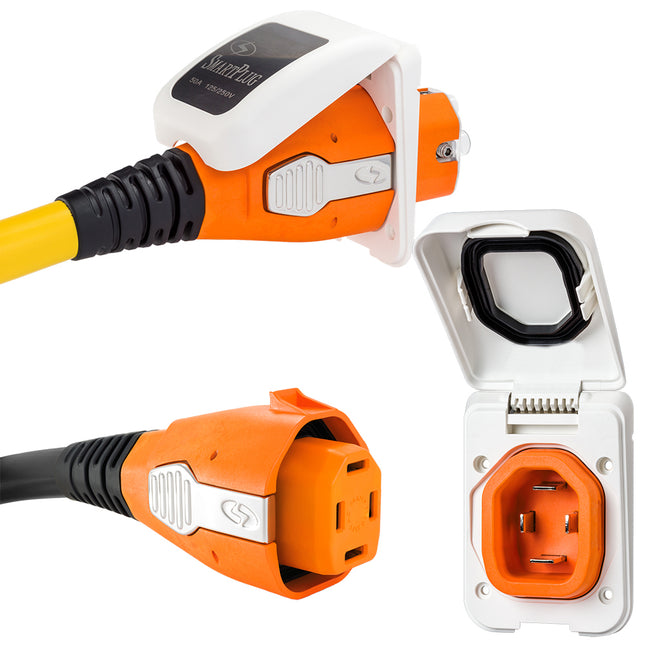

50 AMP Inlet and Female Cord Connector Combo - White The SmartPlug Combo Kit includes both a 50 AMP 125/250 V Male inlet connector and Female Cord End Connector. The Female Cord End Connector is designed to be used with your existing cord.  This package offers superior performance and ease of use. Features: Eliminates Overheating – Increased pin and clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time – even in the dark. Multi-Point Locking System – Side clips and inlet cover lock the plug body securely into the inlet which eliminates any stress on the electrical components by movement of the power cord. Weather Resistant Seals – Silicone gaskets installed in the inlet cover and the plug body eliminates moisture penetration. Quick and Easy Installation. *Sold as an IndividualWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

30 AMP Male Non-Metallic Inlet Cover - WhiteSmartPlug’s 30 AMP 125 V inlets provide 20X’s more electrical contact area eliminating the overheating conditions seen with twist-type connectors.  The solid sleeve connection and weatherproof seal makes it a preferred option.  The mounting flange holes match existing inlets so it can be easily installed to replace the old twist-type inlet products in minutes. Features: Reduces Overheating – Increased pin & clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time-even in the dark! Multi-Point Locking System – Side clips lock the plug securely into the inlet which eliminates any stress on the pins from movement of the power cord. Weatherproof Seals – Superior gaskets installed in the inlet cover and interior of the plug body eliminates moisture penetration. Quick and Easy Installation – Inlet mounting flange holes match twist-type holes for an installation that is typically finished in 30 minutes. *Sold as an IndividualWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

30 AMP Male Non-Metallic Inlet Cover - GreySmartPlug’s 30 AMP 125 V inlets provide 20X’s more electrical contact area eliminating the overheating conditions seen with twist-type connectors.  The solid sleeve connection and weatherproof seal makes it a preferred option.  The mounting flange holes match existing inlets so it can be easily installed to replace the old twist-type inlet products in minutes. Features: Reduces Overheating – Increased pin & clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time-even in the dark! Multi-Point Locking System – Side clips lock the plug securely into the inlet which eliminates any stress on the pins from movement of the power cord. Weatherproof Seals – Superior gaskets installed in the inlet cover and interior of the plug body eliminates moisture penetration. Quick and Easy Installation – Inlet mounting flange holes match twist-type holes for an installation that is typically finished in 30 minutes. *Sold as an IndividualWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

30 AMP Inlet and Female Cord Connector Combo - Stainless SteelThe SmartPlug Combo Kit includes both a 30 AMP 125V Male inlet connector and Female Cord End Connector. The Female Cord End Connector is designed to be used with your existing cord.  This package offers superior performance and ease of use. Features: Eliminates Overheating – Increased pin and clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time – even in the dark. Multi-Point Locking System – Side clips and inlet cover lock the plug body securely into the inlet which eliminates any stress on the electrical components by movement of the power cord. Weather Resistant Seals – Silicone gaskets installed in the inlet cover and the plug body eliminates moisture penetration. Quick and Easy Installation. *Sold as an Individual WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

50 AMP Male Stainless Steel Combo KitThe SmartPlug 50 AMP Combo kit includes the 50 AMP Stainless Steel inlet (BM50S) and 50AMP connector (BF50), everything you need to protect your boat from shore power overheating.  Installation of both components is easy.  The kit is designed to fit on 125/250 V systems with multiple seals on the connector to ensure a watertight fit on an existing cordset.Features Reduces Overheating – Increased pin and clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time-even in  the dark. Multi-Point Locking System – Side clips lock the plug securely into the inlet which eliminates any stress on the pins from movement of the power cord. Weatherproof Seals – Superior gaskets installed in the inlet cover and interior of the plug body eliminates moisture penetration. Quick and Easy Installation – Inlet mounting flange holes match twist-type holes for an installation that is typically finished in 30 minutes. *Sold as an Individual WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

30 AMP Male Non-Metallic Inlet Cover - BlackSmartPlug’s 30 AMP 125 V inlets provide 20X’s more electrical contact area eliminating the overheating conditions seen with twist-type connectors.  The solid sleeve connection and weatherproof seal makes it a preferred option.  The mounting flange holes match existing inlets so it can be easily installed to replace the old twist-type inlet products in minutes. Features: Reduces Overheating – Increased pin & clip surface area greatly improves electrical conductivity during high amperage demand. Ease of Use – No twist required, the unique plug body shape and push-in design means it only goes in the right way every time-even in the dark! Multi-Point Locking System – Side clips lock the plug securely into the inlet which eliminates any stress on the pins from movement of the power cord. Weatherproof Seals – Superior gaskets installed in the inlet cover and interior of the plug body eliminates moisture penetration. Quick and Easy Installation – Inlet mounting flange holes match twist-type holes for an installation that is typically finished in 30 minutes. *Sold as an IndividualWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
