Electrical - Switches & Accessories

No Actuators - All Positions Momentary ON W/VMM Series - Adapter Cable 2MThe VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.Features: NMEA 2000® CAN Protocol IP68 Sealing Protection with plug installed in unused connector Configurable Horizontal or Vertical Mounting Options Aftermarket Actuators are readily available with a wide selection of Legends LED feedback of circuit state Low Current Switching Tactile and Audible Feedback Specifications:No Actuators with all positions momentary ON and blue LEDsThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Quick Guide (pdf)

Read more less

Dual USB Rocker Switch Style Power Socket This USB rocker switch power socket charges two devices simultaneously. Fits into any 13/16” X 1-7/16” rocker switch hole. Input 12–24VDC. Total output DC 5V/4.8A with the load being split between the two sides as needed. Enough power to charge iPhones, iPads and most other devices. Blue LED illumination. Protective dust cap extends the life of the charger. IP65 rating. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

8268Contura Switch Mounting Panel1 Position Mounting Panel Modular design permits easy assembly in groups of varying sizes Designed for mounting in 6 different panel thicknesses: 0.06" (1.57mm) 0.09" (2.36mm) 0.13" (3.17mm)0.19" (4.75mm) 0.25" (6.35mm) 0.38" (9.52mm) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Water Resistant Contura Switch - OFF-ON - GreyFeatures: Vibration, shock, thermoshock, moisture, and salt spray resistant Specially manufactured for mounting in Blue Sea Systems' water-resistant panels Ignition Protected - Safe for installation aboard gasoline-powered boats Meets UL1500 and ISO8846 ignition protection requirements WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Grey Throw/Pole: DPST Action: ON-OFF Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085082185

Read more less

SPST Chrome Plated Toggle Switch - 3/8" Ball Handle - OFF/ONSingle pole, single throw toggle switch turns one circuit on and off. Common applications include any single circuit requiring an on-off style switch.Features: Nominal voltage is 12V DC Rated for 10A at 12V DC 3/8" ball handle and two #6-32 screw terminals Mounting stem 15/32" fits panels up to 1/4" thick Same as Cole Hersee part number M-483 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Action: ON-OFF Color: Chrome Plated Throw/Pole: SPST Box Dimensions: 2"H x 3"W x 5"L WT: 0.1 lbs UPC: 870216046815

Read more less

8171LED Indicator LightRed12/24V DC5 Milliamperes Easily installed in any Blue Sea Systems circuit breaker panel Simple push-in installation mounts in any thickness material Useful as general indicator and alarm lights WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Red Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 632085081713

Read more less

Water Resistant Contura Switch - OFF-ON - BlackFeatures: Vibration, shock, thermoshock, moisture, and salt spray resistant Specially manufactured for mounting in Blue Sea Systems' water-resistant panels Ignition Protected - Safe for installation aboard gasoline-powered boats Meets UL1500 and ISO8846 ignition protection requirements WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Throw/Pole: DPST Action: ON-OFF Box Dimensions: 2"H x 3"W x 4"L WT: 0.1 lbs UPC: 632085082871

Read more less

8665 Contura 3 Bilge Pump Control PanelBlue Sea Systems water resistant 12/24 Volt DC Bilge Pump control panel with Contura rocker switch and fuse holder for fuses up to 20amp Features: Designed for 12 or 24V DC systems   ON - OFF - AUTO Contura Switch Watertight mounting gasket Fuse holders accept commonly available AGC and MDL glass fuses "ON” LED embedded in switch indicates the pump is running Completely wired and ready to install Specifications: Weatherproof - Water Resistant No. of Bilge Pumps - three (3) Nominal Voltage - 12/24V Panel Cumulative Rating - 45A Switch Rating: 20A @ 12V DC / 15A @ 24V DC Dimensions (H x W x D) - 3.75" x 5.25" x 3" In the Box: Panel Mount AGC/MDL Fuse Holder (P/N 5021) x three (3) Contura III Switch SPDT - On - OFF - (ON) (P/N 7944) x three (3) Black 60 Label Set (P/N 8214) *Sold as an Individual  Specifications: Action: ON-OFF-AUTO Color: Black/Grey Throw/Pole: SPDT Box Dimensions: 4"H x 7"W x 9"L WT: 0.65 lbs UPC: 632085086657 Owner's Manual (pdf)

Read more less

4-Position Sealed Nylon Ignition Switch - Accessory/OFF/Ignition & Accessory/StartSealed keyed switches with integral Deutsch connectors feature fully sealed contact areas with O-rings and ultrasonic welding to IP67 waterproof rating. High-impact plastic for corrosion resistance and tested to SAE J259 for ignition switches.Features: Nominal voltage is 12V/24V DC Rated for 10A at 12V DC, 5A at 24V DC Fits panels up to 3/8" thick Same as Cole Hersee part number 95060-50 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

2-Position SPST Recessed Push Button Switch - OFF/(ON)Single pole, single throw switch turns one circuit on and off. Toggle guard prevents accidental activation. Can be used for intermittent windshield wiper or horn control.Features: Nominal voltage is 6-36V DC Rated for 35A at 12V DC #8-32 screw terminals Fits into panels 1" thick Same as Cole Hersee part number M-612 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Throw/Pole: SPST Color: Chrome Action: (ON)-OFF Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 870216046105

Read more less

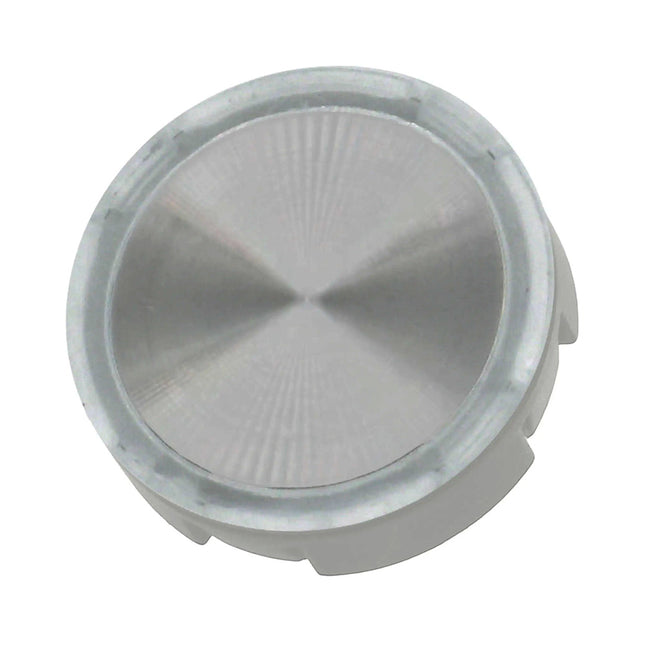

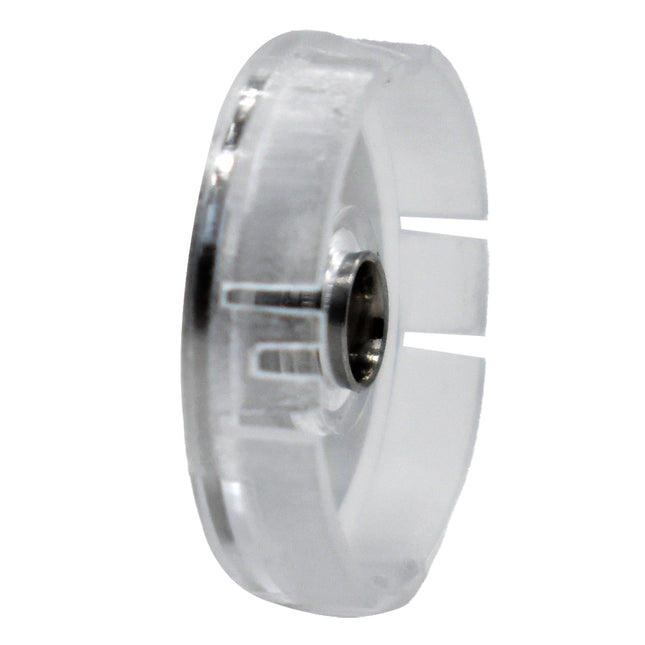

19mm Ring Style Button - Stainless SteelReplacement button for Bluewater 19mm LED Lit Electronic Push Button Switches.

Read more less

19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4' LeadThis stainless-steel plated metal button can transform any dash by adding a touch of modern flair. This button has an “Off/On/On" standard contact.The body design combined with the included gasket gives this button switch a waterproof rating of IP69K. At night, every switch is backlit with blue LED light for unparalleled visibility. That light changes to red to let users know that the function is on without question.Features:4 ft. leadSpecifications: Function: Off-On-On (standard contact) Off/On: Blue/green 2nd On: Red Rear Mark Page: Blue dot Switch Rating: 15A/12 – 24VDC   Material: Stainless steel Mechanical Life: 50,000 cycles     Electrical Life: 10,000 cycles Installation:Drill a 19mm hole into any material up to 6mm thick. Connect the 3 contacts for the button (color-coded for safety and convenience). Lastly, connect the 2 contacts for the LED. Specifications: Action: ON-ON-OFF Color: Blue/Green/Red Box Dimensions: 0"H x 0"W x 0"L WT: 0.46 lbs Quick Guide (pdf)Brochure (pdf)

Read more less
