Electrical - Terminals

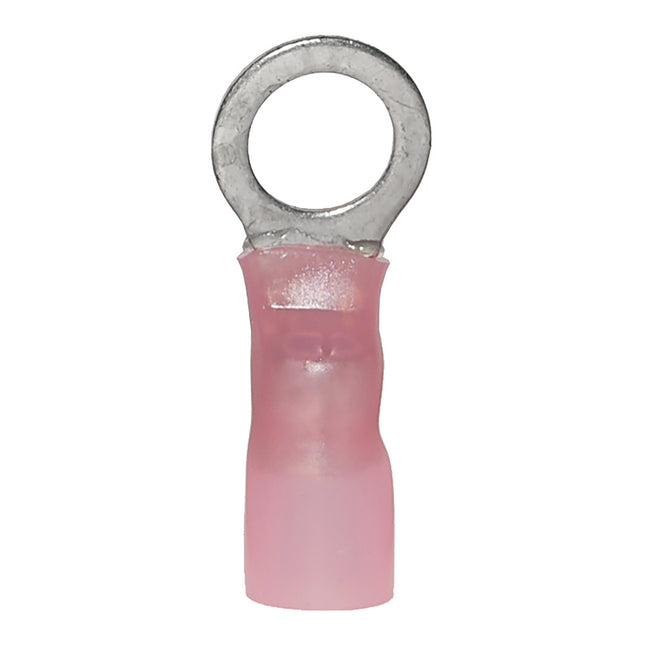

16-14 Gauge - #8 Heat Shrink Ring Terminal - 25-PackGauge Size: 16-14Screw Size: #8Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 16-14 mm: 1-2 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Package Qty: 25 Heat Shrink: Yes Type: Ring Terminals Post Size: #8 Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887313048 Quick Guide (pdf)

Read more less

Nylon Fully Insulated Disconnect - Male - 16-14 - 25-PieceAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: 0.250 (6.4 mm) tab size Nylon insulated with insulation grip Double crimp, funnel entry UL 310 Specifications: Gauge: 16-14 AWG Heat Shrink: No Package Qty: 25 Type: Disconnects Box Dimensions: 1"H x 3"W x 4"L WT: 0.05 lbs UPC: 091887214192

Read more less

12-10 Female Heatshrink Disconnects - 25-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength UL listed and CSA recognized WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Disconnects Package Qty: 25 Heat Shrink: Yes Box Dimensions: 1"H x 2"W x 4"L WT: 0.2 lbs UPC: 091887986280

Read more less

Heavy Duty Lugs - 3/0 Gauge Wire - 5/16" Post - 2-PackCable Gauge: 3/0Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 2 Heat Shrink: No Type: Lugs Post Size: 5/16" Gauge: 3/0 AWG Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 091887258028 Quick Guide (pdf)

Read more less

22-18 AWG - #10 Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #10 Heat Shrink: No Package Qty: 100 Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887221725 Brochure (pdf)

Read more less

16-14 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 3-PackAncor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern.Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp Crimp indicator on barrel for proper placement of installation tool Clear heat shrink tubing ensures crimp accuracy Colored stripes on the barrel indicate which crimp die to use, regardless of application WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Package Qty: 3 Heat Shrink: Yes Type: Butt Connectors Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 091887983302 Quick Guide (pdf)

Read more less

Tinned Lug 8 AWG - 5/16" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed-end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy-lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 8 Stud Size: 5/16” Length: 1.187" Width: 0.438" Clearance: 0.344" Package Size: 10 Specifications: Gauge: 8 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 1"H x 5"W x 9"L WT: 0.1 lbs UPC: 840248205979 Brochure (pdf)

Read more less

440-Piece Nylon Connectors & Terminal KitWire management kit including 440 pieces of nylon connectors and terminals.Includes:Butt Connectors (40) 22-18 AWG, (75) 16-14 AWG (40) 12-10 AWG Ring Terminals (25) 22-18 AWG #8, (25) 16-14 AWG #8 (50) 16-14 AWG #10, (25) 12-10 AWG #8 (25) 12-10 AWG #10 Disconnects (50) 16-14 AWG fully insulated female (30) 16-14 AWG fully insulated male (25) 16-14 AWG female (30) 16-14 AWG male WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 440 Heat Shrink: No Type: Kits Box Dimensions: 2"H x 7"W x 11"L WT: 2.3 lbs UPC: 091887990768

Read more less

Adhesive Lined Heat Shrink Butt Connector Multi-Pack - 75-PieceReusable case contains six compartments for storage of terminals, fasteners or any other small item.Contains: (25) 22-18 AWG Connector (25) 16-14 AWG Connector (25) 12-10 AWG Connector WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Kits Heat Shrink: Yes Package Qty: 75 Box Dimensions: 2"H x 4"W x 8"L WT: 1 lbs UPC: 091887988383

Read more less

Heat Shrink Ring Terminal - #8 3/8" *25-PackAncor heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water-tight seal and the ultimate vibration and strain relief. Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 3/8" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887986570

Read more less

Heavy Duty 2 AWG 1/4" Tinned Lug - 2-PackAncor Marine Grade lugs are manufactured from 100% heavy-duty annealed tinned copper, providing for maximum current flow while resisting corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. 100% Tinned Copper UL 486A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 2 AWG Type: Lugs Post Size: 1/4" Package Qty: 2 Heat Shrink: No Box Dimensions: 1"H x 2"W x 4"L WT: 0.2 lbs UPC: 091887254020

Read more less

16-14 Gauge - 1/4" Heat Shrink Ring Terminal - 100-PackGauge Size: 16-14Screw Size: 1/4"Quantity: 100Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Ring Terminals Post Size: 1/4" Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 5"L WT: 0.35 lbs UPC: 091887313130 Quick Guide (pdf)

Read more less
