Electrical - Terminals

22-18 Heatshrink Butt Connetors - 25-PackGuage Size: 22-18Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Heat Shrink: Yes Type: Butt Connectors Package Qty: 25 Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs UPC: 091887303421 Quick Guide (pdf)

Read more less

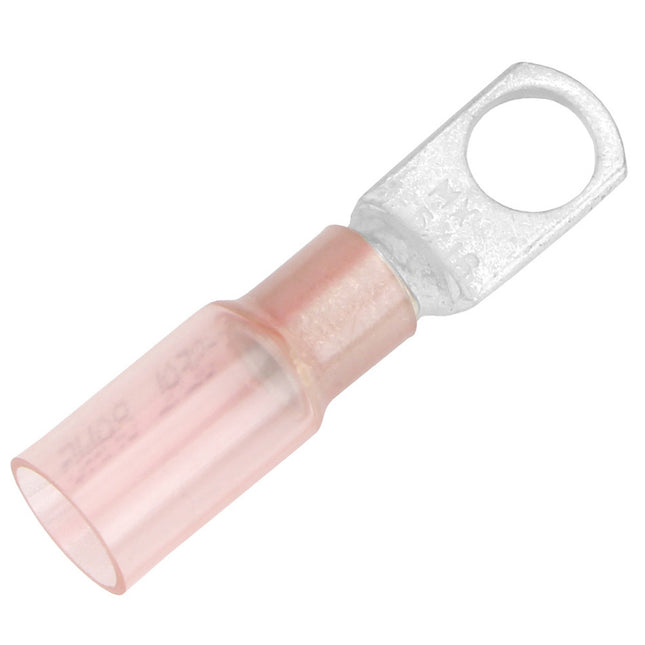

8 AWG Heat Shrink Ring Terminal - #10 Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Pink Wire AWG: 8 AWG Stud Size: #10 Terminal Pad Width (inch): 0.39” Package Size: Twenty-five included Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Post Size: #10 Type: Ring Terminals Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 840248208314 Quick Guide (pdf)

Read more less

12-10 AWG Nylon Double Crimp Butt Connectors - 100 PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection. Nylon insulated with insulation grip Funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Butt Connectors Package Qty: 100 Heat Shrink: No Box Dimensions: 2"H x 3"W x 8"L WT: 0.8 lbs UPC: 091887221633 Brochure (pdf)

Read more less

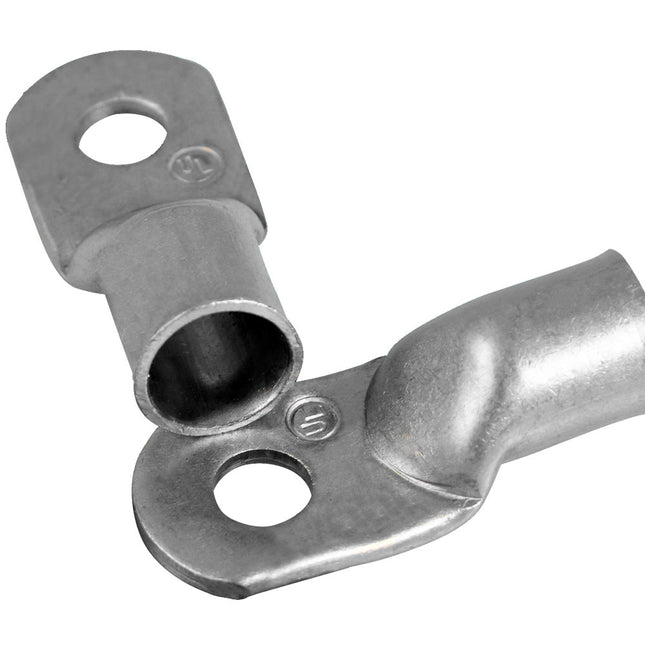

Heavy Duty 2/0 AWG 1/4" Tinned Lug - 25-PackAncor Marine Grade lugs are manufactured from 100% heavy-duty annealed tinned copper, providing for maximum current flow while resisting corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. 100% Tinned Copper UL 486A WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 2/0 AWG Type: Lugs Post Size: 1/4" Package Qty: 25 Heat Shrink: No Box Dimensions: 3"H x 3"W x 8"L WT: 1.3 lbs UPC: 091887247022

Read more less

16-14 Gauge - #8 Heat Shrink Spade Terminals - 100-PackFeatures: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 16-14 mm: 1-2 Screw Size: 4mm Qty/Pkg: 100WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Type: Spade connectors Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 4"L WT: 0.3 lbs UPC: 091887316353 Quick Guide (pdf)Brochure (pdf)

Read more less

12-10 AWG - 5/16" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Ring Terminals Post Size: 5/16" Package Qty: 25 Heat Shrink: No Gauge: 12-10 AWG Box Dimensions: 1"H x 3"W x 4"L WT: 0.15 lbs UPC: 091887212259 Brochure (pdf)

Read more less

16-14 AWG - #10 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Post Size: #10 Package Qty: 25 Heat Shrink: No Type: Ring Terminals Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 091887212136 Brochure (pdf)

Read more less

Heavy Duty Lugs - 2 Gauge Wire - 1/2" Post - 2-PackCable Gauge: 2Screw Size: 1/2" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Heat Shrink: No Type: Lugs Post Size: 1/2" Package Qty: 2 Gauge: 2 AWG Box Dimensions: 1"H x 2"W x 3"L WT: 0.1 lbs UPC: 091887254082 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 2 Gauge Wire - 3/8" Post - 25-PackCable Gauge: 2Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Lugs Post Size: 3/8" Package Qty: 25 Heat Shrink: No Gauge: 2 AWG Box Dimensions: 2"H x 2"W x 3"L WT: 1 lbs UPC: 091887244069 Quick Guide (pdf)

Read more less

22-18 Heatshrink Butt Connetors - 500-PackGuage Size: 22-18Quantity: 500Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC. Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief. Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage. UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size. Shrinks at 257 deg. F/125 deg. C. Operating temperature range 40 deg. C to 110 deg. C. ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire range: 22-18 mm: 0.3 - 0.8WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Package Qty: 500 Heat Shrink: Yes Type: Butt Connectors Box Dimensions: 2"H x 5"W x 8"L WT: 1.4 lbs UPC: 091887308235 Quick Guide (pdf)

Read more less

8 AWG Heat Shrink Ring Terminal - 5/16" Stud Size - 25 PackRing terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.Features: Tinned copper 600 Volts The operating temperature is -55°C to 125°C Highly compliant Benefits & Protections: Solid connections Extremely durable Long-lasting Tin-plated Easy to install Specifications: Color: Pink Wire AWG: 8 AWG Stud Size (inch): 5/16" Terminal Pad Width (inch): 0.60” Package Size: Twenty-five included Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 5/16" Type: Ring Terminals Box Dimensions: 2"H x 3"W x 5"L WT: 0.25 lbs UPC: 840248210119 Quick Guide (pdf)

Read more less

Ancor 12-10 Female Heatshrink Disconnect - 100-PackAncor heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water tight seal and the ultimate vibration and strain relief.Features: ANCOR heat shrink connectors offer heat activated adhesive builtinto the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration andstrain relief. Tinned for corrosion resistance. Pure copper for maximum current flow. Brazed seam for maximum strength. Wire Range: 12-10 Size: 3-5mm/6.4mm Gender: Female Qty/Pkg: 100 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 12-10 AWG Type: Disconnects Package Qty: 100 Heat Shrink: Yes Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 091887986303

Read more less
