Electrical - Terminals

22-18 Gauge - 5/16" Heat Shrink Ring Terminal - 25-PackWire Range:22-18Screw Size: 5/16"Quantity: 25Product Features: Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage UL Listed and CSA Recognized Highest shrink ratio - shrinks to 1/3 original size Shrinks at 257° F/125° C Operating temperature range 40° C to 110° C ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing Shrinks to form a water tight seal and the ultimate vibration and strain relief Tinned for corrosion resistance Pure copper for maximum current flow Brazed seam for maximum strength WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: 5/16" Package Qty: 25 Heat Shrink: Yes Box Dimensions: 1"H x 3"W x 5"L WT: 0.08 lbs UPC: 091887311037 Quick Guide (pdf)

Read more less

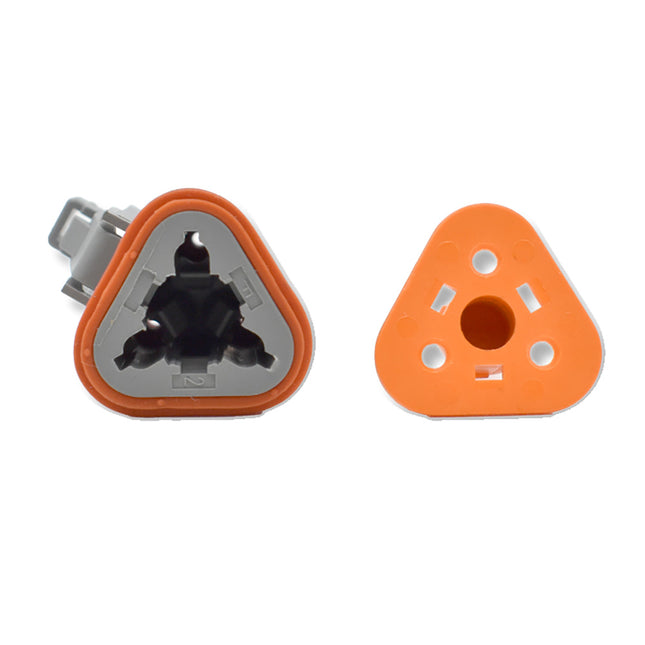

3 Position Female Deutsch Connector with Wedge LockThe DTO4-3P and DTO6-3S connectors are part of the DT series and form a complete 3-cavity connection. These Deutsch-compatible connectors are fully interchangeable with matching Deutsch parts.Designed for reliability in harsh environments, the DT series can deliver up to 13 amps continuously. This 3-pin Deutsch connector provides a secure, weather-resistant connection ideal for marine, automotive, and industrial wiring applications.Each 3-pin Deutsch connector features a rugged housing, corrosion-resistant contacts, and a locking mechanism that ensures long-lasting performance even in extreme conditions, making it perfect for demanding electrical systems.Features: Comes in bags of 100 with a separate bag of wedge locks included Male uses Solid 14AWG Machined Terminal or Stamped DT Crimp Female uses DT Machined 14-16AWG Machined Terminal or DT Crimp Stamped and Formed Terminal Specifications: Heat Shrink: No Package Qty: 100 Box Dimensions: 1"H x 4"W x 7"L WT: 0.05 lbs UPC: 810196333208 Brochure (pdf)

Read more less

Tinned Lug 1 AWG - 5/16" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 1 Stud Size: 5/16” Length: 1.719” Width: 0.692” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 1 AWG Heat Shrink: No Package Qty: 10 Post Size: 5/16" Type: Lugs Box Dimensions: 0"H x 5"W x 9"L WT: 0.35 lbs UPC: 840248205474 Brochure (pdf)

Read more less

DT Deutsch Receptacle Repair Kit - 14-18 AWG (2 Position)Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wire. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.Features: Packs include all parts needed to assemble a connector One to two extra terminals Cavity plugs to seal open circuits Applications: Wire-to-wire applications Enclosed connectors offer field-proven reliability and rugged quality Compliances: Ingress Protection (IP) Level: IP68 and IP6K9K EU RoHS/ELV Standard UL-94 Recognized Characteristics: Wedge locks ensure contact alignment and retention Redundant Silicone Seals Hand-insertable and removable contacts Technical Specifications: Number of Cavities: 2 Housing: Rectangular receptacle, plastic reinforced with glass fiber Contact Size: 16 (13 amp) Wire Size: 14 AWG Holds Pin/Socket: Pins Operating Temperature: -55°C to 125°C  Contents:  (1) 2 pos. receptacle (1) 2 pos. wedge lock (3) pins Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 5/16" Post - 2-PackCable Gauge: 4Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 4 AWG Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Box Dimensions: 1"H x 2"W x 4"L WT: 0.04 lbs UPC: 091887253061 Quick Guide (pdf)

Read more less

Heavy Duty Lugs - 1 Gauge Wire - 5/16" Post - 25-PackCable Gauge: 1Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Heat Shrink: No Gauge: 1 AWG Type: Lugs Post Size: 5/16" Package Qty: 25 Box Dimensions: 2"H x 3"W x 4"L WT: 0.9 lbs UPC: 091887245042 Quick Guide (pdf)

Read more less

90° Tinned Copper Lug #6 - 5/16" - 2-Piece90° bend for ease of wire routing. Specifications: Type: Lugs Post Size: 5/16" Package Qty: 2 Heat Shrink: No Gauge: 6 AWG Box Dimensions: 1"H x 2"W x 4"L WT: 0.03 lbs UPC: 091887991666

Read more less

22-18 AWG Nylon Double Crimp Butt Connectors - 100 PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection. Nylon insulated with insulation grip Funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Butt Connectors Package Qty: 100 Heat Shrink: No Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 091887221619 Brochure (pdf)

Read more less

Deutsch 10-8 AWG DTHD Power Plug & Receptacle with Pin & SocketDTHD power plugs and receptacles are single connectors for heavy-duty applications. Easy to install, environmentally sealed, and compact they are a simple, field-serviceable alternative to a splice. Contact a Pacer expert with any questions that you may have.Features: Environmentally sealed disconnectable power wire splicing 60-100 Amps at 125°C Easy to install Field serviceable Applications: Wire to wire applications Enclosed connectors offer field-proven reliability and rugged quality Characteristics: Redundant Silicone Seals Contacts are hand-insertable Compliances: Ingress Protection (IP) Level: IP67 EU RoHS/ELV Specifications: Kit Contents: (1) DTHD Plug, (1) Size 8 Socket, (1) DTHD Receptacle, (1) Size 8 Pin Deutsch Series: DTHD Wire Range: 10-8 AWG Connector Types: Plugs & Receptacles Brochure (pdf)

Read more less

12-10 AWG - Nylon 3-Way Connector - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Type: Specialty Connectors Package Qty: 25 Heat Shrink: No Gauge: 12-10 AWG Box Dimensions: 2"H x 3"W x 5"L WT: 0.42 lbs UPC: 091887215205 Brochure (pdf)

Read more less

22-18 AWG - #8 Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #8 Package Qty: 100 Heat Shrink: No Box Dimensions: 1"H x 3"W x 4"L WT: 0.25 lbs UPC: 091887221701 Brochure (pdf)

Read more less

22-18 AWG - #6 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #6 Package Qty: 25 Heat Shrink: No Box Dimensions: 1"H x 3"W x 4"L WT: 0.08 lbs UPC: 091887212013 Brochure (pdf)

Read more less
