Electrical - Terminals

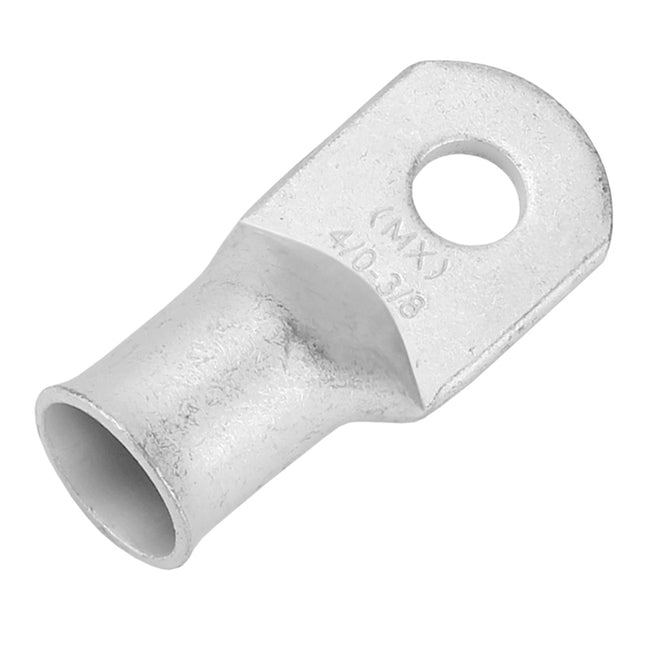

Heavy Duty Lugs - 4/0 Gauge Wire - 3/8" Post - 10-PackCable Gauge: 4/0Screw Size: 3/8" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 10 Heat Shrink: No Post Size: 3/8" Type: Lugs Gauge: 4/0 AWG Box Dimensions: 2"H x 3"W x 4"L WT: 1 lbs UPC: 091887249026 Quick Guide (pdf)

Read more less

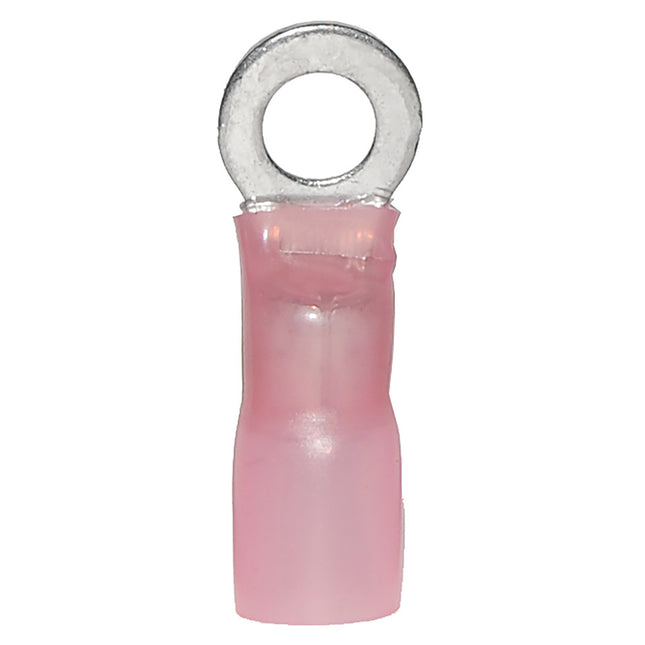

Heat Shrink Ring Terminal - #8 1/4" *25-PackAncor heat shrink connectors offer heat-activated adhesive built into the sleeve of the heat shrink tubing. When heated, these connectors form a water-tight seal and the ultimate vibration and strain relief. Specifications: Gauge: 8 AWG Heat Shrink: Yes Package Qty: 25 Post Size: 1/4" Type: Ring Terminals Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 091887986495

Read more less

16-14 AWG - #8 Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 16-14 AWG Post Size: #8 Package Qty: 25 Heat Shrink: No Type: Ring Terminals Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887212129 Brochure (pdf)

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 5/16" Post - 100-PackCable Gauge: 4Screw Size: 5/16" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 4 AWG Post Size: 5/16" Package Qty: 100 Heat Shrink: No Type: Lugs Box Dimensions: 1"H x 6"W x 9"L WT: 1.8 lbs UPC: 091887249248 Quick Guide (pdf)

Read more less

Nylon Fully Insulated Disconnect - Female - 12-10 - 100-PieceAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: 0.250 (6.4 mm) tab size Nylon insulated with insulation grip Double crimp, funnel entry UL 310 Specifications: Gauge: 12-10 AWG Type: Disconnects Package Qty: 100 Heat Shrink: No Box Dimensions: 2"H x 3"W x 5"L WT: 0.5 lbs UPC: 091887228403

Read more less

Heavy Duty Lugs - 4 Gauge Wire - 1/4" Post - 25-PackCable Gauge: 4Screw Size: 1/4" ANCOR Marine Grade™ lugs are manufactured from heavy duty annealed tinned copper, providing for maximum current flow 100% tin plated copper resists corrosion from salt and moisture Seamless barrel design allows for maximum strength when crimped Closed end design seals out moisture so cables stay dry and corrosion free WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 4 AWG Type: Lugs Post Size: 1/4" Package Qty: 25 Heat Shrink: No Box Dimensions: 1"H x 1"W x 3"L WT: 0.5 lbs UPC: 091887243048 Quick Guide (pdf)

Read more less

Tinned Lug 6 AWG - 3/8" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 6 Stud Size: 3/8” Length: 1.406” Width: 0.609” Clearance: 0.406” Package Size: 10 Specifications: Gauge: 6 AWG Heat Shrink: No Package Qty: 10 Post Size: 3/8" Type: Lugs Box Dimensions: 1"H x 5"W x 9"L WT: 0.15 lbs UPC: 840248205870 Brochure (pdf)

Read more less

Tinned Lug 4/0 AWG - 3/8" Stud Size - 10 PackCreating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Tin Plated No exposed seams Rated for 600V Made from seamless tubes of 99.9% copper for higher conductivity Designed for stranded copper wires Larger pad area for better contact Cable size and stud hole stamped on pad Can be crimped or soldered Highly controlled flare to allow easy cable insertion Tight barrel to pad transition provides longer usable barrel length Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity UL & CSA Approved RoHS Compliant Exceeds SAE Conductivity STD J163 & J1811 Specifications: Wire AWG: 4/0 Stud Size: 3/8” Length: 2.344” Width: 0.984” Clearance: 0.547” Package Size: 10 Specifications: Gauge: 4/0 AWG Heat Shrink: No Package Qty: 10 Post Size: 3/8" Type: Lugs Box Dimensions: 1"H x 5"W x 9"L WT: 0.9 lbs UPC: 840248205733 Brochure (pdf)

Read more less

Nylon Fully Insulated Disconnect - Female - 16-14 - 100-PieceAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: 0.250 (6.4 mm) tab size Nylon insulated with insulation grip Double crimp, funnel entry UL 310 Specifications: Gauge: 16-14 AWG Type: Disconnects Package Qty: 100 Heat Shrink: No Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs UPC: 091887228366

Read more less

160-Piece Heat Shrink Terminals & Connectors KitWire management kit including 160 pieces of heat shrink terminals and connectors.Includes:Butt Connectors: (10) 22-18 AWG, (20) 16-14 AWG (10) 12-10 AWG Ring Terminals: (15) 22-18 AWG #10, (15) 16-14 AWG #8 (15) 16-14 AWG #10, (15) 16-14 AWG 1/4" (10) 12-10 AWG #10, (10) 12-10 AWG 1/4" (10) 12-10 AWG 3/8" Disconnects: (20) 16-14 AWG female (10) 16-14 AWG male WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Package Qty: 160 Heat Shrink: Yes Type: Kits Box Dimensions: 2"H x 7"W x 11"L WT: 1.1 lbs UPC: 091887990751

Read more less

22-18 AWG - #8 Nylon Ring Terminal - 100-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge: 22-18 AWG Type: Ring Terminals Post Size: #8 Package Qty: 100 Heat Shrink: No Box Dimensions: 1"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887221701 Brochure (pdf)

Read more less

12-10 AWG - 1/4" Nylon Ring Terminal - 25-PackAncor's Marine Grade terminals differ from automotive terminals by being designed for the harsh marine environment. Nylon insulators are easy to crimp and will not split. Barrels are designed to tightly grip the wire with the least effort. Tinned copper gives the least electrical resistance but the most corrosion protection.Features: Nylon insulated with insulation grip Double crimp, funnel entry UL 486C WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Post Size: 1/4" Package Qty: 25 Heat Shrink: No Type: Ring Terminals Gauge: 12-10 AWG Box Dimensions: 1"H x 3"W x 5"L WT: 0.15 lbs UPC: 091887212242 Brochure (pdf)

Read more less
