Electrical - Wire

RG8XW Coax Cable - White - 200'Coaxial cable RG8XW is used in the transmission of communications signals. Frequently, audio, video, or network signals. You will recognize these cables if you have looked at the back of your cable box or modem. Most people don't even know that the real name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean?The term coaxial means the cable has two concentric conductors separated by insulating material. The inner conductor is contained by a cylindrical material that insulates it. This material is then surrounded by a conducting shield. In certain cases, there may even be another insulating layer after the shield. Most commonly, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. One advantage of this design is that magnetic and electric fields are bound within the insulating material. This reduces leakage outside the shield.So what is RG8XW? Well, this style of coax is often used for single antenna installations. It can also be used for jumpers when close pieces of equipment need to be connected. You may hear of this cable as being referred to as "Mini-8". This cable will always possess a stranded center, which distinguishes it from most other types of coax. It will handle high wattage and offer multiple benefits, such as higher propagation velocity. Generally, this cable is more than what the average user will require. However, if you are looking to have a strong setup, then this cable is for you.Specifications: Conductor AWG: 16 (19x.0117) Tinned Copper Insulation Material: Foam Polyethylene  Shield Coverage: 95% Tinned Copper Braid Jacket Material/Nom. O.D.: White PVC 0.242 Nom. Cap pF/ft:  27.0 Velocity of Prop. (% pF/m): 80 Nominal Impedance (Ohms): 50

Read more less

16 AWG Gauge Striped Marine Wire 500' Spool - White with Red StripeStriped wire is great for situations where someone is dealing with a large number of wires. Using striped wire makes identification easier. This, in turn, can increase job efficiency. All of Pacer's 16 AWG striped marine wire is manufactured in Sarasota, FL, USA, from Type III Class K tinned copper. During the production process, the copper conductors are jacketed with PVC insulation. This jacket is designed to be durable and flexible. All of Pacer's primary striped wire meets the requirements and standards of UL, ABYC, and NMMA.How many options of 16 AWG striped marine wire does Pacer offer? The most important thing when selecting the proper striped wire is choice. By offering an enormous section, users are guaranteed to find the perfect choice. Currently, there are over 100 possible combinations of 16 AWG striped marine wires. Have a question about striped marine wire? Contact a Pacer expert today. This particular white marine wire has a red stripe and comes in a 500 ft. spool.Features: Stranded, tinned copper conductors Highly flexible color-coded insulation Annealed Finely Stranded Tinned Copper ASTM b172 Class K Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Specifications: Spool Length: 500 ft. Insulation: -20 degrees C to 105 degrees C Flexible, Color Coded PVC Temperature Rating: 105 degrees C Dry, 75 degrees C Wet, 60 degrees C Oil Voltage Rating: 600-V Applications: Point-to-point wiring Internal wiring of panels and motors Compliances: UL Standard 1426 (BC-5W2) AWM 1015/1230 AWM 1028/1231 MTW, CSA: TEW ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183 Specifications: Color: White Gauge: 16 AWG Length (Feet): 500' Box Dimensions: 6"H x 7"W x 7"L WT: 7.5 lbs UPC: 840248226714 Brochure (pdf)

Read more less

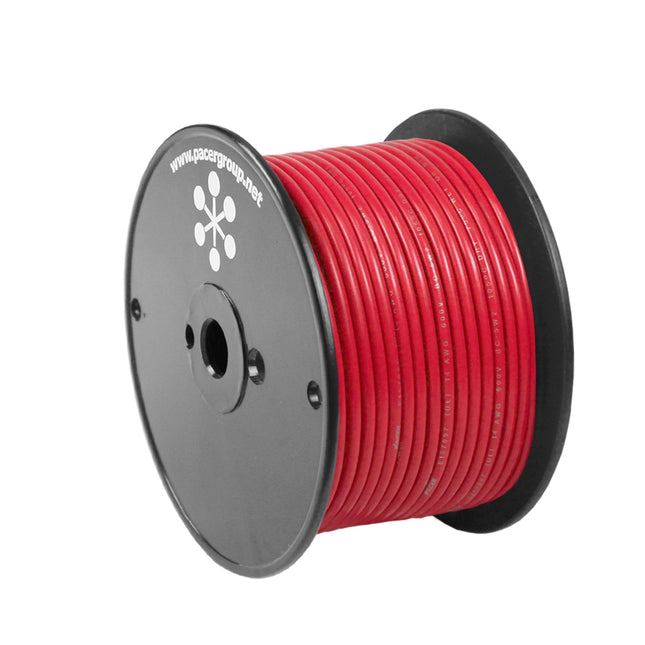

Red 16 AWG Primary Wire - 250' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 16 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 16 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Red Gauge: 16 AWG Length (Feet): 250' Box Dimensions: 3"H x 7"W x 7"L WT: 4 lbs UPC: 840248201681 Brochure (pdf)

Read more less

Green 10 AWG Primary Wire - 100'Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 10 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 10 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Green Gauge: 10 AWG Length (Feet): 100' Box Dimensions: 3"H x 7"W x 7"L WT: 4.9 lbs UPC: 840248202930 Brochure (pdf)

Read more less

Yellow 4/0 AWG Battery Cable - 50' Pacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold as an Individual Specifications: Color: Yellow Gauge: 4/0 AWG Length (Feet): 50' Box Dimensions: 9"H x 12"W x 12"L WT: 44 lbs UPC: 840248204569 Brochure (pdf)

Read more less

Green 6 AWG Battery Cable - Sold By The FootPacer's 6 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured the USA to ensure high quality.  Often times, marine applications are in enclosed areas with sharp turns.  Installation can become difficult.  Pacer simplified this process by developing flexible yet tough marine cables.  This 6 AWG marine battery cable is built to handle the harshest conditions.  All our marine cable is made from Type III tinned copper.  The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket.  These things together make it the highest quality marine battery cable available. Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold by the Foot Specifications: Color: Green Gauge: 6 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 1 lbs Brochure (pdf)

Read more less

Yellow 6 AWG Tinned Copper Wire - 50'Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.Wire Gauge: 6 AWGWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Length (Feet): 50' Gauge: 6 AWG Color: Yellow Box Dimensions: 5"H x 7"W x 7"L WT: 6.1 lbs UPC: 091887967821

Read more less

8/2 AWG Duplex Cable - Flat Cable - Red/Black - 250'Duplex Boat Cable is used in low voltage AC applications as well as DC circuits.  Pacer manufactures 8 AWG Duplex boat cable in house in the USA for the best quality.  First, the cable is built from finely stranded, Type III tinned copper conductors.  These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps 8 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating.  How does it do that?  During the extrusion process, the spaces between wires are filled.  This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed.  Just another reason 8 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Extruded exterior cable insulation with no gaps Highly flexible color coded wire insulation Stranded, tinned copper conductors Annealed Finely Stranded Tinned Copper ASTM B172 Class K Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 2 Type of Cable - Duplex  *Sold as an Individual Specifications: Color: Red/Black Gauge: 8/2 AWG Length (Feet): 250' Box Dimensions: 12"H x 14"W x 14"L WT: 54 lbs UPC: 840248200486 Brochure (pdf)

Read more less

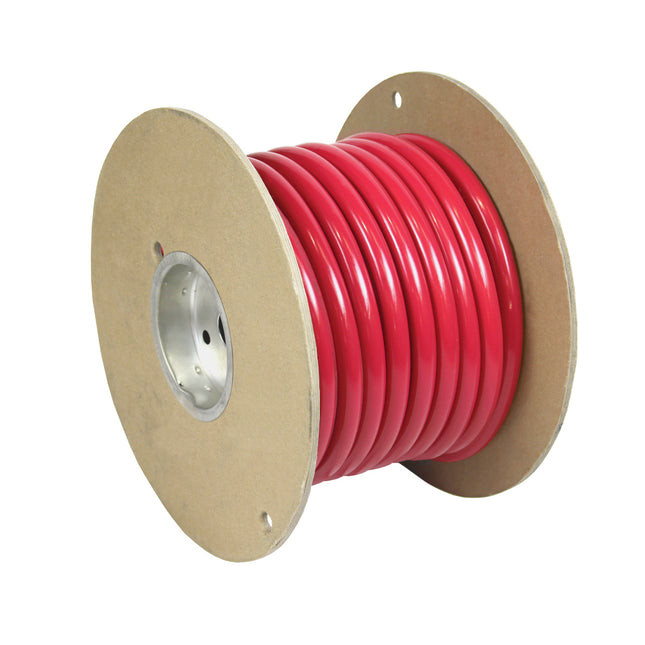

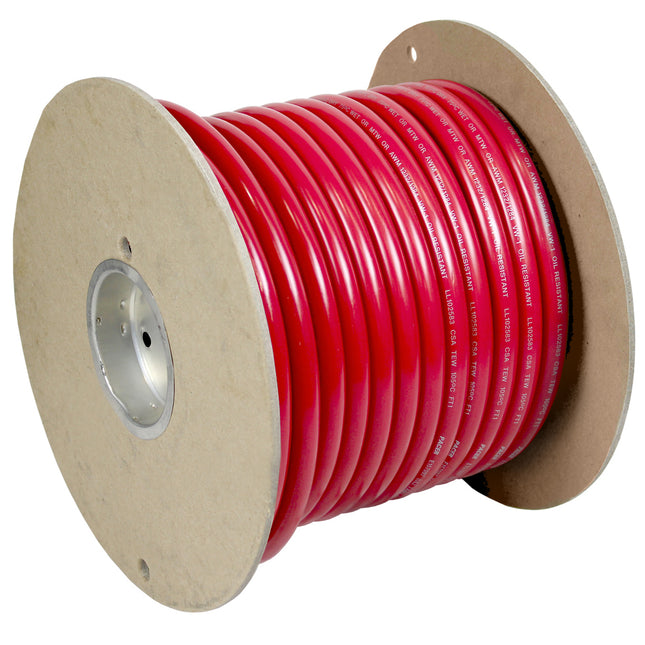

Red 4/0 AWG Battery Cable - Sold By The FootPacer's 4/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 4/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold by the Foot Specifications: Color: Red Gauge: 4/0 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 12"L WT: 0.85 lbs Brochure (pdf)

Read more less

Yellow 2/0 AWG Tinned Copper Battery Cable - 50'Ancor Marine Grade™ wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing. Specifications: Color: Yellow Length (Imperial): 50ft Wire Type: Round Wire Gauge (Imperial): 2/0 AWG WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Yellow Length (Feet): 50' Gauge: 2/0 AWG Box Dimensions: 5"H x 11"W x 11"L WT: 27.4 lbs UPC: 091887968064 Quick Guide (pdf)Brochure (pdf)

Read more less

RG59UW Coax Cable - White - 200'Many industries and individuals use RG59U coaxial cable to transmit communication signals. Most notably, audio, video, or network signals. You'll recognize this cable style if you've looked at the back of your cable box or modem. Many people don't even realize that the name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean?The term coaxial indicates the cable possesses two concentric conductors. These conductors are separated by an insulating material. Put simply, the inner conductor is encased in a cylindrical material that insulates it. This insulating material is surrounded by a tubular conducting shield. There may even be another insulating layer after the shield in certain cases. Most frequently, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. Why create a wire like this? Well, this type of design offers several benefits. Most important is that this design restricts magnetic and electric fields. The fields are restricted to the internal insulating material. This helps to reduce leakage outside the shield.Why use Coaxial Cable RG59U? This type of coaxial cable has a wide range of uses. Most commonly, it is used for low-power video or RF signal connections. One notable characteristic of coaxial cable RG59 is its impedance of 75 ohms. It is also slightly smaller than RG6 making it ideal where limited space is an issue. Specifications: Conductor AWG: 22 Solid Copper Clad Steel  Insulation Material: Solid Polyethylene  Shield Coverage: 95% Tinned Copper Braid 2.6Ω/M  Jacket Material/Nom. O.D.: White PVC 0.260 Nom. Cap pF/ft: 20.5 Velocity of Prop. (% pF/m): 66  Nominal Impedance (Ohms): 73

Read more less

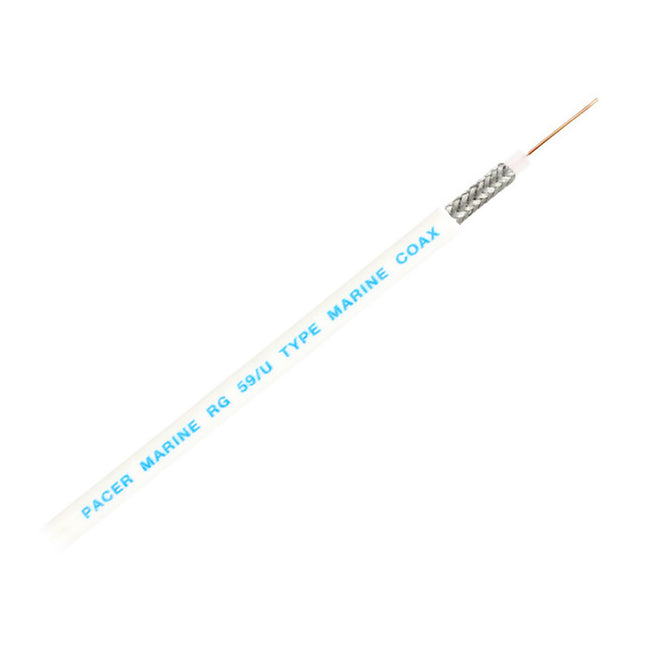

RG59UW Coax Cable - White - 150'Many industries and individuals use RG59U coaxial cable to transmit communication signals. Most notably, audio, video, or network signals. You'll recognize this cable style if you've looked at the back of your cable box or modem. Many people don't even realize that the name of these cables is actually coaxial. Many people call them coax. So, what does coax, or coaxial, mean?The term coaxial indicates the cable possesses two concentric conductors. These conductors are separated by an insulating material. Put simply, the inner conductor is encased in a cylindrical material that insulates it. This insulating material is surrounded by a tubular conducting shield. There may even be another insulating layer after the shield in certain cases. Most frequently, the inner conductor carries the signal-carrying voltage while the shield is kept at ground potential. Why create a wire like this? Well, this type of design offers several benefits. Most important is that this design restricts magnetic and electric fields. The fields are restricted to the internal insulating material. This helps to reduce leakage outside the shield.Why use Coaxial Cable RG59U? This type of coaxial cable has a wide range of uses. Most commonly, it is used for low-power video or RF signal connections. One notable characteristic of coaxial cable RG59 is its impedance of 75 ohms. It is also slightly smaller than RG6, making it ideal where limited space is an issue. Specifications: Conductor AWG: 22 Solid Copper Clad Steel  Insulation Material: Solid Polyethylene  Shield Coverage: 95% Tinned Copper Braid 2.6Ω/M  Jacket Material/Nom. O.D.: White PVC 0.260 Nom. Cap pF/ft: 20.5 Velocity of Prop. (% pF/m): 66  Nominal Impedance (Ohms): 73

Read more less
