Electrical - Wire

16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 100 PackCreating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacer's heat shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this? These heat shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Protects terminations from water, condensation, salt spray and corrosion Added vibration protection in rugged environments Provides strain relief Characteristics: Shrink Ratio: Approx. 3:1 at 135 °C Operating Temp: -55 °C - 125 °C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: AWG: 16-14 Disc./Bullet Size: 0.250 in. Insulation Color: Blue Package Size: 100 Compliances: UL CSA RoHS Specifications: Color: Blue Gauge: 16-14 AWG Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248207607 Brochure (pdf)

Read more less

Green 14 AWG Primary Wire - 25'Pacer's 14 AWG marine wire is built to handle harsh marine environments. It is manufactured to meet and exceed extremely stringent specifications. This 14 AWG marine wire is constructed in-house in Sarasota FL, USA to guarantee the highest level of quality. This cable is built from Type III class K tinned copper. It offers excellent flexibility and durability. The tinned copper conductors are meant to resist corrosion which adds to the longevity of the wire. What type of insulation is used? Well, when the copper is tinned, the next step is to insulate it with a flexible yet durable PVC jacket. This insulation protects the wire and makes it resistant to a variety of hazards. These hazards include; alkali, abrasion, acid, gas, oil, flame, and moisture. What compliances and standards does Pacer's Wire meet? This marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Stranded, tinned copper conductors Highly flexible color-coded insulation Compliances: UL Standard 1426 BC-5W2 ABYC: E-11.15 UL: MTW Coast Guard: 33 CFR 183.401 Subpart 1-Electrical Systems Temperature Rating: 105 °C Dry, 75 °C Wet Characteristics: Conductor: Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation: -20 °C to 105 °C Flexible, Color Coded PVC Voltage Rating: 600-V Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture Applications: Point-to-point wiring Internal wiring of panels and motors Specifications: AWG: 14 Length: 25 ft. Color: Green Cond. Stranding: 41/0.0100    Nom. Insulation: 0.032 Nom. O.D.: 0.145 Nom. Circular Mils: 4100 Approximate LB/M: 22.0 Specifications: Color: Green Gauge: 14 AWG Length (Feet): 25' Box Dimensions: 2"H x 4"W x 4"L WT: 0.65 lbs UPC: 840248212656 Brochure (pdf)

Read more less

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 25 PackCreating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacer's heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this? This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Provides strain relief Characteristics: Shrink Ratio: Approx. 3:1 at 135 °C Operating Temp: -55 °C - 125 °C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: AWG: 22-18 Disc./Bullet Size: 0.250 in. Insulation Color: Red Package Size: 25 Compliances: UL CSA RoHS Specifications: Color: Red Gauge: 22-18 AWG Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 840248207652 Brochure (pdf)

Read more less

White 10 AWG Primary Wire - 20'Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 10 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 10 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14 Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture Length - 20 ft. Guage (AWG) - 10 Color - White *Sold as an Individual Specifications: Color: White Gauge: 10 AWG Length (Feet): 20' Box Dimensions: 1"H x 2"W x 4"L WT: 1.1 lbs Brochure (pdf)

Read more less

16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 25 PackCreating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacer's heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this? This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isn't an easy task. Contact a Pacer expert today with any questions that you may have.Features: Protects terminations from water, condensation, salt spray, and corrosion Added vibration protection in rugged environments Provides strain relief Characteristics: Shrink Ratio: Approx. 3:1 at 135 °C Operating Temp: -55 °C - 125 °C Vol. Resistivity: 1015 Ohm-cm3 Dielectric Strength: 900-V/mil Voltage Rating: 600-V Specifications: AWG: 16-14 Disc./Bullet Size: 0.250 in. Insulation Color: Blue Package Size: 25 Compliances: UL CSA RoHS Specifications: Color: Blue Gauge: 16-14 AWG Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs UPC: 840248207591 Brochure (pdf)

Read more less

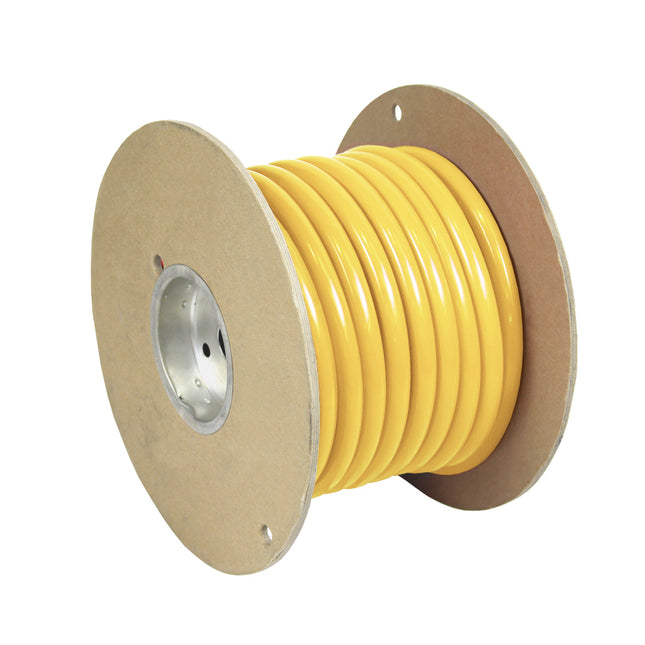

Yellow 4 AWG Battery Cable - 100' Pacer's 4 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Oftentimes, marine applications are in enclosed areas with sharp turns. Installation can become difficult. Pacer simplified this process by developing flexible yet tough marine cables. This 4 AWG marine battery cable is built to handle the harshest conditions. All our marine cable is made from Type III tinned copper. The copper resists corrosion and ensures the longevity of the cable.  It is then insulated with a durable and pliable PVC jacket. These things together make it the highest quality marine battery cable available. Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold as an Individual Specifications: Color: Yellow Gauge: 4 AWG Length (Feet): 100' Box Dimensions: 7"H x 7"W x 8"L WT: 18 lbs UPC: 840248203890 Brochure (pdf)

Read more less

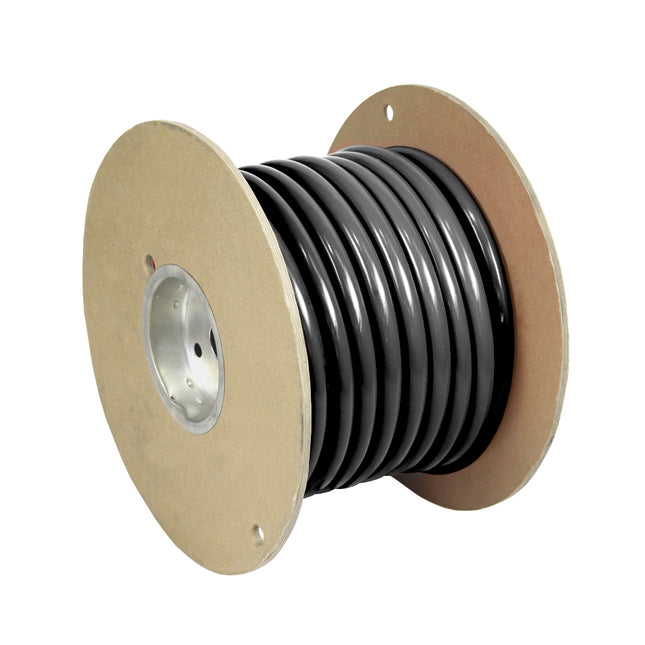

Black 4 AWG Battery Cable - 100'Features: ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing. ANCORs proprietary premium vinyl insulation stays flexible even in extreme cold and resists salt water, battery acid, oil, gasoline and ultra-violet radiation. Exclusive insulation is rated at 600V, 105°C dry and 75°C wet, and is resistant to heat and abrasion. Exceeds all UL 1426, US Coast Guard Charter boat (CFR Title 46) and ABYC standards WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Black Length (Feet): 100' Gauge: 4 AWG Box Dimensions: 5"H x 11"W x 11"L WT: 18.5 lbs UPC: 091887112528 Owner's Manual (pdf)

Read more less

Speaker Wire - 16 AWG 328' (100M) Roll The Fusion marine speaker cable range is specifically engineered for use on boats and ensures the best listening experience with your Fusion speakers and subwoofers. The speaker cable was specifically designed for the marine environment with high-quality materials to help protect the cable from the elements.Ideal for connection with your Fusion marine speakers and subwoofers, the speaker cable features tinned copper wiring with parallel conductors for superior performance. The all-copper wire construction ensures the audio signal is transmitted with minimal resistance, delivering a higher-quality audio signal to your onboard speakers and subwoofers.The result is a superior speaker cable that delivers reliable performance in the harsh marine environment, season after season.  Features: Construction: Multistrand:  Tinned Copper Cable with PVC Jacket Temperature Rating:  105 °C (221 °F) dry or 90 °C (194 °F) wet Fire Retardant Rating:  VW-1 Voltage Rating:  600 V max. Oil Resistance:  Yes Warranty:  1 Year WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Length (Feet): 328' Gauge: 16 AWG Color: White Box Dimensions: 6"H x 8"W x 8"L WT: 9.7 lbs UPC: 753759261672 Brochure (pdf)

Read more less

Light Blue 16 AWG Tinned Copper Wire - 100'Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600V, 105°C dry and 75°C wet, stays flexible even in extreme cold (-40°F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.Wire Gauge: 16 AWGWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Light Blue Length (Feet): 100' Gauge: 16 AWG Box Dimensions: 3"H x 3"W x 4"L WT: 1.1 lbs UPC: 091887101195

Read more less

Red 10 AWG Primary Cable - 100'Features: ANCOR Marine Grade™ wire is manufactured from tinned copper stranding for maximum protection against corrosion and electrolysis. Ultra flexible (Type 3) stranding resists fatigue due to vibration and flexing 10 AWG /5mm², UL 1426 Tinned Boat Cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Color: Red Length (Feet): 100' Gauge: 10 AWG Box Dimensions: 5"H x 7"W x 7"L WT: 4.5 lbs UPC: 091887108668

Read more less

Blue 10 AWG Primary Wire - 20'Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 10 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 10 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture Length - 20 ft. Guage (AWG) - 10 Color – Blue *Sold as an Individual Specifications: Color: Blue Gauge: 10 AWG Length (Feet): 20' Box Dimensions: 2"H x 4"W x 4"L WT: 1 lbs Brochure (pdf)

Read more less

Grey 12 AWG Primary Wire - 100' Pacer's marine wire is designed to handle the harshest marine environments.  It is manufactured to meet and exceed the most stringent specifications.  This 12 AWG marine wire is constructed in the USA to achieve the highest level of quality. Built from Type III class K tinned copper, this wire offers excellent flexibility.  The tinned copper also resists corrosion adding to the life of the wire.  What about the insulation?  After the copper is tinned it is then insulated with a durable and flexible PVC jacket.  The jacket makes this 12 AWG marine wire resistant to alkali, abrasion, acid, gas, oil, flame, and moisture.  What standards and compliances does this wire meet?  Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA. Features: Built for durability, flexibility, and longevity in the harshest marine environments  So flexible that you can tie it into a knot without compromising any of its qualities  Proprietary insulation ensures the highest level of protection available  Ease of installation and the longevity of its design have helped solidify this marine wire as the choice of boating professionals Compliances: UL Standard - 1426 BC-5W2 U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture *Sold as an Individual Specifications: Color: Grey Gauge: 12 AWG Length (Feet): 100' Box Dimensions: 3"H x 5"W x 5"L WT: 3.15 lbs UPC: 840248212960 Brochure (pdf)

Read more less
