Electrical

Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, & RedUnshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean? Well, essentially, it means that multiconductor cables are used for controlling equipment. Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the same from cable to cable. Features: 25 ft. of cable Fully annealed stranded tinned copper per ASTM B33 Premium-grade color-coded PVC insulation Grey PVC jacket—20°C to 105°C Specifications: Number of Conductors: 5 Conductor Colors: Green, brown, white, black, and red Conductor Stranding: 16/30 Jacket Color: Grey Nom. Cap. pF/ft Between Conductors: 25.0 Nom. Insulation Thickness: 5 conductors @ 0.016"  Jacket Thickness (inch): 5 conductors @ 0.032" Nom. Cable O.D. (inch): 5 conductors @ 0.272" Applications: Public address systems Intercoms and internal telephones Suitable for EIA RS-232 applications Remote control circuits Compliances: NEC Article 800 Type CM (UL: 75°C) UL Style 2464 (UL: 80°C, 300V, VW-1) CSA CMG (CSA: 60°C) (Except 18/5) CE: Low voltage directive (LVD 2006/95/EC) RoHS compliant directive 2011/65/EU Vertical tray flame test (70,000 BTU) Specifications: Length (Feet): 25' Box Dimensions: 5"H x 7"W x 7"L WT: 5.6 lbs Quick Guide (pdf)

Read more less

Triple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2.8 lbs UPC: 850067590187

Read more less

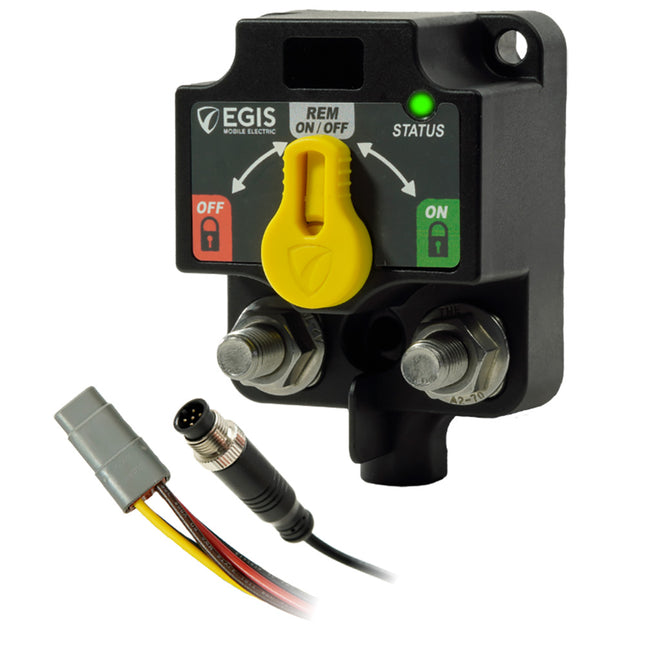

Single XD - NMEA 2000 - Relay with Knobs - 4 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 1.2 lbs UPC: 850067590200

Read more less

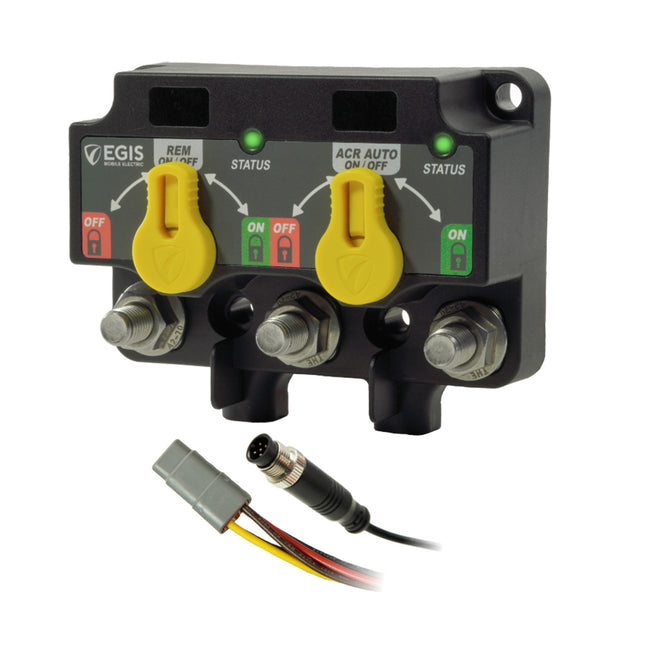

Dual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850067590194

Read more less

MRBF Terminal Fuse - 100 Amp Transparent easy visual of fuse status Ignition-protected SAE/J1171-ISO8846 High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks Color-coded for easy ID of amperage rating Features: Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems. Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation 58 Vdc Rating: easily supports 12 to 48V nominal applications. High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty: We stand behind our product's ability to meet your needs. Specifications: Continuous Current (Amps): 100 Max Voltage (VDC): 58 Interrupt Rating @ 14 VDC (Amps): 10,000 Interrupt Rating @ 48Vdc (Amps): 5,000 Interrupt Rating @ 58Vdc (Amps): 2,000 Ingress Protection: IP66 Specifications: Amperage: 100 Fuse Type: Terminal Type: Fuses Box Dimensions: 1"H x 2"W x 6"L WT: 0.1 lbs UPC: 850053879616

Read more less

TRUECHARGE™3 30A 3 Bank Battery Charger - 24VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, TRUEcharge3 battery chargers feature low electrical interference and efficient power factor-corrected multistage charging. Thanks to their inherent drip-proof design characteristics, the TRUEcharge3 Chargers can be mounted in multiple positions. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model comes with built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 30 A  Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 V DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 60 Ah General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 90 x 170 x 340 mm (3.5 x 6.7 x 13.4”) Weight 4.5 kg (9.9 lb)  Regulatory Approvals Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Input - Voltage: 24 Charger Output - Amps: 30a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 11"W x 17"L WT: 9 lbs UPC: 715535920975 Brochure (pdf)

Read more less

TRUEcharge™3 20A 3 Bank Battery Charger - 24VTRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient power factor-corrected multistage charging. The TRUEcharge3 Chargers can be mounted in multiple positions thanks to their inherent drip-proof design characteristics. Unlike its predecessors, TRUEcharge3 is lithium-ion battery compatible.Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90–265 Vac, and 47–63 Hz, which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be enhanced with an optional remote panel. Each model has built-in protection against surges and spikes on the AC power line.Features: Microprocessor-controlled, multistage charging algorithms Settings for two and three-stage charging Battery-equalization feature Settings for flooded, gel, AGM, or lithium-ion batteries Equipped with parallel stacking (remote panel required) Ability to charge batteries drained to extremely low voltage Added quiet mode Protection Features: Reverse-battery polarity protection Drip-proof design DC over-voltage protection Over-temperature protection Circuit breaker protection Three-Stage ChargingMultistage charging ensures batteries receive optimum charging, but with minimal wear and tear, regulating the voltage and current delivered to the batteries in three automatic stages: Bulk: Replaces 70–80% of the battery’s state-of-charge at the fastest possible rate Absorption: Replenishes the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Float: Voltage is reduced and held constant to prevent damage and maintain batteries at a full charge for the remaining 20–30% of charge, bringing the battery to a full charge at a slow, safe rate Power Factor Corrected (PFC) ChargingLess shore power is required for charging batteries, freeing up more usable AC power for running electrical devices and appliances and reducing the likelihood of tripping shore power breakers.Electrical Specifications (@ 25 degrees C unless otherwise noted): Output Current (nominal): 20 A  Output Voltage (nominal, depending on settings): Charge 28.4–31.0 Vdc; Float 26.8–27.6 Vdc; 32 Vdc DC Output Connections: Three AC Input Voltage: 90–265 Vac; 47–63 Hz 120 Vac, 230 Vac, 240 Vac nominal Temperature Compensation: Three settings  Charger Efficiency: > 80% Battery Type: Gel, Flooded, AGM, LiFePO4  Minimum Recommended Battery Bank Size: 40 Ah  General Specifications: Operating Temperature Range: 0–60°C (32–140°F)  Storage Temperature -40–80°C (-40–176°F) Battery Connection: Three positive terminals and one negative terminal Dimensions (H x W x L): 70 x 170 x 250 mm (2.8 x 6.7 x 9.8”) Weight 2.2 kg (4.8 lb) Regulatory Approvals Meets CSA 60335-2-29, UL1564, IEC 60335-2-29, IP32 per EN.IEC 60529, FCC Part 158, Canada ICES-003 Class B emissions limits, ABYC A-31, and DOE/CEC energy efficiency compliant.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 20a Charger Output Voltage: 24v Charging Banks: 3 Portable: No Box Dimensions: 6"H x 11"W x 13"L WT: 6.15 lbs UPC: 715535920937 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

12" SAE Power Cable Polarized Electrical ConnectorThis SAE-type polarized electrical connector is a two-prong plug and socket connector set. Features:14-gauge duplex wireSpecifications: Length: 12 in. Volts: 12-24 Max Amps: 20A @ 12V Wire Gauge: 14 AWM Weight: 0.11 lb. Specifications: Type: Cables Box Dimensions: 1"H x 5"W x 9"L WT: 0.1 lbs UPC: 035514432740 Brochure (pdf)

Read more less

60A Surface Mount Circuit Breaker - 285 SeriesThis 60A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 60 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 60a Box Dimensions: 3"H x 3"W x 5"L WT: 0.4 lbs UPC: 850035199145 Quick Guide (pdf)

Read more less

Horizontal Multi Cable Seal - BlackThe DS-H-MULTI-BLK takes Scanstrut's much-loved multi-cable seal to the next level. The multi-horizontal cable seal was designed to open new multi-cable routing options. This Scanstrut seal helps users achieve an ultra-clean, easy-to-fit, and 100% watertight installation of large electronics, solar, and light cablesFeatures: Designed for the installation of large electronics, solar, and light cables 100% waterproof– IP68 Designed to fit one to four cables of varying sizes Self-drill, easy installation that cuts down your installation time through wood, metal, and GPR Long-life marine-grade glass-filled Nylon Rigorously tested to be UV stable and hard-wearing There is no messy sealant on the bung A low-profile construction with a height of 35.8mm It is designed to have a compact footprint of 114.8 mm in width and 97.6mm in length. Captive nuts make for easy assembly and reliable repeat installation Specifications: Type: Deck Seal Box Dimensions: 2"H x 6"W x 9"L WT: 0.55 lbs UPC: 5060114798687

Read more less

PC-25 Power Conditioner Noise FilterThe interference or electronic “noise” generated by alternators, ignition systems, motors, etc. can render a vehicle or vessel’s radio or other electronic equipment virtually useless. This interference takes the form of popping or static on radios or audio gear and garbled images or “hashes” on video displays.These specialized filters can be used singly or in combination to attenuate conducted line noise, either at the affected equipment or at the noise source.Features: Heavy-duty aluminum construction Operate on 6-48 VDC systems Integral mounting flanges for secure installation Nickle-plated, brass stud connectors on alternator filters accommodate high-current cables and terminals Color-coded wire leads on PC models make in-line installation easy Specifications: Filtered Frequencies: Audio – 200 MHz Rating: 25 amp Installation Location: At affected equipment in “+” and “-” leads     Dimensions (inches): 2 x 4.25 x 3.25 Weight (lbs): 2

Read more less

USB 3.0 & USB-C Power Socket without LightThis USB 3.0 & USB-C power socket charges two devices simultaneously. When split, the total 6A output is 3A per side. USB 3.0 features Quick Charging (QC) for supported devices, giving enough power to charge phones, pads, and tablets quickly and efficiently. USB-C features Power Delivery (PD) for faster and more flexible charging.Features: A protective dust cap covers the ports when not in use Constructed of injection-molded nylon Easy installation requires drilling a 1-1/8" hole, inserting the socket body, tightening the locking nut, and connecting the wires USB 3.0 Watts: Non-illuminated IP65 rating CE and RoHS compliant Specifications: Outer Diameter (inch): 1-7/16" Inner Diameter (inch): 1-1/8" Length (inch): 1-1/2 Volts: 8-32 Total Output: 5V/6A USCB-C Watts: 60W @ 24V USB-A Watts: 36W @ 12V Weight: 0.08 lb. Color: Black WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
