Dual XD Flex 2 - Relay/Relay with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Specifications: Type: Electric Box Dimensions: 3"H x 4"W x 8"L WT: 2 lbs UPC: 850035199534

Read more less

150A Surface Mount Circuit Breaker - 285 SeriesThis 150A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 150 Max Voltage: 48 Cycling Endurance: 100 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high-temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components. Specifications: Amperage: 150a Box Dimensions: 3"H x 3"W x 5"L WT: 0.35 lbs UPC: 850035199190

Read more less

3121 - SMS Panel Enclosure with ELCI (16A) & 3 Blanks - 230V ACThe 3121-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices.  Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.Features: Blank apertures for custom breaker loading  Glass-filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LED lights for backlighting and ON indication Technical Specifications: Circuit Breaker Type - 1 x ELCI (16A) Main 230V and 3 x Blank Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC) In the Box: 3121 Enclosure Glands x 5 Labels Mounting hardware Instruction manual *Sold as an Individual Specifications: AC/DC: AC Voltage: 230 Box Dimensions: 7"H x 9"W x 10"L WT: 3.9 lbs UPC: 632085031213 Quick Guide (pdf)Brochure (pdf)

Read more less

3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC The 3134-panel enclosure for DC circuit breakers and other large frame devices.Features:  Blank apertures for custom breaker loading Glass-filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LED lights for backlighting and ON indication Technical Specifications:Circuit Breaker Type - 4 x Branch 12/24V DC (15A) Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 6 x Amber ON indicating 12/24V DC  In the Box: 3134 Enclosure Glands x 6 Labels Mounting hardware Instruction manual *Sold as an Individual Quick Guide (pdf)Brochure (pdf)

Read more less

MC4 Solar Connect Pair - 1 x Male & 1 x FemaleMC4 connectors are single-contact electrical connectors commonly used for connecting solar panels.Warranty InfoPlease contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

Busbar to Connect 6 Modular HoldersFeatures: Six position high current bus bar (1500 A) With two M10 input connections. Input current up to 2000 A. Recommended to parallel multiple high power Multi or Quattro inverter/chargers Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

VE. Direct to USB InterfaceThe VE.Direct to USB interface connects products with a VE.Direct connection to devices with a USB port, for example, a computer. With this cable, it is also possible to connect more than two VE.Direct products to a single CCGX. Measures 70.5" in length; 5' 10".WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)

Read more less

32-12-35 DC ConverterConvert 20-50 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)Features: Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments Numerous Converter & Load Protection Circuits: Current limiting Automatic thermal shutdown Short circuit proof Reverse polarity Overvoltage protection Carries CE mark Specifications: Input Voltage: 20-50 Output Voltage: 13.6 Output Amps (Intermittent): 35 Output Amps (Continuous): 30 Case Size (H x W x D): 6.0 x 4.7 x 16.0 inches (15.2 x 11.9 x 40.6 centimeters) Weight: 12 lb. (5.5 kg) Output: 13.6 VDC (internally adjustable 12.6 -14.5) or 24.5 VDC (or specify) Ripple: 150 mV P-P maximum Regulation: 1% Line/Load Switching Frequency: 40 kHz Efficiency: 85% – Typical. Isolation: Output/Chassis; Input/chassis: 250 VDC Duty Cycle Ratings*: Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating. Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time Idle Current: Less than 100 mA (including power “ON” light) Operating Temp Specifications: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C Mechanical Specifications: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal coated PC board Options: Operation as a battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory) Extreme vibration mounting kit. (Information below) Option: Extreme Vibration Mounting KitThe Extreme Vibration Mounting Kit is available to protect NEWMAR power converters from the extreme stresses of shock and vibration when mounted on high-vibration vehicles. The kit replaces the standard vibration kit provided with the unit. It fits into the unit’s mounting flange to act as a ‘super shock absorber’ for electronics in high-vibration applications. It is available to fit all NEWMAR units from 2 to 70 lbs. Specify KIT L for units that weigh 2–15 lbs. and Kit H for 16–7 lbs.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

187 - Series Thermal Circuit Breakers - Surface Mount50 Amp Circuit BreakerPN:  7139Features: Combines switching and circuit protection into a single device All components meet SAE J1171 external ignition protection requirements Clear, single lever operation "Trip Free" design cannot be held "ON" during fault current condition Waterproof Recessed mounting holes for clean appearance Large clearance around terminal studs accept heavy gauge wire lugs Robust 5/16 terminals provide high torque connections Large lever with vertical/horizontal orientation provides indication of trip status Ignition protected - safe for installation aboard gasoline powered boats Specifications   Circuit Breaker Class: Type III - Switchable / Manual Reset - Trip Free Type: Thermally Responsive Bi-Metal Blade Case Material: Thermoset Polyester Voltage Rating: 48 Volts DC Maximum Interrupt Rating: 5,000 Amperes @12 Volts DC   3,000 Amperes @24 Volts DC   1,500 Amperes @42 Volts DC Operating Temperature Range: -25C° to +82C° WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Amperage: 50a Box Dimensions: 2"H x 5"W x 8"L WT: 0.6 lbs UPC: 632085171391

Read more less

6/2 AWG Safety Duplex Cable - Flat Cable - Red/Yellow - Sold By The FootDuplex Boat Cable is used in low-voltage AC applications and DC circuits. Pacer manufactures 16 AWG Duplex boat cables in-house in the USA for the best quality. First, the cable is built from finely stranded, Type III tinned copper conductors. These conductors allow for flexibility and help to prevent corrosion. The PVC jacket helps the 16 AWG Duplex Boat Cable to be flexible while preventing moisture from accumulating. How does it do that? During the extrusion process, the spaces between wires are filled. This leaves no space for moisture or air to accumulate.  After that, a talcum powder coating is given to the interior wires. This coating is used to allow the outer jacket to be easily removed. This is another reason the 6/2 AWG Duplex boat cable is perfect for marine use. Pacer's marine wire exceeds the requirements and standards of UL, ABYC, and NMMA.Features: Extruded exterior cable insulation with no gaps Highly flexible color-coded wire insulation Stranded, tinned copper conductors Annealed Finely Stranded Tinned Copper ASTM B172 Class K Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture Compliances: UL Standard - 1426  U.S.C.G - 33 CFR part 183  ABYC - E-11.14  Technical Specifications: Conductor - Type III annealed finely stranded tinned copper ASTM B172 Class K Insulation -20 °C to 105 °C flexible, color-coded PVC Voltage Rating - 600-V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil and Moisture No. of Conductors - 2 Type of Cable - Duplex  *Sold by the Foot Specifications: Color: Red/Yellow Gauge: 6/2 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 1"L WT: 0.32 lbs

Read more less

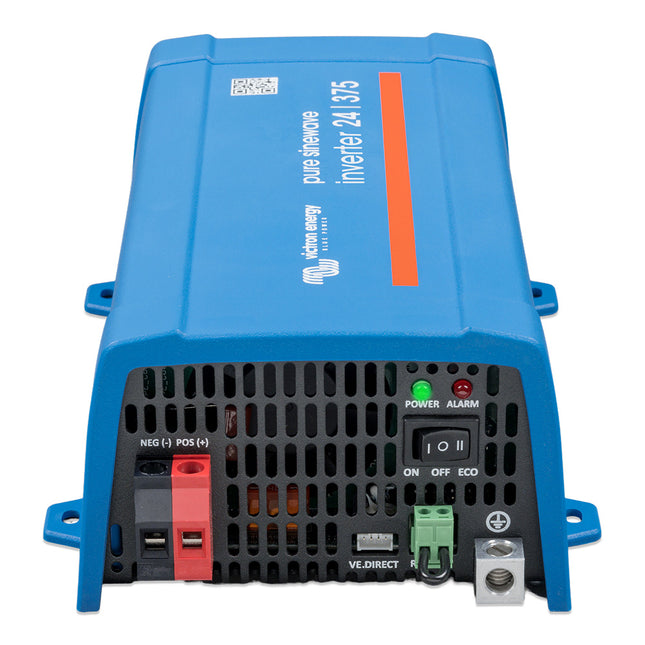

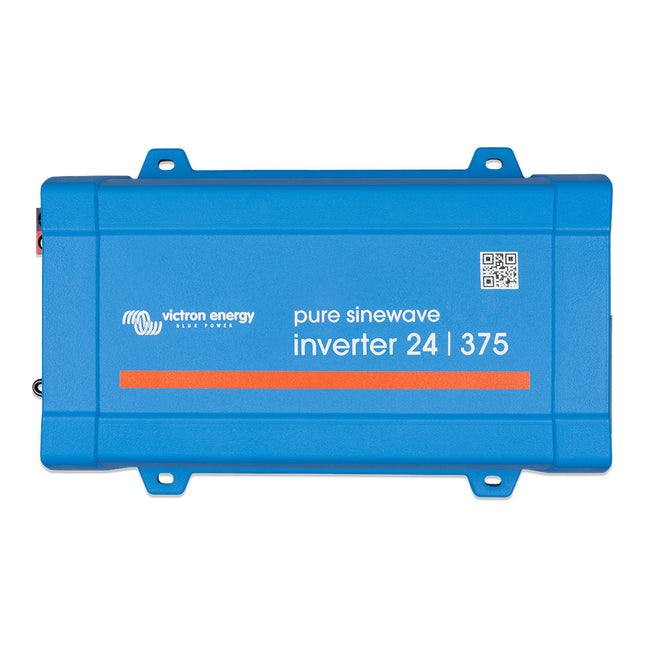

Inverter 24/375 120V VE.Direct NEMA 5-15RInverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48V DC.VictronConnectThis pocket powerhouse app can do it all. Instantly see key monitoring data and manage devices with simple controls. Configure, check the history, analyse stored trends, and more.Please contact your dealer for any returns, repairs or support issues related to this product.

Read more less

Orion XS 1400 DC-DC Battery ChargerThe Orion XS has been engineered from the ground up to redefine DC-DC, battery-to-battery charging. Ideal for dual-battery setups connected to an intelligent alternator, it ensures top-tier performance and optimal system safety in 12V, 24V, or mixed-voltage systems.Using engine power to charge your house battery or operate as a stable energy supply, the Orion XS can run at full capacity up to 40°C. It allows you to stay in charge with configurable input and output currents, while the 98,5% efficient aluminium circuit board technology keeps things cool without needing fans.As an integral part of your Victron system, the Orion XS offers full (remote) monitoring and control capabilities, giving you complete command of your device and system.Features: Configurable voltage Configurable current Engine running detection Efficient cooling Works with VictronConnect Remote monitoring optional 5-Year warranty Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Charger Input - Voltage: 9-35VAC Charger Output - Amps: 1-50A Charger Output Voltage: 10-35VDC Box Dimensions: 3"H x 6"W x 7"L WT: 1.7 lbs UPC: 8719076064848 Owner's Manual (pdf)Brochure (pdf)
