Class T Fuse Block 225-400 A - SealedApplications/Problems This Solves: Separate Stud Connections for Cable Mounting allow heavier gauge cables and their terminals to feed in and out of the fuse, which would otherwise land on the fuse tab itself. Ignition Protected to support installation in potentially hazardous gaseous environments such as LPG or on gas boats. Features: Tin-plated copper busbar delivers superior electrical performance with minimal voltage drop. Stainless Steel Self-Locking Hardware ensures robust connections & long-term connection reliability. Bulletproof construction from glass-filled nylon delivers the highest longevity in demanding environments.  4 Year Warranty Specifications: Maximum Amperage: 225-400A Max Voltage: 80 VDC Ingress Protection Ratings: IP66, IP67, IP6K9K Mounting Holes: 4x #10 (M5) & 2x 1/4" (M6) Mounting Screw Max Torque: 50 in-lbs (5.5 N-m) Busbar Material: Tin-Plated Copper This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

60A Surface Mount Circuit Breaker - 285 SeriesThis 60A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.Applications: Automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: Sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation  High Voltage (48 Vdc) Rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current High Interrupt Current - safely protects circuits connected to large paralleled battery banks with significant available power 4-Year Warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 60 Max Voltage: 48 Cycling Endurance: 6,000 Interrupt Current @16 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP67 Focal Features:ON/OFF High Visibility ControlsSealed against dust and moisture penetration. The high temperature rating for all installation locations.Integrated Terminal InsulatorsProtects against inadvertent shorts from positive terminals to adjacent grounded surfaces.Stainless Steel Hardware / Serrated Flange NutsCorrosion and vibration resistance for harsh environment applications.Proudly Made in the USAMade in the USA of high-quality components.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Amperage: 60a Box Dimensions: 3"H x 3"W x 5"L WT: 0.4 lbs UPC: 850035199145 Quick Guide (pdf)

Read more less

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.Features: Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing LED output to remotely indicate switch state - requires optional LED 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22 mm) stud length accepts multiple cable terminals Label recesses for circuit identification Silver alloy contacts provide high reliability for switching live loads Specifications: Control Circuit Connection: Deutsch DTM Nominal Voltage: 12VDC Coil Function: Bi-Stable Mounting: #10 Amperage Operating Current Continous: 0mA Terminal Stud Torque: 140 in-lb (15.82 Nm) Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cranking Rating 30 Seconds: 1450A DC Cable Size to Meet Ratings: 2x (4/0) Live Current Switching: 300A@12VDC Master Control Switch Capability: No Mechanical Endurance: 100,000 Cycles Terminal Ring Diameter Clearance: 1.18" (29.97 mm) Terminal Stud Length: 0.875" (22.23 mm) Terminal Stud Size: 3/8" - 16 (M10) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Interface MK3-USB (VE. BUS to USB) ModuleThe MK3-USB allows the following products to connect to a computer for configuration and firmware updates:Multi, MultiGrid, MultiPlus, MultiPlus-II, Quattro, Inverter/Charger settings in ECOmulti, EasySolar, EasyPlus, and Inverters with a VE.Bus communication portWarranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Panel-Mounted Battery Master SwitchPanel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution. Compact, lightweight Removable key Countersunk recesses for surface mount application Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole) Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions Standard interchange label system Molded in high temperature, fiber reinforced plastics WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Class T Fuse Holder with 2 Additional Studs 225-400A Providing high-capacity fusing, fast response and very high interrupt ratings (ANL up to 6,000 Amps, Class-T up to 20,000 Amps), these fuse holders are ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. They also protect wiring from short circuits. Pro Installer fuse holders' durable construction allow fuses to run at maximum load. Radiused ends improve cable routing options Class-T: 225-400 Amp WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Fuse Type: Class T Type: Fuse Blocks Box Dimensions: 2"H x 7"W x 8"L WT: 0.93 lbs UPC: 870216043500 Brochure (pdf)

Read more less

M2 AC MultimeterMonitors AC Amps, Volts, Hzs on large, bright display. Supports programmable current transformer ratios. Accurately measure and monitor AC amperage, voltage and Hz. (measures 2 voltages and 2 circuits)Features: Auto-dimming, bright OLED display is easy to read Easy to adjust 92dB alarm on all models Isolated MOSFET relay Specifications: Meter: Current, Frequency, Power, Voltage Function: 50 to 250V to 300A Alarms: High/Low Current, High/Low Frequency, High/Low Voltage Display Size: 55mm x 28mm Input Voltage: 7-70V DC Maximum Power Consumption: 1.00Watt Minimum Power Consumption: 0.3 Watt WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

Red 3/0 AWG Battery Cable - Sold By The Foot Pacer's 3/0 AWG Marine Battery Cable meets and exceeds the most stringent specifications. This UL-approved marine cable is manufactured in the USA to ensure high quality.  Marine installations can occur in tight, enclosed spaces that have sharp turns where the installation process can quickly become difficult. Pacer makes the installation process easier.  How?  By creating a flexible yet tough marine cable.  This 3/0 AWG marine battery cable can handle the toughest environments.  This marine battery cable is made from Type III tinned copper.  The copper resists corrosion and helps to extend the life of the marine cable. Then, the cable is insulated with a durable and flexible PVC jacket.  These things all come together to make the highest quality marine cable available.Features: Easy to strip, bend, and route Excellent flexibility with the durable properties of PVC Technical Specifications: Conductor - Annealed fine stranded tinned copper ASTM B172 Class K Insulation  -20 °C to 105 °C Flexible, Color Coded PVC Temperature Rating - 105 °C Dry, 75 °C Wet, 60 °C Oil Voltage Rating - 600V Resistant to - Acid, Alkali, Abrasion, Flame, Gasoline, Oil, and Moisture *Sold by the Foot Specifications: Color: Red Gauge: 3/0 AWG Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 1 lbs Brochure (pdf)

Read more less

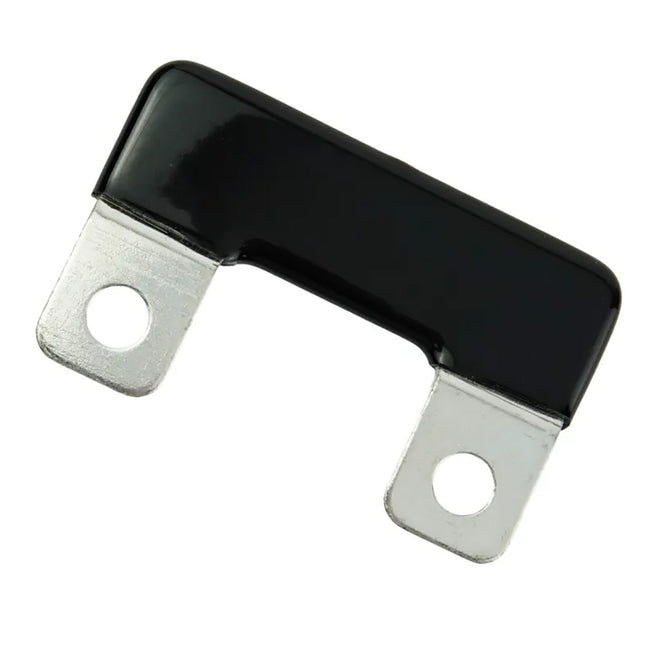

Busbar 85 Series LinkFeatures: Compatible with 85 Series surface- and panel-mount circuit breaker products Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop Insulated to prevent inadvertent short circuits This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

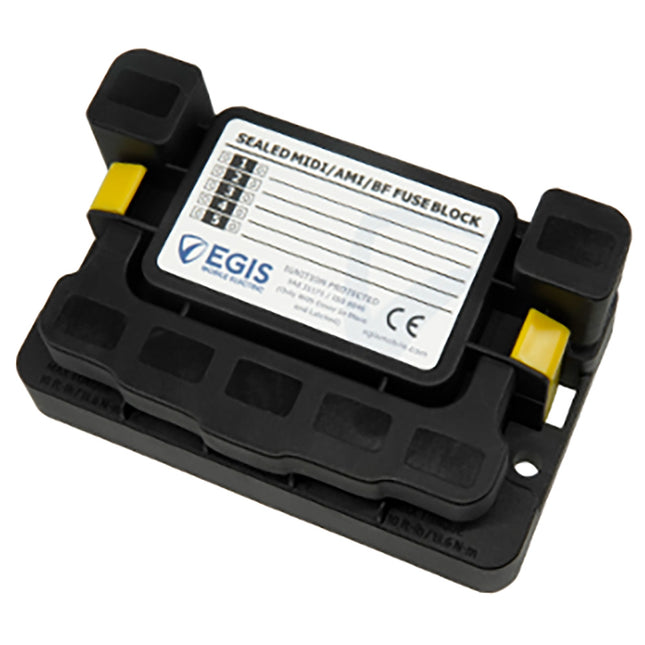

MIDI 5x Fuse Block with Sealed Cover, M8 Inputs, M6 OutputsFeatures: Sealed marine-grade construction fuse block compatible with 5 MIDI/AMI BF Type fused outputs Protects Add-on circuits from accidental short circuits to frame ground or battery negative, or from overload events Expandable with dual-, triple-, and quad-link busbars for plug-and-play installation and complete switching/protection solutions This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

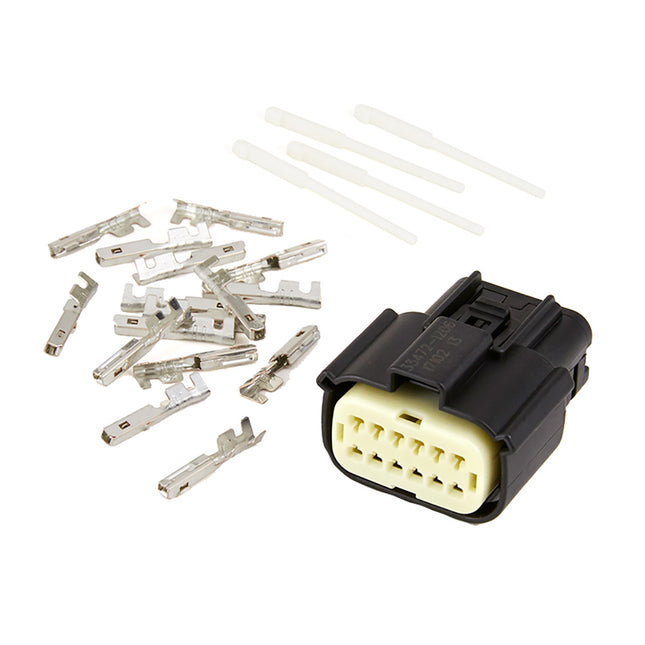

Connection Kit, MX-150 12-Position Female with 14 Terminals + 8 Cavity Plugs *Bulk PackMX-150 12 Position Connection Kit with 14-16 AWG Terminals.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

150A Dual Stud Common Busbar - 20 Screw with CoverFeatures: Compact Footprint allows for installation in areas where space is limited Variety of High and low-amperage outputs allows for a wide range of outputs to be distributed from a single busbar Stainless Steel Self-Locking Hardware ensures long-term reliability and ease of installation Tin-plated copper busbars deliver superior electrical performance with minimal voltage drop Transparent Cover protects against accidental electrical shock as well as ensuring maximum protection against inadvertent shorts to adjacent parts This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)
