Engine Parts & Service - Exhaust Hose

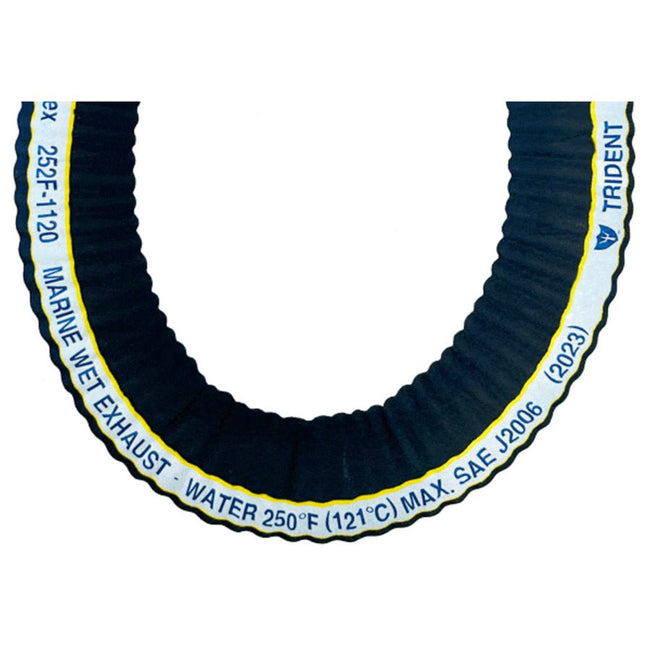

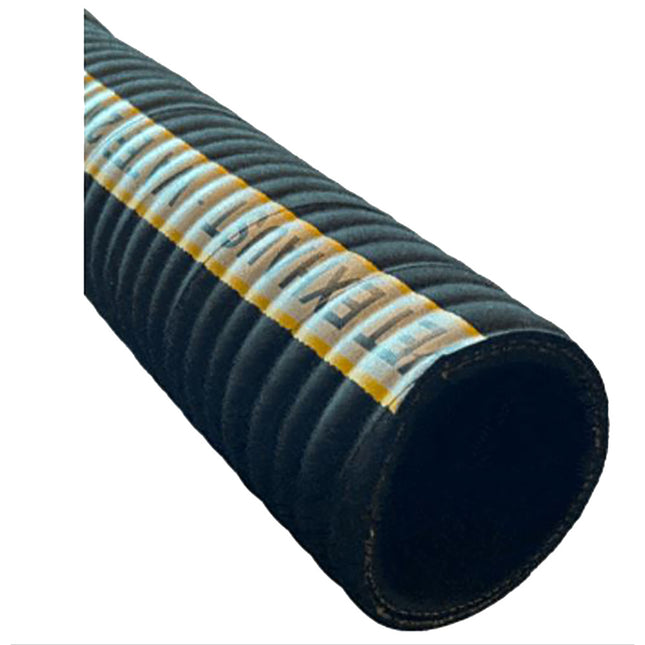

2" x 50' Extra-Flex Corrugated Marine Wet Exhaust HoseTrident Extra-Flex corrugated marine wet exhaust hose with EXTRA flexibility for easier installations on tight bends for longer connections. Thick tube and cover with wire helix between 2-ply reinforcement. Exceptional flexibility and bend radius. Resists heat, ozone, exhaust fumes, panting, and collapse. Exceeds (SAE J2006-R2, and ABYC & NMMA P-1 exhaust standards). Lloyd’s Registry Type Approved.Corrugated Wet Exhaust and Water Marine Hose offers the best performance with an incredible bend radius and high-temperature EPDM Rubber compounds. This enables it to handle higher temperatures while providing longer life and durability than its competition. It exceeds SAE J2006-R2, ABYC, and NMMA P-1 exhaust standards and is Lloyd’s Registry Type Approved. Black High Temp EDPM Rubber 250°F (121°C) Max. continuous.Features: Black High Temp EDPM Rubber 250°F (121°C) Max. Sizes: 1 1/2" to 8", 38mm to 203.2 mm Colors: Black with White stripe with yellow edges Packaging: 6.25' to 12.5' (1.9-3.8m) lengths, 50’ (15m) Coils Specifications: ID Diameter (inches): 2" Length (Feet): 50' Box Dimensions: 7"H x 29"W x 32"L WT: 45.3 lbs UPC: 704917008417 Quick Guide (pdf)

Read more less

1-1/2" x 36" Blue Silicone Wet Exhaust HoseTrident Silicone Marine Wet Exhaust Hose gives the best performance with a cool quiet elegance. Silicone naturally handles higher temperatures and will last longer than rubber exhaust hoses. The silicone will also transfer less heat into the engine room. The 202V series Silicone Wet Exhaust products are designed for short straight connections and come with a 10-year warranty.Trident Silicone Marine Wet Exhaust & Water-Coolant Hose is the ultimate in extra thick soft wall silicone quality with very high temp. performance and extra long service life. Exceeds SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards. #202V Glossy Blue “Very Hi Temp” has 4-6 ply polyester reinforcement and 350°F (177°C) Max. Used worldwide on premium boats, yachts, and special service vessels. It has become the super yacht standard.Specifications: 10-year warranty Tube & Cover: High-temp silicone Color: Blue Reinforcement: Polyester reinforcement Temperature Range: 350°F (176.7°C) Lengths: 3’ (.914m), 6’ (1.83m), 12’ (3.66m) *Burst Pressure is 4 x Working Pressure*All wet exhaust hose to be used on open-ended systems Specifications: ID Diameter (inches): 1-1/2" Length (Feet): 3' Box Dimensions: 2"H x 2"W x 36"L WT: 1.8 lbs UPC: 704917002972 Quick Guide (pdf)

Read more less

3" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 3” / (mm) 76.2  Outer Diamter: (inch) 3.5" / (mm) 88.9  A: (inch) 1.5” / (mm) 38.1 B: (inch) 1.5” / (mm) 38.1  C: (inch) 5.5” / (mm) 139.7 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 0.6 / (Kg/Ea) 0.27 Specifications: ID Diameter (inches): 3" Box Dimensions: 6"H x 7"W x 7"L WT: 1.5 lbs UPC: 704917000442 Quick Guide (pdf)

Read more less

Blue Silicone Wet Exhaust Hump with 4 T-Bolt Clamps - 8" ID x 8" LengthTrident Silicone Hump Hose Bellows provide the ultimate flexible connectors for marine wet exhaust systems. They offer much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space.Construction:  Tube & Cover: VHT blue silicone Color: Blue Reinforcement: Polyester reinforcement Temperature Range: 350°F (177°C) Specifications: Inner Diameter: (inch) 8" / (mm) 203.2 Outer Diameter: (inch) 8.5" / (mm) 216 Working Pressure: (Psi) 15 / (Bar) 1 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 8" Length (Feet): 8" Box Dimensions: 11"H x 13"W x 16"L WT: 5 lbs UPC: 704917000510 Quick Guide (pdf)

Read more less

4" Fiberglass Exhaust Tubing ConnectorThe fiberglass connectors are corrosion-resistant high-temperature exhaust tubes designed specifically to minimize exhaust gas and cooling water flow restrictions on wet exhaust systems. Precise outside diameters facilitate perfect connections between sections of tubing and flexible elbows, bellows, or hoses. Meets UL94V-0 for flame retardancy.Specifications: Construction: Natural Fiberglass Resin: Class 1 Fire Retardant Epoxy Vinyl Ester Thermoset Glass: Corrosion Resistant E Glass Color: Amber Reinforcement: Filament Winding Temperature Range: Up to 350°F (177°C) Specifications: ID Diameter (inches): 4" Box Dimensions: 8"H x 8"W x 9"L WT: 1.05 lbs UPC: 704917000336 Quick Guide (pdf)

Read more less

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 6” / (mm) 152.4 A: (inch) 7" / (mm) 178 B: (inch) 7” / (mm) 178 C: (inch) 2.25” / (mm) 57 D: (inch) 2.25” / (mm) 57 R: (inch) 1.75” / (mm) 44.4 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Specifications: ID Diameter (inches): 6" Box Dimensions: 8"H x 10"W x 15"L WT: 4.4 lbs UPC: 704917000435 Quick Guide (pdf)

Read more less

8" ID 45-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover; except elbows of 6" I.D. or larger have molded reinforcing ribs on the outside. Features: Four stainless steel t-bolt clamps Very high temp silicone/EDPM blend rubber - molded This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards  Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous Construction: Color: Blue Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 350°F (177°C) Specifications: Inner Diameter: (inch) 8” / 203.2 mm A: (inch) 2.25” / (mm) 5.7  B: (inch) 2.25” / (mm) 5.7  C: (inch) 8.5” / (mm) 21  R: (inch) 2.12” / (mm) 5.4  W: (inch) 0.37" / (mm) 9.4  Elbow Degree: 45 degrees  Specifications: ID Diameter (inches): 8" Box Dimensions: 8"H x 10"W x 15"L WT: 6.5 lbs UPC: 704917002354 Quick Guide (pdf)

Read more less

1" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius  Resists heat, ozone, exhaust, sani chemicals, panting, and collapse Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1" / (mm) 25.4 Outer Diameter: (inch) 1.57" / (mm) 25 Working Pressure: (Psi) 80 / (bar) 5.5 Bend Radius: (inch) 1.3" / (mm) 33 Weight: (Lb./50ft.) 30 / (Kg/m) 13.5 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.49 lbs Quick Guide (pdf)

Read more less

8" ID Blue Silicone Molded Wet Exhaust Hump with 4 T-Bolt ClampThis silicone and rubber hump hose provides the ultimate flexible connector for marine wet exhaust systems. The hump hose offers much greater tolerance to heat, misalignment, engine movement, and vibration, with significant savings in cost, parts, labor, and space.Construction: Tube & Cover: VHT blue silicone Color: Blue Reinforcement: EPDM Silicone Rubber Temperature Range: 350°F (177°C) Specifications: Inner Diameter: (inch) 8" / (mm) 203 Outer Diameter: (inch) 8.5" / (mm) 215.9 Working Pressure: (Psi) 15 / (Bar) 1 *Burst Pressure is 4 x Working Pressure Specifications: ID Diameter (inches): 8" Box Dimensions: 9"H x 10"W x 15"L WT: 3.1 lbs UPC: 704917002569 Quick Guide (pdf)

Read more less

3" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber  Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 3” / (mm) 76.2 A: (inch) 5.25" / (mm) 133 B: (inch) 5.25” / (mm) 133 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.75” / (mm) 44.4 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Specifications: ID Diameter (inches): 3" Box Dimensions: 4"H x 4"W x 9"L WT: 1.6 lbs UPC: 704917000404 Quick Guide (pdf)

Read more less

1-1/2" Flex Marine Wet Exhaust & Water Hose - Black - Sold by the FootTrident Flex wet exhaust hose for longer bent connections. In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses. Resists heat, ozone, exhaust, panting, and collapse. Black High Temp EDPM Rubber 250°F (121°C) Max.Features:  Sold by the foot Extra heavy tube and cover with wire helix between 2-ply reinforcement provides excellent flexibility and bend radius Exceeds SAE J2006-R2, ABYC & NMMA P-1 exhaust standards, and Lloyd’s Registry Type Approved Application: Trident Flex wet exhaust hose for longer bent connections In smaller I.D.s for engine intake, critical water, drain, scupper bilge & sanitation uses Construction: Tube & Cover: High temp EDPM rubber Color: Black with blue stripe Reinforcement: Multi-ply, high-tenacity polyester, steel helix Temperature Range: 250°F (121°C) Specifications: Inner Diameter: (inch) 1-1/2" / (mm) 38 Outer Diameter: (inch) 1.97 / (mm) .05 Working Pressure: (Psi) 60 / (bar) 4.1 Bend Radius: (inch) 4.0" / (mm) 102 Weight: (Lb./50ft.) 45 / (Kg/m) .518 *Burst Pressure is 4 x Working PressureThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: ID Diameter (inches): 1-1/2" Length (Feet): Sold By The Foot Box Dimensions: 1"H x 1"W x 6"L WT: 0.9 lbs Quick Guide (pdf)

Read more less

6" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 6” / (mm) 152.4 Outer Diamter: (inch) 6.5" / (mm) 165.1 A: (inch) 2” / (mm) 50.8 B: (inch) 2” / (mm) 50.8 C: (inch) 6.5” / (mm) 165 W: (inch) 0.25” / (mm) 6.35 Elbow Degree: 45 degrees Weight: (Lb/Ea) 1.95 / (Kg/Ea) 0.88 Specifications: ID Diameter (inches): 6" Box Dimensions: 8"H x 8"W x 9"L WT: 3.2 lbs UPC: 704917000473 Quick Guide (pdf)

Read more less
