Lighting - Navigation Lights

Stealth Series - L.E.D. Fold Down White All-Round Light(1639)For use on windshields, T-Tops, Rails, Arches and Hard Tops Plastic Adapter Available for Flat or "V" Type Mounts, Contains Notch for Through-Base Wiring Fold-Down, Adjustable Angle Reduced Glare Design Black Plastic Top with Clear Fluted Lens & Frosted Globe Black Plastic Base Vertical Height: 13-3/8" 12v Pole: 3/4" Diameter Anodized Base Dimensions: 2-1/4" x 5/8" Specifications: Lens Color: White Visible Range (Miles): 2nm Voltage - Input Range (Volts): 12v Housing: Black LED: Yes Box Dimensions: 5"H x 7"W x 19"L WT: 0.95 lbs UPC: 085226771170 Quick Guide (pdf)

Read more less

Fixed Mount Combination Masthead / White All-Round Light Fixed Mount Black Polymer and Chrome Plated Zinc Alloy Top Black Polymer Base 3/4" Diameter Anodized Aluminum Tube Bulb: 12V (Included) Pole: 3/4" Dia. Anodized Base Dimensions : 1" x 2-5/8" Screw Size: #8 Specifications: Lens Color: White Visible Range (Miles): 3nm Housing: Black Voltage - Input Range (Volts): 12v LED: No Box Dimensions: 2"H x 4"W x 7"L WT: 0.4 lbs UPC: 085226012822 Quick Guide (pdf)

Read more less

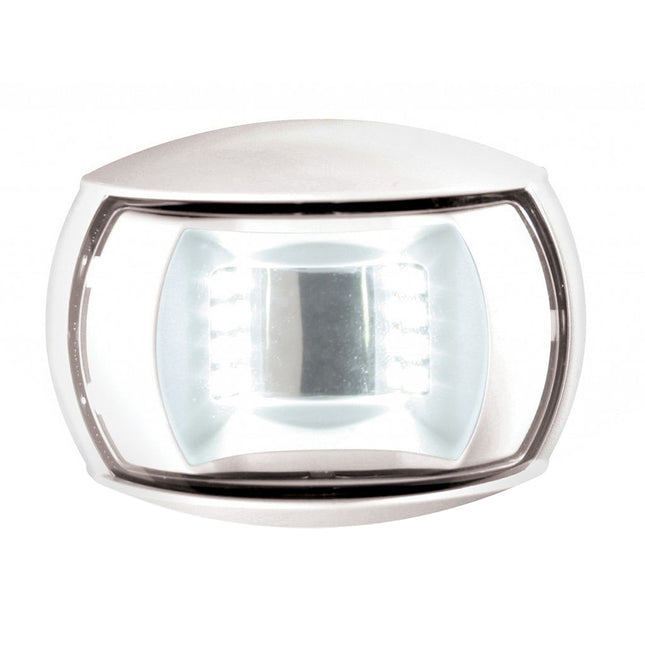

NaviLED Stern Navigation Lamp - 2nm - White HousingUltra durable, power saving LED navigation lamps for enhanced safety. NaviLED® lamps are proven worldwide on commercial, military and recreational vessels.Ultra low current drawNaviLED® lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2W combined!No bulbs, No maintenance, Ultra long service lifeHella marine LED technology has no filaments to break making NaviLED® lamps extremely shock and vibration proof for proven reliability and safety in demanding conditions.Multivolt™ 9-33V DCAdvanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.Fully sealed for life. IP 67 certifiedEach NaviLED® lamp is a completely sealed unit. High impact housings ensure durability from waves and impact.Pre-wired with Marine CableSingle core (120mm)  Ensures time saving, completely sealed installations.Specifications: Material Description: UV resistant, enhanced impact resistant acrylic lens High impact shroud Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats) Cable: Pre-wired with marine cable Operating Voltage: Multivolt™ 9-33V DC (earlier version 8-28V DC Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts Power Consumption: Less than 2W combined Degree of Protection: IP 67 - Completely Sealed Weight: 60g (with 120mm cable version) Approvals: BSH, IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ Specifications: Lens Color: White Visible Range (Miles): 2nm Housing: White Voltage - Input Range (Volts): 12/24v LED: Yes Box Dimensions: 2"H x 4"W x 8"L WT: 0.3 lbs UPC: 9416325173557

Read more less

NaviLED PRO Port Navigation Lamp - White Shroud - Red Lens - 3NMThis NaviLED PRO port lamp covers vessel requirements over 50m. NaviLED®PRO lamps are proven worldwide on commercial, military, and recreational vessels.Ultra-Low Current DrawThis port lamp consumes less than 3.2W combined.No bulbs, No Maintenance, Ultra Long Service LifeHella marine LED technology has no filaments to break, making NaviLED®PRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.Multivolt™ 9-33V DCAdvanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.Fully Sealed for Life. IP 67 CertifiedEach NaviLED®PRO lamp is a completely sealed unit. High-impact housings ensure durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid® lenses to offer superior strength in extreme conditions.Pre-wired with 2.5M of Twin-Core Marine CableHigh-quality cable assemblies for time-saving, completely sealed installations.Specifications: Lamp Type: Port navigation Lens Color: Red Housing Color: White Material Description: High impact resistant acrylic lens Minimum Visible Distance: 3 Nautical Miles (Yachts and Powerboats) Cable: Pre-wired with 2.5M of twin-core marine cable Operating Voltage: Multivolt™ 9-33V DC Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts Power Consumption: Less than 3.2W combined. Degree of Protection: IP 67 - Completely Sealed Weight: 250g (including cable) Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ Specifications: Housing: White LED: Yes Lens Color: Red Visible Range (Miles): 3nm Voltage - Input Range (Volts): 9-33v Box Dimensions: 4"H x 4"W x 6"L WT: 1 lbs UPC: 9416325253280

Read more less

Surface Mount Navigation Light - Red - PortLumitec offers surface mount navigation lights for retrofit and new applications where a molded-in pocket is not possible or practical. Clean styling and unmatched reliability. Choose a classic aluminum half-round design for mounting to vertical surfaces or the more contemporary composite version for horizontal mounting surfaces. U.S. Coast Guard approved 2nm for vessels up to 50m/165 feet.Specifications: Finish: White Color Output: Port/Red Voltage: 10-30V DC 12V DC: 67mA 24V DC: 33mA Visibility: 2nm

Read more less

Rub Rail Mounted LED Navigation Light Set - 2-1/2" With constant innovation in mind, we've developed a line of Rub Rail-mounted LED navigation lights – sleek, low-profile lights designed to allow for cleaner, open decks with non-obstructed view points. Very popular with bay boats, these easy-to-install lights meet ABYC and USCG requirements for both sail and powerboat designation, have a water-resistant IP68 rating and provide hours of maintenance-free, reliable use. Features: Ideal for up to 30-foot boats and designed to fit the popular 3/4-inch insert profiles Special order item sold in pairs with one 3-watt port (red) light and one 2-watt starboard (green) light Brightness compares to 10-watt incandescent light Enables more deck space and easy to install Provides a 120-degree unobstructed view with less glare Meets ABYC/USCG requirements for both sail and powerboat designation Low-voltage 12-14VDC Anodized aluminum heat sink for maximum heat dissipation LED lights are mounted in a heavy gauge polished stainless-steel joiner cover Water-resistant IP68 rating Takes a 1-inch #8 stainless-steel fastener (not included) Comes with detailed installation instructions 1-year limited warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Lens Color: Red/Green Housing: Aluminum Voltage - Input Range (Volts): 12v LED: Yes Box Dimensions: 1"H x 4"W x 8"L WT: 0.2 lbs UPC: 630931089272

Read more less

NaviLED 360 Compact All Round Lamp - 2nm - 12" Fold Down Base - BlackHella marine NaviLED® 360 lamps feature single LED efficiency, advanced Multivolt™ electronics and precision optics for reliable and highly visible all round lightingUsing only high performance materials the NaviLED 360 Compact series is long term durable in demanding marine environments.A power consumption of less than 1W power offers exceptional power efficiency for a 2 NM all round anchor lamp.Each lamp is completely sealed (IP67) and manufactured using Swiss Made Grilamid with unsurpassed properties. Long term stability against UV degradation coupled with high impact and chemical resistant meaning these lamps will not yellow, become embrittled or corrode.Internationally approved the NaviLED 360 series meets the requirements of COLREG, USCG, ABYC-16, RCD and WHEELMARK. Multivolt™ circuitry provides constant illumination and circuit protection from 9-33V DC.Hella marine LED navigation lamps are expertly designed and precision manufactured in New Zealand and backed a 5-year warranty for complete peace of mind.Specifications: Material Description: UV resistant, enhanced impact acrylic lens. Anodized aluminium lamp base and pole Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats) Cable: Pre-wired with 1.5M of twin core marine cable Operating Voltage: Multivolt 9-33V DC Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -500 volts Power Consumption: < 1.0W Degree of Protection: IP 67 - Completely Sealed Weight: 250g (including cable) Approvals: IMO Col Reg 72, Wheelmark, USCG, ABYC A-16, RCD, Maritime NZ Specifications: Lens Color: White Visible Range (Miles): 2nm Housing: Black Voltage - Input Range (Volts): 9-33v LED: Yes Box Dimensions: 3"H x 5"W x 19"L WT: 0.6 lbs UPC: 9416325242710

Read more less

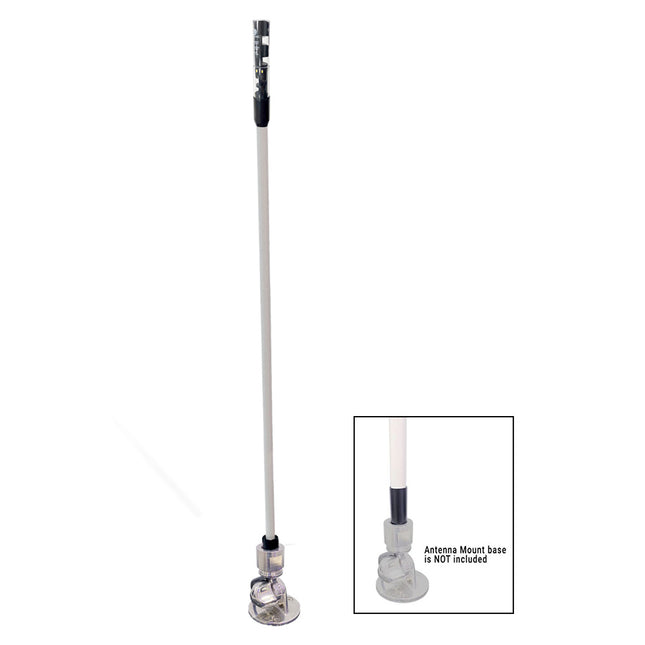

Contour Masthead Combo Light with Antenna Mount *Antenna Mount Base Not IncludedThe Contour Masthead 360 All-Round Anchor Combo Light takes masthead combo lights to a new level. An innovative design approach dramatically reduces the light's profile and weight, making this Contour Masthead/Anchor Combo Light the slimmest and lightest on the market. Meeting USCG and NMMA C5 2021 standards and rated to 3 nautical miles, the Contour Masthead/Anchor Combo Light is available in a 39” (1m) length with two mounting options—a motorized base and antenna mount. It is IP67 compliant. NOTE: The Antenna Mount base is not included with the light (shaft fixture ONLY).Specifications: 12 VDC Amps: 185mA 24 VDC Amps: 95mA CE Certified: No Color Match Commitment (CM): No Color Output: White Finish/Housing: 39"-White with Antenna Base Height: 39 in (99.6 cm) - 1M IP Rating: 67 Op. Temp F/C: -31/35 to + 131/55 PLI Enabled: No Related Watts: 2.2W Third Party Dimmer Compatibility (3PD): No Timed Toggled Protocol (TTP): No UL Certified: No USCG Rated: 3 NM Voltage: 10-30 VDC

Read more less

Stern Navigation Lamp- Incandescent - 2nm - Black Housing - 12VCompact and proven navigation lamps for yachts and powerboats.Saltwater resistant and non-magnetic, 3562 series lamps feature a 'snap lock' housing allowing bulbs to be changed without tools.Specifications: Material Description: UV and impact resistant plastic housing and lens Minimum Visible Distance: 2 Nautical Mile Bulb: 12V / 10W SV8.5 included Installation: Vertical surface mount Cable Entry: Through base plate with rubber grommet Degree of Protection: IP 54 Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ Specifications: Visible Range (Miles): 2nm Lens Color: White Housing: Black Voltage - Input Range (Volts): 12v LED: No Box Dimensions: 3"H x 4"W x 7"L WT: 0.3 lbs UPC: 9002920131650

Read more less

NaviLED Port & Starboard Pair - 2nm - Clear Lens/Black HousingCompact LED navigation lamps. Attractive, power saving and ultra reliable. Designed and manufactured in New Zealand, NaviLED® lamps save power on board and provide outstanding durability.Ultra low current drawNaviLED® lamps use less than 10% of the power required to run a bulb navigation lamp of the same visible distance. Port and Starboard lamps consume less than 2W combined!No bulbs, No maintenance, Ultra long service lifeHella marine LED technology has no filaments to break making NaviLED® lamps extremely shock and vibration proof for proven reliability and safety in demanding conditions.Multivolt™ 9-33V DCAdvanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.Fully sealed for life. IP 67 certifiedEach NaviLED® lamp is a completely sealed unit. High impact housings ensure durability from waves and impact.Pre-wired with Marine CableSingle core (120mm) or twin core (2.5m) sheathed marine cable assemblies available. Ensures time saving, completely sealed installations.Specifications: Material Description: UV resistant, enhanced impact resistant acrylic lens High impact shroud Minimum Visible Distance: 2 Nautical Miles (Yachts and Powerboats) Cable: Pre-wired with marine cable Operating Voltage: Multivolt™ 9-33V DC (earlier version 8-28V DC Voltage Protection: Spike protected to +500 volts. Reverse polarity protected to -700 volts Power Consumption: Less than 2W combined Degree of Protection: IP 67 - Completely Sealed Weight: 60g (with 120mm cable version) Approvals:  IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ Specifications: Lens Color: Red/Green Visible Range (Miles): 2nm Housing: Black Voltage - Input Range (Volts): 12/24v LED: Yes Box Dimensions: 2"H x 5"W x 9"L WT: 0.2 lbs UPC: 9416325196532 Quick Guide (pdf)

Read more less

Contour Series Navigation/Docking Combination Light - Port RedInnovation – plain and simple. Lumitec’s engineers have combined a bright, sharp 1,000-lumen dock light with a U.S. Coast Guard-approved 2nm navigation light. Easy to install, great looking, and all the reliability you’ve come to expect from Lumitec.Specifications: Output: Port Red Visibility: USCG2NM Flood Lumens: 1000 Voltage: 10-30V DC 12V DC Amps: 1.3A (flood) 24V DC Amps: 600mA (flood) Conforms to: ABYC A1 Specifications: Housing: White LED: Yes Lens Color: Red Visible Range (Miles): 2nm Voltage - Input Range (Volts): 12/24v Box Dimensions: 4"H x 5"W x 5"L WT: 0.55 lbs UPC: 089300018496 Brochure (pdf)

Read more less

Contour Anchor Light - 12" - White Shaft, White BaseLED Navigation Anchor Light - The design says it all. Unobtrusive, durable, reliable, with striking good looks. The slimmest profile in the industry and has a locking retractable base. Select from 12” or 1m heights. U.S. Coast Guard-approved 2nm.Features: USCG approved to 2 nautical miles (2NM) Slim profile with a small footprint Available in 12"(1ft)  and 39"(1M) lengths Retractable design with lockable base Easy installation with 2-wire hookup Voltage: 10-30V DC

Read more less
