Halogen 8504 Series Masthead/Floodlight Lamp - BlackDeck Floodlight and Masthead Lamp combined in one robust housing.Suitable for vessels less than 20m in length.Features:
3 Nautical Mile Masthead lamp
Hella 'Free Form' reflector technology
Flexible mounting arms for mounting on a variety of mast profiles
Illuminates large areas of deck or superstructure
Glass lens bonded with reflector to be dust and moisture resistant
Covered bulbs for moisture protection
All metal parts are stainless steel
Specifications:
Housing Description: UV and impact resistant plastic housing
Bulb: 12V / 10W BAY15d and 12V / 55W H3 bulbs included
Mounting: Navigation lamp and Deck Floodlight require separate wiring Housing arms flex to fit around mast pro
Degree of Protection: IP X4
Maximum Output: Deck lamp 12V / 55W or 24V / 70W, Note - Not suitable for 100W bulbs
Approvals: BSH, IMO COLREG, USCG, RINA, ABYC A-16, NMSC, Maritime NZ
Specifications:
Housing: Black
Lens Color: White
Voltage - Input Range (Volts): 12v
LED: No
Box Dimensions: 5"H x 9"W x 10"L WT: 2.35 lbs
UPC: 9002920033039
E-Series PRO 20" Spot-Flood Combo LED - WhiteThe E-Series is one of RIGID's most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111% more raw lumens than ever before with the E-Series PRO. Among RIGID's most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance. Plus, new branding and new blacked-out circuit boards give the E-Series PRO a more refined look. Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Driving, Hyperspot, Diffused, and new Driving/Spot and Spot/Hyperspot combinations. These and other innovations make it one of the brightest and most efficient LED light bars on the market. The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications.Features:
Optics: Hybrid - Spot / Flood Combo
LED Color: White
Finish Color:White
Length: 20"
Mount Type: Surface
Shipping Dimensions: 6" × 23.25" × 6"
Product Weight: 6.1lb
Sold As: Single
Specifications:
Watts: 110
Amp Draw: 7.97
LED's: 40
Raw Lumens: 9200
Lux @ 10M: 2620.0
Beam Distance: 1023.7M
Peak Beam Intensity: 262,000 cd
Specifications:
Beam Pattern: Spot-Flood Combo
Housing: White
Length (Inches): 20"
Voltage - Input Range (Volts): 12v
Box Dimensions: 7"H x 8"W x 24"L WT: 9.3 lbs
UPC: 849774029417
Brochure (pdf)
Blackout LED Cube Light - Flush Mount - 3"SPECS
Input Voltage- 10-30V DC
Wattage- 12W
(4-3W CREE LED)
Raw Lumens- 960
LUX at 10M- 17
Color Temperature- 6000K
Beam Pattern- 90 degree Flood
CONSTRUCTION
Housing Material- Die-cast Aluminum Housing
Housing Color- Black
Lens Material- PC
Mounting Bracket- Flush Mount
Electronics- Integrated-Epoxy Encapsulated
Hardware- Stainless 316 and includes a gasket and cut out template
OPERATION
Operating Temperature- -40 degree C to +60 degree C
Current Consumption- .9 amps @ 13.8 volts
IP Rating- IP68
Protections- Reverse Polarity
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Voltage - Input Range (Volts): 10-30v
Length (Inches): 3"
Housing: Black
Beam Pattern: Flood
Bulb Type: LED
Box Dimensions: 5"H x 5"W x 6"L WT: 1.8 lbs
UPC: 086429312719
NaviLED 360 Compact All Round White Navigation Lamp - 2nm - Fixed Mount - Black BaseWith a compact mounting footprint Hella marine NaviLED 360 Compact lamps feature single LED efficiency, advanced Multivolt™ electronics and precision optics for reliable and highly visible all round lighting.With less than 1W of consumption, NaviLED 360 Compact lamps draw a fraction of the energy required to run a conventional 2 nautical mile incandescent lamp.No bulbs, No maintenance. Ultra long service lifeHella marine LED technology has no filaments to break making NaviLED lamps extremely shock and vibration proof for reliability and safety in demanding conditions.Multivolt™ 9-33V DCAdvanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages. The compact Multivolt™ drive circuitry provides reverse polarity, spike and over-voltage protection for long life and reliable operation.Safe and highly visibleHella marine optics deliver 100% correct light output and enhance visibility compared to bulb navigation lamps.Fully sealed for life. IP 67 CertifiedEach NaviLED 360 Compact lamp is a completely sealed unit, highly UV and corrosion resistant. High impact housings ensure durability from waves and impact. NaviLED 360 Compact anchor lamps have undergone extensive ‘tested to destruction’ programs to help lift product reliability to a new standard.Specifications:
Material Description: UV and impact resistant plastic housing and heavy duty Grilamid lens
Minimum Visible Distance: 2 Nautical Miles (Yacht and Powerboats)
Cable: Pre-wired with 500mm of twin core cable
Operating VoltageMultivolt 9-33V DC
Power Consumption: <1W
Degree of Protection: IP 67 - Completely Sealed
Weight: 90g including cable
Approvals: IMO Col Reg 72, Wheelmark, RCD, USCG, ABYC A-16, Maritime NZ
Specifications:
Visible Range (Miles): 2nm
Lens Color: White
Housing: Black
Voltage - Input Range (Volts): 9-33v
LED: Yes
Box Dimensions: 3"H x 5"W x 8"L WT: 0.35 lbs
UPC: 9416325230809
Owner's Manual (pdf)
NaviLED PRO Starboard Navigation Lamp - Black - 3NMThis starboard power-saving LED navigation lamp is ultra-durable for enhanced safety. NaviLEDPRO lamps are proven worldwide on commercial, military, and recreational vessels.*Designed for the starboard side of a vessel.Ultra-Low Current DrawThis lamp consumes less than 3.2 watts combined.No Bulbs, No Maintenance, and an Ultra-Long Service LifeHella marine LED technology has no filaments to break, making NaviLEDPRO lamps extremely shock- and vibration-proof for proven reliability and safety in demanding conditions.MultivoltTM 9-33V DCAdvanced electronics ensure reliable illumination and lamp protection even under severe voltage fluctuations and low battery voltages.Fully Sealed for Life. IP67-CertifiedThis NaviLEDPRO lamp is a completely sealed unit. High-impact housing ensures durability from waves and impacts. Ultra-heavy-duty BSH versions use high-tech Grilamid lenses to offer superior strength in extreme conditions.Pre-wired with 2.5m of Twin-Core Marine CableHigh-quality cable assemblies for time-saving, completely sealed installations.Specifications:
Dimensions (W x H): 3.43 x 3.54 inches (87mm x 90mm)
Lamp Color: Black
Material Description: Hi-impact-resistant acrylic lens
Minimum Visible Distance: 3 nautical miles (powerboats only)
Cable: Pre-wired with 2.5m of twin core marine cable
Operating Voltage: Multivolt 9-33V DC
Voltage Protection: Spike is protected to +500 volts. Reverse polarity is protected to -700 volts
Power Consumption: Less than 3.2W
Degree of Protection: IP67 (completely sealed)
Weight: 250g (including cable)
Approvals: IMO Col Reg 72, RINA, USCG, ABYC A-16, Maritime NZ
Specifications:
Housing: Black
Visible Range (Miles): 3nm
Voltage - Input Range (Volts): 9-33v
Box Dimensions: 4"H x 4"W x 6"L WT: 0.75 lbs
UPC: 9416325253341
Owner's Manual (pdf)
Pulsar Bi-Color 2-Pin Stowaway Light - 10"AngledAttwood offers a variety of durable, stowaway, combination pole-mounted sidelights for bow mounting. Each features an anodized aluminum pole that raises the light head for visibility above trolling motors, anchors, or other equipment on the bow. When not in use, lights can be removed from the base and stowed, so they won’t interfere with fishing or anchoring.Features:
1-mile, 225° light visibility for boats up to 39.4 ft. (12 m)
Includes 9W wedge base lamp
2-Pin Locking-Collar Pole
Specifications:Pole Length: (inch) 10" Angled*Locking collar design is compatible only with LightArmor Plug-In Bases Specifications:
Lens Color: Red/Green
Visible Range (Miles): 1
Box Dimensions: 3"H x 6"W x 17"L WT: 0.35 lbs
UPC: 022697911070
Quick Guide (pdf)

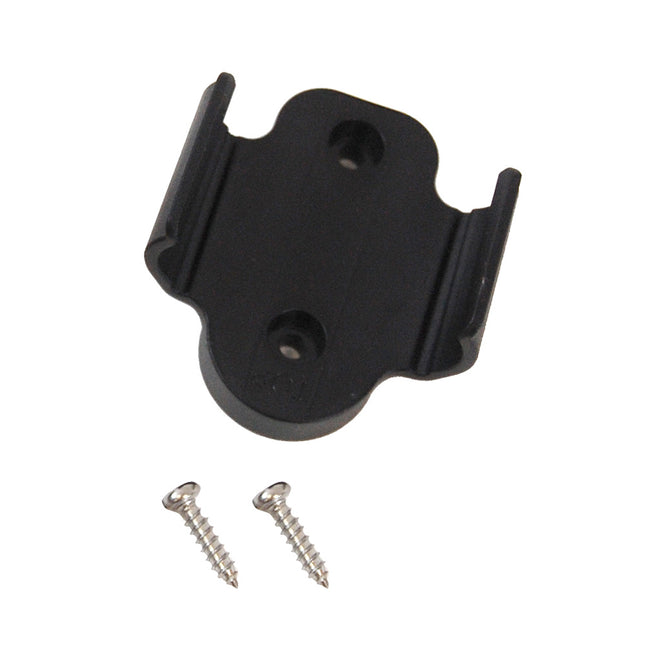

Remote Holster for Wireless Handheld RemoteWireless Hand Held Remote Holster by Golight. This product is compatible with 30100 and 30300 wireless hand-held remote controls.
Module 70 Gen 4 LED Floodlight - White Housing - Long Range - 800 LumensDurable and efficient LED floodlights offering power-saving illumination.Capitalizing on the electronic and optical performance of the larger body LED Mega Beam series, Hella marine Module 70 LED lamps offer state-of-the-art technology and performance in a smaller housing.Offering 800 lumens of crisp white light for a low power consumption of 15W (1.25A @ 12V), the compact high technology lamps provide substantial power savings compared to 55W halogen lamps.The completely sealed module 70 series provides ultra-durable ‘fit and forget’ advantages with ongoing reliability in applications subject to high vibration, impact, and shock loads.Features:
LED
12/24V Multivolt
IP67 Completely Sealed
UV Resistant
800 Lumens
5-Year Warranty
Specifications:
Material Description: UV and impact-resistant plastic front housing
Die-cast aluminum body
Glass lens
Bracket: 316 stainless steel
Color Temperature: 6500K
Cable: Pre-wired with 2.0m of twin core marine cable
Operating Voltage: Multivolt 9-30V DC
Degree of Protection: IP 67 - Completely Sealed
Power Consumption: 13W (<1.08A@12V / <0.54A@24V)
Weight: 500g (including cable)
Light Output: 800 lumens (Gen III)
Approvals: CE
DLX Series Down Light - Black Housing - Full-ColorThe Shadow-Caster® Large Down Light (SCM-DLX) is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3” overall diameter, its wide-angle spread of light and all-glass reveal makes this the ideal light for T-Tops, cabins, towers, and more. The SCM-DLX series is available in 3 light output choices; single color white, 3 colors (white, blue, and red) as well as a full-color version. Choose from three beautiful color finishes – white, black and polished chrome. Easily control the brightness and color from a standard switch.Features:
Soft start technology ramps the brightness up gently over 2 seconds
Power toggle feature to set brightness and change color
True white LED for best color performance
120-degree viewing angle
High-efficiency switch mode power supply
Waterproof low-profile aluminum housing
White, black, or polished chrome finish
All-Glass reveal provides a modern look
Specifications:
300-lumen output
120-degree beam angle
3-watt power draw
10-30 volts Input
250mA at 12 volts, 125mA at 24 volts
6200 Kelvin cool white color temperature
3” (76mm) OD, 0.175” (4mm) mounting height
2” mounting hole
IP67 waterproof design
Durable glass lens
Color change version includes Shadow-NET® interface for control
Includes:
Down light
Flush-mounting bracket and (3) #4 X 0.5” SS316PH screws
Quick start guide
Standard 2 year warranty

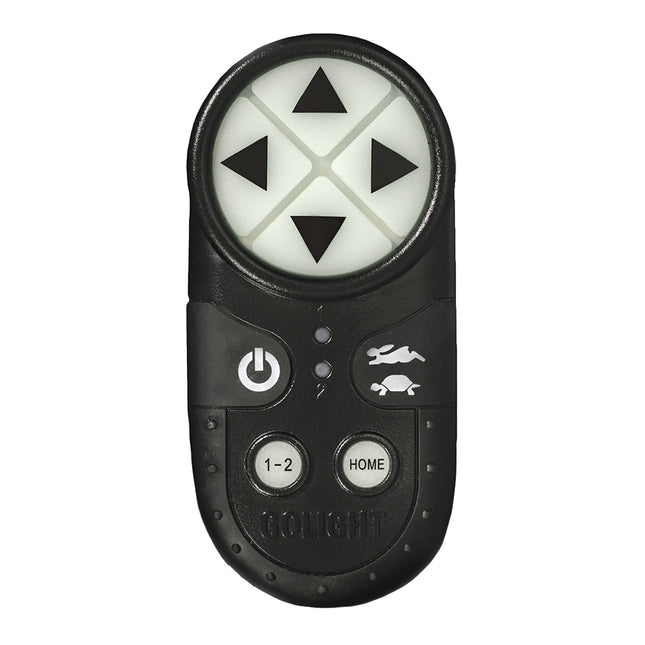

reless Handheld Remote for Stryker ST OnlyThe Stryker ST’s remote-control unit is as simple to operate as it is intelligent. Large buttons are easy to access even with gloved hands, and fluorescent iconography makes the controller buttons legible in dark or low-light conditions. Now powered by two regular AAA batteries, the controller is more convenient to maintain than ever. The new Stryker ST lets users pan and tilt simultaneously. It also comes with a unit selector function that enables a user to operate two Stryker STs individually or in synchronisation, using a single remote-control transmitter.
RGB Controller Get the most out of RGB lights, whether Black Oak's marine RGB accent lights or another brand, using Black Oak's thoroughly tested RGB Controller. Giving users the option to select and cycle through nearly endless color options. Mount the module in a secure place in the console, glove compartment, or another secure location, and enjoy the ease of use of the handheld controller.Features:Run up to 15 of our RGB accent lights off one controllerSpecifications:
Product Dimensions (L x W x H): 3.1875” x 2.5” x 0.875”
Distance between Mounting Tab Holes: 2.75”
Input Voltage: 12v-24v
Controller Battery: CR2025-CR2032
In the box:
RGB Module
Wireless controller
Specifications:
Type: Parts
Box Dimensions: 2"H x 3"W x 6"L WT: 0.3 lbs
UPC: 850044517367
4-LED Deck Light - Flat Mount - White HousingUnique, low profile LED multi-purpose deck light designedfor flat mount. Ideal for hard tops, consoles, interior cabin,under gunnel.Features:
USCG, ISO and SAE certified for Ignition Protection*
10.0 Watt equivalent to a 55 Watt halogen flood light
Powerful 700 lumen output with 100° spread beam angle
12-24 volt applications
Very low power consumption (0.9 amps @ 12V, 0.5 amps @ 24V)
8' hidden power cable
Available mounting options: Stainless Steel Swivel Bracket or 3M adhesive tape
Compact design bolts directly to any flat surface 5" long and 1-3/8" width
Material Characteristics
White or Black UV-resistant Polycarbonate housing
Durable and self-extinguishing clear plastic lense
Anodized Aluminum heatsink
LED chips are silicone potted for IP67 Waterproof (non-submersible)*Completely sealed lights have been tested in an explosive environment and exposed to an explosive atmosphere in high temperature that includes powering on-off 50 times without igniting the atmosphere at a temperature not exceeding 200° C. These certificates demonstrate the ability to consistently provide product that meets statutory and regulatory requirements that assure customer satisfaction and safety. Ideal for use in engine rooms, battery compartments and anywhere fire safety is of most importance.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Bulb Type: LED
Voltage - Input Range (Volts): 12/24v
Housing: White
LED Color: White
Dimming: No
Box Dimensions: 2"H x 3"W x 6"L WT: 1 lbs
UPC: 630838087739
Brochure (pdf)
