Marine Hardware - Hinges

Door HingeSize:1-1/2" x 3"Fastener: #8(6)Material:Black Nylon Specifications: Material: Nylon Color: Black Box Dimensions: 1"H x 1"W x 2"L WT: 0.1 lbs UPC: 725060303013

Read more less

Stainless Steel Short Side Door Hinge - Stamped *Bulk Case of 10*These Short Side Door Hinges are great for interior and exterior applications such as cabinets, hatches, folding tables, or seats where mounting space is tight. Constructed of corrosion resistant stamped 304 stainless steel. Installs with five #8 FH fasteners (not included).WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

Strap Hinge - PairLength:4"Width:1"Fastener:#10(4)Material:Polished Brass Specifications: Material: Brass Color: Brass Box Dimensions: 2"H x 3"W x 6"L WT: 0.3 lbs UPC: 725060060435

Read more less

Folding Seat HingeUse to build a folding seatLength:2"Width:3-3/16"Depth:1-1/4"Fastener:#10(4)Material: 304 Stainless Steel Specifications: Material: Stainless Steel Color: Stainless Box Dimensions: 1"H x 1"W x 1"L WT: 1 lbs

Read more less

Offset HingeSize:1-1/2" x 2-1/4"Fastener: #8 FHMaterial: 304 Stainless SteelOffset:3/4" Specifications: Material: Stainless Steel Color: Stainless Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs UPC: 725060343910

Read more less

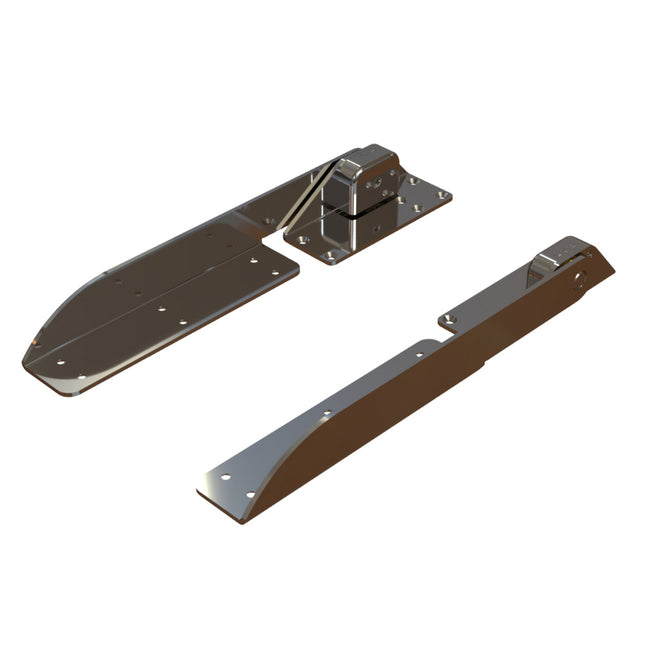

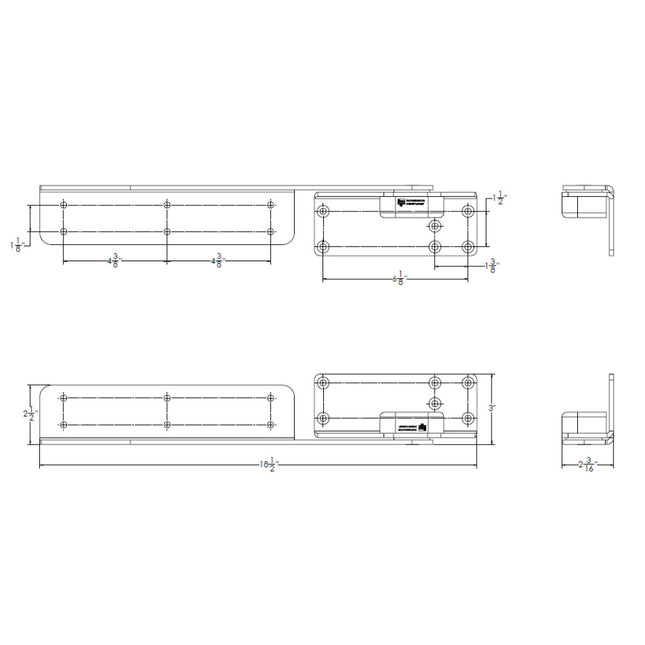

Command Ratchet Hinges - 18-1/2" - 316 Stainless Steel - PairBecause of the success of the popular 9-3/8" long Command Ratchet Hinge, TACO developed the 18-1/2" long counterpart for longer applications. This heavy-duty, extended specialty hinge has one locking position at 105 degrees and is perfect for sun pads, bolsters, and lounge backrests.Features: Polished stainless-steel Type-304 Mounts above the deck  One locking position at 105-degrees  Can be used for seat backs up to 22" long  Single or double-seat capacity  Meets ABYC H-31 standards class B* application, 500 ft-lb. of torque load for pair  500-hour salt fog test  For cushions up to 4" thick  5-year limited warranty *Sold as a pairThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Color: Stainless Material: Stainless Steel Box Dimensions: 4"H x 4"W x 19"L WT: 10.6 lbs Brochure (pdf)

Read more less

Flush Mount 2-Pin HingeLength:2-13/16"Width:1-9/16"Depth:3/8"Fastener:#8(6)Material: 304 Stainless Steel Specifications: Material: Stainless Steel Color: Stainless Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs

Read more less

Strap HingeLength:6"Width:1"Fastener:#10(6)Material: 316 Stainless Steel Specifications: Material: Stainless Steel Color: Stainless Box Dimensions: 1"H x 1"W x 3"L WT: 0.2 lbs UPC: 725060602611

Read more less

Command Ratchet Hinges - 9-3/8" - Polished 316 Stainless Steel - PairConstructed from high-grade stainless steel and brass, our Command Ratchet Hinge is ideal for sunpads, bolsters and lounge backrests. This heavy-duty specialty hinge has a 15-degree locking inclination and ratchets up to four positions.Features: Highly polished marine-grade stainless-steel Type-316L  All brass bearings for durability  Meets ABYC H-31 standards class B* application, 250lb ft of torque load for pair  15-degree locking inclination increments starting at 30 degrees  Easily adaptable to many applications  Designed for up to 4" thick cushions  Returns to horizontal position at 100 degrees  Countersunk for #10 fastener or 1/4-20 bolt  Sold in pairs  5-year limited warranty This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Brochure (pdf)

Read more less

Adjustable Torque Position Control HingeSpecifications: Material: Acetal Copolymer Finish: Natural Color/Appearance: Black Forward Torque: 0.790 nm (6.99 in-lbf) Reverse Torque: 0.790 nm (6.99 in-lbf) Torque Type: Symmetric Installation: Rivet/Screw Series: Adjustable Torque Quick Guide (pdf)

Read more less

Chrome Plated Brass 3/8" Inset HingesFeatures: Semi-Concealed For Inset Doors Chrome Plated Stamped Brass 3/8 Inch Inset Specifications: Material: Brass Color: Brass Box Dimensions: 1"H x 3"W x 7"L WT: 0.2 lbs UPC: 085226023651

Read more less

Stainless Steel Short Side Door Hinge - Stamped PackagedThese Short Side Door Hinges are great for interior and exterior applications such as cabinets, hatches, folding tables, or seats where mounting space is tight. Constructed of corrosion resistant stamped 304 stainless steel. Installs with five #8 FH fasteners (not included).WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less
