Marine Navigation & Instruments - Gauges

52MM (2-1/16") ViewLine Oil Temperature Gauge 120-300°F - Black Dial & BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Series: ViewLine Voltage - Input Range (Volts): 12/24 V Gauge Type: Oil Temp Box Dimensions: 5"H x 6"W x 6"L WT: 0.35 lbs UPC: 7640178723054 Owner's Manual (pdf)Brochure (pdf)

Read more less

52MM (2-1/16") ViewLine Rudder Angle Gauge 40° STB/Port - Black Dial & BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Series: ViewLine Gauge Type: Rudder Angle Box Set: No Voltage - Input Range (Volts): 12/24 V Gauge Size: 2-1/16" Box Dimensions: 4"H x 6"W x 6"L WT: 0.4 lbs UPC: 7640178723030 Owner's Manual (pdf)

Read more less

52MM (2-1/16") OceanLink Rudder Angle Gauge - Left/Right - White Dial & BezelOceanLink 52 mm Vessel Status Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection.  Up to 16 EasyLink gauges for each Tachometer or GPS Speedometer can be daisy-chained together.  Interchangeable bezel option. Features: AMP Superseal Easylink 270° pointer deflection angle Reverse polarity protection Anti-fog double lens Front & rear protection rating IPX5 Operating temperature range -20 °C / +70 °C Nominal voltage - 12/24V Hole diameter - 52MM In the Box: Gauge Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Size: 2-1/16" Voltage - Input Range (Volts): 12/24 V Box Set: No Gauge Type: Rudder Angle Series: OceanLink Box Dimensions: 4"H x 5"W x 6"L WT: 0.35 lbs UPC: 7640178721456

Read more less

Chesapeake White SS 4" Tachometer - 6000 RPM (Gas) (Inboard & I/O)Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life 12 VDC negative ground Can be adapted for 24 VDC systems Factory P/N TC9796*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer Series: Chesapeake White Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266338074 Quick Guide (pdf)

Read more less

Chesapeake Black 5" Tachometer w/Digital Hourmeter - 6000 RPM (Gas) (Inboard)Perimeter-lighted black dial with stylish blue and white graphics, polished stainless steel bezel, contoured White pointer, and domed glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12vDC, Ground and one of the signal sources listed above.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.5" - Hole size: 4.375" (112mm)Specifications: Anti-scratch glass lens Perimeter lighted back light 12 VDC negative ground Can be adapted for 24 VDC systems Scale - 0 to 10000 Hours Factory P/N TCH323*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Gauge Size: 5" Gauge Type: Tachometer w/Hourmeter Box Set: No Series: Chesapeake Black Box Dimensions: 8"H x 8"W x 8"L WT: 1.35 lbs UPC: 759266337633

Read more less

VDO SingleViu 52mm (2-1/16") Ammeter - 150 AMP SingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.*60mV Shunt RequiredFeatures: 60mV Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Voltmeter/Ammeter Gauge Size: 52mm Box Set: No Box Dimensions: 4"H x 4"W x 6"L WT: 0.45 lbs UPC: 4103590682918 Owner's Manual (pdf)

Read more less

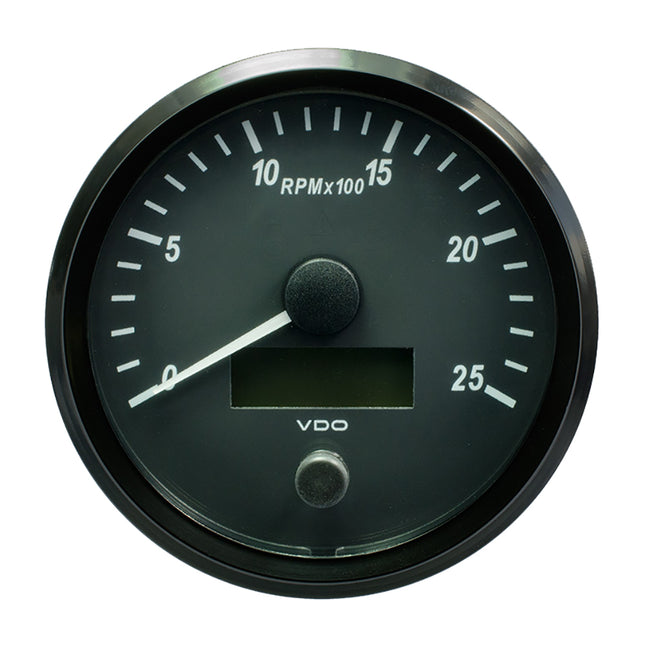

SingleViu 100mm (4") Tachometer - 2500 RPMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Tachometer Gauge Size: 100mm Box Set: No Box Dimensions: 4"H x 8"W x 8"L WT: 1.1 lbs UPC: 4103590683373 Owner's Manual (pdf)

Read more less

LinkUp - Pyrometer KitThe system includes a Veratron LinkUp Gateway Module that enables the Pyrometer Sensor to be connected to and compatible with the NMEA 2000 network.  Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement. Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play.  Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.*Includes sensor and Link Up Gateway.Features: NMEA 2000® certified Wireless configuration through companion mobile App Status LED Plug-and-Play installation and configuration Input Signal - LIN bus Nominal Voltage - 12V *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Series: LinkUp Gauge Type: Pyrometer Gauge Size: N/A Voltage - Input Range (Volts): 12v Box Set: No Box Dimensions: 4"H x 4"W x 16"L WT: 1.4 lbs UPC: 7640178729506 Owner's Manual (pdf)Brochure (pdf)

Read more less

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.Features: Designed for NMEA 0183 Easy programing and installation Technical Specifications: Operating Voltage - 8 to 32 V Protection Class - IP6K7 Illumination - Red LED Dial - Black w/graphics Pointer - Red Illuminated Lens - Plastic Double Lens (anti-reflective) Operating Temp. - -40°C to 115°C Connector - Molex MX150 - 12 pin In the Box: Gauge  Wire Harness Mounting Spinlock Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 8-32v Series: OceanLink Gauge Type: Rudder Angle Gauge Size: 3-3/8" Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 0.65 lbs UPC: 7640178729452

Read more less

52MM (2-1/16") ViewLine Transmission Oil Pressure 30 Bar/435 PSI - Black Dial & Round BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Oil Pressure Gauge Size: 2-1/16" Box Set: No Box Dimensions: 3"H x 3"W x 4"L WT: 0.35 lbs UPC: 7640178723009 Owner's Manual (pdf)

Read more less

52MM (2-1/16") ViewLine Fuel Level Gauge Empty/Full - 240-33.5 OHM - Black Dial & Round BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Fuel Level Gauge Size: 2-1/16" Box Set: No Box Dimensions: 4"H x 5"W x 5"L WT: 0.4 lbs UPC: 7640178722934 Owner's Manual (pdf)

Read more less

Euro Black 4" Tachometer with Hourmeter - 6,000 RPM (Gas - Inboard)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life Perimeter-lighted Black dial Can be adapted for 24 VDC systems Technical Specifications: 7 character LCD display 0-999999.9 Hours Updates in .1 increments Factory P/N TC9122*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer w/Hourmeter Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266328327 Quick Guide (pdf)

Read more less
