Marine Navigation & Instruments - Gauges

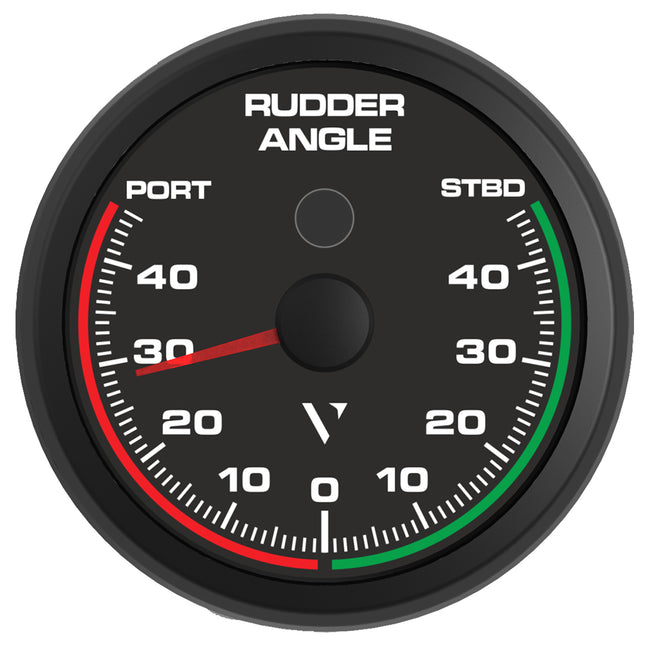

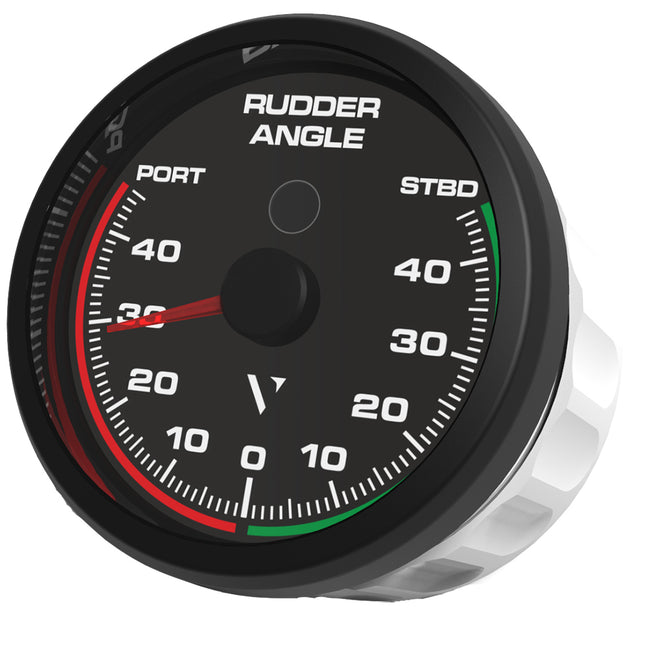

Professional 85MM (3-3/8") Rudder Angle Indicator for NMEA 0183Specially designed to fit into the standard 85mm panel cut, the Professional Rudder Angle Indicator is developed to suit commercial applications thanks to the embedded NMEA 0183 transceiver - which makes it operable with most of the professional autopilots out in the field - and the large 270° dial scale and Red illumination which makes it well readable and accurate in the indication.It supports both 12V and 24V systems, and it is designed to resist the harshest environment thanks to its extended operating temperature from -30°C to +80°C and IPX7 protection class.Able to support the analogue 3-180 Ohm and 0-5V rudder sensors, the Professional Rudder Angle Indicator also repeats the rudder angle data via NMEA 0183 to multiple gauges connected in series to it.The embedded infrared (IR) pushbutton allows for a user-friendly fine tuning of the predefined calibration.Features: Designed for NMEA 0183 Easy programing and installation Technical Specifications: Operating Voltage - 8 to 32 V Protection Class - IP6K7 Illumination - Red LED Dial - Black w/graphics Pointer - Red Illuminated Lens - Plastic Double Lens (anti-reflective) Operating Temp. - -40°C to 115°C Connector - Molex MX150 - 12 pin In the Box: Gauge  Wire Harness Mounting Spinlock Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 8-32v Series: OceanLink Gauge Type: Rudder Angle Gauge Size: 3-3/8" Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 0.65 lbs UPC: 7640178729452

Read more less

52MM (2-1/16") ViewLine Transmission Oil Pressure 30 Bar/435 PSI - Black Dial & Round BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Oil Pressure Gauge Size: 2-1/16" Box Set: No Box Dimensions: 3"H x 3"W x 4"L WT: 0.35 lbs UPC: 7640178723009 Owner's Manual (pdf)

Read more less

52MM (2-1/16") ViewLine Fuel Level Gauge Empty/Full - 240-33.5 OHM - Black Dial & Round BezelVeratron ViewLine offers a comprehensive modular, modern series of instruments for engine monitoring.More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, we offer an innovative comprehensive standard instrumentation platform which is also available for outboard engine use.  ViewLine provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio.The ViewLine 52 mm Gauges are available in black or white dial versions, which are always completed with a round bezel in identical color. Interchangeable bezel option.Features: 8 pole Tyco/Hirschmann MQS plug  Red LED Via Plus And Min Warning Light Operating voltage 8–32 V  Input signal: standard Ω values  Optional make-point switch can be connected  Reverse polarity protection  Anti-fog double lens  Front side protection rating IP67  52 mm installation diameter  50 mm installation depth  In the Box: Gauge Connection Cable Bezel Rubber Seal Spinlock Installation Instructions Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 12/24 V Series: ViewLine Gauge Type: Fuel Level Gauge Size: 2-1/16" Box Set: No Box Dimensions: 4"H x 5"W x 5"L WT: 0.4 lbs UPC: 7640178722934 Owner's Manual (pdf)

Read more less

Euro Black 4" Tachometer with Hourmeter - 6,000 RPM (Gas - Inboard)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life Perimeter-lighted Black dial Can be adapted for 24 VDC systems Technical Specifications: 7 character LCD display 0-999999.9 Hours Updates in .1 increments Factory P/N TC9122*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer w/Hourmeter Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266328327 Quick Guide (pdf)

Read more less

Newport SS 2" Cylinder Head Temperature Gauge with Sender - 60° to 220° FThe Newport Stainless Steel (SS) family of marine gauges is a classic style of gauge, engineered to be the new Modern Retro.  Designed with the latest fog resistant features, this Retro Style gauge far surpasses all expectations.  Perimeter lighting makes reading these gauges easy to read Day/Night. Features:  Perimeter lighted Retro White Dial Black and Gray Graphics  Domed fog resistant lens  Two-piece Black pointers  Hand-polished Stainless Steel bezel Studded connection for ring terminals Red illuminated edge-lighting Technical Specifications:  Operating Range  - 60° to 220° F Includes Temperature Sender (TS5026) 2.06" (53 mm) Mounting hole Operating Voltage - 12/24 V In the Box: Gauge Mounting Hardware Installation Manual Factory P/N GP8188*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Voltage - Input Range (Volts): 12/24 V Series: Newport SS Gauge Type: Cylinder Head Temperature Gauge Size: 2" Box Dimensions: 4"H x 4"W x 5"L WT: 0.35 lbs UPC: 759266250116

Read more less

SingleViu 80mm (3-1/8") Tachometer - 4,000 RPMSingleViu instruments represent the latest technology in instruments, and offer a top of the line solution by being able to work directly with traditional analog senders or work directly off a J1939 CAN network. Each SingleViu gauge has it's own microprocessor, which allows it to have a dual-input capability that can be switched from it's default analog input to J1939 CAN via the SingleViu Configuration software . Each speedometer or tachometer can also the display the J1939 system fault codes. These features, along with waterproof and fog proof construction, RGB LED illumination and advanced stepper motors make SingleViu the ideal solution when traditional gauges are needed or desired.Features: 0-400 kHz Default Input  RGB LED Illumination (default illumination set to White)  Water Resistant Front & Rear  Includes Wire Harness Voltage 12-24V Molex MX 150 8 and 12 Pin Connector Spin-Lok™ Mounting Hardware Analog Input ∗Sold as an Individual WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Voltage - Input Range (Volts): 12-24V Series: SingleViu Gauge Type: Tachometer Gauge Size: 80mm Box Set: No Box Dimensions: 5"H x 8"W x 8"L WT: 0.95 lbs UPC: 4103590683441 Owner's Manual (pdf)

Read more less

Cockpit Marine 85mm (3-3/8") 35 MPH Pitot Speedometer - Black Dial/BezelVDO Cockpit Marine offers a comprehensive modular, modern series of instruments for engine monitoring. More functions and greater flexibility in installation and design increase the scope for high manufacturing standards and guarantee the highest level of reliability and readability. As the result of ongoing research and development work, VDO Cockpit Marine gauges offer an innovative, comprehensive standard instrumentation platform.  VDO Cockpit Marine gauges provides maximum freedom to customize the cockpit and is the natural choice for an attractive price/performance ratio. Features: Works with all standard pitot style senders and 1/8"" tubing 12V Illumination bulb Connection: M4 Stud Mounting Hardware: Included Voltage: 12V Input Type: Mechanical *Sold as an IndividualWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Gauge Type: Speedometer Series: Cockpit Marine Voltage - Input Range (Volts): 8 to 16 VDC Gauge Size: 3-3/8" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.6 lbs UPC: 754059079417 Owner's Manual (pdf)

Read more less

Dress White 2" Hourmeter (Digital) Perimeter-lighted White dial with bold black graphics, white aluminum bezel, contoured black pointer, and flat glass lens.Hourmeter operates by applying battery voltage across the gauge's register motor to ground.  The register increments increase when the key switch in on.  Route power through a normally open Oil Pressure switch to count "engine running" hours. 2"- Hole Size: 2.0625" (53mm)Specifications: Anti-scratch glass lens 12 VDC negative ground Can be adapted for 24 VDC systems Scale - 0 to 10000 Hours Factory P/N MH0240*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Hourmeter Box Set: No Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Series: Dress White Box Dimensions: 4"H x 5"W x 5"L WT: 0.3 lbs UPC: 759266131309

Read more less

Kronos 4" Tachometer with Hourmeter - 7,000 RPM (Gas - Outboard)Polished Stainless Steel bezel, flat glass lens, perimeter lighted spun aluminum dial with Gold and Black graphics. Gold increments and Logo on dial are Embossed.  All instruments include two piece Newport pointer with White hub. Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed above.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: 7 character LCD display 0-999999.9 Hours Flat Scratch Resistant Lens Polished Stainless Steel bezel LED Illuminating around the Perimeter of the Dial Newport style White Pointer Factory P/N TCH305*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer w/Hourmeter Series: Kronos Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266390409 Quick Guide (pdf)

Read more less

2" Oil Pressure Gauge - 80 PSIFaria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.  All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.  A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.2" - Hole size: 2.0625" (53mm)Specifications: Domed Glass Anti-fog, Scratch Resistant Lens Stainless Steel Bezel Blue LED Illuminating around the Perimeter of the Dial Illuminated Backlit Fire-Orange Tip Pointer Factory P/N GP5089*Sold as an Individual*Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Series: Platinum Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Gauge Type: Oil Pressure Box Set: No Box Dimensions: 3"H x 4"W x 4"L WT: 0.3 lbs UPC: 759266220249 Brochure (pdf)

Read more less

Chesapeake Black 2" Dual Depth & Temp Sounder w/Transom Mount TransducerPerimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel and domed glass lens.The Depth Sounders from Faria offer a 3-199 foot (1-61meters) depth capability, with an automatic gain control, backlighting for maximum night vision, keel offset, and deep and shallow water alarms. Depth can be read in meters, and feet. With its oversized back-lit display depth can be easily read in any condition. Audible and Visual alarms let the boater know when a shallow or deep water condition exists.Dual Temperature Depth Sounder can display outside air temperatures, bait well or external water water temperatures from 0° C to 100° C (32° F to 200° F) Comes with Faria SN2011 transom mount transducer w/25' cable and Faria TS0101 Air Temp. Sender w/25' cable. 2" - Hole Size: 2.0625" (53mm)Specifications: Imperial and Metric Values Domed Glass Anti-fog, Scratch Resistant Lens Stainless Steel Bezel 199 Foot (61m) Depth Capability Audible and Visual alarm for Shallow/Deep Water Conditions Factory P/N DS1002*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Depth Sounder Gauge Size: 2" Box Set: No Voltage - Input Range (Volts): 12/24 V Series: Chesapeake Black Box Dimensions: 8"H x 8"W x 9"L WT: 3 lbs UPC: 759266137523 Quick Guide (pdf)

Read more less

Euro Black 4" Tachometer with Hourmeter - 7,000 RPM (Gas - Outboard)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Electronic tachometers work by counting pulses generated by the ingition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed above.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life Perimeter-lighted Black dial Can be adapted for 24 VDC systems Technical Specifications: 7 character LCD display 0-999999.9 Hours Updates in .1 increments Factory P/N TCH015*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer w/Hourmeter Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.8 lbs UPC: 759266328402 Quick Guide (pdf)

Read more less
