Marine Navigation & Instruments - Gauges

Euro Black 2" Oil Pressure Gauge (80 PSI)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.A pressure gauge operates by sending a low amperage current through the gauge's meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the change in pressure.2" - Hole size: 2.0625" (53mm)Specifications: Anti-scratch glass lens 12 VDC negative ground Can be adapted for 24 VDC systems Dual Scale - Imperial or Metric Factory P/N GP9599*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Oil Pressure Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266128033 Quick Guide (pdf)

Read more less

Euro Black 2" Fuel Level Gauge (E-1/2-F)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Fuel Level gauge operates by sending a low amperage current through the gauges meter to ground via a sending unit with variable resistance. The resistance of the sending units increase or decrease with the changes in pressure, temperature, etc...As the sender's resistance varies, the amount of current allowed to flow through it to ground changes and the meter deflects, showing the level of fuel.2" - Hole Size: 2.0625" (53mm)Specifications: Anti-scratch glass lens 12 VDC negative ground Perimeter-lighted Black dial Can be adapted for 24 VDC systems Factory P/N GP9357*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Fuel Level Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 2" Box Set: No Box Dimensions: 4"H x 4"W x 5"L WT: 0.3 lbs UPC: 759266128019

Read more less

Euro Black 4" Tachometer - 4000 RPM (Diesel - Magnetic Pick-Up)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: For magnetic pick-up sensors only 30 to 160 pulses/flywheel teeth Anti-scratch glass lens Plastic Cases for corrosion resistance and long life Perimeter-lighted Black dial Can be adapted for 24 VDC systems Factory P/N TD9671*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer - Diesel Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266328037 Quick Guide (pdf)

Read more less

Chesapeake White SS 4" Tachometer with Hourmeter - 7000 RPM (Gas) (Outboard)Perimeter-lighted White dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life 12 VDC negative ground Can be adapted for 24 VDC systems Technical Specifications: 7 character LCD display 0-999999.9 Hours Updates in .1 increments Factory P/N TCH008*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer w/Hourmeter Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Series: Chesapeake White Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.74 lbs UPC: 759266338401 Quick Guide (pdf)

Read more less

Euro Black 4" Tachometer w/Systemcheck 7000 RPM (Gas) f/ Johnson / Evinrude Outboard)Perimeter-lighted Black dial with bold White graphics, Black aluminum bezel, contoured White pointer and flat glass lens.Electronic tachometers work by counting pulses generated by the ingition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed above.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.These tachometers have a warning light system built into the dial that show off warning indicators when a fault is detected from the engine.4" - Hole size: 3.375" (85mm)For Engine Types:Johnson and Envinrude OutboardSystemCheck Warnings: No Oil Engine Overheat Check Engine Low Oil Specifications: Anti-scratch glass lens Plastic Cases for corrosion resistance and long life Perimeter-lighted Black dial Can be adapted for 24 VDC systems Factory P/N TC9951*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer w/System Check Series: Euro Black Voltage - Input Range (Volts): 12/24 V Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266328501 Quick Guide (pdf)

Read more less

Chesapeake Black 4" Tachometer - 7000 RPM (Gas) (All Outboards)Perimeter-lighted Black dial with stylish Blue and White graphics, polished stainless steel bezel, contoured White pointer and domed glass lens.Electronic tachometers work by counting pulses generated by the ignition system, alternator, tach signal generator or magnetic pickup sender. The tach is hooked up to +12VDC, Ground and one of the signal sources listed.By selecting the right tach and setting the switch on the back to the correct position you let the tachometer know how many pulses are sent per each engine revolution.4" - Hole size: 3.375" (85mm)Specifications: Anti-scratch glass lens Perimeter lighted back light 12 VDC negative ground Can be adapted for 24 VDC systems Factory P/N TC9035*Sold as an Individual**Gauge Cover not IncludedThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Type: Tachometer Voltage - Input Range (Volts): 12/24 V Series: Chesapeake Black Gauge Size: 4" Box Set: No Box Dimensions: 5"H x 6"W x 6"L WT: 0.7 lbs UPC: 759266337183 Quick Guide (pdf)

Read more less

52mm (2-1/16") VMH-14 Multifunction GaugeThe VMH 14 instrument is a new-generation 52 mm EasyLink satellite instrument.Every VMH Master can control up to 16 VMH 14 satellites, and the installation cannot be more easy with the Veratron well-known daisy chain concept.Launch the App, define your settings, and then simply hold your mobile device in proximity of the VMH 14 device to transfer the configuration. And the configuration can also be done powerless! Features: Stylish black-glass design with brushed stainless-steel ring Digital display with configurable color bar graph Easily configured with a smartphone App One single device to support 8 different data types Technical Specifications: Voltage - 12v Connectivity - EasyLink & NFC  Required mounting depth - 40mm Operating Temperature - -20°C to +60°C  Storage Temperature - -30°C to +80°C  In the Box: VMH 14 Gauge 52mm Mounting Spinlock 52mm Rubber Sealing Gasket Safety Instructions *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Gauge Type: Multifunction Series: VMH Voltage - Input Range (Volts): 12v Box Dimensions: 3"H x 3"W x 4"L WT: 0.3 lbs UPC: 7640178729971 Owner's Manual (pdf)

Read more less

LinkUp Intelligent Temperature & PressureThis Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.Features: Interface to the new electronic 2-in-1 sensor Oil Temperature and Pressure in a single sensor Rugged and reliable design derived from the automotive field ASIC-controlled sensor PWM (Pulse Width Modulated) output to transmit both pressure and temperature Technical Specifications: M12 mounting thread IP 69/K protection class 5V power feed provided by the LinkUp Temperature accuracy ± 1°K in the 135 °C – 160 °C range Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above Temperature range: -40 °C + 160 °C Pressure range: 0.5 to 10.5 bar 1M cable length This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

85mm (3-3/8") VMH-35 Multifunction GaugeThe Veratron VMH 35 is engineered for single inboard or outboard engine applications. The Veratron VMH 35 has an embedded NMEA 2000 gateway that distributes sensor data inputs such as fuel, trim, and tachometer to other devices like chartplotters.  This saves the need for an additional external converter.  Highly adaptable to a wide range of onboard networks, it's equipped with analog inputs, making it ideal for refitting with older engines.An integrated GPS makes the VMH 35 the perfect standalone navigation solution.  It integrates speed, compass, and position into the engine data information.  A dedicated Veratron IBS (Intelligent Battery System) input can provide critical 12V battery monitoring capabilities.The Veratron VMH 35 has a mineral glass front that's optically bonded to the sun-readable hybrid display.  A sleek, brushed stainless steel bezel surrounds the device and fits into classic and modern marine décors.  Because small boat consoles are often fully exposed, the round display is waterproof to IPX7 criteria, both front and back.  It fits a standard 3-3/8" panel cutout size.Features: Integrated high-performance GNSS receiver Integrated Analog to NMEA 2000 Gateway Waterproof to IPX7 Stylish black-glass design with brushed stainless-steel ring New generation sun-readable color hybrid display Intelligent Battery Sensor (IBS) port NMEA 2000® certified In the Box: VMH35 Gauge Mounting Spinlock Wire harness  Safety Instructions  *Sold as an IndividualThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 3-3/8" Gauge Type: Multifunction Series: VMH-35 Box Dimensions: 4"H x 6"W x 6"L WT: 0.75 lbs UPC: 7640178729773 Owner's Manual (pdf)Brochure (pdf)

Read more less

52mm (2-1/16") Viewline Voltmeter 18-32V - Black Dial & BezelThe Viewline voltmeter displays the status of the generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly. Features: Installation Dimension: 52mm - 2-1/16" Color: Black Lens: Plastic Double Anti-Fog Bezel Model: Black Round Measurement Range: 18 - 32V DC Category: Voltmeters Series: Veratron Viewline Application: VDO Engine Monitoring Signal Analogue: 0 - 32V DC IP Class Front: IP67 (IEC 60529) Operating Voltage: 18 - 32 Volt DC Functionality: 24 Volt Battery Condition Input: Analog Bezel Interchangeable: Yes - Clip-On Warning Light: Red LED Via Plus And Min Communication: Analog This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Box Set: No Gauge Size: 2-1/16" Gauge Type: Voltmeter/Ammeter Series: ViewLine Voltage - Input Range (Volts): 18-32v Box Dimensions: 3"H x 4"W x 8"L WT: 1.5 lbs UPC: 7640178722811 Brochure (pdf)

Read more less

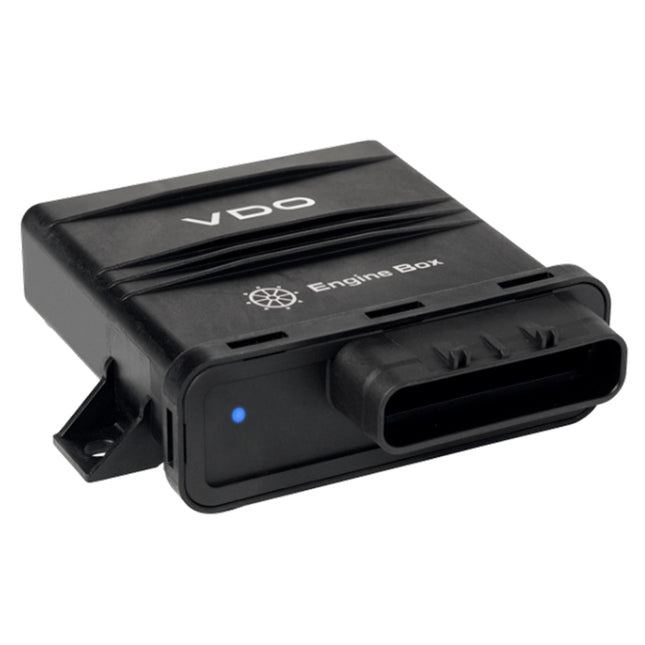

EngineBox - Single EngineThe EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors. The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.The Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software tool are needed to configure this Engine Box.Features: Analog to NMEA 2000® gateway  J1939 to NMEA 2000® gateway  2 Models for single engine and dual engine configurations  Compact design  Status LED  Operating temperature range -40°C/+85°C Technical Specifications:  1x J1939 (2x J1939 Dual Engine)  1x M12 5 pins NMEA 2000®  1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)  4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)  2x Inputs 4–20 mA  1x Input 0–5 V (2 inputs with Dual Engine Model) In the Box: Engine Cable Cable Harness Safety Instructions *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Voltage - Input Range (Volts): 8-16v Gauge Type: Multifunction Gauge Size: N/A Box Set: No Box Dimensions: 4"H x 6"W x 6"L WT: 1.35 lbs UPC: 7640178724426 Brochure (pdf)

Read more less

EngineBox - Double EngineThe EngineBox expands the possibilities of the NavBox for multi-engine applications or can be used as stand-alone when navigation information is not required. The EngineBox has a NMEA 2000® and a J1939 CAN port. The EngineBox can also be used on older, completely analog engines, thanks to the analog input ports provided and designed for RPM data, resistive sensors and capacitive sensors. The EngineBox has to be set up using an intuitive PC configuration tool making it easy for programming the inputs (delivered free of charge). Thanks to the ISO 8846:1990 compliance, the EngineBox is also designed to be installed in engine compartments.The Veratron Diagnostic Tool USB to NMEA 2000 (A2C3931270001) and Veratron Configuration Software tool are needed to configure this Engine Box. Features: Analog to NMEA 2000® gateway  J1939 to NMEA 2000® gateway  2 Models for single engine and dual engine configurations  Compact design  Status LED  Operating temperature range -40°C/+85°C Technical Specifications:  1x J1939 (2x J1939 Dual Engine)  1x M12 5 pins NMEA 2000®  1x Input 0–4 kHz for RPM (2 inputs with Dual Engine Model)  4x Inputs 0–400 Ohm (up to 8 inputs with Dual Engine Model)  2x Inputs 4–20 mA  1x Input 0–5 V (2 inputs with Dual Engine Model) In the Box: Engine Cable Cable Harness Safety Instructions *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Gauge Size: N/A Box Set: No Voltage - Input Range (Volts): 8-16v Gauge Type: Multifunction Box Dimensions: 4"H x 6"W x 6"L WT: 1.45 lbs UPC: 7640178724433 Brochure (pdf)

Read more less
