Axiom 2XL 16 with RVM1600 Sonar ModuleAxiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.Features: A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms. Get underway faster with a fast 6-core processor HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening Create your glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience HDMI output for connecting to remote monitors or HDTVs HDMI input and USB touchscreen input for remote PC integration Analog audio output for integrating with marine entertainment systems Easy to upgrade with the same mounting footprint as Axiom XL Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules NMEA 2000 port Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage RVM1600 Sonar ModuleThe next generation of DownVision, SideVision, 3D, and conventional CHIRP sonar, RealVision MAX, delivers vivid sonar imagery and fish targets like never before. RealVision MAX starts with all-new high-performance RealVision CHIRP transducers, upgraded with larger elements and increased power output for extended-range performance. Next, RealVision MAX signal processing and faster ping rates improve visual fidelity and target identification. With RealVision MAX, the structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.Features: RayNet network compatible with all Axiom displays running LightHouse 4.3 or higher Employs the same RealVision MAX sonar technology built into the new Axiom 2 Pro RVM chartplotters RealVision MAX sonar processing, combined with faster ping rates, delivers superior fish finding in CHIRP, Side, Down, and RealVision channels. RealVision MAX high contrast color palettes provide better visibility of fish and structure. The more powerful 600-watt traditional CHIRP frequency of RealVision MAX transducers provides a deeper sonar range, reducing the need for additional transducers. RealVision 3D provides accurate target location to help pinpoint that elusive wreck or set up the perfect drift. Support for 1kW Airmar CHIRP transducers enables fishing in waters up to 3,000ft (914 meters). Multi-Channel Fishfinder: CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail. CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars. RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure RealVision MAX Transducers:RealVision MAX transom mount and through hull transducer provide DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600.  RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion. A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.

Read more less

TZT22X 22" TZtouchXL MFDNavNet TZtouchXL is the perfect solution for boating enthusiasts who love fishing or cruising. This extra-large, wide 22" all-glass MFD has exceptional clarity from all angles that enhances the functionality and style of a helm. The TZT22X delivers all the features that make the NavNet TZtouch3 a breeze to operate, users can split these large screens into six different windows. The edge-swipe feature makes finding what a user is looking for simple and intuitive. A single tap selects most options, so users are never more than a swipe and tap away from the most accessed features.Features: TZ MAPS for highly detailed navigation and fishing charts Purchase and update charts directly from MFD with an internet connection Powerful hexacore processor for rapid response Video converter kits stream compatible sonar video data directly to TZtouchXL MFDs TZ MAPSOne of the most exciting TZtouchXL features is a chart offering called TZ MAPS. Not only are these some of the most detailed charts in the industry, but TZ MAPS users are in complete control of the chart content they want to download, such as raster or vector charts, satellite photos, and bathymetric data. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service. Since custom objects reside on their chart layer on the TZtouchXL MFD, they can easily be displayed or hidden as desired. Additionally, for the first time, customers can purchase and update charts directly on their TZtouchXL MFD!BathyVisionOne of the most groundbreaking aspects of TZ MAPS is called BathyVision, providing amazingly detailed bathymetric data that can be configured to an incredible resolution of a mere 3 inches between contours! That's 3 times better than any other bathymetric chart currently on the market. BathyVision data, along with custom depth shading, can easily be overlaid on TZ MAPS navigation charts to create the ultimate "Fishing Charts"!AI RoutingTZ MAPS unlocks the ability to utilize the powerful AI Routing function that intelligently plans out routes, taking into consideration the boat's draft and navigational obstacles. AI Routing takes traditional auto-routing to another level by automatically creating suggested routes based on varying navigational conditions.Risk Visualizer & AI Avoidance RouteWhen connected to an NXT radar, two powerful safety features are unlocked: the Risk Visualizer and the AI Avoidance Route tool. Risk Visualizer provides a 360° visual representation of the potential collision risks of approaching objects around the vessel. Dynamic icons are automatically created for targets with the highest probability of collision, ensuring the captain has the necessary information to maintain safe distances when passing. The AI Avoidance Route function processes all available information provided to dynamically provide a safe route around those hazards, which can be sent to a Furuno NavPilot autopilot with a single tap.Enhanced User Interface for Ease of Use & CustomizabilityIn addition to offering all the great features that make NavNet super simple to operate, NavNet TZtouchXL MFDs also deliver BIG power and versatility! Users can now configure their MFD in many ways, thanks to an increased number of Page Builder configurations from four (4) to ten (10) custom combinations. Additionally, users can now custom-build a 6-way screen split of various components and sensors.Match all those great screen layout options with enhanced Edge-Swipe feature access for the smoothest, easiest, and very best user experience Furuno has ever delivered! This is all driven by the most system memory and the highest level of processing power Furuno has ever integrated into a NavNet MFD. SpecificationsDisplay Unit: Type: Color TFT multi-touch IPS LCD Screen Size: 21.5" Wide Screen Resolution: FHD 1920 x 1080 Screen Brightness: 900 cd/m2 (typical) Display Colors: 16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder) Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish, Turkish, Polish Chart Plotter: Cartography: TZ MAPS, MM3 Vector, and CMOR capable (U.S. only) Memory Capacity: 30,000 user points, 100,000 points for ship's tracks, 200 planned routes (500 points per route) Alarms: Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge* (*external data required) Interface: NMEA200: 1 Port Input: 065280, 126992/993/996, 127237/245/250/251/257/488/489/505, 128259/267, 129025/026/029/330/038/039/040/041/291/538/540, 129793/794/798/801/802/808/809/810, 130306/310/311/312/313/314/316/576/577/578, 130817/818/820/822/823/826/827/828/880 Output: 126992/993/996, 127250/251/257/258, 128259/267/275, 129025/026/029/033/283/284/285, 130306/310/311/312/313/314/316 NMEA0183: 1 Serial Output Port Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA LAN: 1 Port (1000 BASE-T) USB: 1 Port (USB 3.0) for touch monitor and control unit: 1 Port USB touch output for HDMI device Video I/O: Input: 1 port (NTSC/PAL) and 1 port HDMI 1920 x 1080p or less (progressive only) Output: 1 port (HDMI 1080p) AUX I/O: 2 Ports (Event Switch and External Power Switch) SD Card Slot: 1 Slot (Micro SDXC, rear) Wireless LAN: IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max Environment: Temperature (IEC60945)-15°C to +55° C Relative Humidity: 93% or less at +40° C Waterproofing: IP56 Power:5.1-2.5AThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Screen Size: 22" Touchscreen: Yes Box Dimensions: 9"H x 19"W x 25"L WT: 21.5 lbs UPC: 611679401243 Brochure (pdf)

Read more less

GPSMAP® 86sci Handheld with inReach® & BlueChart® g3 Coastal ChartsMarine Handheld GPS with BlueChart® g3 Coastal Charts and inReach® Capabilities: Water-resistant, floating design, sunlight-readable 3” display and button operation provide ease of use on the water Stream boat data from compatible chartplotters and instruments to consolidate your marine system information Preloaded BlueChart g3 coastal charts include the best of Garmin and Navionics® data Stay in touch with inReach satellite communication and two-way text messaging via the 100% global Iridium® satellite network (satellite subscription required) Functions as a remote control for convenient operation of your Garmin autopilot and select FUSION® marine products Adjustable GPS filter smooths speed and heading indications over swells Cast off confidently with the GPSMAP 86sci handheld. Whether you’re out for a day of fishing, sailing or cruising, you’ll gain peace of mind that comes from having a backup navigator with satellite communication and interactive SOS. This premium handheld floats and has a sunlight-readable 3” color display. Plus, wireless connectivity makes it a virtual extension of your onboard marine system, giving you added awareness and convenience.Connect with Your BoatSync GPSMAP 86sci with compatible Garmin chartplotters and instruments, and you’ll see real-time boat data displayed right on your handheld. Plus, it can serve as a remote control for convenient operation of your Garmin autopilot and select FUSION marine products. And when you’re underway, an adjustable GPS filter smooths speed and heading indications over swells for more accurate tracking.Satellite CommunicationWith built-in inReach satellite technology and additional service options¹, GPSMAP 86sci helps you stay in touch globally. Send and receive two-way text messages, track and share your journey, and, if necessary, trigger an interactive SOS to get emergency help from a 24/7 global monitoring center via the 100% global Iridium® satellite network. You can also receive marine weather forecasts directly on your device, so you can make educated decisions based on local conditions or the destination ahead.BlueChart g3 ChartsGPSMAP 86sci comes preloaded with BlueChart g3 coastal charts, giving you industry-leading coverage, clarity and detail with integrated Garmin and Navionics data. Detailed contours allow you to see 1’ contours that provide a more accurate depiction of bottom structure for improved fishing charts and enhanced detail in swamps, canals and port plans.Stay in TouchGet smart notifications right on your GPSMAP 86sci handheld when you pair it with your compatible smartphone. You can also sync GPSMAP 86sci with the Garmin Explore™ website for cloud management of your favorite waypoints, tracks and routes. GPSMAP 86sci offers Wi-Fi® connectivity, ANT+® technology and BLUETOOTH® wireless technology for easy wireless updates and connections. And for longer voyages, its internal, rechargeable lithium battery provides up to 35 hours of battery life in 10-minute tracking mode and up to 200 hours in expedition mode².¹Satellite subscription required²Battery life may vary depending on usage; battery is user-replaceableNOTICE: Some jurisdictions regulate or prohibit the use of satellite communications devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used. Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.What's in the Box? GPSMAP 86sci handheld with BlueChart® g3 for the U.S. Powered mount Lanyard USB to Micro USB cable USB to 2 pin cable Mounting hardware Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Waypoints/Routes: 10,000/250 Screen Type: Color Screen Size: 3" Memory Type: Both Cartography Brand: Garmin Cartography - Preloaded: Yes Card Format: Micro SD Built-In Memory: 16 GB Battery Type: Lithium Ion Touchscreen: No Internal/External Antenna: Internal Box Dimensions: 4"H x 6"W x 9"L WT: 1.6 lbs UPC: 753759228873

Read more less

NavNet TZtouchXL Black Box ChartplotterPowerful TechnologyExplore the future of navigation with the Black Box NavNet TZtouchXL TZTBBX and enhance the functionality and style of your helm. NavNet TZtouchXL delivers the ability to tailor the helm to meet the captain's exact needs, with magnetron or Solid-State Doppler Radars, high-powered Fish Finders, AIS, Autopilot, and Deep Water Multibeam Sonar options, and more!NavNet TZtouchXL delivers features like TZ MAPS with BathyVision, the most advanced and capable electronic charts in the world. The TZ Maps engine draws upon a worldwide database of high-resolution information to create crisp, clear navigation with a variety of color themes and fishing charts with fully editable color palettes. TZ Maps delivers a timeless navigation experience at any magnification. It sounds incredible, and it is - you have to see it to believe it!Effortless ControlYou asked for the simplest interface possible, and we were listening. We’ve delivered the most intuitive UI available, bar-none, and you’ll be navigating with all the power and simplicity you demand. If you swipe your phone, you can operate TZtouchXL. With edge-swipe features and single-tap menu options, you’re never more than a tap or swipe away from what you want to see or do because NavNet TZouchXL provides the easiest and most powerful MFD on the planet.See more with TZ MAPSWith TZ MAPS, navigators control what map data they want to download, such as incredibly wide chart areas, satellite photos, and bathymetric data. Purchase incredibly wide chart areas directly from the MFD! Custom depth color shading and bathymetric data overlays create navigational charts of unmatched detail and clarity, rendered with a variety of color themes to provide an electronic charting experience that goes far beyond any premium chart service before it. You can create your custom objects or make updates to charted objects, such as buoys, so when they move from their previously charted positions, they can be updated on the system on the fly. Custom user objects can be shared with other registered TZ MAPS users through TimeZero's moderated service, and can be turned on and off in the Layers menu, available with a single edge swipe up from the bottom of the display. Purchase of any TZ MAPS area also unlocks added functionality, such as powerful AI Routing that intelligently plans out routes, taking into consideration the boat's draft as well as charted depths and navigational obstacles. The purchase of any TZ MAPS chart unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet, providing you with a free home planning app that will transfer your points and routes directly to the TZtouchXL. With a free TimeZero account, waypoints and routes can be easily backed up or retrieved from the cloud with just a few taps, ensuring all the data you’ve worked so hard to create remains safe and secure.Experience 'off-the-charts' bathymetric data with BathyVisionBathyVision for TZ MAPS provides truly ‘off the charts’ bathymetric data with contour lines that can be configured with a single tap. When we say configurable, we’re talking down to a resolution of a mere 3 inches between contours - that's 3x better than any other bathymetric chart currently on the market. Bathymetric data is rendered from the same high-resolution database used for TZ MAPS’ custom depth shading and can be overlaid onto the navigation charts to create fishing charts unlike any seen before.The Benchmark for RadarHowever you spend your time on the water, you need a Radar you can rely on to keep you safe. Whether you choose the time-tested X-Class magnetron option or NXT Solid-State Doppler models, Furuno Radar delivers power and clarity like you’ve never seen and provides the assurance that you’re navigating with the most reliable and feature-packed equipment on the planet. From the compact DRS2DNXT/DRS4DNXT domes to the high-power 200-watt DRS25ANXT open array, you’ll quickly become accustomed to the dynamic features that only Furuno provides, like Target Analyzer™ that alert you to potentially hazardous targets, Fast Target Tracking that displays a speed and course vector in seconds, best-in-the-business Bird Mode to track elusive flocks and even individual birds feeding on baitfish, and Rain Mode that can pick out and display in different colors the targets you need to see through even the nastiest of squalls. Plus, TZtouchXL introduces Radar features, like Risk Visualizer™ and AI Avoidance Route™, that help keep you safe on the water.Risk Visualizer™ and AI Avoidance Route™Risk Visualizer™ is a unique function of Furuno Radars that provides a visual representation of potential collision risks of approaching objects around the vessel. Unlike CPA/TCPA alarms which indicate only the risks visible on the ship’s current course, Risk Visualizer™ assesses all objects 360° around the vessel. Dynamic icons are automatically created for targets with the highest collision probability, ensuring the captain has the information needed to maintain safe distances when passing.The AI Avoidance Route™ feature available with TZ MAPS takes all the information provided by the Radar and instantly determines and provides a safe route around those hazards. Never lose waypoints, routes, or settings again with TZ CloudCreate your routes at home using TZ Navigator, a web browser*, or the TZ iBoat iOS App, then download them to your TZtouchXL MFD from the cloud. You can also backup all of the events on your MFD and retrieve them at home, because your data is synchronized automatically & securely. TZ Cloud saves all of your marks, routes, boundaries, photos, and catch data - with a free TimeZero account, all of your data can be backed up or retrieved with just a few taps. The purchase of any TZ MAPS chart directly from the MFD also unlocks those charts in the free TZ iBoat app for mobile devices such as a phone or tablet and TZ Pro navigation software, providing the only home planning solution you'll ever need. Built-In CHIRP Side-ScanFuruno’s CHIRP Side-Scan for NavNet TZtouchXL scans both port and starboard, illuminating the shape of the bottom structure in high definition. CHIRP Side-Scan reveals the shape of fish targets and fish-hoarding structure on each side of your vessel. CHIRP from 230kHz or 445kHz center frequencies with thru-hull, paired, or transom mount transducer options. CHIRP Side-Scan is built into the TZT10X/13X/16X and can be accessed by any TZtouchXL MFD on the network.A Dream Machine for Fishing FanaticsWe've raised the bar for sportfishing enthusiasts once again with an MFD series designed to cater to the needs of avid anglers. The NavNet TZtouchXL series includes all the features fishermen desire, including exclusive, never-before-seen features in recreational navigation devices. The TZT10X, TZT13X, and TZT16X feature a built-in 1kW TruEcho™ CHIRP or CW Fish Finder as well as built-in 230kHz or 455kHz CHIRP Side-Scan to show fish and fish-hoarding structure in great detail port to starboard, providing crucial insights for successful fishing trips. The TZT22X and TZT24X have full control across the NavNet network, and you can tailor the system with a wide array of high-powered Fish Finders for deep dropping.Deep Water Multibeam SonarNormal down-sounding Fish Finders have a beam angle of 40Ëš or less. But with the DFF3D Multibeam Sonar, you'll see a 120-degree swath, offering seafloor coverage up to 3X water depth. Plus, with the power of the DFF3D, you can see fish directly below the boat 300m (nearly 1,000ft). The DFF3D's versatile operating modes give you a better understanding of fish targets than any normal Fish Finder can deliver. The 3D sounder history provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons - useful when selecting a fishing hot spot or assessing the seabed condition. Triple-Beam mode tells you not only the depth but also the direction (port/down/starboard) of fish targets. Cross Section displays the real-time sea column echo in a 120Ëš swath, and Side-Scan displays the shape and structure of targets both port and starboard. Total ControlLooking for an added element of control? The vertically-oriented MCU006 and horizontal MCU006H are capable of controlling any TZtouchXL MFD in the network. Both feature a comfortable RotoKey™ and ten dedicated dual-purpose buttons that operate different functions, including the ability to access the Edge Swiping functionality that makes the NavNet TZtouch series so easy to use.Specifications: Chart Type: 3D Data or C-Map or Raster or Vector or TZ MAPS Display Size: Supplied Separately Display Type: Supplied Separately Power Usage: 12-24 VDC This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Read more less

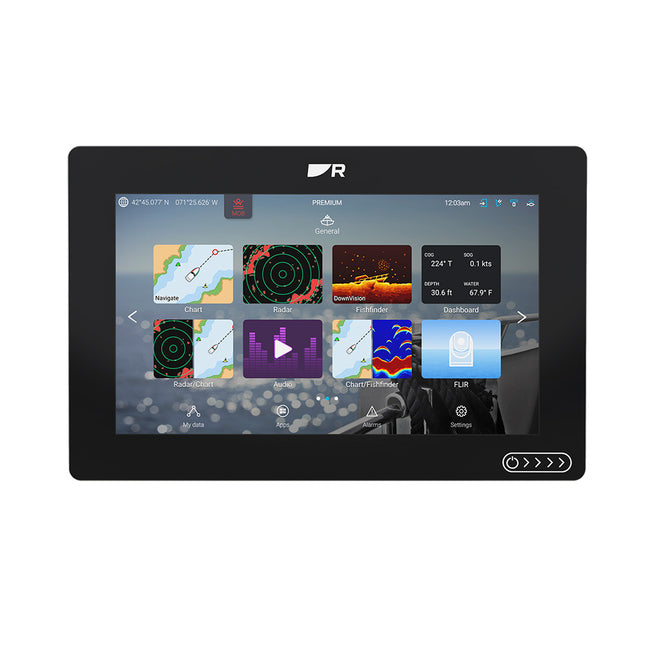

Axiom 2 9" Multifunction Display with Lighthouse North America ChartAxiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.Features: Rugged all-weather, marine-ready design backed by a 3-year warranty. 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance. 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility. Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps. RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices. 64 GByte of onboard storage for apps, charts, video, and user data. Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more. Built-in high-performance GPS / GNSS with fast 10 Hz position updates. Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support. Technical Specifications: Dimensions (Trunnion mounted) - 10.43" (W) x 7.39" (H) x 7.01" (D) Dimensions (Surface / Flush mounted) - 9.61" (W) x 6.21" (H) x 7.01" (D) Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC Power Consumption (max) - 8.95W Inline fuse / thermal breaker rating - 7A Size & Type - 9" (diagonal), IPS Resolution - HD 1280 x 720 Brightness/luminance - 1500 bits / 1500 cd/m² Protective Coating - HydroTough™ (Oleophobic) NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1) Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0 GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate) Internal Storage - 64 GByte (Solid State) External MicroSD storage - 1x MicroSDXC card slot Specifications: Cartography Brand: Navionics/C-Map Screen Size: 9" Touchscreen: Yes Box Dimensions: 1"H x 4"W x 6"L WT: 9 lbs Brochure (pdf)

Read more less

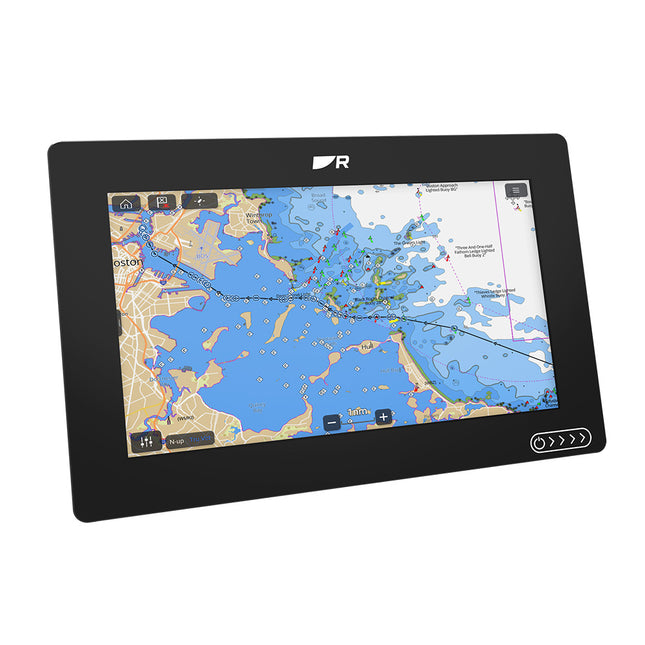

Axiom 2 9" Multifunction DisplayAxiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.Features: Rugged all-weather, marine-ready design backed by a 3-year warranty. 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance. 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility. Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps. RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices. 64 GByte of onboard storage for apps, charts, video, and user data. Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more. Built-in high-performance GPS / GNSS with fast 10 Hz position updates. Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support. Technical Specifications: Dimensions (Trunnion mounted) - 10.43" (W) x 7.39" (H) x 7.01" (D) Dimensions (Surface / Flush mounted) - 9.61" (W) x 6.21" (H) x 7.01" (D) Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC Power Consumption (max) - 8.95W Inline fuse / thermal breaker rating - 7A Size & Type - 9" (diagonal), IPS Resolution - HD 1280 x 720 Brightness/luminance - 1500 bits / 1500 cd/m² Protective Coating - HydroTough™ (Oleophobic) NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1) Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0 GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate) Internal Storage - 64 GByte (Solid State) External MicroSD storage - 1x MicroSDXC card slot Specifications: Cartography Brand: Navionics/C-Map Screen Size: 9" Touchscreen: Yes Box Dimensions: 8"H x 10"W x 14"L WT: 8.91 lbs UPC: 723193867334 Brochure (pdf)

Read more less

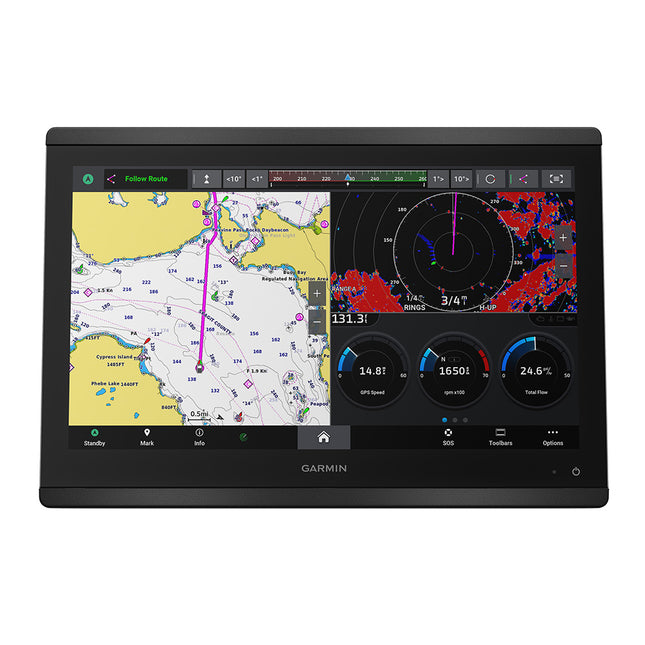

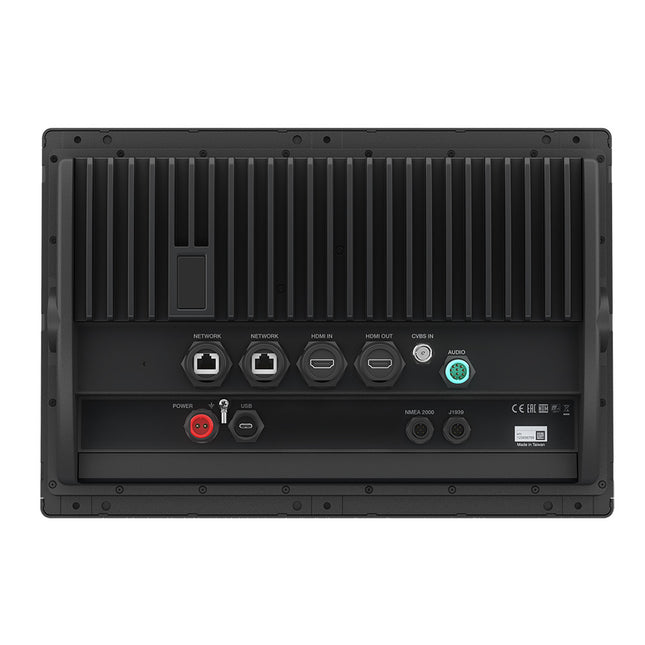

GPSMAP® 8616 Chartplotter GN+You’re a mariner who wants it all — a fast, high-performance network chartplotter with sonar, a large 16" IPS display, preloaded maps and charts, and moreThe GPSMAP®8616 chartplotter features a 16” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The device is preloaded with Garmin Navionics+™coastal charts and inland mapping that feature Auto Guidance+™technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations). Plus, there’s support for optional Garmin Navionics Vision+™premium map content. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution, and more. Multiple displays can be flat-mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000®networking and the Garmin Marine Network allow you to build your full marine electronics suite — from radar and autopilots to cameras and instruments — controlled from your chartplotter and shared across multiple screens. With SmartMode™station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use our exclusive OneHelm™feature to connect to many compatible third-party devices. Built-in Garmin SailAssist™features provide data, displays, and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain® smartphone app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to purchasing, downloading, and updating maps. See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury®engines by using the SmartCraft®Connect gateway.Features: Features a 16” full HD in-plane switching touchscreen display for wider viewing angles, superior clarity, and sunlight readability, even with polarized sunglasses  Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVü™ and SideVü™ scanning sonars, Ultra High-Definition scanning sonar (no black box required), the LiveScope™ System and the full line of live sonar products (transducers sold separately) Adds a stunning appearance with ability to install multiple displays either flat mounted edge-to-edge to create a sleek glass helm look or mounted flush Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network to easily build your marine system — from sonar, radar, and autopilots to instruments, cameras, and multimedia ANT® connectivity and Wi-Fi® networking let you connect with your compatible quatix® smartwatches, gWind™ Wireless 2 wind sensor, and more See RPMs, fuel flow, temperature, trim, and more for up to four of your compatible Mercury® engines by using the SmartCraft® Connect gateway For full control of your boat on your chartplotter screen, use our exclusive OneHelm™ feature to connect to many compatible third-party devices  Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content SmartMode™ station controls enable presets for one-touch access to docking, cruising, fishing, anchoring, and more Built-in Garmin SailAssist™ features provide data, displays, and prerace guidance needed to gain a competitive edge Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, Garmin Quickdraw™ Community data, and more.  Dual microSD™ card slots on the back of the unit for use with the ActiveCaptain® app and mapping cards What's In The Box? Chartplotter Power cable NMEA 2000 T-connector NMEA 2000 drop cable Flush mount kit Protective cover Trim piece snap covers Documentation GPSMAP 8600 series chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Cartography Brand: Garmin Navionics+ Internal/External Antenna: Internal Screen Size: 16" Touchscreen: Yes Box Dimensions: 9"H x 14"W x 20"L WT: 14.1 lbs UPC: 753759285432 Owner's Manual (pdf)

Read more less

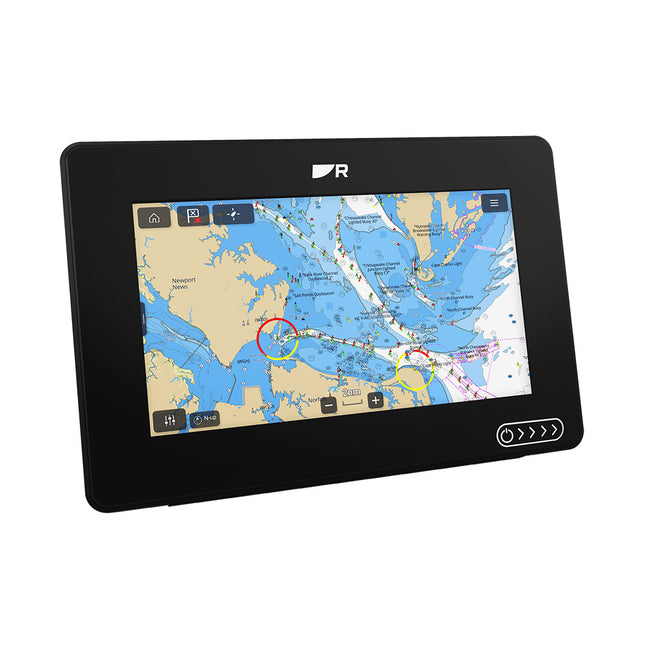

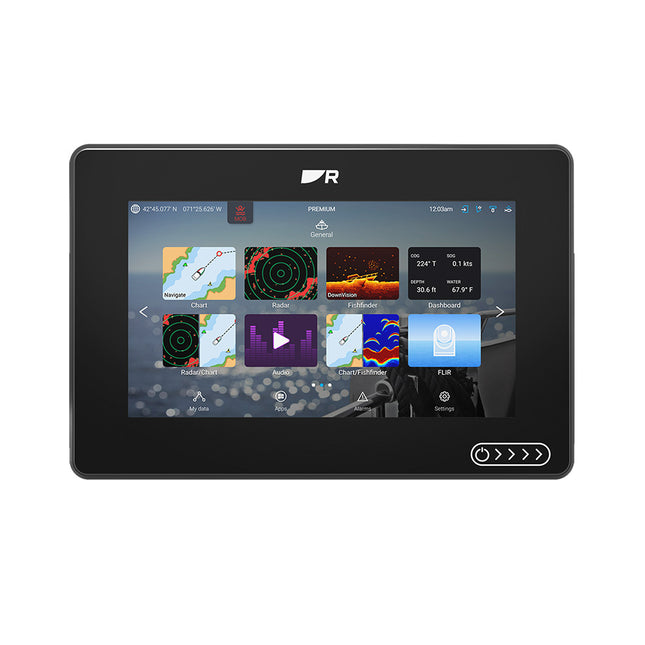

Axiom 2 7" Multifunction Display with Lighthouse North America ChartAxiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.Features: Rugged all-weather, marine-ready design backed by a 3-year warranty. 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance. 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility. Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps. RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices. 64 GByte of onboard storage for apps, charts, video, and user data. Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more. Built-in high-performance GPS / GNSS with fast 10 Hz position updates. Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support. Technical Specifications: Dimensions (Trunnion mounted) - 9.86" (W) x 6.4" (H) x 8.58" (D) Dimensions (Surface / Flush mounted) - 7.92" (W) x 5.24" (H) x 8.58" (D) Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC Power Consumption (max) - 7.34W Inline fuse / thermal breaker rating - 7A Size & Type - 7" (diagonal), IPS Resolution - WSVGA 1024 x 600 Brightness/luminance - 1500 bits / 1500 cd/m² Protective Coating - HydroTough™ (Oleophobic) NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1) Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0 GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate) Internal Storage - 64 GByte (Solid State) External MicroSD storage - 1x MicroSDXC card slot Specifications: Cartography Brand: Navionics/C-Map Screen Size: 7" Touchscreen: Yes Box Dimensions: 1"H x 4"W x 6"L WT: 6.69 lbs Brochure (pdf)

Read more less

Axiom+ 9 - 9" MFD ChartplotterThe performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.PERFORMANCE TUNED Designed for speed, responsiveness, and future expansion Powerful quad-core processor, plus increased onboard storage for personal data and apps Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP  ClearCruise™ Augmented Reality-capable for smarter navigation decisions Smart and intuitive LightHouse 3 OS makes navigating easy MAXIMUM VISIBILITY Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color  IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)  HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls  Improved viewing with LightHouse 3 color themes, including light, dark, and night mode The Axiom 9 includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more. Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps Specifications: Touchscreen: Yes Internal/External Antenna: Internal Cartography Brand: Navionics/C-Map Screen Size: 9" Box Dimensions: 8"H x 10"W x 14"L WT: 8.7 lbs UPC: 723193836910 Owner's Manual (pdf)Brochure (pdf)

Read more less

Axiom+™ 9 - 9" MFD Chartplotter with Lighthouse North America ChartThe performance-tuned Axiom® Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality. Higher-resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.PERFORMANCE TUNEDDesigned for speed, responsiveness, and future expansion.•    Powerful quad-core processor, plus increased onboard storage for personal data and apps•    Fluid and fast chart redraw of new Raymarine LightHouse Charts, plus Navionics and C-MAP •    ClearCruise™ Augmented Reality-capable for smarter navigation decisions•    Smart and intuitive LightHouse 3 OS makes navigating easyMAXIMUM VISIBILITYUpgraded IPS display technology delivers charts, sonar, radar, and video in stunning color. •    IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays•    7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits) •    HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls •    Improved viewing with new LightHouse 3 color themes, including light, dark, and night modeThe Axiom 9 includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions  and Lighthouse North America Chart.Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more. Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps Specifications: Touchscreen: Yes Screen Size: 9" Internal/External Antenna: Internal Cartography Brand: Navionics/C-Map Box Dimensions: 1"H x 4"W x 6"L WT: 8.79 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Axiom+ 7 - 7" MFD Chartplotter with Lighthouse North America ChartThe performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.PERFORMANCE TUNED Designed for speed, responsiveness, and future expansion Powerful quad-core processor, plus increased onboard storage for personal data and apps Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP  ClearCruise™ Augmented Reality-capable for smarter navigation decisions Smart and intuitive LightHouse 3 OS makes navigating easy MAXIMUM VISIBILITY Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)  HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls  Improved viewing with LightHouse 3 color themes, including light, dark, and night mode The Axiom+ 7 includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions and Lighthouse North America Chart.Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more. Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps Specifications: Touchscreen: Yes Screen Size: 7" Internal/External Antenna: Internal Cartography Brand: Navionics/C-Map Box Dimensions: 1"H x 4"W x 6"L WT: 6.69 lbs Owner's Manual (pdf)Brochure (pdf)

Read more less

Axiom+ 7 - 7" MFD ChartplotterThe performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality. Higher resolution IPS displays deliver 25 percent more brightness and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.PERFORMANCE TUNED Designed for speed, responsiveness, and future expansion. Powerful quad-core processor, plus increased onboard storage for personal data and apps Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP  ClearCruise™ Augmented Reality-capable for smarter navigation decisions Smart and intuitive LightHouse 3 OS makes navigating easy MAXIMUM VISIBILITY Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color.  IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)  HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls  Improved viewing with LightHouse 3 color themes, including light, dark, and night mode The Axiom+ 7 includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating. Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more. Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile apps Specifications: Internal/External Antenna: Internal Cartography Brand: Navionics/C-Map Touchscreen: Yes Screen Size: 7" Box Dimensions: 7"H x 10"W x 12"L WT: 6.6 lbs UPC: 723193836873 Owner's Manual (pdf)Brochure (pdf)
