i40 Depth w/Thru-Hull TransducerCompact and feature-packed instruments, the i40 series instruments are smart choice for boaters looking high performance and great value.The i40 series is simple to operate thanks to the use of just three control buttons, i40 has extra-large digits and razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. These SeaTalk® compatible instruments offer full integration with Raymarine autopilots and navigation equipment. The ultra-sleek design of i40 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. All i40 Instruments come with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i40 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 0.4 watts for superior run-time and excellent green credentials. The i40 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase. i40 Depth Instrument Raymarine's i40 Depth Instrument is available as a complete system with a thru-hull transducer, transom mount or as a display-only kit enabling you to monitor your boat's depth at a remote location. The i40 Depth Instrument offers easy-to-read displays of current depth, and minimum depth recorded. The unit also offers a convenient shallow depth alarm, deep depth alarm, shallow anchor alarm, and deep anchor alarm. The i40 Depth Instrument offers convenient depth offset controls allowing you to calibrate the readout to compensate for projections (rudders, props, skegs etc.) or to display the depth from the waterline of the vessel.i40 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. High contrast LCD displays with large digits for excellent visibility. Red backlighting for outstanding night-time visibility. Simple SeaTalk networking with other Raymarine instruments, autopilots and MFDs. Built-in transducer connections simplify installation. Small form factor saves space at the helm without sacrificing features. Specifications: Transducer Type: Thru-Hull Shape: Rectangular Screen Size: 3.7" Instrument Function: Depth Box Dimensions: 5"H x 8"W x 19"L WT: 3.75 lbs UPC: 723193854303 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

i50 SeaTalkng Instruments - Depth w/Nylon Thru-Hull TransducerThe all-new i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i50 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i50 Depth Instrument The i50 Depth Instrument offers accurate and reliable displays of depth, max depth and minimum depth. Shallow and deep depth alarms will keep you alert, along with a shallow and deep anchor alarms. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 connectivity for maximum flexibility Connect additional i50 depth displays Built-in depth transducer connection i50 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Transducer Type: Thru-Hull Shape: Square Instrument Function: Depth Box Dimensions: 5"H x 10"W x 14"L WT: 4.75 lbs UPC: 723193854259 Owner's Manual (pdf)

Read more less

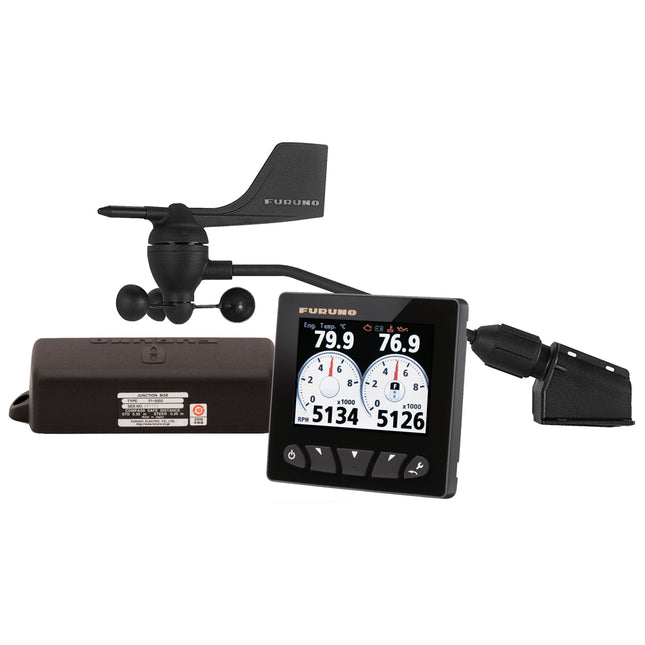

FI70 4.1" Color LCD Instrument/Data OrganizerThe FI70 Instrument/Data Organizer features a vibrant 4.1" color LCD screen. The screen is bonded for fog-free performance and is perfectly visible even in bright daylight. A variety of external sensors can be connected via the CAN bus network for simple and reliable operation. Display modes include: Heading, Wind, Engine, AIS, Graph, Timer, Highway, Nav Data, Rudder, Roll & Pitch, and more.The FI70 boasts an amazing user interface - almost anything can be customized. Conveniently choose the way you want information to be displayed, in a way that is most relevant to you.Features: tPerfect cosmetic match for NavNet TZtouch/TZtouch2 and NavPilot 711C Beautiful, vibrant 4.1" Color LCD tUse existing sensors with new analog IF-NMEAFI converter tLow power consumption (0.15 A max) tSimple AIS display through connected CAN bus devices This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Multifunction Box Dimensions: 3"H x 8"W x 16"L WT: 2.4 lbs UPC: 611679359315 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

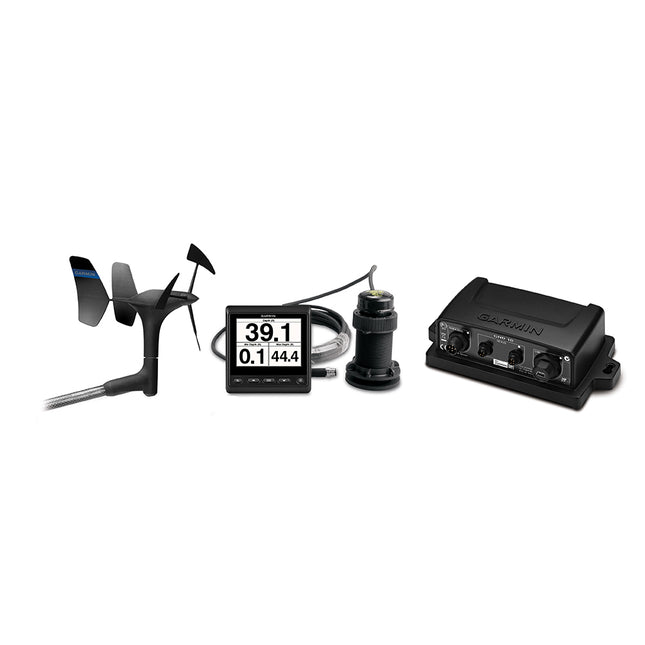

GMI™/GNX™ Wired Sail Pack 52 GMI™ 20, GNX™ 20, gWind™ Wired and DST810 transducersThe Information You Need to Make Confident Decisions Includes GMI™ 20 and GNX™ 20 marine instruments and gWind™ and Airmar DST810 transducer GMI 20 instrument has a highly visible bright 4” color glass-bonded lens display with anti-glare finish GNX 20 instrument has highly visible monochrome LCD displays gWind transducer features 3-bladed propeller and twin-fin design DST810 thru-hull smart transducer provides water depth, water speed and water temperature data – plus attitude sensing for heel/trim and pitch/roll inputs Wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app Know the Wind and WaterWith a GMI/GNX Wired Sail Pack 52, you’ll have all the equipment you need to know what’s going on with the wind and water.GMI 20 Marine InstrumentThe GMI 20 digital marine instrument display is perfectly designed for both power and sail. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4” color display with extra-large digits is easy to read at a distance and 170-degree viewing angle.A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll — cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.GNX 20 Marine InstrumentThe easy-to-read GNX 20 marine instrument display has black digits on a white or color background. It clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.gWind TransducergWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.Airmar DST810 Thru-hull Smart TransducerDST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000® network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.In The Box: gWind™ transducer GMI™ 20 marine instrument GNX™ 20 marine instrument GND™ 10 black box bridge Airmar DST810 thru-hull smart transducer 3 NMEA 2000® drop cable (2 m) NMEA 2000® power cable 5 NMEA 2000® T-connectors NMEA 2000® terminators Mast cable with female connector (25 meters) Nexus female field installable connector Mast bracket Mounting hardware Documentation The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Read more less

DSM570 5.7" High Resolution Color Display with Black EnclosureMaretron's DSM570 is a high-resolution sunlight viewable color display that allows easy interpretation of NMEA 2000® instrument and navigation data through custom display configurations, featuring an easy-to-use five-key illuminated keypad.Unlike traditional single-display units, DSM570 users can choose numeric, gauge, or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.The DSM570 will directly connect with any NMEA 2000® network and display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.The DSM570 displays a multitude of information including AC power, battery, depth, engine, environment, fuel management, GPS, heading, navigation, rudder, speed, tanks, time, transmission, weather, wind and more.The DSM570 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM570 is capable of monitoring. Available alert types include: High alert Low alert Data unavailable alert On alert Off alert Circuit breaker tripped alert Course alert GPS quality alert Outside radius alert Inside radius alert Direction alert Timer alert Maretron's DSM570 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance. Examples of data that the DSM570 can display are: AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current Anchor Watch Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power) Depth (Water Depth, Depth below Transducer) Electrical (Resistance) Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers) Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Ecomony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators) Environment (Barometer, Heat Index, Humidty, Temoperatures, Wind Chill) Fluid Flow (Flow Rate, Trip Volume) Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Renmaining) GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy) Heading (Heading, Rate of Turn, Variation) Humidity (Inside, Outside, User Defined Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers) Mechanical (dB, Force, Strain) Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity) Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name) Pressure / Vacuum Rudder SMS (Status, Signal Strength) Speed (Through Water, Over Ground, Total Log, Trip Log) Tanks (Capacity, Level, Remaining) Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight) Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators) Vessel (Heave, Pitch, Roll, Trim Tabs, Keel) Watermaker (Sea Recovery Status display) Wind (Apparent direction and speed, True direction and speed, Groud direction and speed) Specifications: Instrument Function: Multifunction Box Dimensions: 5"H x 7"W x 10"L WT: 2.15 lbs UPC: 873804004136 Brochure (pdf)

Read more less

i60 SeaTalkng Instruments - WindThe all-new i60 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i60 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i60 Analog Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.For the ultimate in flexibility the i60 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours. The ultra-sleek design of i60 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.i60 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i60 Instruments are waterproof to IPX6 standards. The i60 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.i60 Wind Instrument Full featured wind display for cruising and racing sailboats. The i60 Wind features an easy-to-read analog dial, nighttime red backlighting and high-contrast text and graphics. Compatible with Raymarine's masthead transducer (recommend for sailboats) or the Rotavecta transducer (recommended for powerboats) Displays wind speed, direction, Beaufort, max wind speed, VMG, and tack Alarms for high and low apparent wind angle, low true wind speed, and maximum true wind speed. Apparent wind display and True wind when integrated with a compass or autopilot, and speed instrument i60 Key Features Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems. Large, crisp LCD displays with high contrast for excellent visibility. Red backlighting for outstanding night-time visibility. SeaTalkng and SeaTalk-1 Networking for maximum flexibility. Fully compatible with i70, p70 and p70R Color Instruments and Autopilots. 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy Specifications: Shape: Square Instrument Function: Wind Box Dimensions: 4"H x 7"W x 10"L WT: 1.8 lbs UPC: 723193762851 Owner's Manual (pdf)

Read more less

Wireless Wind TransmitterFor the first time, you can have wind information without running cables down the mast. The Wind Transmitter measures Wind Speed and Direction and sends data to any Micronet display via a wireless link. It can be fitted (simple three-screw attachment) with the mast in place and makes un-stepping the mast easy too. Calibration for wind speed and direction is done at any display. Specifications: Instrument Function: Wind Box Dimensions: 4"H x 9"W x 20"L WT: 1.4 lbs UPC: 452359021630 Owner's Manual (pdf)

Read more less

Little Hawk MK 1 For Dinghies up to 6mThe Little Hawk Mk1 is a small, lightweight and robust Wind Indicator designed to be positioned at the top of the mast on dinghies up to 6m. Very popular with Optimists, the Little Hawk Mk1 is also ideal for any dinghy that wants accurate wind direction information with minimal weight and drag. The Vane Arm is made of super tough nylon is all but indestructible. The aluminum rod can be easily straightened if damaged or easily bent to any required angle. The whole unit is easily assembled straight from the box. Specifications: Vane Arm Length 16.5cm Height 28cm Weight 16 grams. Specifications: Type: Wind Indicator Instrument Function: Wind Box Dimensions: 1"H x 4"W x 12"L WT: 0.1 lbs UPC: 652773100403

Read more less

GNX™ Wired Sail Pack 43 Update Your Sailboat’s Electronics with 43 mm Transducers Includes GNX™ Wind and GNX 20 marine instruments, gWind™ Wired transducer plus GDT™ 43 and GST™ 43 transducers with 43 mm fittings and adapters for NMEA 2000® network sharing GNX Wind and GNX 20 instruments have highly visible glass-bonded monochrome LCD displays gWind transducer features twin-fin technology for True Wind Angle (TWA); 3-bladed propeller provides accurate wind speed in lighter air Accurate water depth, water speed, water temperature data and more Easy plug-and-play installation with NMEA 2000 network Update your sailboat’s electronics with the GNX Wired Sail Pack 43, which contains everything you need, including 43 mm transducer fittings for depth, temperature and water speed.GNX Wind InstrumentGNX Wind gives you the wind data necessary to make confident decisions. Featuring high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors, GNX Wind interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Customizable user settings allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. Using ANT® technology, GNX Wind connects with the gWind Wired transducer and to a compatible quatix® GPS marine smartwatch or a Garmin Nautix™ in-view display to stream wind data directly.gWind TransducergWind transducer offers an easy-to-install solution. Accurate wind signals are sent wirelessly via an ANT connection directly to a GNX Wind instrument or to a compatible GPSMAP® chartplotter. The transducer features renowned Nexus twin-fin technology with a 3-bladed propeller, providing accurate wind speed and stable wind angle in lighter wind conditions.GNX 20 Marine InstrumentThe easy-to-read GNX 20 display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters through the NMEA 2000 network. Customizable user settings allow you to choose from 5 available display configurations for sailboat or powerboat user profiles, including single, dual and triple function plus gauge and graph modes to display wind, depth and speed data. Or you can customize the pages to display the marine and boat data most important to you. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm. Uses only 25 mA with 350 mW daytime usage requiring no backlight and just 400 mW with a mid-level backlight setting at night.GDT 43 and GST 43 Transducers with 43 mm FittingsIf you already have 43 mm fittings for your thru-hull transducers, there’s no need to drill new holes. The bundle includes 43 mm thru-hull transducers, which can retrofit boats with existing Nexus® or Silva TH43 transducers. GST 43 is a speed and temperature transducer, and GDT 43 is a depth transducer. Addition of an NMEA 2000 adapter allows each GDT 43 transducer to share its data over the NMEA 2000 network to a compatible Garmin chartplotter or instrument display.In The Box gWind Wired transducer GNX™ 20 GNX Wind marine instrument GDT™ 43 with NMEA 2000® adapter GST™ 43 with GST 10 GND 10 NMEA 2000 drop cable (2 meters) NMEA 2000 T-connector Nexus female field installable connector Mast bracket Mounting hardware Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Instrument Function: Multifunction Box Dimensions: 8"H x 10"W x 27"L WT: 13.5 lbs UPC: 753759188177

Read more less

RD33 4.3" Color LCD Navigational Data OrganizerThe RD33 is a navigational data organizer that allows the operator to select the perfect way to display data from interfaced equipment such as GPS, chartplotter, radar, fish finder, autopilot, instruments and other sensors including engine information. The high contrast, color 4.3" LCD may be installed in a compact space, remote from its sources. The screen is impressively bright, remarkably crisp and easy to read. Various display modes are available including Speedometer, Highway and Text. The text mode presents up to six of the most necessary types of data. The display layout can be customized for your specific needs.This versatile product can also be added to a NavNet 3D system, displaying a variety of navigation data from the CAN bus network.The RD33 accepts a wide variety of navigation data and displays them in numerical and graphic formats. You may freely select and arrange which data is displayed on the screen. Furthermore, seven patterns of customized display set tings can be stored in the memory to give speedy access and convenience while onboard.The RD33 features a visually appealing fresh new look, combining easy access with user functionality. Thanks to the bright, high-resolution LCD, the RD33 provides an easy-to-read display to monitor information from remote equipment, through an intuitive graphical user interface.Features: 4.3" Sunlight Viewable color LCD (Brightness: 700 cd) Enhanced data legibility thanks to large characters and high resolution display Customizable display format from Full-screen to a 6-way split screen presentation Supports both CAN bus and NMEA0183 interfaces Two independent CAN bus input and output ports incorporated for daisy chain networking Internal NMEA0183/CAN bus conversion capability available Simultaneous alarm monitoring capabilities for Water Temp, Depth, Speed, Arrival, Anchor, XTE, Trip, Odometer, Timer and Countdown Timer, Roll & Pitch, Wind Speed, Wind Direction, and Battery This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Shape: Square Screen Size: 4.3" Instrument Function: Multifunction Box Dimensions: 7"H x 9"W x 9"L WT: 4.2 lbs UPC: 611679329455 Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

GNX™ Wired Sail Pack 52 GNX™ Wind, GNX™ 20, gWind™ Wired and DST810 transducersThe Information You Need to Make Confident Decisions Includes GNX Wind, gWind™ Wired, GNX™ 20 and Airmar DST810 transducer GNX Wind and GNX 20 instruments have highly visible monochrome LCD displays gWind Wired transducer features 3-bladed propeller and twin-fin design DST810 thru-hull smart transducer provides water depth, water speed and water temperature data – plus attitude sensing for heel/trim and pitch/roll inputs Wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app Easy plug-and-play installation between Nexus®, Garmin chartplotters, NMEA 2000® and USB Know the Wind and WaterWith a GNX Wind Wired Sail Pack, you will have all the equipment you need to know what’s going on with the wind and the water.GNX Wind Marine InstrumentGNX Wind gives you the wind data necessary to make confident decisions. Features high-visibility, glass-bonded backlit monochrome LCD display with customizable backlight colors. It also interfaces through the NMEA 2000 network to show 2 data fields and a digital wind rose simultaneously to display true and apparent wind data, steering guidance, boat speed and more. Low power consumption of 350 mW daylight (no backlight) and 400 mW nighttime (mid-level backlight) is perfect for sailboats. Fully customizable user profiles allow you to configure the screen layout to your preferred setting. Display configurations include more than 15 important marine parameters for wind, speed and navigation. It can even wirelessly connect to a quatix® 3 GPS marine smartwatch via ANT technology to stream wind data directly to your wrist.gWind Wired TransducergWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.GNX 20 Marine InstrumentThe easy-to-read GNX 20 marine instrument display with black digits on a white or color background clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.Airmar DST810 Thru-hull Smart TransducerDST810 combines precise depth, speed and temperature data with altitude sensing for heel/trim and pitch/roll inputs — which it provides to the NMEA 2000® network and GNX 20 instrument. This multisensor transducer can read depths to 330 feet, offers fast 5 Hz water speed signal output and has an operating frequency of 235 kHz with a fan-shaped beamwidth of 10x44 degrees. Additionally, wireless connectivity to devices with BLUETOOTH® technology enables DST810 calibration directly through Airmar’s Cast app. Advanced speed calibration allows for calibration at multiple heel angles and speeds.In The Box: gWind™ transducer GNX™ 20 marine instrument GNX™ Wind marine instrument GND™ 10 black box bridge Airmar DST810 thru-hull smart transducer 3 NMEA 2000® drop cable (2 meters) NMEA 2000® power cable 5 NMEA 2000 T-connectors NMEA 2000 terminators Mast cable with female connector (25 meters) Nexus female field installable connector Mast bracket Mounting hardware Documentation The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Owner's Manual (pdf)

Read more less

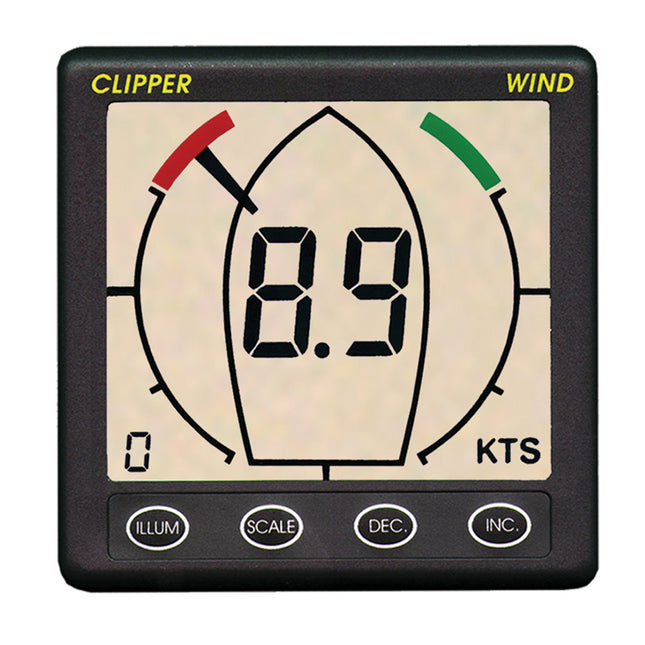

The Clipper Wind system shares the same 110mm square case as its sister instruments in the Clipper range. the display is exceptionally large and clear, with 60 segments for full 360 degree direction indication. Windspeed is shown in knots, M.P.H. or Metres/second. The pointer style is selectable, from the single segment shown above, to multi segments for greater clarity or a 'windex' style indicator. The Masthead unit is well proven and supplied with 20 metres of cable as standard.Technical Specifications: Supply voltage Nominal 12v DC Consumption, 50mA+ (25mA for display illumination max) Keypad adjustment of masthead alignment 7 levels of display backlighting Display case size 110 x 110 mm Depth behind panel 30mm Anemometer head 210 x 140mm 5 and 20 meter extension cables available Compatible with Standard Horizon CP180 and CP300 plotters This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Instrument Function: Wind Box Dimensions: 6"H x 11"W x 21"L WT: 5 lbs UPC: 797776914647 Owner's Manual (pdf)Brochure (pdf)

Read more less
