Marine Navigation & Instruments - NMEA Cables & Sensors

SpecificationsOverall Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1 Insulation Material: PE (data wires), PVC (power wires) Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)Power Pair Wire: 2x16 (1.29mm) AWG Resistance/Conductor: 4.1 Ohms/1000 ft max Max Amperage: 14 AmpsColor Code: Red/BlackData Pair Wire: 2x20 (0.81mm) (AWG) Characteristic Impedance: 120 Ohms +/- 10% Capacitance: 10.75 pF/ft Color Code: White/BlueApprovals UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approved IEC: IEC-61162-3 Specifications: Cable Length (Feet): 328' Box Dimensions: 11"H x 12"W x 12"L WT: 25 lbs UPC: 873804003030

Read more less

NMEA Adapter f/PCThe USB to NMEA Serial Adaptor cable is a simple and effective method for connecting NMEA 0183 compatible marine equipment to a PC. Each cable contains a small internal electronic circuit board, housed in the USB connector. This circuitry provides full bi-directional conversion of the serial data and also includes Tx and Rx LEDs which give a visual indication of data traffic on the cable. The other end of the cable is bare, tinned wire ended connections which can be quickly connected to the NMEA 0183 compatible equipment with suitable connector block or terminals. The cable is FCC, CE and RoHS compliant. The USB side of the cable is USB powered and USB 2.0 full speed compatible. Each cable is 1.8m long and supports a data transfer rate up to 1 Mbaud. Drivers are available for WinXP, Vista, Win7, LINUX and Mac OS X. Quick Guide (pdf)

Read more less

Backbone Cables In a SeaTalkng installation, a backbone cable runs through the length of the boat. Individual devices connect to the backbone by spur cables that run to T-pieces on the backbone. The backbone carries both data and power to attached devices. The backbone should be sized so that it will run past every location where an NG or NMEA 2000 device might be installed. Two backbone cable lengths can be joined together by part A06030, a backbone extender. Specifications: Cable Length (Feet): 30' Box Dimensions: 1"H x 7"W x 9"L WT: 0.95 lbs UPC: 091975004841

Read more less

Clipper NMEA 2000 Compliant Wind SystemThe Wind System consists of the version 2 mast head sensor and a small translator box, the box is fitted with a ‘micro-c’ connector which plugs directly into an existing NMEA 2000 network.NMEA 2000 Compliant Wind system is supplied complete with masthead unit, 20 meters of cable, mast head unit mounting hardware and the translator box with Micro C connector cable.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)

Read more less

NMEA 2000 Single Tee ConnectorAncor's NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.Features: Color coded for easy installation and component identification NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers' products WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 3"W x 5"L WT: 0.2 lbs UPC: 091887982268 Brochure (pdf)

Read more less

NMEA 2000 Starter Cable KitNearly every new marine electronics product has an NMEA2000 interface now, but it is still “black magic” to many boat owners and even fairly technical users struggle to understand NMEA2000 and what is needed to make products work correctly together.With Digtial Yacht's large range of AIS, often the first add-on device to make a boat owner think about NMEA2000, we are regularly asked “what do I need to make it work?” This prompted Digital Yacht to create a cost effective and smart NMEA2000 Starter Kit that is ideal for smaller boats but can also be easily expanded in the future.There are other starter kits on the market, but none offer three device connection, metal connectors and a smart 4-Way T-Piece at such a good price.By utilizing the NMEA2000 standard “Micro C” type connectors, users can easily add and expand to this Starter Kit as their installation grows or simply buy two or more kits for a larger install, still cheaper than buying the parts separately.Features: Everything you need in one box Smart 4-Way T-Piece “Backbone” 1M (3') Power Cable with in-line fuse 1M (3') “Drop Cable” Pair of removable network terminators Allows three devices to be connected Standard “Micro C” connectors make it very easy for future network expansion Metal connectors and reduced T-Piece connections, improve reliability Specifications: Data Interface: NMEA 2000 Box Dimensions: 2"H x 6"W x 7"L WT: 0.6 lbs UPC: 081159830670

Read more less

Multiport boxes allow several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. Multiport boxes connect back to the trunk through a double-ended cordset and Tee. Ideal for consolidating many connections; for example behind dashboards Requires the purchase of an additional double-ended cordset for connection back to the trunkWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

NMEA 2000 Blanking Cap - MaleCovers unused couplers. Protects unused tee connectors from dust and water. Comes in a 2-Pack.WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Connection Gender: Male Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 5"L WT: 0.05 lbs UPC: 091887982374

Read more less

Fuel Flow Sensor - 25-500 LPH/6.6-132 GPHFeatures: Operating Temperature: -40°C to 80°C (-40°F to 176°F) Storage Temperature: -65°C to 170°C (-85°F to 338°F) Port Size: 1/4" NPT Female Cable Length: 1M (3.28 ft) Maximum Viscosity: 1000 cPs Pressure: 68.95 Bar (1000 PSI) Strainer Size: 200 Mesh (If not already installed after fuel filter) WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Read more less

NMEA 2000 right angle cableWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 6' Data Interface: NMEA 2000 Box Dimensions: 1"H x 4"W x 5"L WT: 0.4 lbs UPC: 753759078270

Read more less

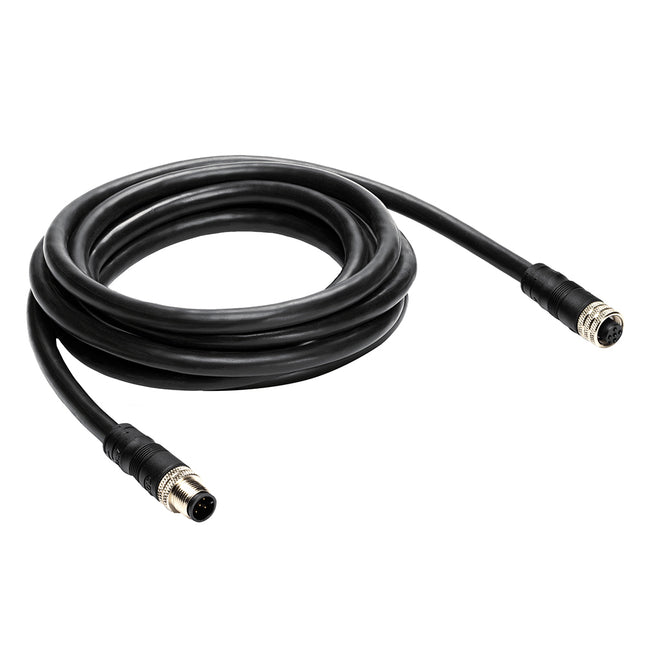

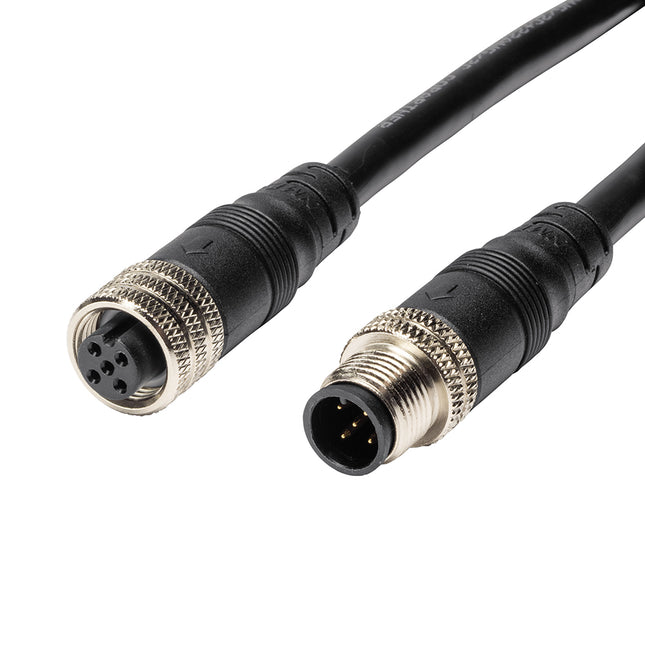

NMEA 2000 3M Drop CableThis Digital Yacht cable is a 3m (9ft) NMEA 2000 drop cable made of metal connectors for maximum reliability. The drop cable allows users to expand the NMEA 2000 to whatever size is needed.*Digital Yacht “Drop Cables” can also be used as backbone cables and are easily connected to make any length of backbone cable required. Also, the total length of all drop cables must be less than 76m.Features: 3m (9ft) NMEA 2000 Drop Cable Standard “Micro C” connectors make it very easy for future network expansion Metal connectors improve reliability Waterproof rating IP68 Specifications: Cable Length (Feet): 9' Box Dimensions: 1"H x 6"W x 8"L WT: 0.4 lbs UPC: 703791696345 Quick Guide (pdf)

Read more less

NMEA 2000® Multi-Port T-ConnectorMake NMEA 2000 installations easier with our multi-port T-connector. This solution creates a more robust NMEA 2000 backbone by reducing issues with breaking points as well as stress induced by long back bones. The rigid construction is less prone to failure and decreases installation time.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Data Interface: NMEA 2000 Box Dimensions: 1"H x 3"W x 4"L WT: 0.5 lbs UPC: 753759182311
