DFF1UHD+ TruEcho CHIRP™ Fishfinder with Side-Scan Black Box SounderAdvanced CHIRP Technology Meets Maximum VersatilityThe DFF1UHD+ succeeds the BBDS1 and DFF1-UHD, offering superior performance, modern connectivity, and capabilities not found in previous generations.Combining TruEcho CHIRP™ technology, CHIRP Side-Scan capability, and broad transducer compatibility, the DFF1UHD+ sets a new benchmark for high-performance fish finding. Its compact design and seamless integration with NavNet TZtouchXL make it an ideal solution for both new installations and system upgrades. Built for versatility and future expansion, the DFF1UHD+ delivers the clarity, range, and flexibility professional anglers and serious boaters demand from their marine electronics.Next Generation Fishing And Navigation Solution for NavNet TZtouchXLThe DFF1UHD+ is a powerful multi-channel network Fish Finder designed for seamless integration with NavNet TZtouchXL, the perfect addition for helms featuring the TZT22X, TZT24X, or Black Box TZTBBX. The DFF1UHD+ combines up to 1 kW of CW and CHIRP Fish Finder power with 230 kHz or 455 kHz CHIRP Side-Scan in a single compact unit, delivering enhanced performance and versatility. Color-coded, waterproof connectors and a compact design allow for a simple installation.Advanced Fishfinder Features: Compatible with 300/600 W or 1 kW Transducer (Matching box MB1100 required for some CW transducers) Display Range from 6 to 4,000 feet Modes: ACCU-FISH™*, A-Scope, Manual Gain, Auto Gain (Fishing/Cruising), TruEcho CHIRP™, Bottom Discrimination (Compatible transducer required) 8-Step Picture Advance: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop Fish Finder Alarms: Fish School, Fish School for bottom lock CHIRP Side-Scan Features: CHIRP at 230 kHz or 455 kHz center frequency Display range up to 750 feet to each side View CHIRP Side-Scan in full screen, 1/2 screen, 1/3 screen, 1/4 screen, and 1/6 screen Eight CHIRP Side-Scan display colors Features: Combines CW, TruEcho CHIRP™, and CHIRP Side-Scan into a single compact black box solution. Features CHIRP Side-Scan capability at either 230 kHz or 455 kHz (depending on transducer), with a range of up to 750 feet. Offers advanced modes: ACCU-FISH™*, Bottom Discrimination*, Manual and Auto Gain, and A-Scope, delivering exceptional clarity and definition *(feature compatible transducer required)  Flexible Display Layouts: Choose from full screen, split screen, and multi-pane layouts: 1/2, 1/3, 1/4, and 1/6 screen formats, with eight CHIRP Side-Scan color options. Over 60% smaller than the DFF1-UHD and nearly 50% smaller than the BBDS1, making it ideal for installations in tight spaces. Specifications: Display Size: Black Box Display Type: Black Box Power Usage: 12-24 VDC Range: 4,000' Power Output: 150 W or 300 W or 600 W or 1 kW Sonar connectors: Blue sonar connector - 12 pin, Yellow Sonar connector for Chirp Side Scan 12 pin Frequency: CW 50-200 kHz and CHIRP 40-225 kHz and CHIRP Side-Scan 230 or 455 kHz A Variety of Transducer Combinations:There are a variety of available transducer combinations to meet the needs of any vessel:Without Side-Scan: Single CHIRP Dual CHIRP Single CW Single Mid-CHIRP and CW With Side-Scan: Single CHIRP and CHIRP Side-Scan Single CW and CHIRP Side-Scan Brochure (pdf)

Read more less

GSD™ 24 Digital Black Box Network SounderThe GSD 24 features a vastly improved digital sonar design for superior target definition and deep-water performance.Get the Whole PictureWith up to 2,000 Watts of transmit power and a high-dynamic range receiver, the GSD 24 brings high-definition imaging to your compatible Garmin chartplotter. The system is dual frequency (50/200 kHz) capable and offers selectable transmit power (600 W, 1 kW and 2 kW, depending on transducer) for pin-point accuracy at depths of up to 5,000 ft (1,500 m). So whether you're out sportfishing or just keeping an eye on hazardous terrain and reef structures beneath your boat, you'll see a clearer picture with enhanced separation of images and deeper bottom detection.Plug and PlayThanks to the easy connectivity of the Garmin Marine Network, installation of the GSD 24 is a snap. Once connected, your sonar data will be shared on any compatible chartplotter on the network. Plus, the network's high-speed connections ensure that you get ultra-fast screen updates with minimal delay.Product Features and Specifications Improved digital sonar design provides extraordinary target definition and deep water performance Selectable transmit power from 600W, 1kW and 2kW Discrete 50kHz and 200kHz frequencies Current GSD 22 users can upgrade to a GSD 24 with the included adapter -V users will notice improved performance after upgrading¹ Dimensions: 10.85" L x 8.03" W x 3.22" H (27.56 x 20.40 x 8.18 cm) Weight: 4.22 lbs (1.9 kg) Waterproof IPX 7 standards ¹ Please Note: The GSD 24 is only compatible with GPSMAP® 4000, 5000, 6000, 7000, 8000 series.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)

Read more less

Axiom 2XL 16 with RVM1600 Sonar ModuleAxiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.Features: A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms. Get underway faster with a fast 6-core processor HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening Create your glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience HDMI output for connecting to remote monitors or HDTVs HDMI input and USB touchscreen input for remote PC integration Analog audio output for integrating with marine entertainment systems Easy to upgrade with the same mounting footprint as Axiom XL Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules NMEA 2000 port Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage RVM1600 Sonar ModuleThe next generation of DownVision, SideVision, 3D, and conventional CHIRP sonar, RealVision MAX, delivers vivid sonar imagery and fish targets like never before. RealVision MAX starts with all-new high-performance RealVision CHIRP transducers, upgraded with larger elements and increased power output for extended-range performance. Next, RealVision MAX signal processing and faster ping rates improve visual fidelity and target identification. With RealVision MAX, the structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.Features: RayNet network compatible with all Axiom displays running LightHouse 4.3 or higher Employs the same RealVision MAX sonar technology built into the new Axiom 2 Pro RVM chartplotters RealVision MAX sonar processing, combined with faster ping rates, delivers superior fish finding in CHIRP, Side, Down, and RealVision channels. RealVision MAX high contrast color palettes provide better visibility of fish and structure. The more powerful 600-watt traditional CHIRP frequency of RealVision MAX transducers provides a deeper sonar range, reducing the need for additional transducers. RealVision 3D provides accurate target location to help pinpoint that elusive wreck or set up the perfect drift. Support for 1kW Airmar CHIRP transducers enables fishing in waters up to 3,000ft (914 meters). Multi-Channel Fishfinder: CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail. CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars. RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure RealVision MAX Transducers:RealVision MAX transom mount and through hull transducer provide DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600.  RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion. A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.

Read more less

LiveScope™ Plus System with GLS 10™ & LVS34 TransducerTHE BEST OF THE BEST JUST GOT BETTERThe latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images, and better target separation.Features: See images clearly with improved screen clarity, transducer sensitivity, and target separation.  Scan surroundings with sharper images, reduced noise, and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.   Get maximum contrast and clarity in your images with vivid color palettes.  Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount. Real-Time ImagesReal-time sonar ensures that your live images are as accurate as possible. Clear VisionSee exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure. Image StabilizationA built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions. Vivid Color PalettesChoose from seven vivid color options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity. Forward ModeScout ahead of your boat to see what’s happening in real-time. Down ModeExplore live views of the activity directly beneath your boat. Perspective ModeSee under the water with a view from your perspective above the water.In The Box: LiveScope GLS 10 sonar black box Panoptix LVS34 transducer Perspective mount Trolling motor barrel mount Shaft mount Power cable 2 meter Garmin Marine Network cable (small connector) Network adapter cable Documentation Brochure (pdf)

Read more less

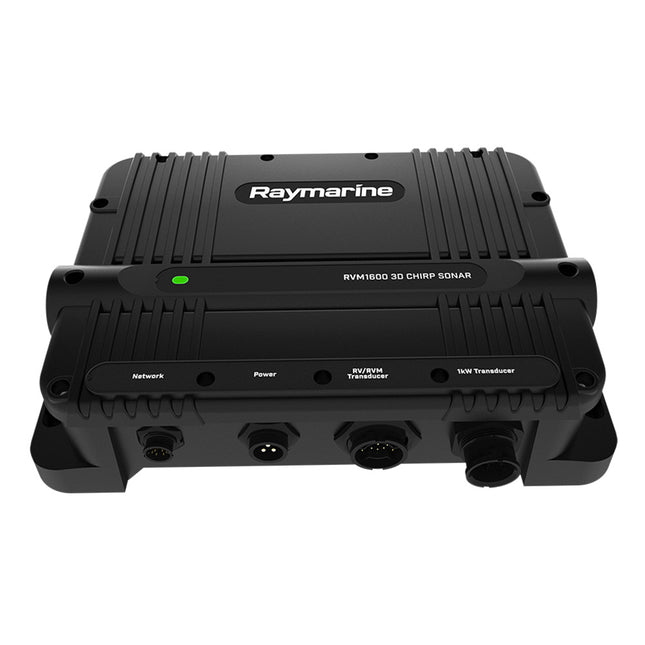

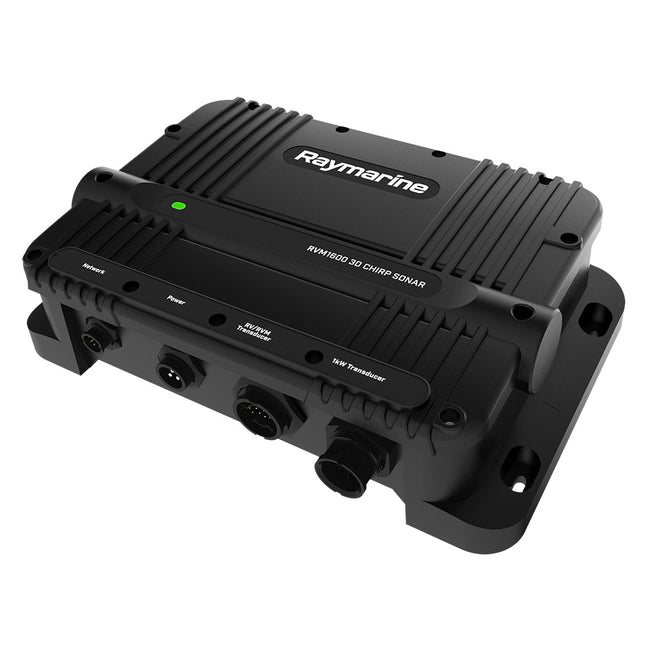

RVM1600 Fishfinder Module with RealVision MaxThe next generation of DownVision, SideVision, 3D, and conventional CHIRP sonar, RealVision MAX, delivers vivid sonar imagery and fish targets like never before. RealVision MAX starts with all-new high-performance RealVision CHIRP transducers, upgraded with larger elements and increased power output for extended-range performance. Next, RealVision MAX signal processing and faster ping rates improve visual fidelity and target identification. With RealVision MAX, the structure is more recognizable, and the most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes.Features: RayNet network compatible with all Axiom displays running LightHouse 4.3 or higher Employs the same RealVision MAX sonar technology built into the new Axiom 2 Pro RVM chartplotters RealVision MAX sonar processing, combined with faster ping rates, delivers superior fish finding in CHIRP, Side, Down, and RealVision channels. RealVision MAX high contrast color palettes provide better visibility of fish and structure. The more powerful 600-watt traditional CHIRP frequency of RealVision MAX transducers provides a deeper sonar range, reducing the need for additional transducers. RealVision 3D provides accurate target location to help pinpoint that elusive wreck or set up the perfect drift. Support for 1kW Airmar CHIRP transducers enables fishing in waters up to 3,000ft (914 meters). Multi-Channel Fishfinder: CHIRP DownVision® delivers a photo-like fish finder view of the world beneath your boat. See bottom structures and fish targets with amazing detail. CHIRP SideVision® sonar expands your underwater horizon with full port and starboard coverage of fish, bait, and underwater structure. See further and see more fish than traditional side scanning sonars. RealVision MAX 3D fish finder lets anglers see below, behind, and to the sides of the boat. Get a new perspective of the underwater world that simplifies locating and staying on structure RealVision MAX Transducers:RealVision MAX transom mount and through hull transducer provide DownVision™, SideVision™, 600-Watt High CHIRP, and 3D sonar capability to the RVM1600.  RealVision MAX transducers feature a built-in attitude and heading reference system (AHRS) for stabilizing 3D sonar imagery and automatically compensating for vessel motion.  A fast-response built-in water temperature sensor provides quick and accurate sea temperature readings.What's In The Box? RVM1600 3D CHIRP sonar module Power cable 1.5 m (4.9 ft) RayNet (female) to RayNet (female) network cable 2 m (6.6 ft) Documentation Mounting screws M4.5 x 20 (x 4)

Read more less

CP470 CHIRP™ Sonar ModuleHigh-Performance Sonar Module For Offshore and Coastal FishingCHIRP Sonar ModuleEngineered for serious anglers, the CP470 sonar module bring best-in-class target separation and high resolution CHIRP sonar imagery to Raymarine multifunction displays. Using a wide spectrum of frequencies and greater sensitivity the CP470's advanced CHIRP transceiver can see through dense schools of baitfish, identify thermoclines, and simultaneously target desired game fish. Rated for offshore use and rough conditions, the CP470 intelligently filters out unwanted noise while producing high resolution fish targets and reliable bottom tracking.Serious Offshore SonarSuperior target definition and enhanced sensitivity using Raymarine's exclusive wide spectrum CHIRP sonar technology. Target fish, identify bait, and track the sea floor down to 10,000' (3,000M) with two adjustable CHIRP sonar channels.Stunning Detail & ClarityWith 10 times the resolution of ordinary sonars the CP470 delivers sharper, more defined fish targets and automatically filter out unwanted noise so you never miss the action below.TruZoom™ magnification mode reveals extra target detail without any loss of resolution.Easy To CustomiseChoose optional low, medium, and high CHIRP frequency transducers in standard or wide-beam to match your fishing preferences.The CP470 automatically recognizes connected transducers and adjust sonar parameters for optimized performanceView and control each CHIRP channel independently and create your own combination of full or split screen sonar windows on Raymarine's LightHouse II powered multifunction displays.Features TruZoom™TruZoom™ provides magnified views of fish targets, bottom structure, and baitfish without loss of resolution as seen by traditional sonar Automatic transducer identification with Airmar Xducer ID Airmar Wide Beam transducer compatible Waterproofing Standard:IPX6 waterproof rugged aluminum enclosure Compatibility:aSeries | cSeries | eSeries | gS Series Nominal Supply Voltage:12/24 V DC Power Consumption: 30.6W (Maximum) Connections:Power connection | Network connection (RayNet connector) 10/100 Mb/s | Transducer connection Sonar Performance Sonar Type: Wide Spectrum CHIRP Power:1kW / 2kW depending on transducer Frequency & Channels:Dual independent CHIRP channels from 25 to 250kHz Depth Range:10,000' (3,000M) Brochure (pdf)

Read more less

DFF3D Multi-Beam Sonar for NavNet TZtouch & TZtouch2Turn your NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time. The DFF3D gives you real-time 120 port-starboard view of the water column and seabed in over 650 feet. The DFF3D allows you to explore fishing spots and find fish in deep water far faster than conventional single beam sounders. The main beam penetrates right under the boat at a depth of over 1,000 feet, depending on water conditions. Installation is made easy thanks to a compact transducer design. The built-in motion sensor in the transducer stabilizes the display to give clear and stable images, even under rough sea conditions.Cross-Section displays the real-time sea column echo in 120 degrees port and starboard. This mode aids in instantly understanding the distribution of bait fish and water column conditions.The 3D Sounder History provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons. This mode is useful in a variety of situations, such as selecting fishing hotspots and assessing the seabed condition.A single (directly under the boat) or triple-direction (middle, left and right) fish finder image can be displayed. The triple beam display helps to understand the depth of fish targets and the seabed condition in each direction, as well as the direction target fish are moving. Each beam angle and beam width are selectable.Side scan clearly displays the shape of structure as a high definition image in port and starboard direction. It is suitable for searching the seabed and understanding sea floor structure.Features: Sidebar detection range is over 650 ft (200 m) in a 120-degree swath port and starboard direction Deep water, main beam penetration directly under the boat is over 1,000 ft. (350 m), depending on water conditions Rich set of menus in each display mode The built-in motion sensor (standard supply) stabilizes the display to give clear and stable images even under rough sea conditions Thru-hull or Transom mount transducers available Customize the display according to your needs - Depending on the situation and preference, a combination of screen modes can be displayed This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

DFF3-UHD High-Power TruEcho CHIRP Black Box Fishfinder for NavNet TZouch3 & NavNet TZtouch2 TZT2BBGo deeper with more power than you thought was possible. The DFF3-UHD High-Powered TruEcho CHIRP Fish Finder delivers the ability to see fish and bottom structures deeper and clearer than ever before. Furuno’s superior digital signal processing interprets the echoes from fish and underwater structures with unparalleled clarity, accuracy, and resolution at unprecedented depths - we're talking depths down to 15,000 feet! Capable of transmitting across Low, Medium, and High CHIRP ranges, its high power output translates directly into greater resolution and depth capability than a comparably powered standard Fish Finder.Plenty of power and a wide frequency range to Go Deep! The DFF3-UHD provides an incredible 2kW or 3kW of power to a compatible broadband transducer, transmitting across a spectrum of frequencies to ensure that the echo returns on your display come back sharp and clear at every range. Gathering more and higher-quality data than traditional high-power CW Fish Finders, the DFF3-UHD provides significant advantages in signal clarity and target definition. This helps you find more of your target species, game fish and baitfish, even when they are tightly schooled together or near the seafloor. The DFF3-UHD transmits and receives pulses across a combination of Low, Medium, or High frequency ranges with each transmission, showing returns from bait balls and individual fish targets virtually anywhere in the water column.Features: 2kW or 3kW Power Output Transmits across Low, Medium, and High CHIRP frequency ranges High Power = greater resolution and depth capability at all ranges Compatible with NavNet TZtouch3 as well as NavNet TZtouch2 TZT2BB Black Box MFD Gathers more expansive and higher-quality data than comparable tone pulse Fish Finders Find and catch more of your target species, game fish and baitfish, even when they're tightly schooled or near the seafloor A-Scope feature and programmable Fish, Depth, or Temp Alarms Enhanced automatic cruising or fishing modes to suit your style of boating Specifications: Frequency: CHIRP 25-242kHz Power Usage: 12-24VDC Power Output: 2kW-3kW Range: 5000M This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)

Read more less

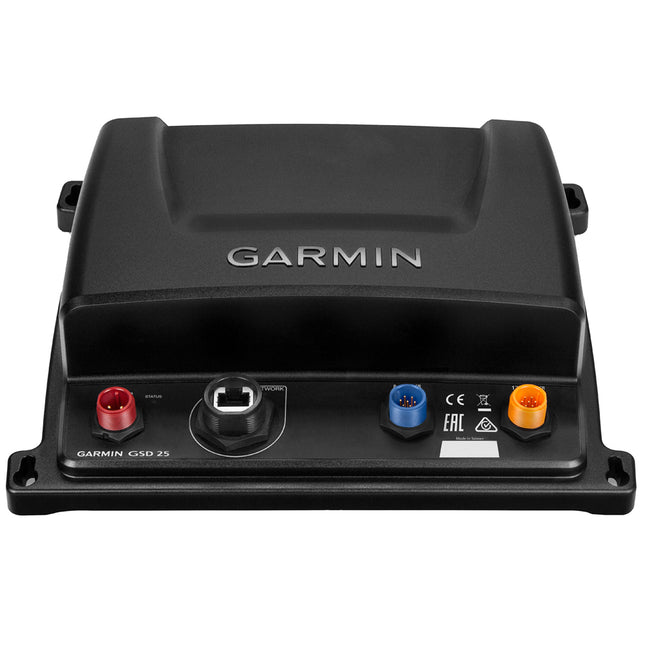

GSD™ 25 Premium Sonar ModuleThe GSD 25 premium sonar module is a remote network solution that provides outstanding fishfinding and bottom tracking capabilities. It offers dual-channel 1 kW CHIRP, plus Garmin CHIRP DownVü and SideVü sonar scanning for the clearest scanning images on the water. The images sent to your compatible Garmin chartplotter have target details so clear and precise, you can actually distinguish between small and closely spaced fish at key fishing depths all the way down to 5,000 feet.For the serious offshore sportfisherman, this "one-box" remote network sonar solution provides outstanding fishfinding and depth sounder capabilities for vessels with networked MFD installations.True Dual-Channel 1kW CHIRPCHIRP is the most sophisticated sonar technology available for use by the fishing and boating public. CHIRP is an acronym for Compressed High-Intensity Radiated Pulse. What it means to you is much better target resolution, clarity and crispness than any other sonar system. Having Garmin true dual 1 kW CHIRP as your traditional sonar allows you to adjust CHIRP frequencies to low/medium, low/high, medium/high to further optimize your sonar performance. Transducer sold separately.Clearest Scanning Sonar Images on the WaterAdding CHIRP technology to DownV resolution, target separation and clarity of the sonar images of fish and structure that pass below and to the sides of your boat. Built-in to our new GPSMAP xsv combos and GSD 25 Premium Sonar Module, it uses 1 transducer for traditional CHIRP HD-ID sonar and CHIRP DownVü and SideVü scanning sonar. Transducer sold separately.Choose a Garmin TransducerThis sonar is so unique Garmin has developed their own proprietary transducers that are specially designed to work with the sonar to provide the very best performance.Features: Offers dual-channel 1kW CHIRP SideVü and DownVü sonar scanning for the clearest images on the water Target detail so precise you can actually distinguish between small and closely spaced fish at key fishing depths Depth capability to 5,000 feet Compatible Devices: GPSMAP® 8000 Glass Helm Series GPSMAP® 7400/7600 Series Displays In The Box GSD 25 Right-angle power cable (6 feet) Right-angle network cable (6 feet) Mounting hardware Documentation ConnectionsTransducer pin numbers: 8 Pin and 12 PinWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Brochure (pdf)

Read more less

CP370 Digital Sonar ModuleHigh-Performance Sonar Module for Offshore & Coastal FishingDigital Sonar ModuleThe CP370 delivers exceptional clarity, sharper fish targets, and automatic operation using Raymarine's next-generation ClearPulse™ digital sonar processing.The CP370 boasts up to 1,000 watts of power and operates at 200kHz for inshore and 50kHz for offshore fishing.ClearPulse™ signal processing intelligently manages the CP370 sonar parameters in all conditions so anglers can spend more time fishing and less time adjusting the sonar.Sharper, Clutter Free TargetsSpend less time looking for fish and more time fishing Smarter target intensity controls reveal bait and game fish with exceptional clarity Enhanced digital filtering reveals fish targets through the entire water column Spend less time looking for fish, and more time fishing. CP370 takes the guesswork out of interpreting the sonar display Go DeeperNext generation ClearPulse™ sonar Up to 1,000 watts of power to track the sea floor down to 5,000 feet (1,500m) High performance dual-frequency (50/200 kHz) sonar for coastal and offshore fishing Accurate Bottom TrackingImproved bottom tracking Track the bottom in extreme conditions with advance ClearPulse™ signal processing Improved bottom tracking algorithms deliver reliable performance in challenging conditions like running at high speeds and transitioning across canyons Features: Recommended for Coastal Fishing Sonar Type: Digital Power: 600W/1000W depending on transducer Frequency & Channels: Fixed frequency 50kHz and 200kHz channels Depth Range: 5000 ft. (1,500m) Features ClearPulse™ automatic noise filtering and auto sensitivity control Standard Zoom IPX6 waterproof 12/24VDC 30.6W Maximum
